S5710-52C-EI

S5710-52C-EI

Huawei S5710-52C-EI switch supports 48 1000BASE-T ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots

SKU: 11403 PN: 2353169 Category: Tags: , ,

Description

S5710-52C-EI Overview

Huawei S5710-52C-EI switch supports 48 1000BASE-T ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots, wihtout power module

Huawei Quidway S5700 series gigabit enterprise switches is designed for high-bandwidth access and Ethernet aggregation. Huawei Quidway S5700 can be used in various campus network scenarios: access switch, aggregation switch, gigabit access switch in Internet data center, or desktop switch to provide 1000 Mbps access for terminals.

S5710-52C-EI Quick Specs

48 10/100/1000BASE-T ports, 4 10GE SFP+ ports

Forwarding performance is 156Mpps

Switching capacity is 256Gbps/2.56Tbps

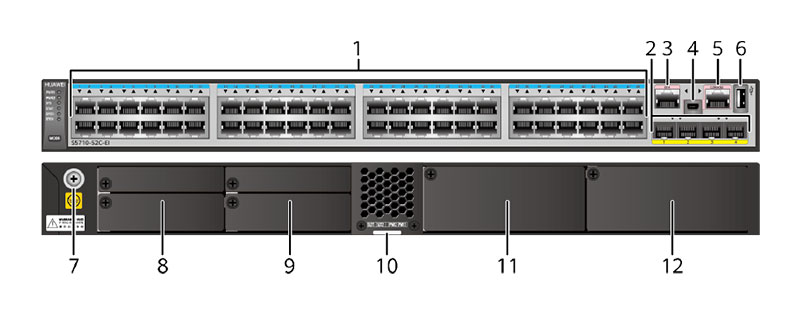

S5710-52C-EI appearance and structure

S5710-52C-EI appearance and structure

1 Forty-eight 10/100/1000BASE-T ports 7 One PNP button
2 Four 10GE SFP+ ports 8 Ground screw
3 One console port 9 Rear card slot 1
4 One ETH management port 10 Rear card slot 2
5 One USB port 11 Power module slot 1
6 ESN label 12 Power module slot 2
S5710-52C-EI Datasheet
Item S5710-52C-EI
Fixed port Forty-eight 10/100/1000BASE-T ports, 4 10GE SFP+ ports
Memory (RAM) 512 MB
Flash V200R001: 64 MB; V200R002 and later versions: 200 MB
Mean time between failures(MTBF) 45.57 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode; Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Service port surge protection Common mode: ±2 kV
Stack ports Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card
Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-36 V DC to -72 V DC

Maximum power consumption

(100% throughput, full speed of fans)

146.9 W
Certification EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420.0 mm
Weight (with packaging) 8 kg

Additional information

Weight 8.0000 kg
Dimensions 59.0000 × 55.5000 × 12.0000 cm
