Huawei S5710-52X-LI-AC switch supports 48 1000BASE-T ports, 4 10GE SFP+ ports, 1 AC power module equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5710-52X-LI-AC Overview



Huawei S5710-52X-LI-AC switch with 48 1000BASE-T ports, 4 10GE SFP+ ports, and 1 AC power module equipped

Huawei Quidway S5700 series gigabit enterprise switches are designed for high-bandwidth access and Ethernet aggregation. Huawei Quidway S5700 can be used in various campus network scenarios: access switch, aggregation switch, gigabit access switch in the Internet data center, or desktop switch to provide 1000 Mbps access for terminals.



S5710-52X-LI-AC Quick Specs



48 10/100/1000BASE-T ports

4 10GE SFP+ ports

Forwarding performance: 192Mpps

Switching capacity: 256Gbps/2.56Tbps

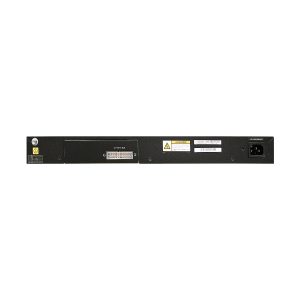

S5710-52X-LI-AC appearance and structure





1 Forty-eight 10/100/1000BASE-T ports 6 Ground screw
2 Four 10GE SFP+ ports 7 RPS socket
3 One ETH management port 8 Jack for AC power cable locking strap
4 One console port 9 AC socket
5 One USB port
Show More Show Less
S5710-52X-LI-AC Datasheet

Item S5710-52X-LI-AC
Memory (RAM) 512 MB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 86.64 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight (with packaging) 5 kg (11.02 lb)
Stack ports Four uplink 10GE SFP+ ports
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 54.7 W
Typical power consumption (30% of traffic load) 34.4 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 50.2 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02350GEN

Additional information

Weight 8 kg
Dimensions 59 × 55 × 12 cm
Campus Switch

Brand

Huawei
S5710-52X-LI-AC Datasheet

Item S5710-52X-LI-AC
Memory (RAM) 512 MB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 86.64 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight (with packaging) 5 kg (11.02 lb)
Stack ports Four uplink 10GE SFP+ ports
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 54.7 W
Typical power consumption (30% of traffic load) 34.4 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 50.2 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02350GEN
