S5720-50X-EI-AC
S5720-50X-EI-AC
S5720-50X-EI-AC
S5720-50X-EI-AC
S5720-50X-EI-AC
S5720-50X-EI-AC
S5720-50X-EI-AC
Categories:

S5720-50X-EI-AC

1 Review Write a review
PN2359592
Brands
AvailabilityIn Stock
Campus Switch S5720-EI
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-50X-EI-AC switch supports 46 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports, fixed AC power, supports RPS

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description


Warning: Undefined array key 1 in /www/wwwroot/wordpress/wp-content/themes/loobek/functions.php on line 1898

Deprecated: basename(): Passing null to parameter #1 ($path) of type string is deprecated in /www/wwwroot/wordpress/wp-content/themes/loobek/functions.php on line 1901

S5720-50X-EI-AC overview

This Huawei switch comes with 46 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports, fixed DC power, supports RPS, which is one of the S5720s series switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.



S5720-50X-EI-AC quick specs

46 10/100/1000BASE-T ports

4 10GE SFP+ ports

2 QSFP+ dedicated stack ports

fixed AC power

supports RPS

Forwarding performance is 129 Mpps

Switching capacity is 598 Gbit/s

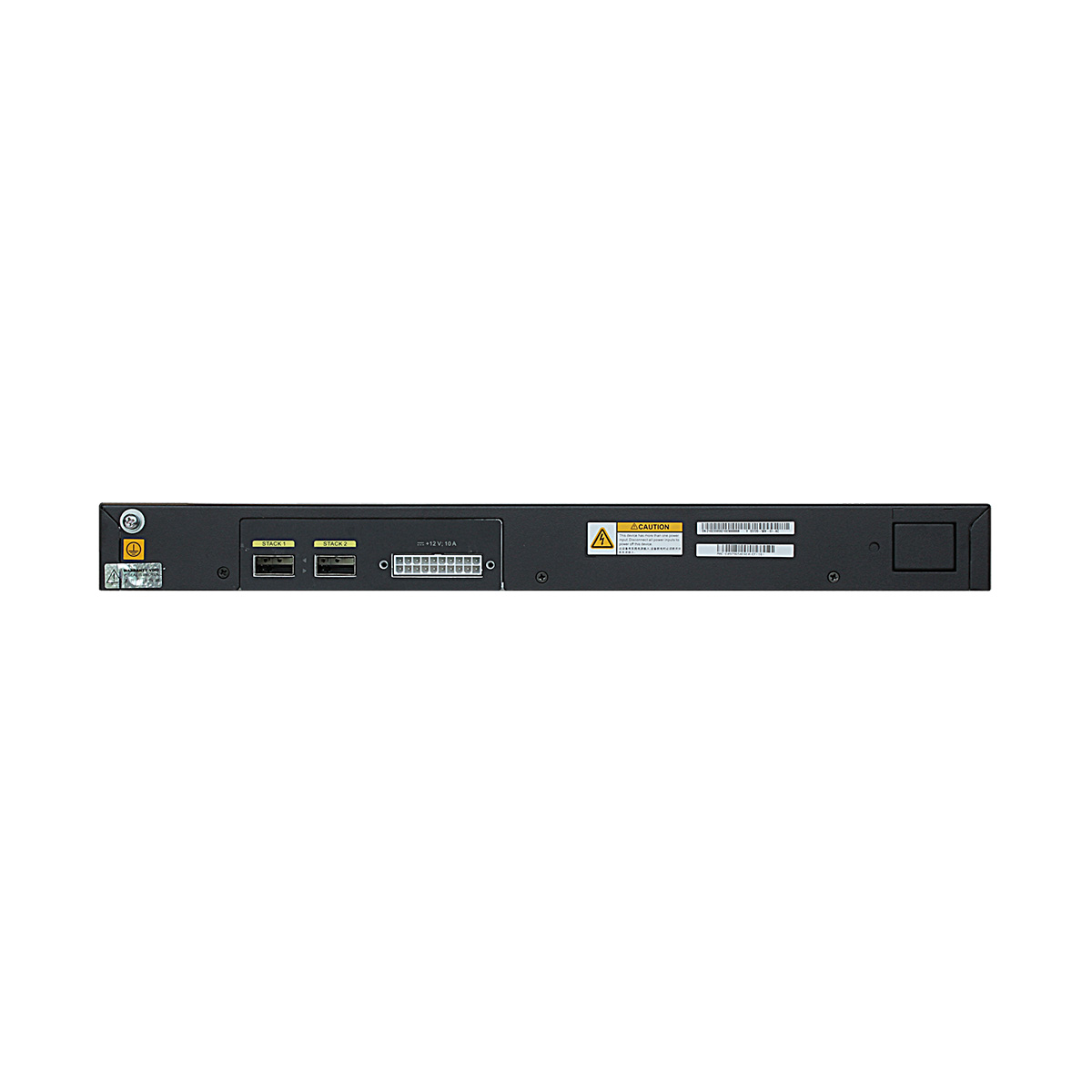

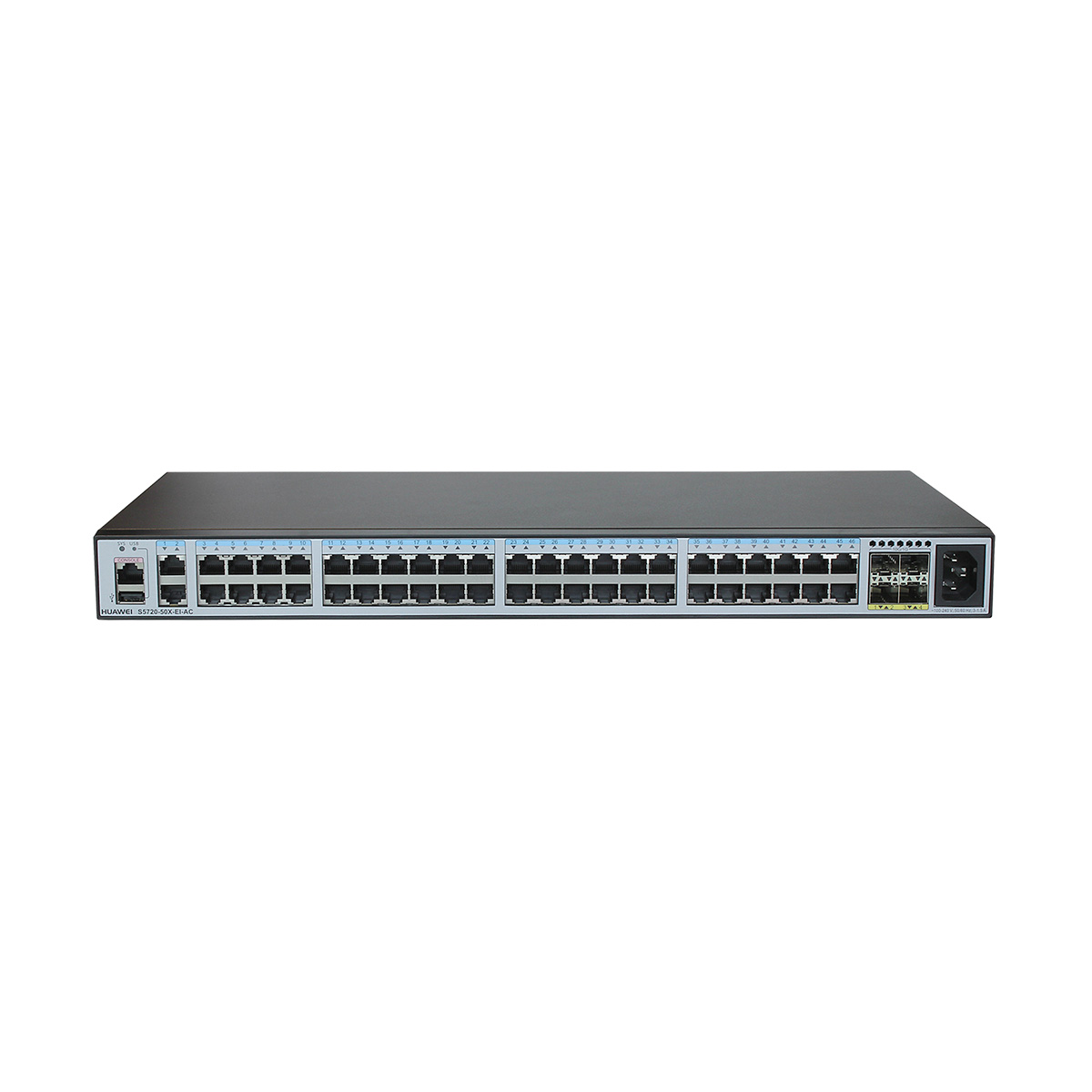

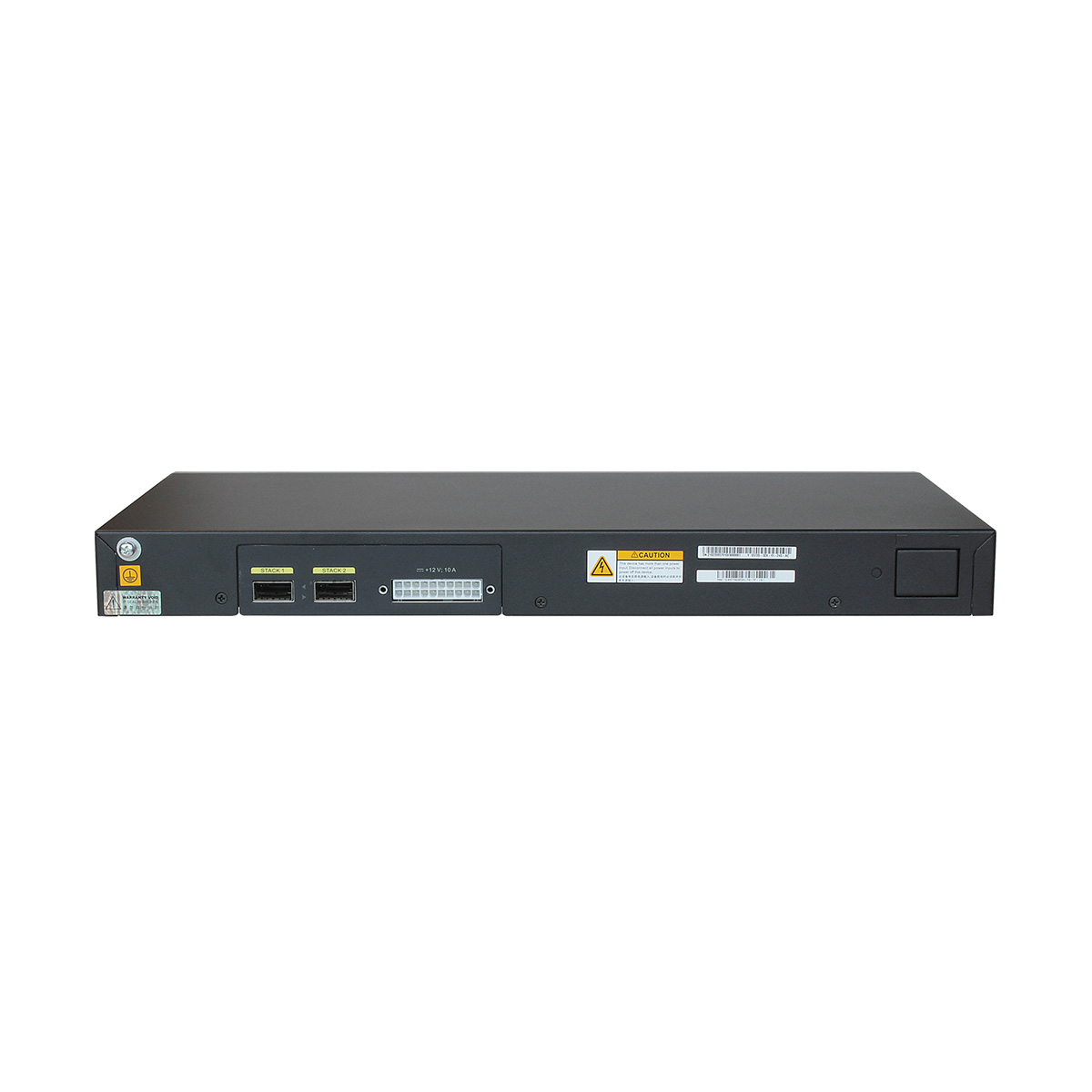

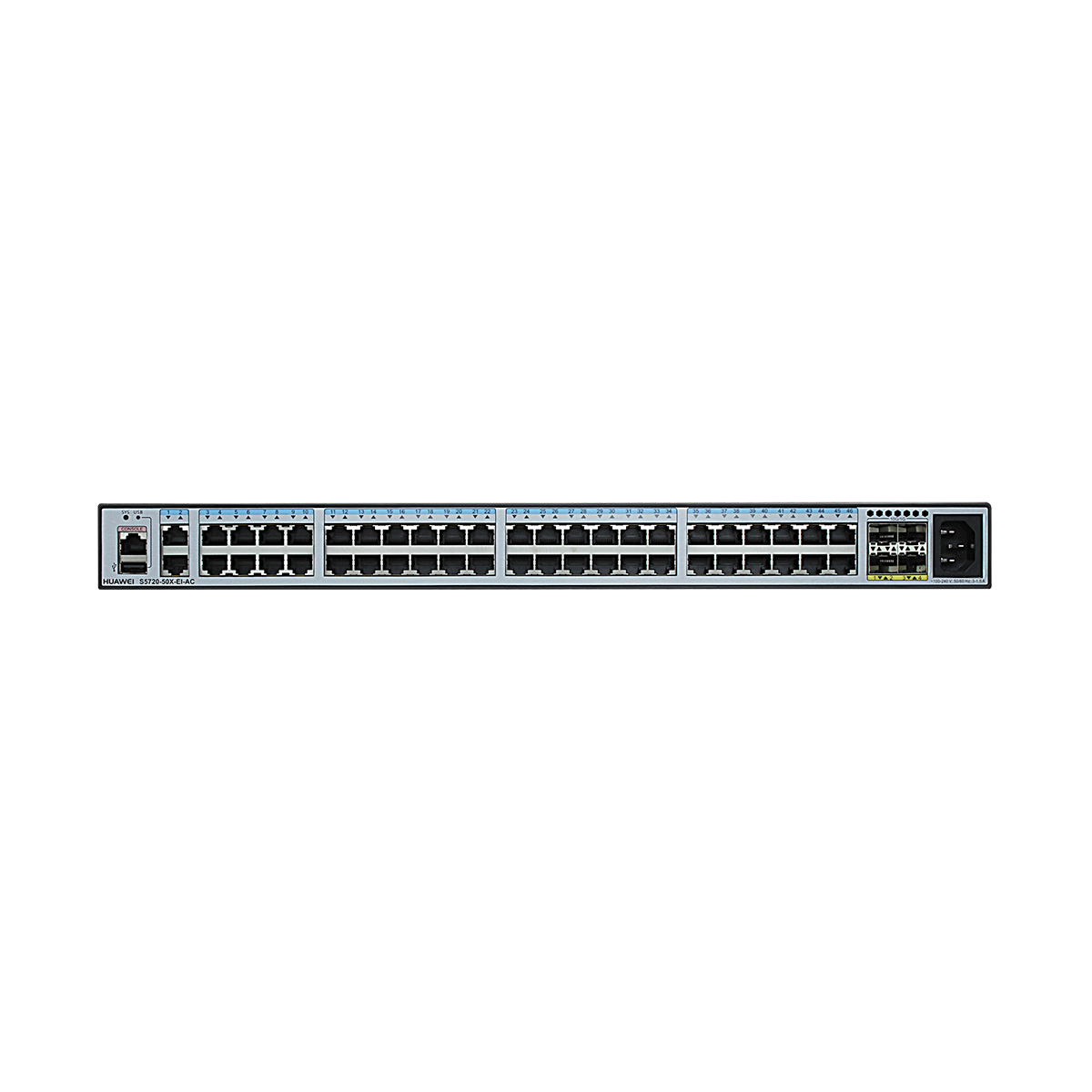

S5720-50X-EI-AC appearance and structure

S5720-50X-EI-ACS5720-50X-EI-AC appearance and structure" src="https://www.telecomate.com/media/wysiwyg/S5720-50X-EI-AC_1.jpg" alt="S5720-50X-EI-AC appearance and structure" width="800" height="312" />

1. One console port 5. AC socket
2. One USB port 6. Ground screw
3. Forty-six 10/100/1000BASE-T ports 7. Two QSFP+ stack optical ports
4. Four 10GE SFP+ ports 8. RPS socket
Item S5720-50X- EI-AC
Forwarding performance 129 Mpps
Switching capacity 598 Gbit/s
Ports description 46 10/100/1000 Ethernet ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports
Fixed port GE port 48
10GE port 4
Dedicated stack port 2
Management port ETH management port NA
Console port (RJ45) Supported
Console port (Mini USB) NA
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type AC (fixed)
Power supplyredundancy Built-in singlepower supply and RPS in 6:1 mode
RPS Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum input current 3 A
Maximum power consumption of the device 55.3 W
Power consumption in the case of 30% traffic load 47.45 W
Power consumption in the case of 100% traffic load 49.7 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 1
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 189
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperatur e decreases 1°C every time the altitude increases 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operatingaltitude 5000m
Noise under normal temperature (sound power) 49.3 dB(A)
Noise under high temperature (sound power) 69.2 dB(A)
Noise under normal temperature (sound pressure) 35.9 dB(A)
Surge protection specification (power port) ±8kV in common mode
Surge protection specification (power port) ±6kV in differential mode, ±6kV in common mode
Reliability MTBF (year) 74.31
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufactur ing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 220 x 43.6 (front-access)
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 4.88 kg

Additional information

Weight 6.5000 kg
Dimensions 55.0000 × 36.0000 × 9.0000 cm
Campus Switch

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item S5720-50X- EI-AC
Forwarding performance 129 Mpps
Switching capacity 598 Gbit/s
Ports description 46 10/100/1000 Ethernet ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports
Fixed port GE port 48
10GE port 4
Dedicated stack port 2
Management port ETH management port NA
Console port (RJ45) Supported
Console port (Mini USB) NA
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type AC (fixed)
Power supplyredundancy Built-in singlepower supply and RPS in 6:1 mode
RPS Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum input current 3 A
Maximum power consumption of the device 55.3 W
Power consumption in the case of 30% traffic load 47.45 W
Power consumption in the case of 100% traffic load 49.7 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 1
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 189
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperatur e decreases 1°C every time the altitude increases 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operatingaltitude 5000m
Noise under normal temperature (sound power) 49.3 dB(A)
Noise under high temperature (sound power) 69.2 dB(A)
Noise under normal temperature (sound pressure) 35.9 dB(A)
Surge protection specification (power port) ±8kV in common mode
Surge protection specification (power port) ±6kV in differential mode, ±6kV in common mode
Reliability MTBF (year) 74.31
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufactur ing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 220 x 43.6 (front-access)
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 4.88 kg
