Description
S5720-52X-PWR-LI-ACF overview
The S5700 series Ethernet switches are a new generation of green, energy-efficient, full-Gigabit high-performance Ethernet switches launched by Huawei to meet the demands of high-bandwidth access and Ethernet multi-service aggregation. Based on next-generation high-performance hardware and Huawei’s unified platform, the S5700 series features large capacity, high reliability (dual power slots and hardware-level Ethernet OAM), and high-density Gigabit ports, with support for 10-Gigabit uplinks. It also supports EEE (Energy Efficient Ethernet) and iStack intelligent stacking, fully meeting the needs of enterprise campus network access, aggregation, IDC Gigabit access, and Gigabit-to-the-desktop applications.
| Item | Details |
|---|---|
| DescriptionS5720-52X-LI-48S-AC | S5720-52X-PWR-LI-ACF switch (forty-eight PoE+ 10/100/1000BASE-T ports, four 10GE SFP+ ports) |
| Part Number | 98010621 |
| Model | S5720-52X-PWR-LI-ACF |

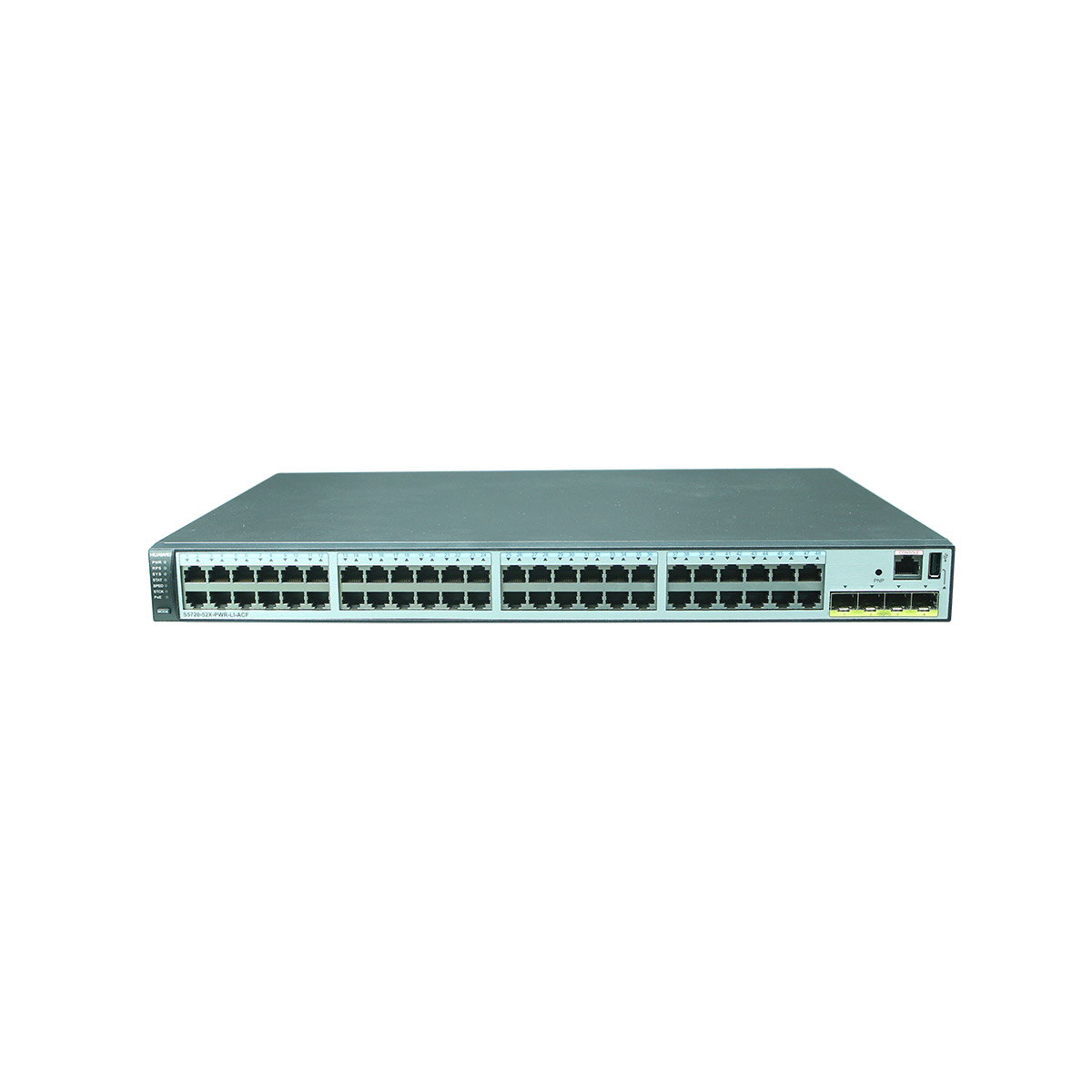

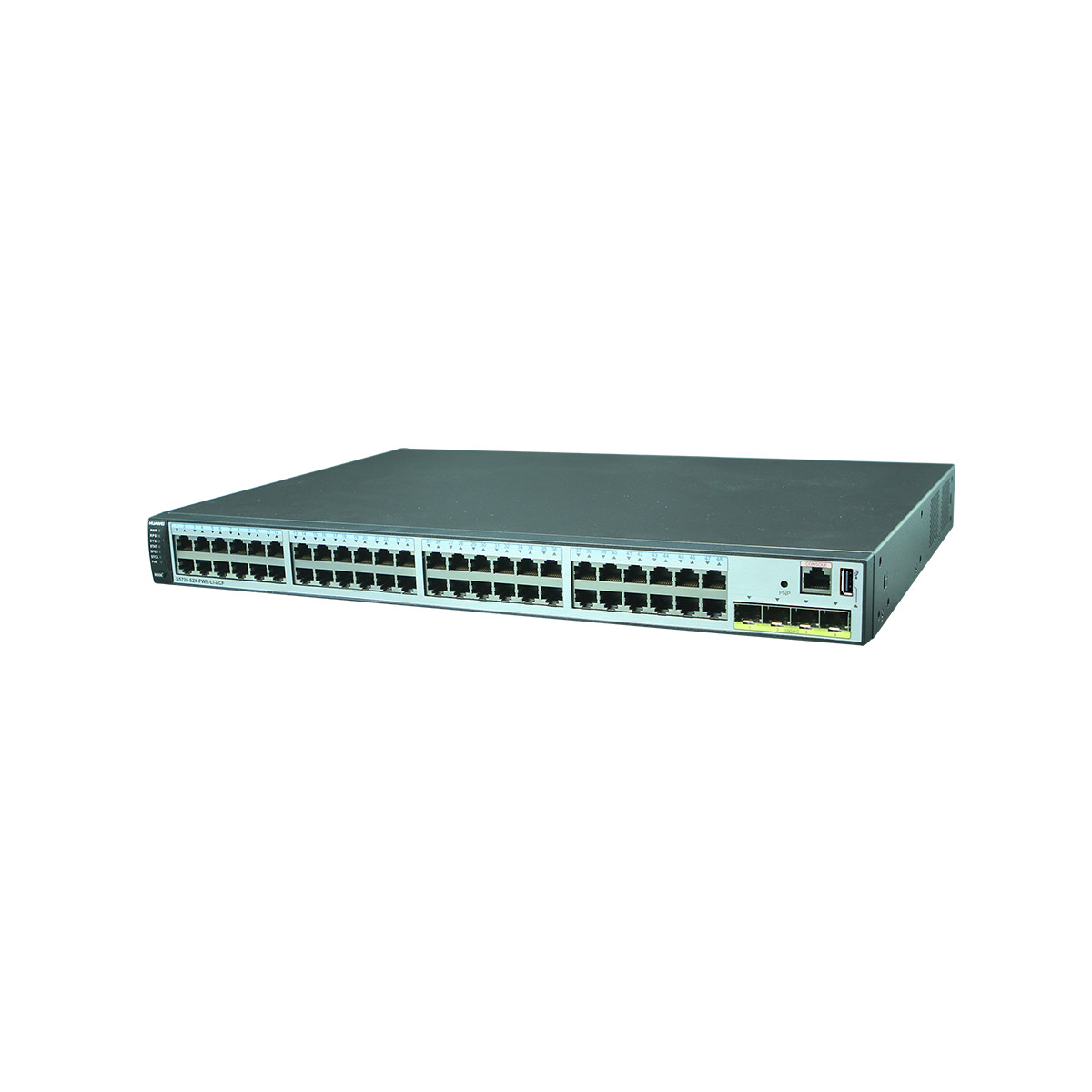

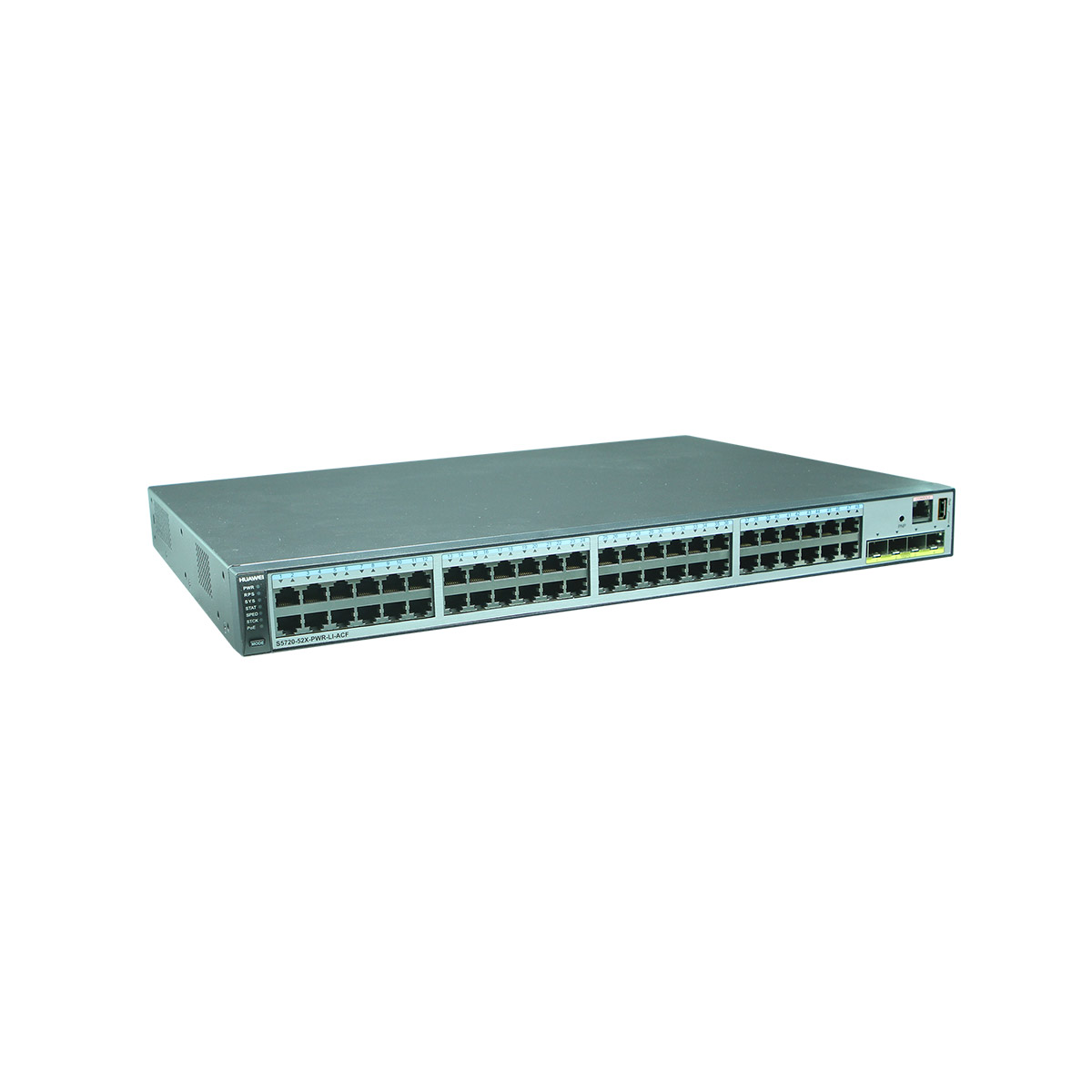

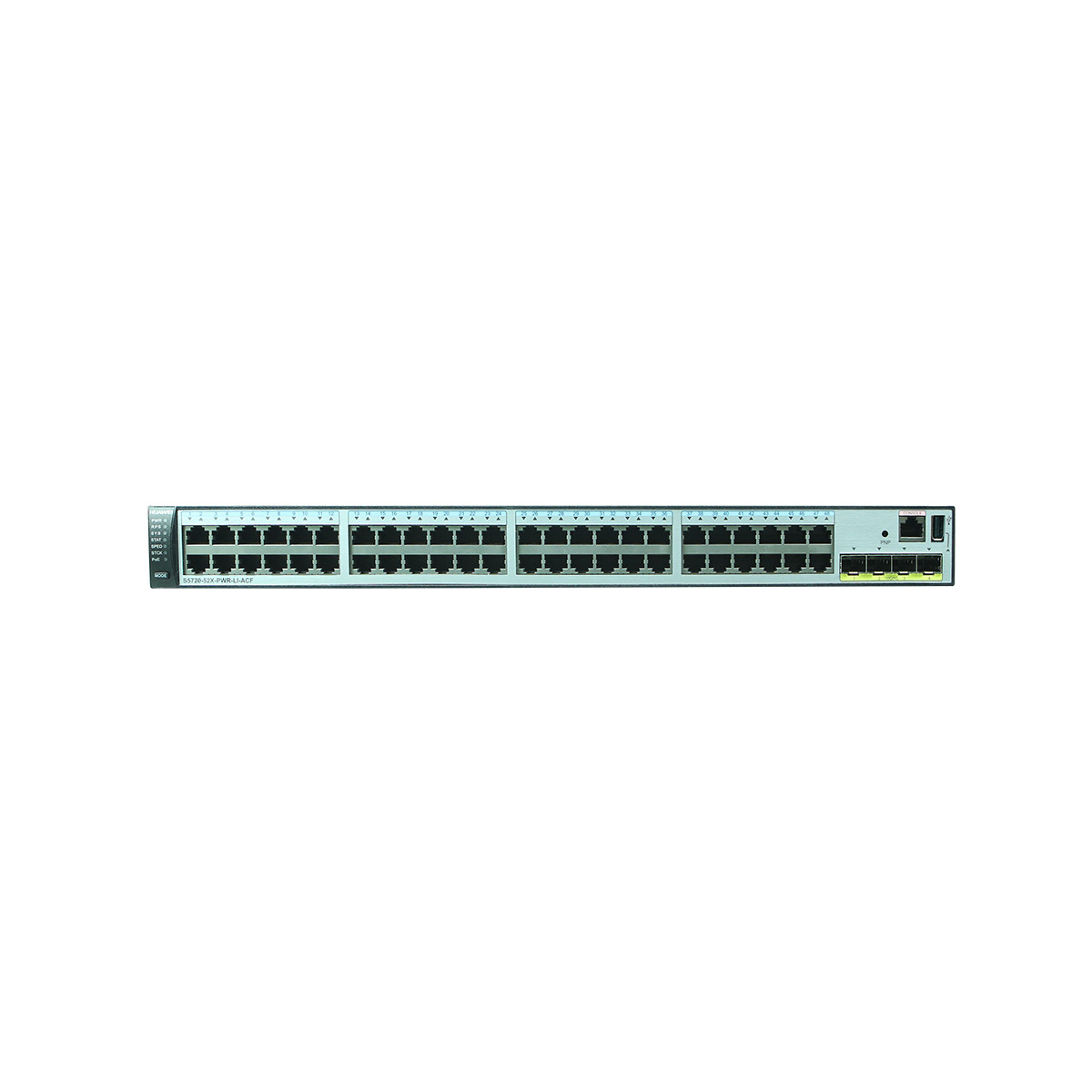

S5720-52X-PWR-LI-ACF Appearance
| 1 | Forty-eight PoE+ 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ ports
Applicable modules and cables:
NOTE: If a port uses a GPON optical module, other 10GE SFP+ optical ports cannot be used. |
| 3 | One PNP button
NOTICE: Applicable in V200R012C00 and later versions: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
4 | One console port |

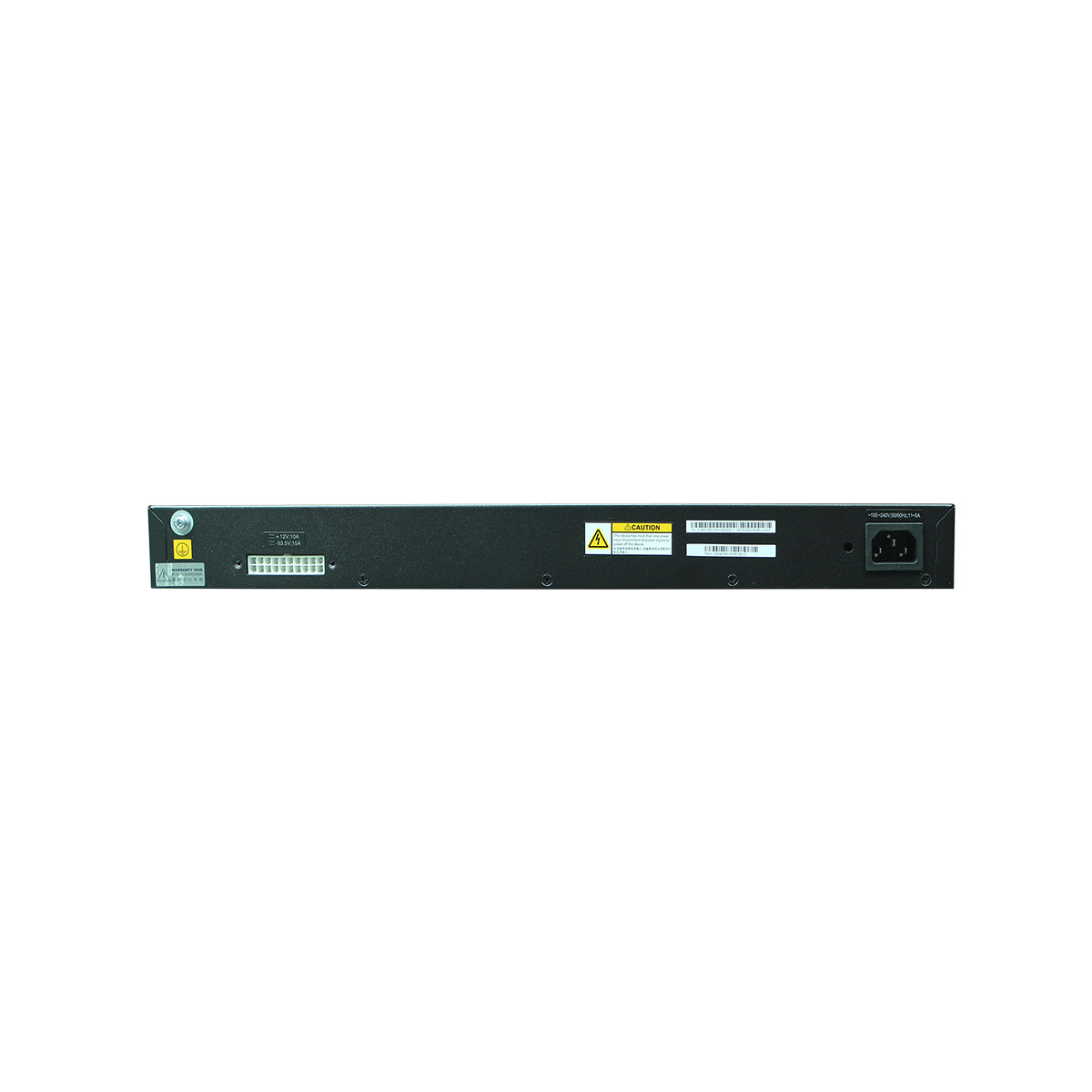

| 5 | One USB port | 6 | Ground screw
NOTE: It is used with a ground cable.
|
| 7 | RPS socket
NOTE: It is used with an RPS cable, which is not hot swappable. |
8 | Jack for AC power cable locking strap
NOTE: The AC power cable locking strap is not delivered with the switch.
|
| 9 | AC socket
NOTE: It is used with an AC power cable. |
– | – |
