Description

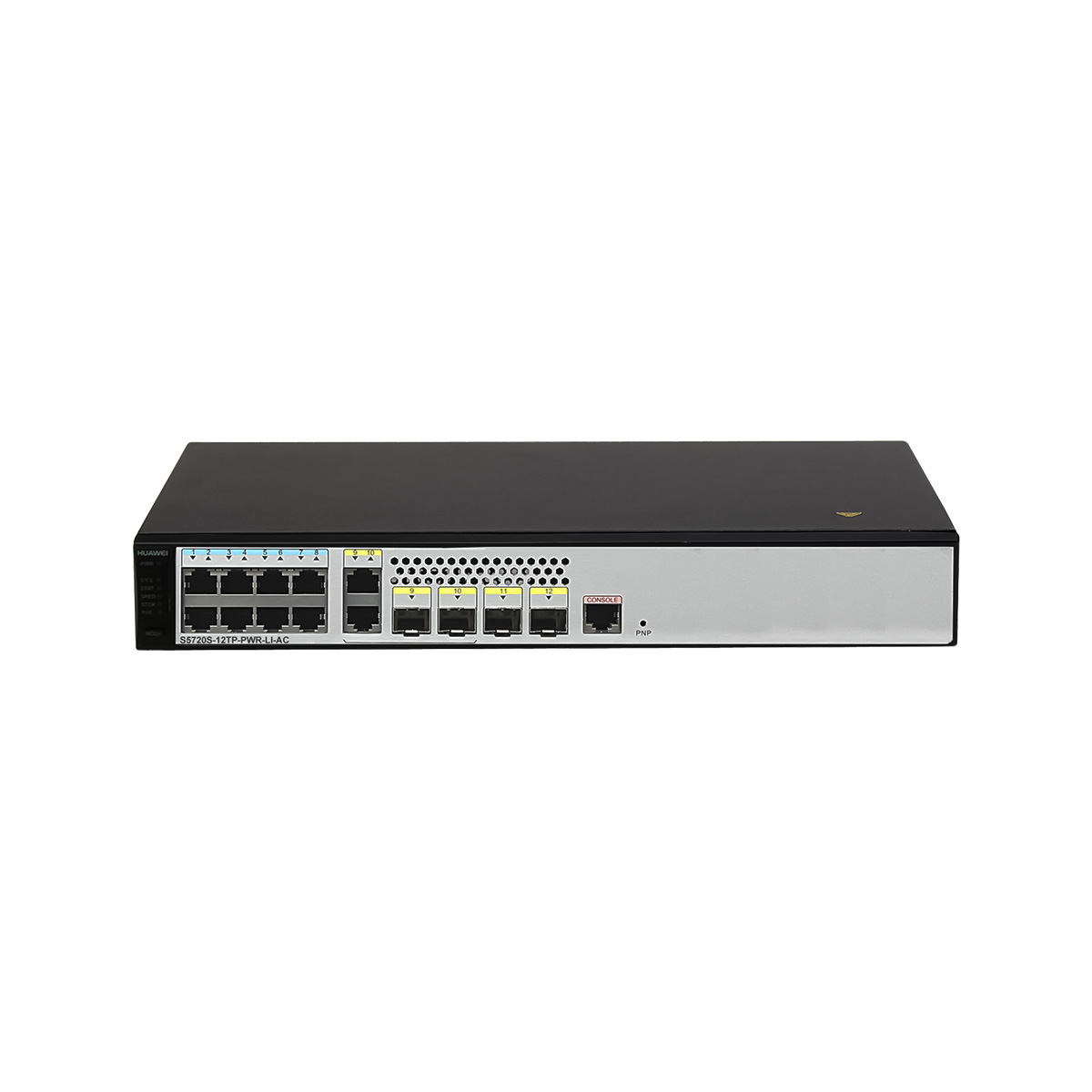

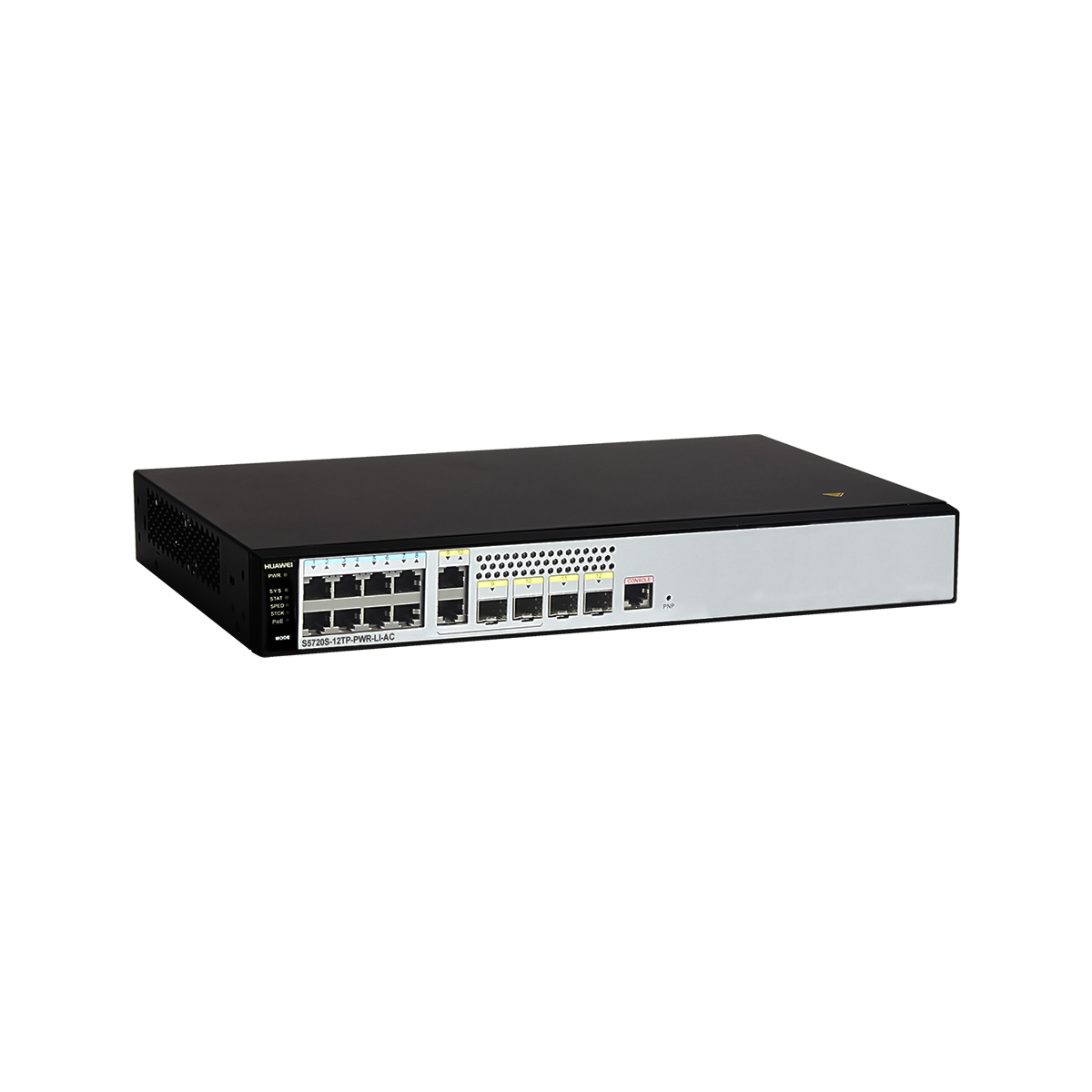

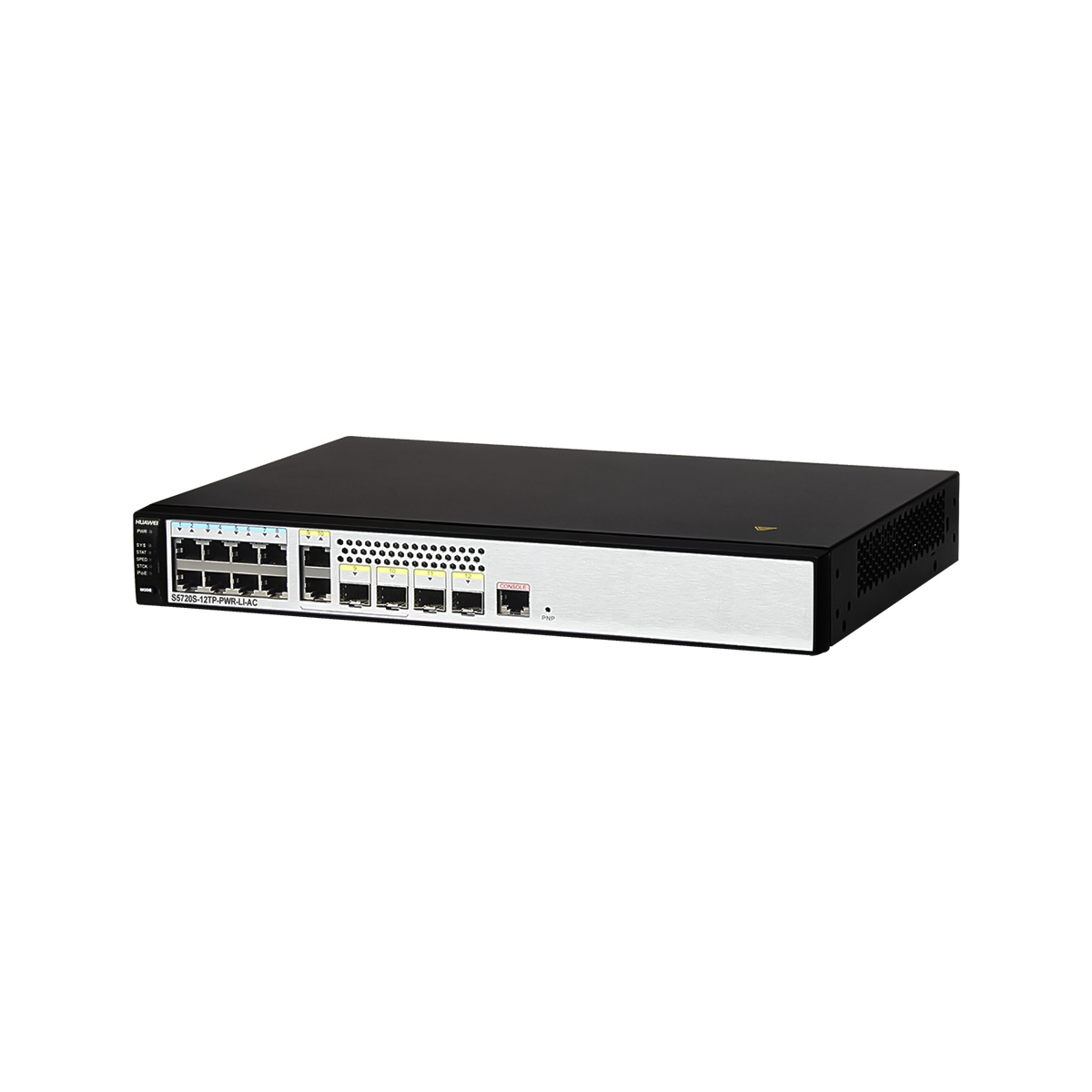

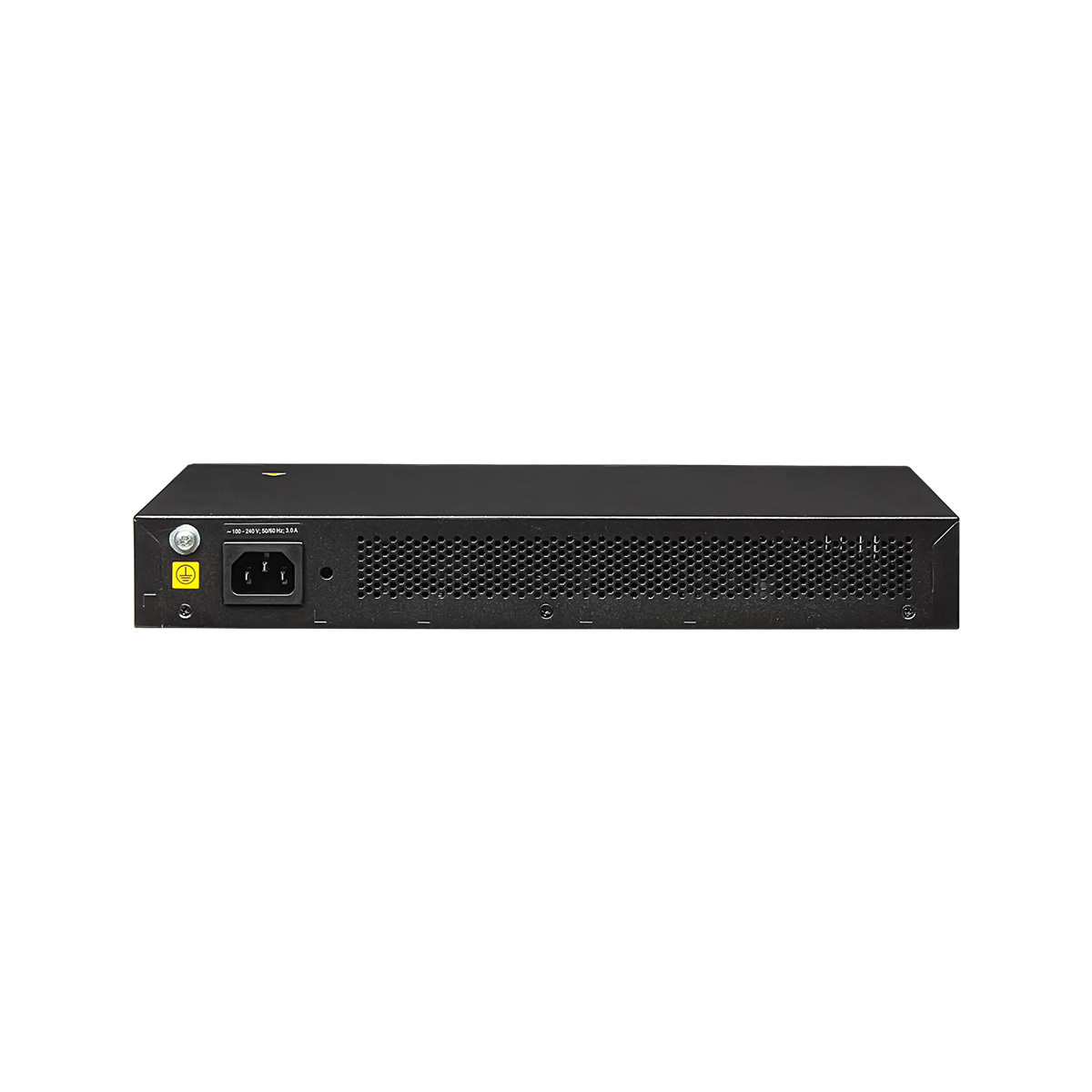

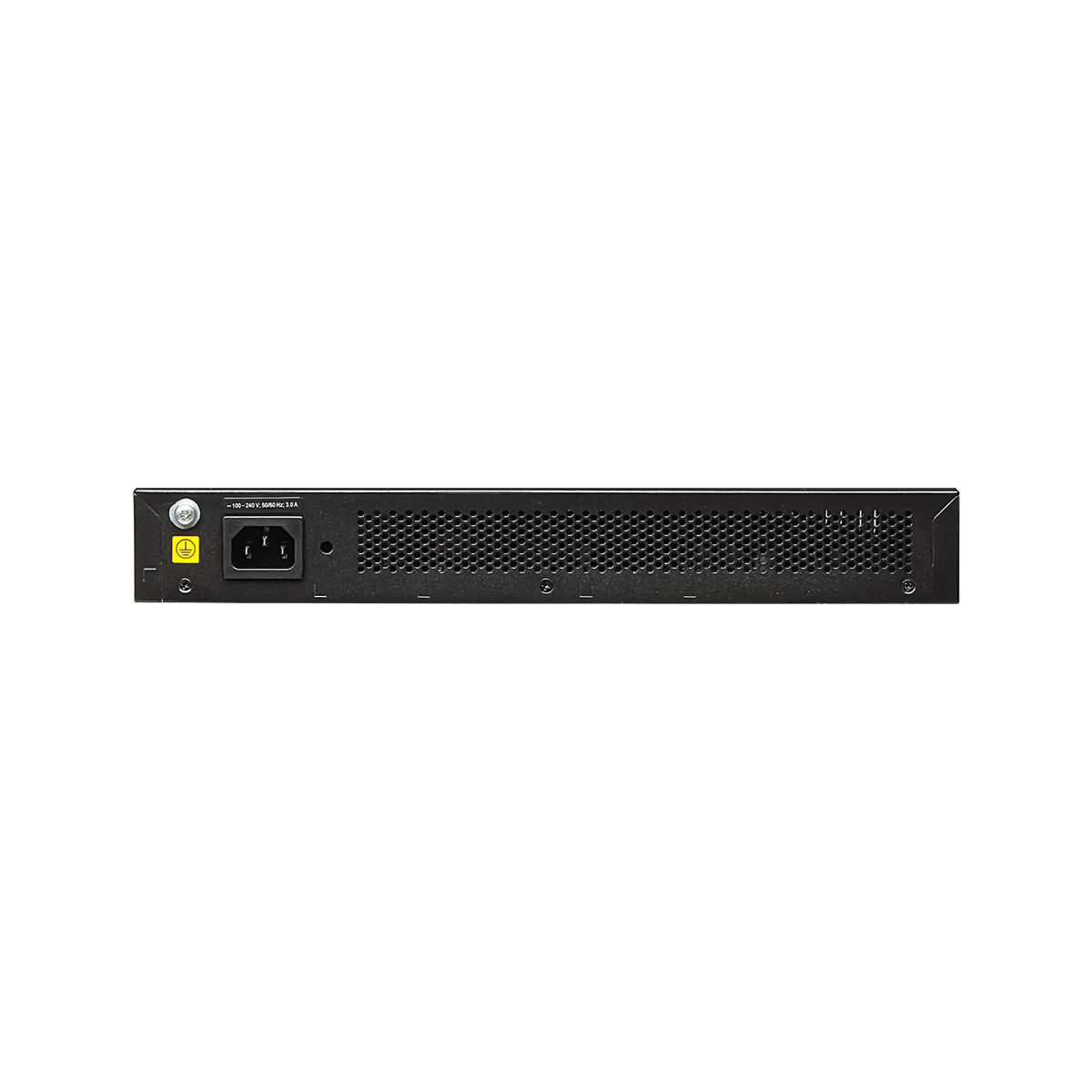

S5720S-12TP-PWR-LI-AC Overview
Huawei S5720S-12TP-PWR-LI-AC switch with 8 10/100/1000BASE-T ports, 2 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports, fixed AC power, PoE+, which is one of the S5720 serie switch.
Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.
Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.
S5720S-12TP-PWR-LI-AC Quick Specs
8 10/100/1000BASE-T ports
2 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports
Fixed AC power
PoE+
Forwarding performance is 22.5 Mpps
Switching capacity is 336 Gbit/s

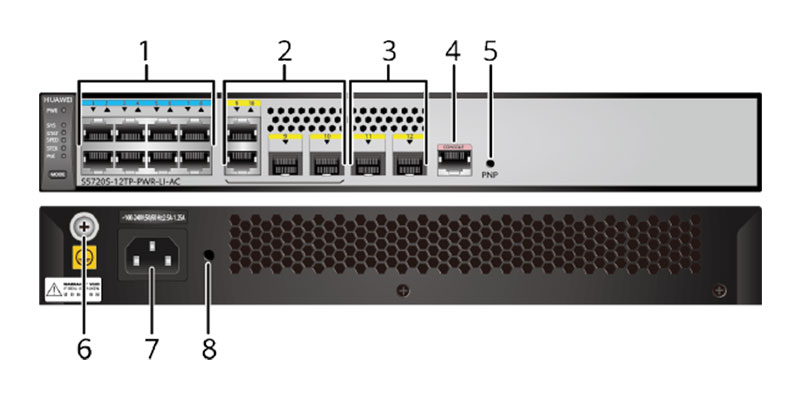

S5720S-12TP-PWR-LI-AC appearance and structure
| 1. Eight 10/100/1000BASE-T ports | 5. One PNP button |
| 2. Two combo ports (10/100/1000BASE-T + 100/1000BASE-X) | 6. Ground screw |
| 3. Two 1000BASE-X ports | 7. AC socket |
| 4. One console port | 8. Jack for AC power cable locking strap |
