S5720S-52X-LI-AC
Huawei S5720S-52X-LI-AC switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power
- Description
- DATASHEET
- Packing info
- Reviews (3)
Description
S5720s-52X-LI-AC Overview
Huawei S5720-52X-LI-AC switch with 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power, supports RPS, which is one of the S5720s serie switch.
Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.
Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact [email protected].
S5720s-52X-LI-AC Quick Specs
48 10/100/1000BASE-T ports
4 10GE SFP+ ports
Fixed AC power
Supports RPS
Forwarding performance is 144 Mpps
Switching capacity is 336 Gbit/s

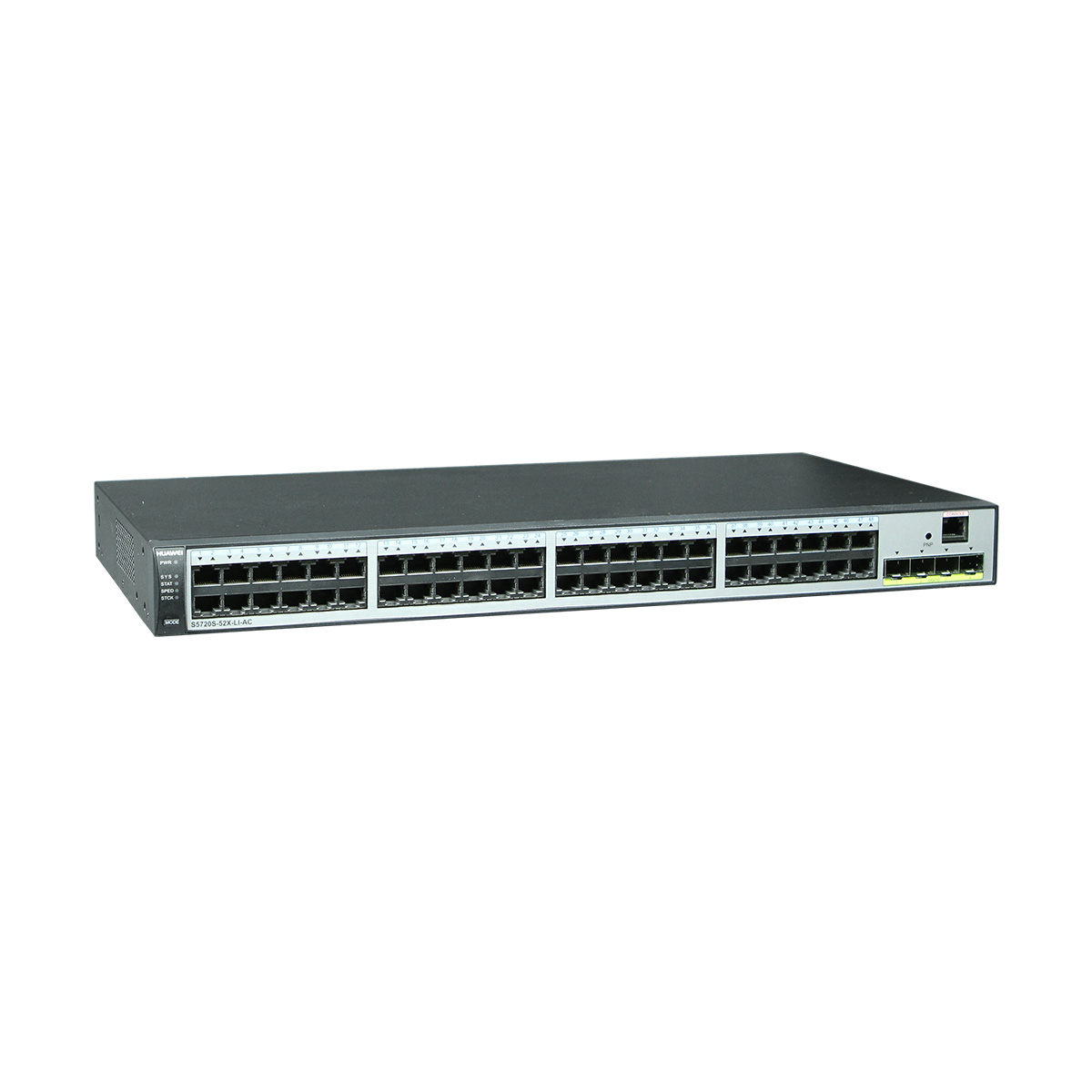

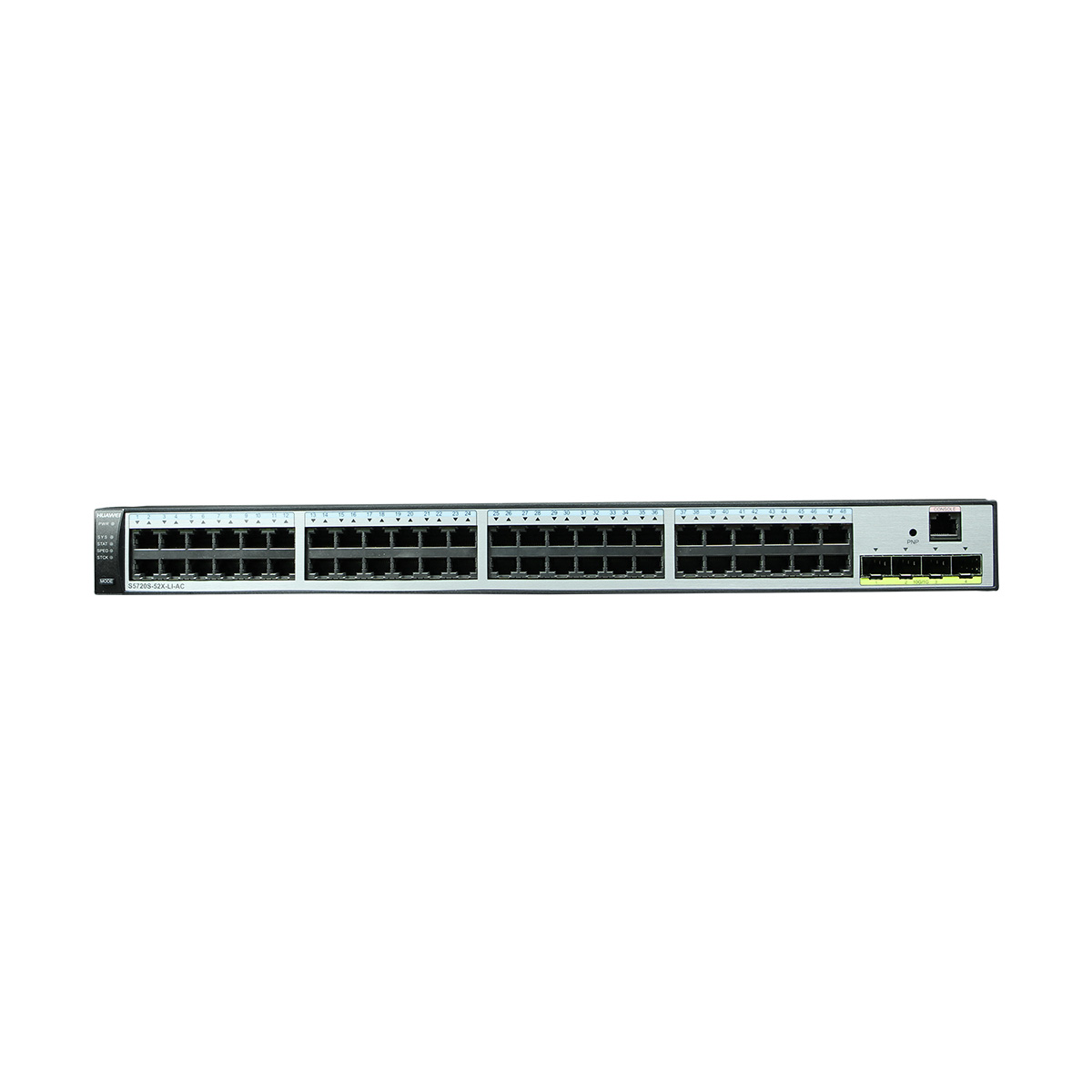

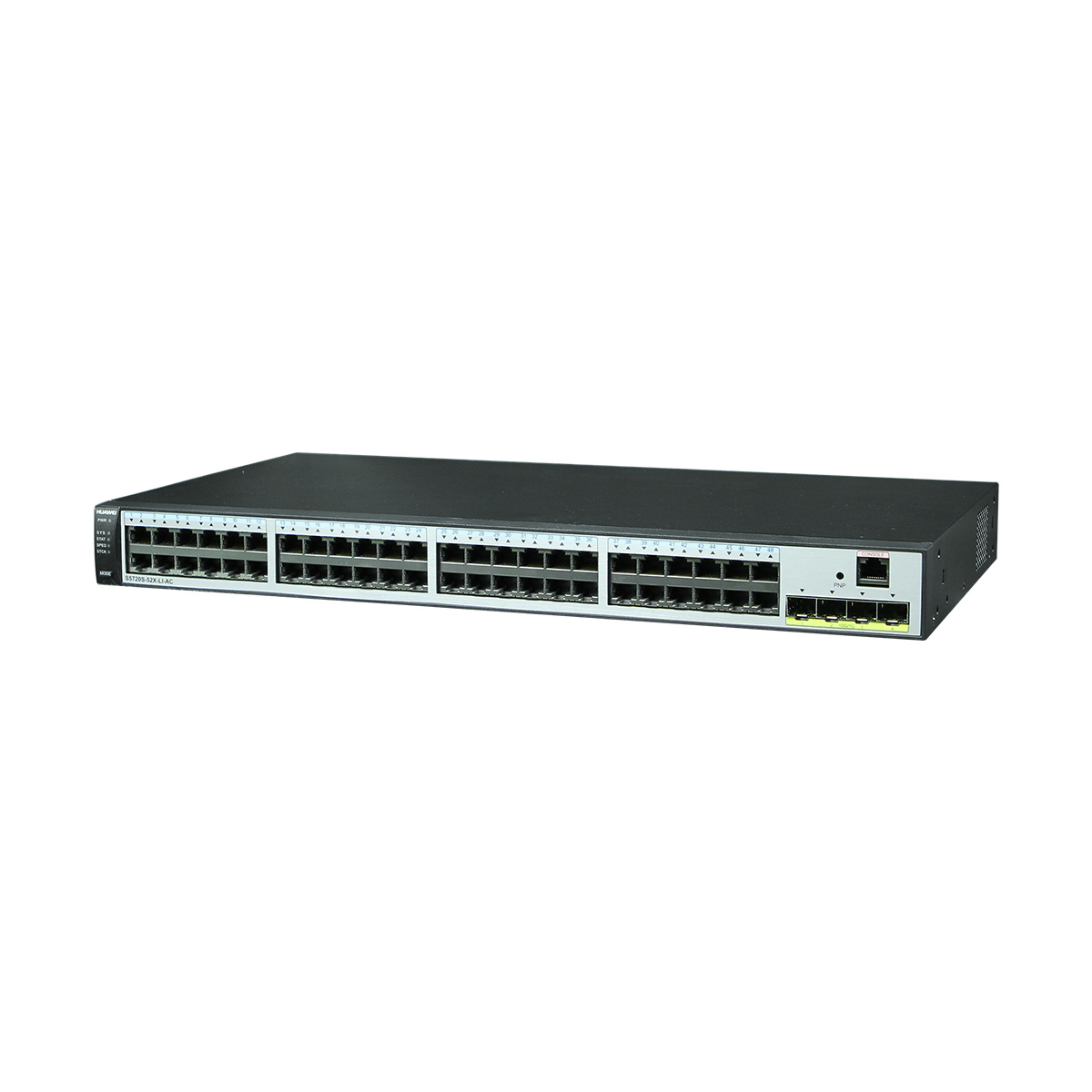

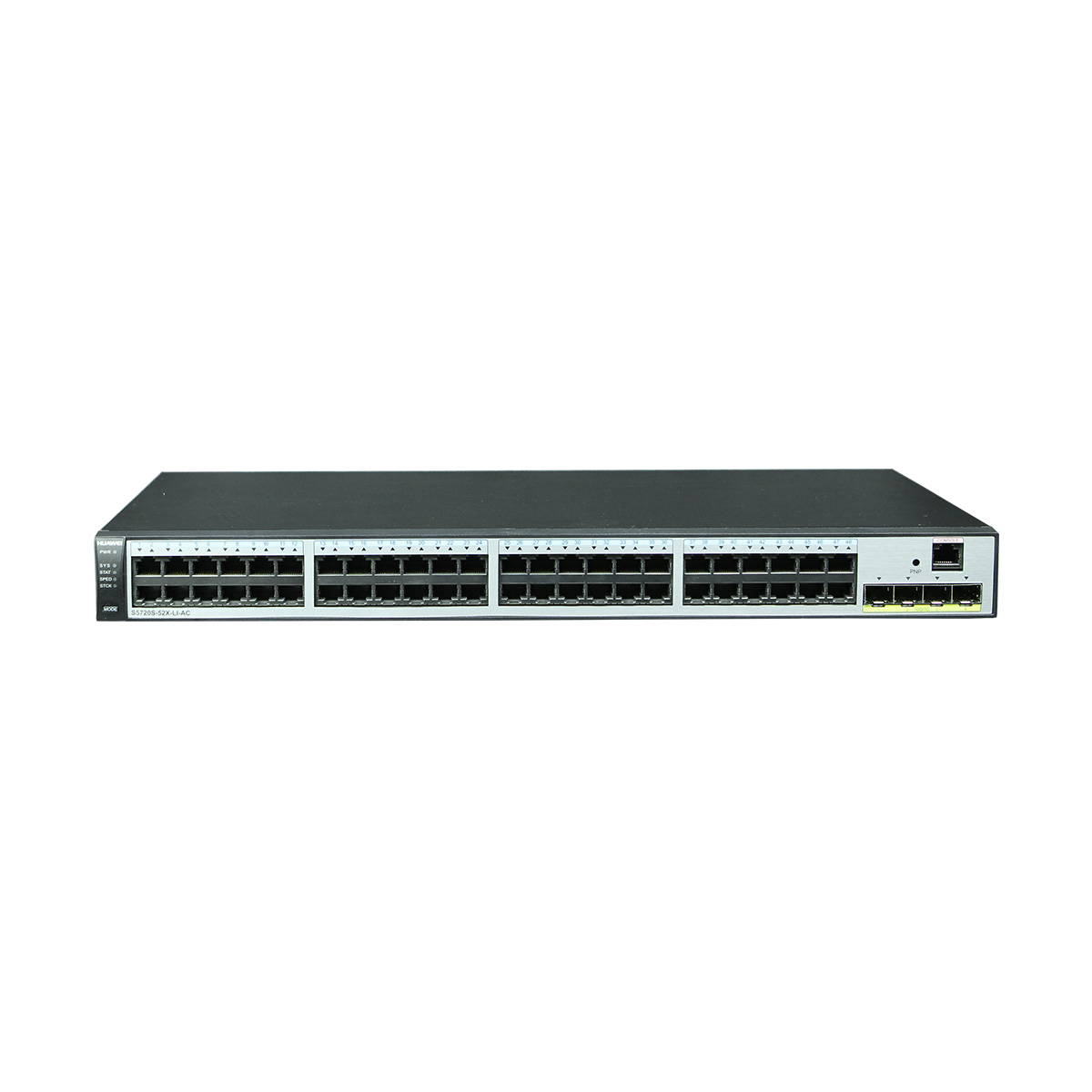

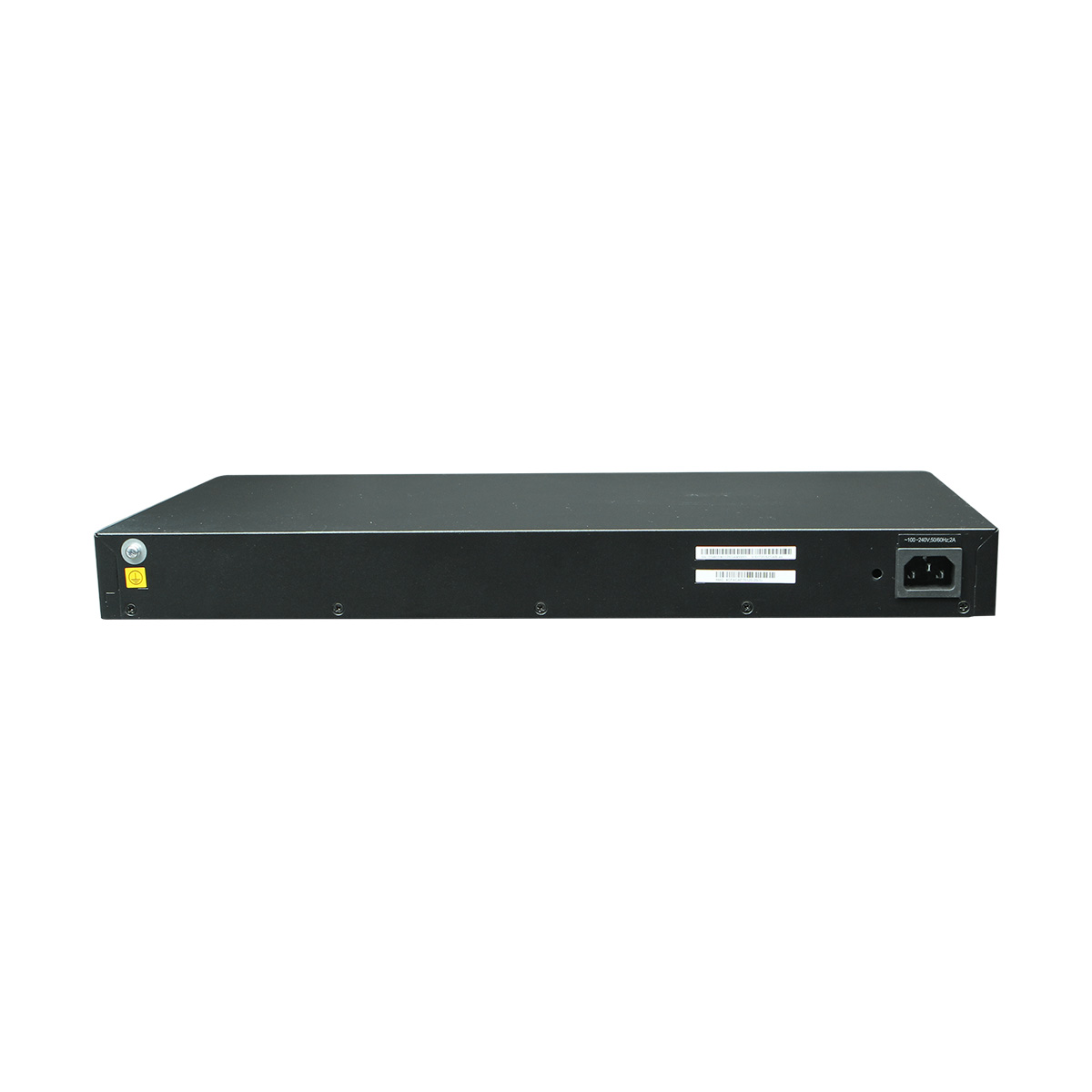

S5720s-52X-LI-AC appearance and structure
1. Forty-eight 10/100/1000BASE-T ports | 5. Ground screw |
2. Four 10GE SFP+ ports | 6. Jack for AC power cable locking strap |
3. One PNP management port | 7. AC socket |
4. One console port |
S5720S-52X-LI-AC Datasheet
Item | S5720S-52X-LI- AC |
Fixed ports | 48 Ethernet 10/100/1000Base-T ports, 4 10 Gig SFP+ ports |
Forwarding performance | 144Mpps |
Switching capacity | 336Gbit/s |
Input voltage | Rated voltage range: 100-240 V AC; 50/60 Hz Maximum voltage range: 90-264 V AC; 47–63 Hz |
Maximum power consumption | 50.3 W |
Typical power consumption (Without PoE) | 31.6 W |
Operating temperature | 0-1800 m altitude: -5°C to +45°C 1800-5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m. |
Relative humidity | 5% to 95% (non- condensing) |
Heat dissipation | Heat dissipation with fan, intelligent fan speed adjustment |
Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
Additional information
Weight | 4.0000 kg |
---|---|
Dimensions | 55.0000 × 35.0000 × 9.0000 cm |
