Description

S5720S-52X-PWR-LI-AC Overview

Huawei S5720-52X-PWR-LI-AC switch with 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power, supports RPS, PoE+, which is one of the S5720 serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact [email protected].

S5720S-52X-PWR-LI-AC Quick Specs

48 10/100/1000BASE-T ports

4 10GE SFP+ ports, fixed AC power

supports RPS

PoE+

Forwarding performance is 144 Mpps

Switching capacity is 336 Gbit/s

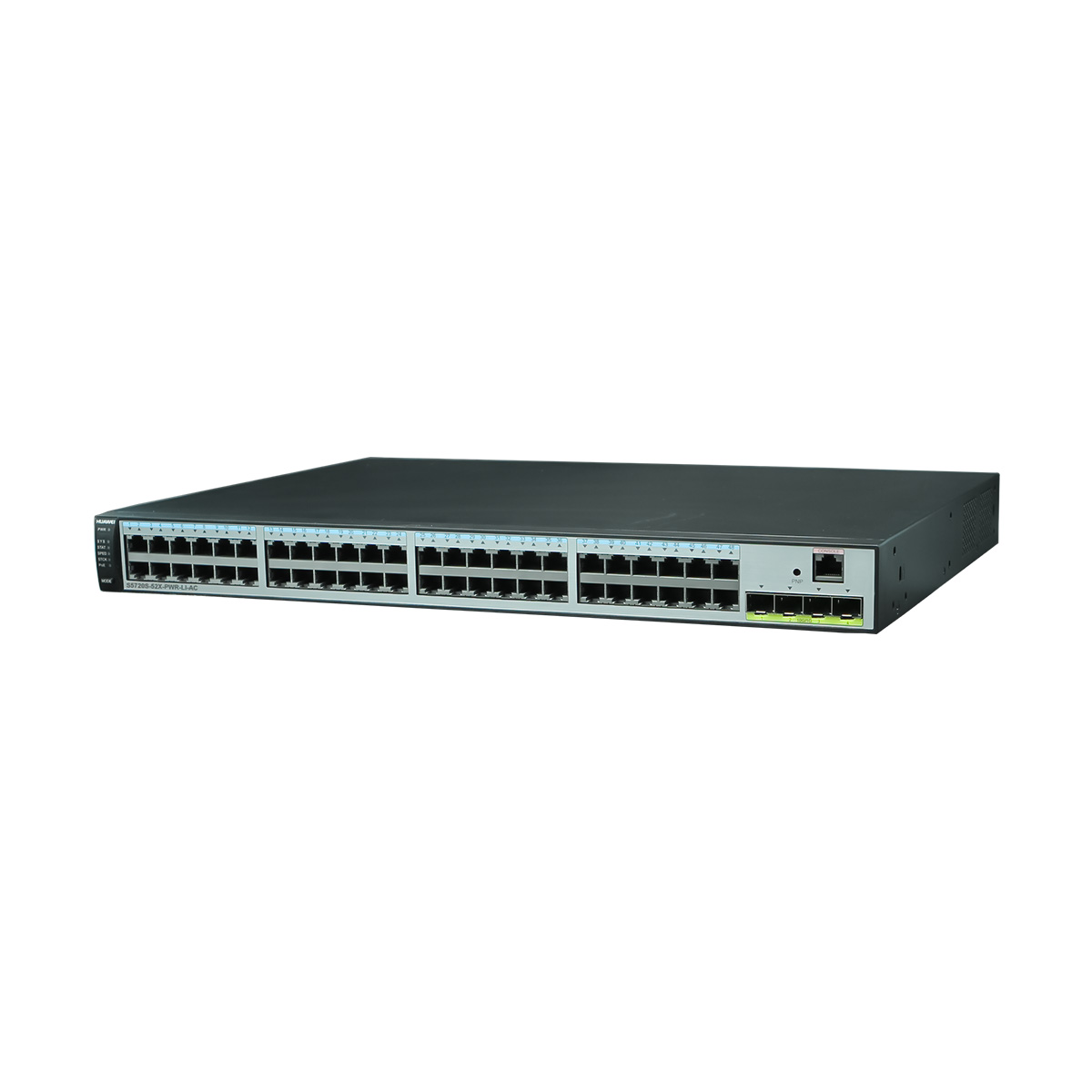

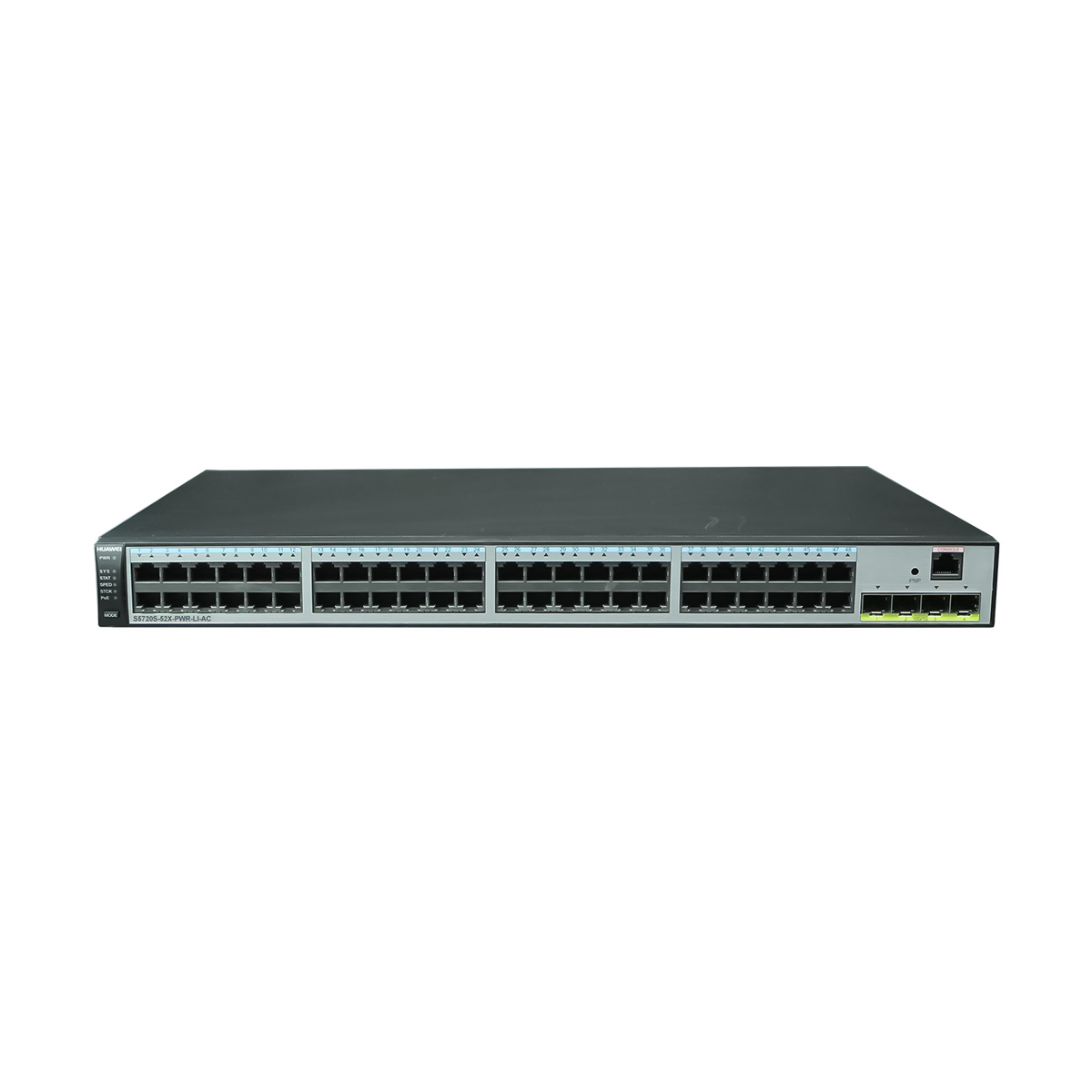

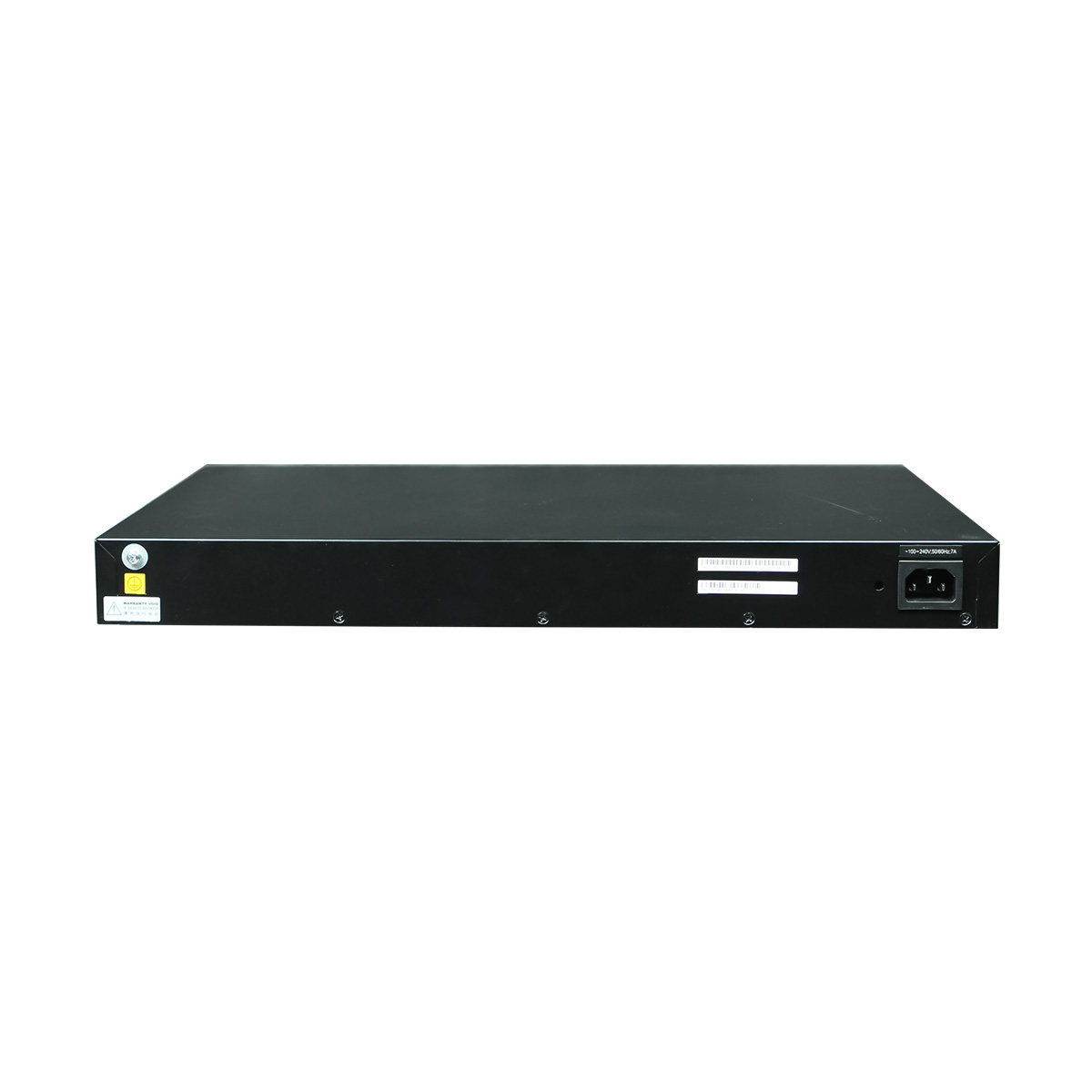

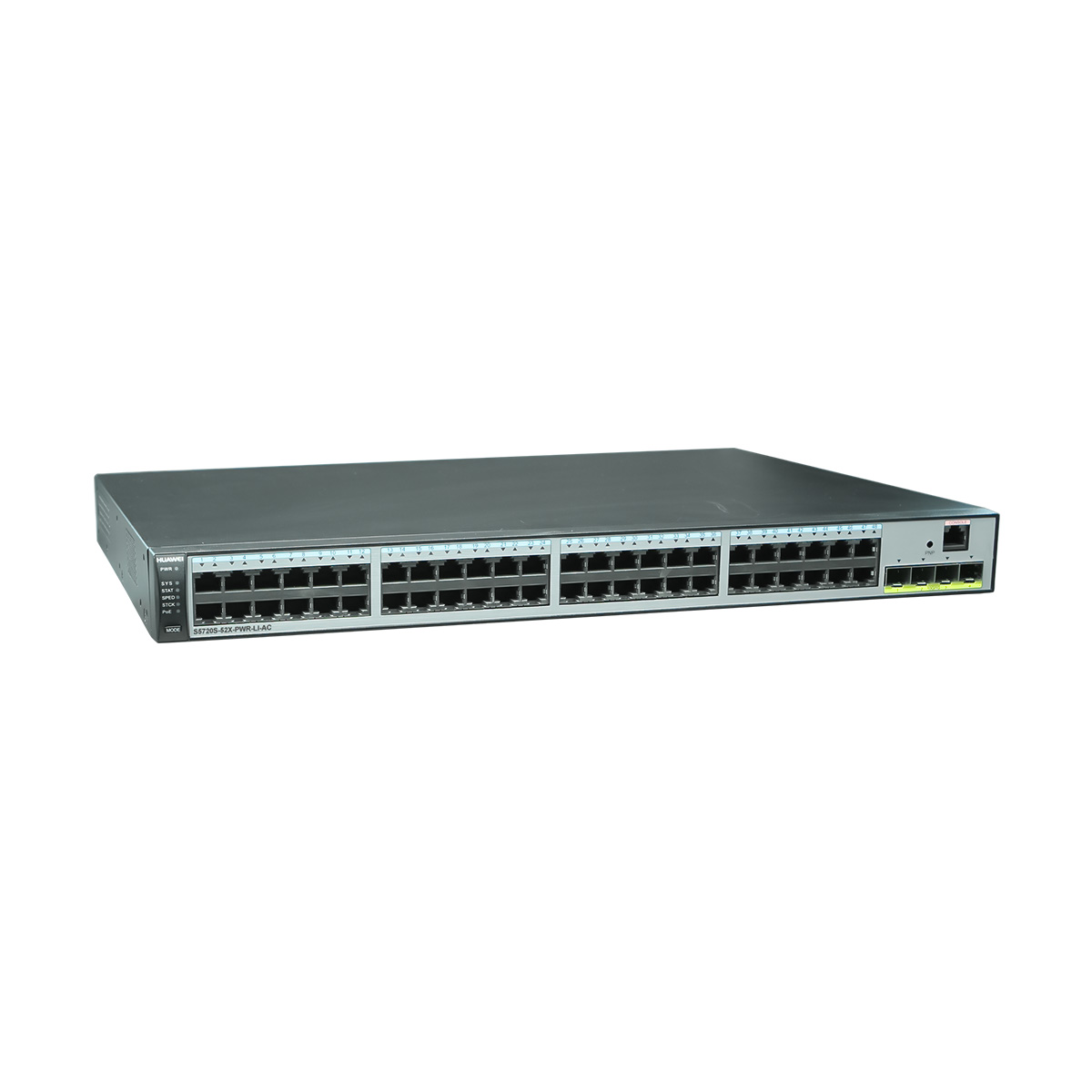

S5720S-52X-PWR-LI-AC appearance and structure

1. Forty-eight PoE+ 10/100/1000BASE-T ports	5. Ground screw
2. Four 10GE SFP+ ports	6. Jack for AC power cable locking strap
3. One PNP button	7. AC socket
4. One console port

S5720S-52X-PWR-LI-AC Datasheet

Item	S5720S-52X- PWR-LI-AC
Fixed ports	48 Ethernet 10/100/1000Base-T ports, 4 10 Gig SFP+ ports
Forwarding performance	144Mpps
Switching capacity	336Gbit/s
Input voltage	Rated voltage range: 100-240 V AC; 50/60 Hz Maximum voltage range: 90-264 V AC; 47–63 Hz
Maximum power consumption	Without PD: 63.5 W With PD: 464.3 W (PoE: 370 W)
Typical power consumption (Without PoE)	42.2 W
Operating temperature	0-1800 m altitude: -5°C to +45°C 1800-5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Relative humidity	5% to 95% (non- condensing)
Heat dissipation	Heat dissipation with fan, intelligent fan speed adjustment
Dimensions (W x D x H)	442 mm x 310 mm x 43.6 mm

Additional information

Weight	5.5000 kg
Dimensions	46.0000 × 52.2000 × 10.5000 cm
