Huawei S5730-36C-HI-AC switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, 1 AC equipped

Description

S5730-36C-HI-AC Overview

S5730-36C-HI is a Huawei S5730-36C-HI, providing 24 x 10/100/1,000 BASE-T ports, 4 x 10 GE SFP+ ports, 1 expansion slot, without power module. Huawei S5730-HI gigabit Ethernet switches are Huawei-developed next-generation agile switches that provide fixed full gigabit access and 10 GE uplink interfaces as well as one or two slots for uplink interface extension.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5730-36C-HI-AC Quick Spec

24 10/100/1,000 BASE-T ports, 4 10 GE SFP+ ports

Switching capacity is 785 Gbps

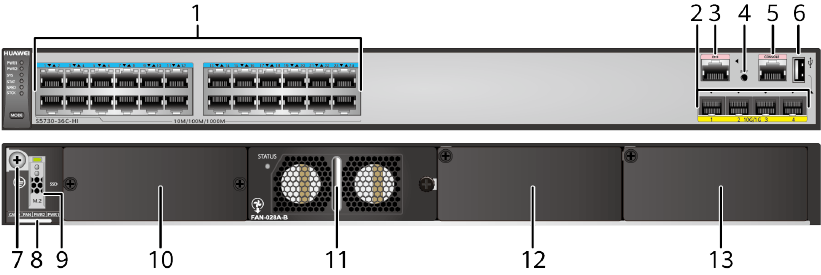

S5730-36C-HI-AC appearance and structure

S5730-36C-HI-AC

1 Twenty-four 10/100/1000BASE-T ports 8 ESN label
2 Four 10GE SFP+ ports 9 SSD card slot
3 One ETH management port 10 Rear card slot
4 One PNP button 11 Fan slot
5 One console port 12 Power module slot 2
6 One USB port 13 Power module slot 1
7  Ground screw
 S5730-36C-HI-AC Datasheet
Item S5730-36C-HI-AC
Fixed port 10/100/1000BASE-T port 24
10GE port 4
Extended slot One extended slot, supporting 8x10GE Base-T, 8x10GE SFP+ or 2x40G QSFP+ interface cards
Switching capacity 758 Gbit/s
Flexible card Card slot 1
Card type 8-port Ethernet 10GBASE-T interface card (non-GE-capable) 2-port 40GE QSFP+ interface card 8-port 10GE SFP+ interface card (GE- capable)
Management port ETH port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1.5 GHz
Cores 8
Storage Memory (RAM) 4 GB
Flash memory Hardware: 1 GB, of which 624 MB is available for users NOTE The S5730-36C-HI and S5730-60C-HI support SSD cards (240 GB).
Power supply system Power supply type 150 W AC 150 W DC (pluggable)
Rated voltage range AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
Maximum input current 150 W AC: 3 A 150 W DC: 6 A
Maximum power consumption of the device 74 W
Power consumption in the case of 30% traffic load1 58 W
Power consumption in the case of 100% traffic load1 62 W
Heat dissipation Heat dissipation Air-cooled heat dissipation and
system mode intelligent fan speed adjustment
Number of fan modules Pluggable dual fans
Airflow Air flows in from the left and right sides, and exhausts from the rear panel
Maximum heat dissipation of the device (BTU/hour) 253
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
Short-term operating temperature  0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m. NOTE Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
Storage temperature -40°C to +70°C
Relative humidity 5%–95% (non- condensing)
Operating AC: 5000 m
altitude DC: 2000 m
Noise under normal temperature (sound power) 52.9 dB(A)
Noise under high temperature (sound power) 74.6 dB(A)
Noise under normal temperature (sound pressure) 49.9 dB(A)
Surge protection specification (RJ45 service port) ±7 kV
Surge protection specification (power port) AC power port: Differential mode: ±6 kV Common mode: ±6 kV DC power port: Differential mode: ±1 kV Common mode: ±2 kV
Reliability MTBF (year)2 47.53
MTTR (hour) 2
Availability > 0.99999
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 420 x 44.4
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 8.6 kg (18.96 lb)


Additional information

Weight 15.0000 kg
Dimensions 71.0000 × 55.0000 × 17.5000 cm
Campus Switch

 S5730-36C-HI-AC Datasheet
Item S5730-36C-HI-AC
Fixed port 10/100/1000BASE-T port 24
10GE port 4
Extended slot One extended slot, supporting 8x10GE Base-T, 8x10GE SFP+ or 2x40G QSFP+ interface cards
Switching capacity 758 Gbit/s
Flexible card Card slot 1
Card type 8-port Ethernet 10GBASE-T interface card (non-GE-capable) 2-port 40GE QSFP+ interface card 8-port 10GE SFP+ interface card (GE- capable)
Management port ETH port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1.5 GHz
Cores 8
Storage Memory (RAM) 4 GB
Flash memory Hardware: 1 GB, of which 624 MB is available for users NOTE The S5730-36C-HI and S5730-60C-HI support SSD cards (240 GB).
Power supply system Power supply type 150 W AC 150 W DC (pluggable)
Rated voltage range AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
Maximum input current 150 W AC: 3 A 150 W DC: 6 A
Maximum power consumption of the device 74 W
Power consumption in the case of 30% traffic load1 58 W
Power consumption in the case of 100% traffic load1 62 W
Heat dissipation Heat dissipation Air-cooled heat dissipation and
system mode intelligent fan speed adjustment
Number of fan modules Pluggable dual fans
Airflow Air flows in from the left and right sides, and exhausts from the rear panel
Maximum heat dissipation of the device (BTU/hour) 253
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
Short-term operating temperature  0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m. NOTE Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
Storage temperature -40°C to +70°C
Relative humidity 5%–95% (non- condensing)
Operating AC: 5000 m
altitude DC: 2000 m
Noise under normal temperature (sound power) 52.9 dB(A)
Noise under high temperature (sound power) 74.6 dB(A)
Noise under normal temperature (sound pressure) 49.9 dB(A)
Surge protection specification (RJ45 service port) ±7 kV
Surge protection specification (power port) AC power port: Differential mode: ±6 kV Common mode: ±6 kV DC power port: Differential mode: ±1 kV Common mode: ±2 kV
Reliability MTBF (year)2 47.53
MTTR (hour) 2
Availability > 0.99999
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 420 x 44.4
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 8.6 kg (18.96 lb)
