Huawei S5730S-68C-EI-AC supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power

Description

S5730S-68C-EI-AC Overview

S5730S-68C-EI-AC with 24 PoE+ 10/100/1000BASE-T ports, is one of the Huawei S5700 series switches. Huawei S5700 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in extensive enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.

S5730S-68C-EI-AC Quick Spec

48 10/100/1000BASE-T ports, 4 10GE SFP+ ports,

Forwarding performance is 420 Mpps

Switching capacity is 660 Gbps

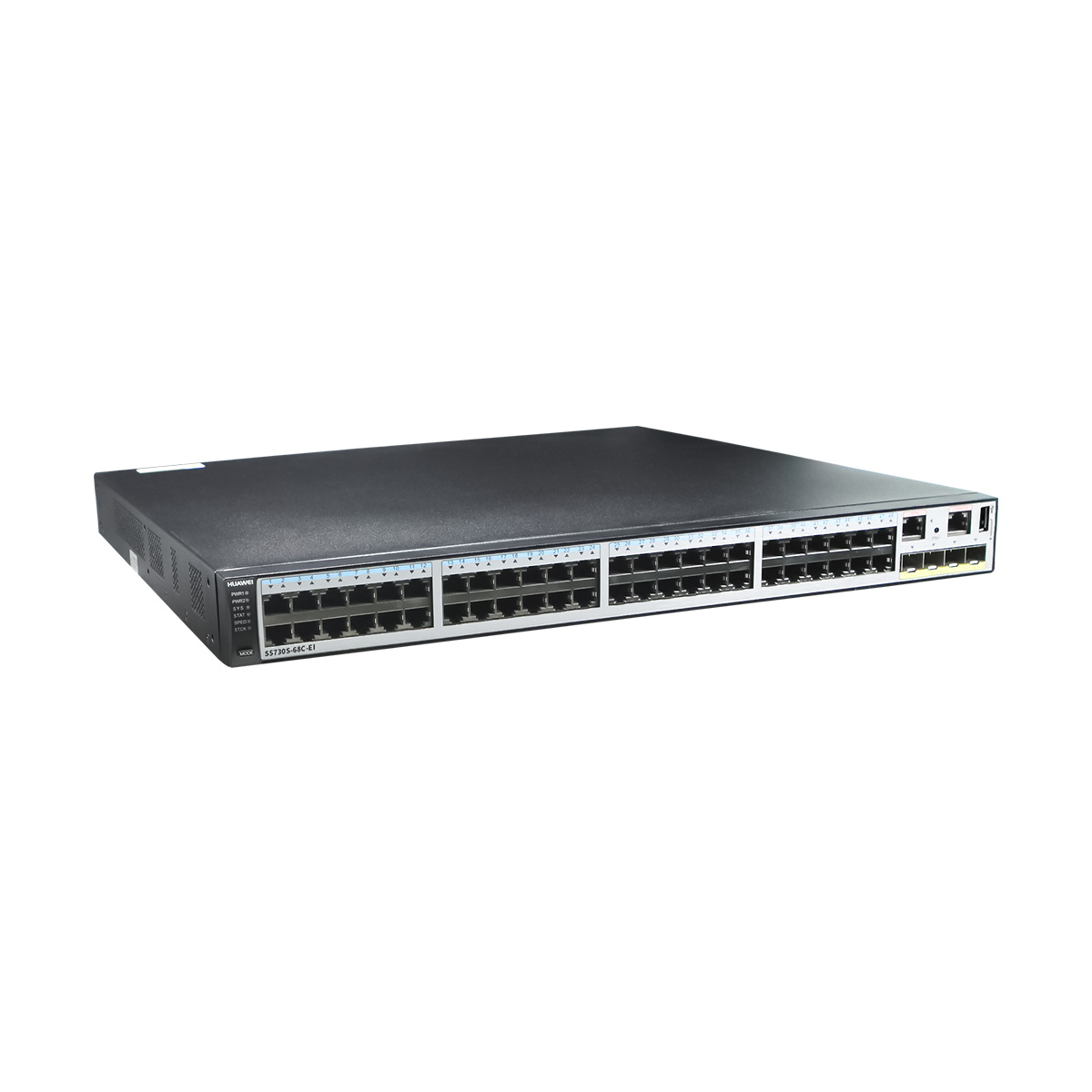

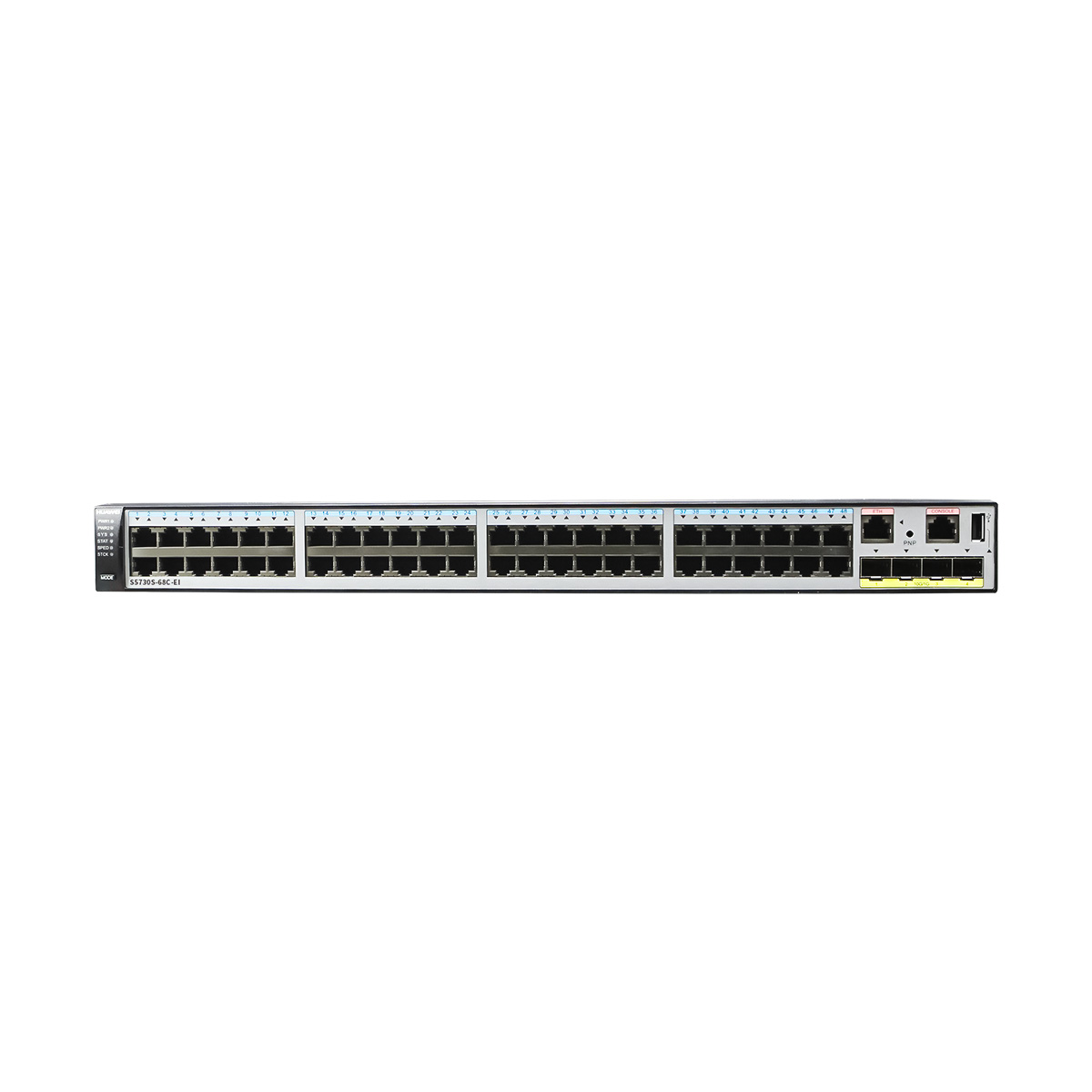

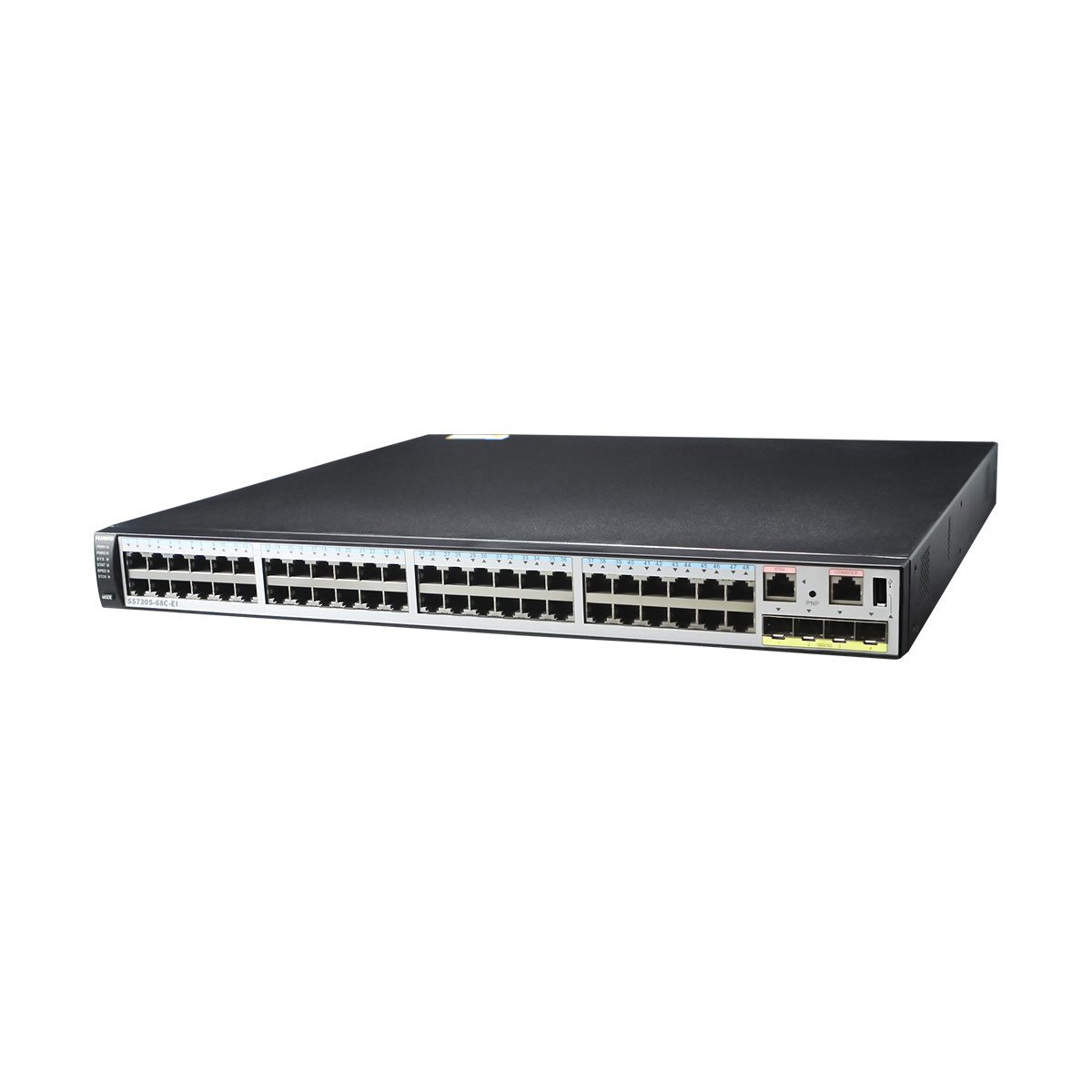

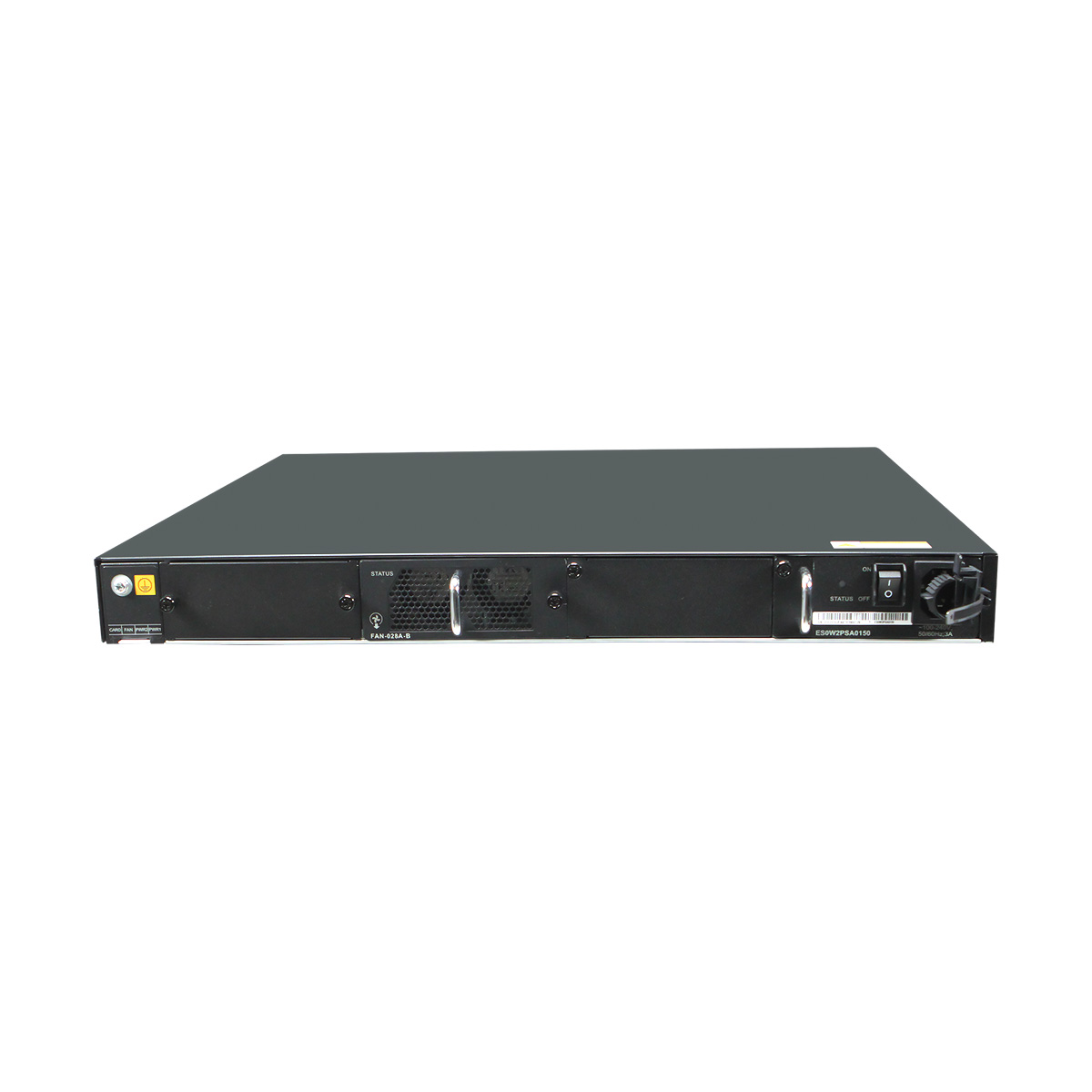

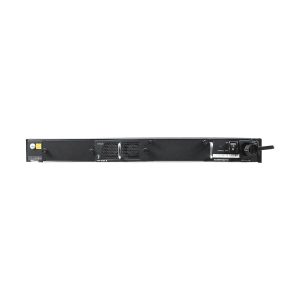

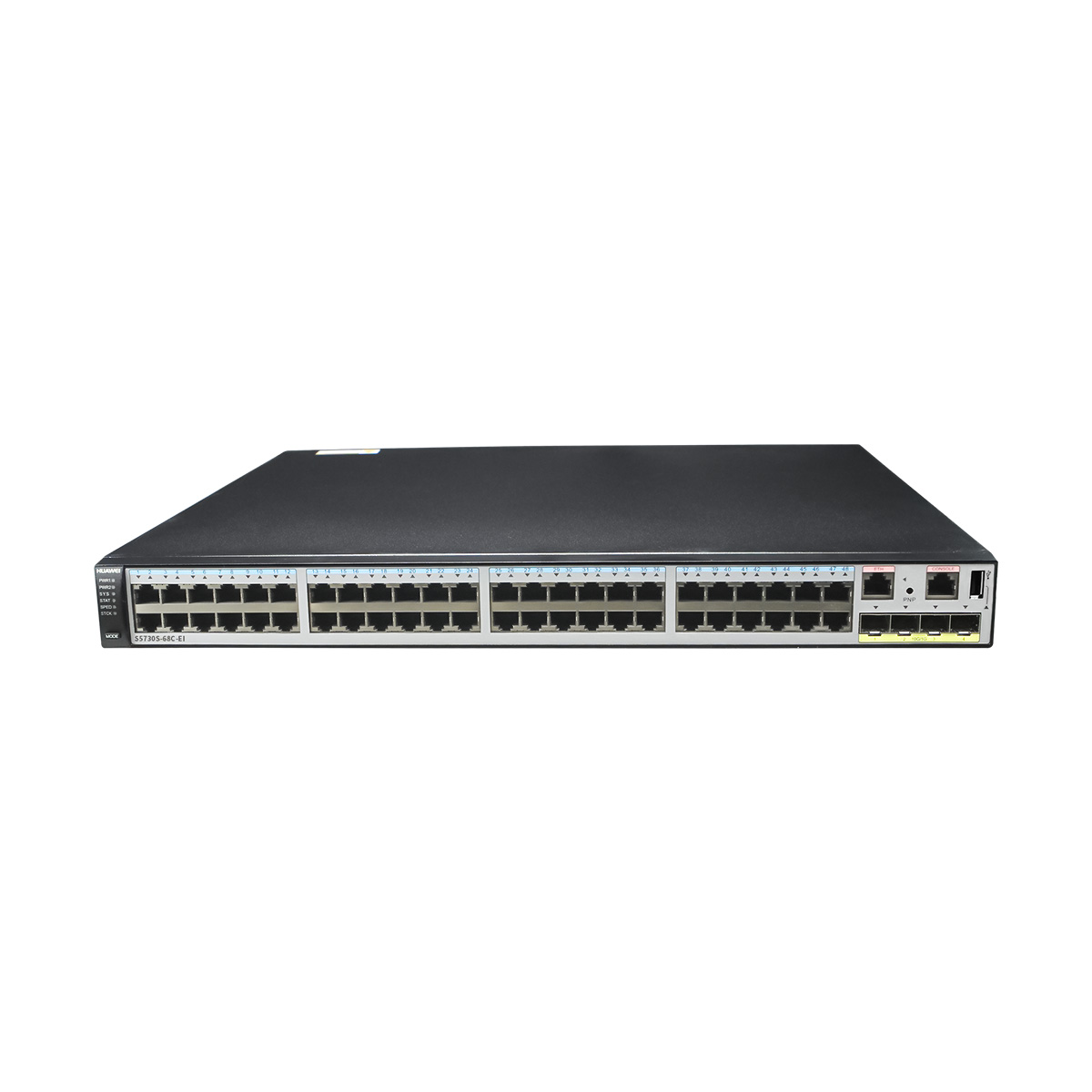

S5730S-68C-EI-AC appearance and structure

S5730S-68C-EI-AC

1 Twenty-four 10/100/1000BASE-T ports 7 Ground screw
2 Eight 10GE SFP+ ports 8 ESN label
3 One PNP button 9 Rear card slot
4 One console port 10 Fan slot
5 One ETH management port 11 Power module slot 2
6 One USB port 12 Power module slot 1
S5730S-68C-EI-AC Datasheet
Item S5730S-68C-EI-AC
Fixed port GE Base-T port 48
GE SFP port NA
10GE port 4
Forwarding performance 420 Mpps
Switching capacity 680 Gbps
Management port Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory Hardware: 512MB, of which 306MB is available for users
Power supply system Power supply type Built-in AC
Rated voltage rang 100 V AC to 240V AC, 50/60 Hz
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-voltage DC input: 190V DC to 290 V DC (meeting 240 V highvoltage DC certification)
Maximum input current 6 A
Maximum power consumption of the device 65.4 W (without card)
Power consumption in the case of 30% traffic load1 42.3 WW
Power consumption in the case of 100% traffic load1 38 W
Reliability MTBF (year) 46.53 years
MTTR (hour) 2 hours
Availability > 0.99999
Physical specifications Dimensions (H x W x D) 44.4 mm x 442.0 mm x 420.0 mm
Chassis height 1 U
Chassis weight (including packaging) 8.5 kg (18.74 lb)

Additional information

Weight 15.0000 kg
Dimensions 71.0000 × 55.0000 × 17.5000 cm
Campus Switch

S5730S-68C-EI-AC Datasheet
Item S5730S-68C-EI-AC
Fixed port GE Base-T port 48
GE SFP port NA
10GE port 4
Forwarding performance 420 Mpps
Switching capacity 680 Gbps
Management port Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory Hardware: 512MB, of which 306MB is available for users
Power supply system Power supply type Built-in AC
Rated voltage rang 100 V AC to 240V AC, 50/60 Hz
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-voltage DC input: 190V DC to 290 V DC (meeting 240 V highvoltage DC certification)
Maximum input current 6 A
Maximum power consumption of the device 65.4 W (without card)
Power consumption in the case of 30% traffic load1 42.3 WW
Power consumption in the case of 100% traffic load1 38 W
Reliability MTBF (year) 46.53 years
MTTR (hour) 2 hours
Availability > 0.99999
Physical specifications Dimensions (H x W x D) 44.4 mm x 442.0 mm x 420.0 mm
Chassis height 1 U
Chassis weight (including packaging) 8.5 kg (18.74 lb)
