Huawei S5731-H24P4XC switch support twenty-four PoE+ 10/100/1000BASE-T ports, four 10GE SFP+ ports

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5731-H24P4XC overview

The S5700 series Ethernet switches are a new generation of green, energy-efficient, full-Gigabit high-performance Ethernet switches launched by Huawei to meet the demands of high-bandwidth access and Ethernet multi-service aggregation. Based on next-generation high-performance hardware and Huawei’s unified platform, the S5700 series features large capacity, high reliability (dual power slots and hardware-level Ethernet OAM), and high-density Gigabit ports, with support for 10-Gigabit uplinks. It also supports EEE (Energy Efficient Ethernet) and iStack intelligent stacking, fully meeting the needs of enterprise campus network access, aggregation, IDC Gigabit access, and Gigabit-to-the-desktop applications.

Item Details
Description S5731-H24T4XC switch (twenty-four PoE+ 10/100/1000BASE-T ports, four 10GE SFP+ ports)
Part Number 02352QPP
Model S5731-H24T4XC

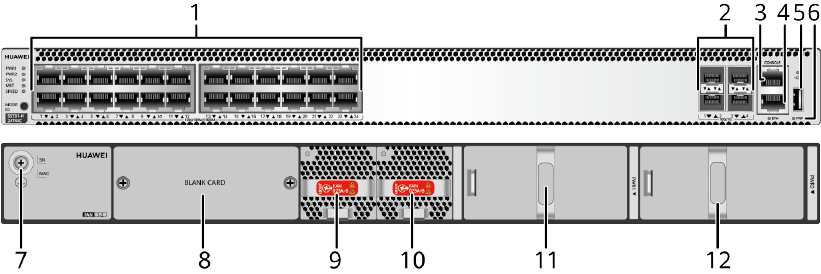

S5731-H24P4XC Appearance

S5731-H24T4XC

1 Twenty-four 10/100/1000BASE-T ports 2 Four 10GE SFP+ ports

Applicable modules and cables:

  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module (100M/1000M auto-sensing)
  • 10GE SFP+ optical module (OSXD22N00 not supported)
  • 10GE-CWDM optical module
  • 10GE-DWDM optical module
  • PEN remote optical modules (V200R024C00 and later versions)
  • 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
  • 3 m and 10 m SFP+ AOC cables
  • 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking)
3 One console port 4 One ETH management port
5 One USB port 6 One PNP button

NOTICE:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.
7 Ground screw

NOTE:

It is used with a ground cable.
 8 Rear card slot

NOTE:

Applicable card:

  • ES5D21X08T00
  • ES5D21Q02Q00
  • S7X08000 (02312URW) (applicable in V200R019C10 and later versions)
  • S7X08000 (02312URW-002) (applicable in V200R021C10SPC600 and later versions)
  • S7Q02001 (02313UBW) (applicable in V200R021C01 and later versions)
  • S7Q02001 (02313UBW-002) (applicable in V200R021C10SPC600 and later versions)
9 Fan module slot 1

NOTE:

Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust))

 10 Fan module slot 2

NOTE:

Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust))
11 Power module slot 1

NOTE:

Applicable power module:

  • PAC600S12-CB (600 W AC&240 V DC Power Module)
  • PAC600S12-EB (600 W AC&240 V DC Power Module)
  • PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
  • PDC1000S12-DB (1000 W DC Power Module)
  • PAC150S12-R (150 W AC Power Module)
  • PDC180S12-CR (180 W DC Power Module) (applicable in V200R020C00 and later versions)
 12 Power module slot 2

NOTE:

Applicable power module:

  • PAC600S12-CB (600 W AC&240 V DC Power Module)
  • PAC600S12-EB (600 W AC&240 V DC Power Module)
  • PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
  • PDC1000S12-DB (1000 W DC Power Module)
  • PAC150S12-R (150 W AC Power Module)
  • PDC180S12-CR (180 W DC Power Module) (applicable in V200R020C00 and later versions)





Item S5731-H24T4XC
Memory (RAM) 4 GB
Flash 1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 57.73 years
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection
  • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
  • Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging) 8.4 kg (18.52 lb)
Stack ports

10GE SFP+ ports on the front panel, or ports on the rear card
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range
  • AC input: 100 V AC to 240 V AC, 50/60 Hz
  • High-Voltage DC input: 240 V DC
  • DC input: -48 V DC to -60 V DC
Maximum voltage range
  • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
  • High-Voltage DC input: 190 V DC to 290 V DC
  • DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 114 W (without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard) 88 W (without card)
Operating temperature
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 57.5 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
