S5731-L4T2ST-RUA

0 Reviews Write a review
PN98011770
AvailabilityIn Stock
Condition New
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei S5731-L4T2ST-RUA supports 4*10/100/1000BASE-T ports, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter

Description

S5731-L4T2ST-RUA overview

Huawei S5731-L4T2ST-RUA supports 4*10/100/1000BASE-T ports, 1*GE SFP port, 1*GE port with an SC connector, TX1310 nm/RX1490 nm, AC power, power adapter



Basic information about the S5731-L4T2S-RUA



Item Details
Description S5731-L4T2ST-RUA (4*10/100/1000BASE-T ports, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter)
Part Number 98011770
Model S5731-L4T2ST-RUA
First supported version V200R021C10SPC500

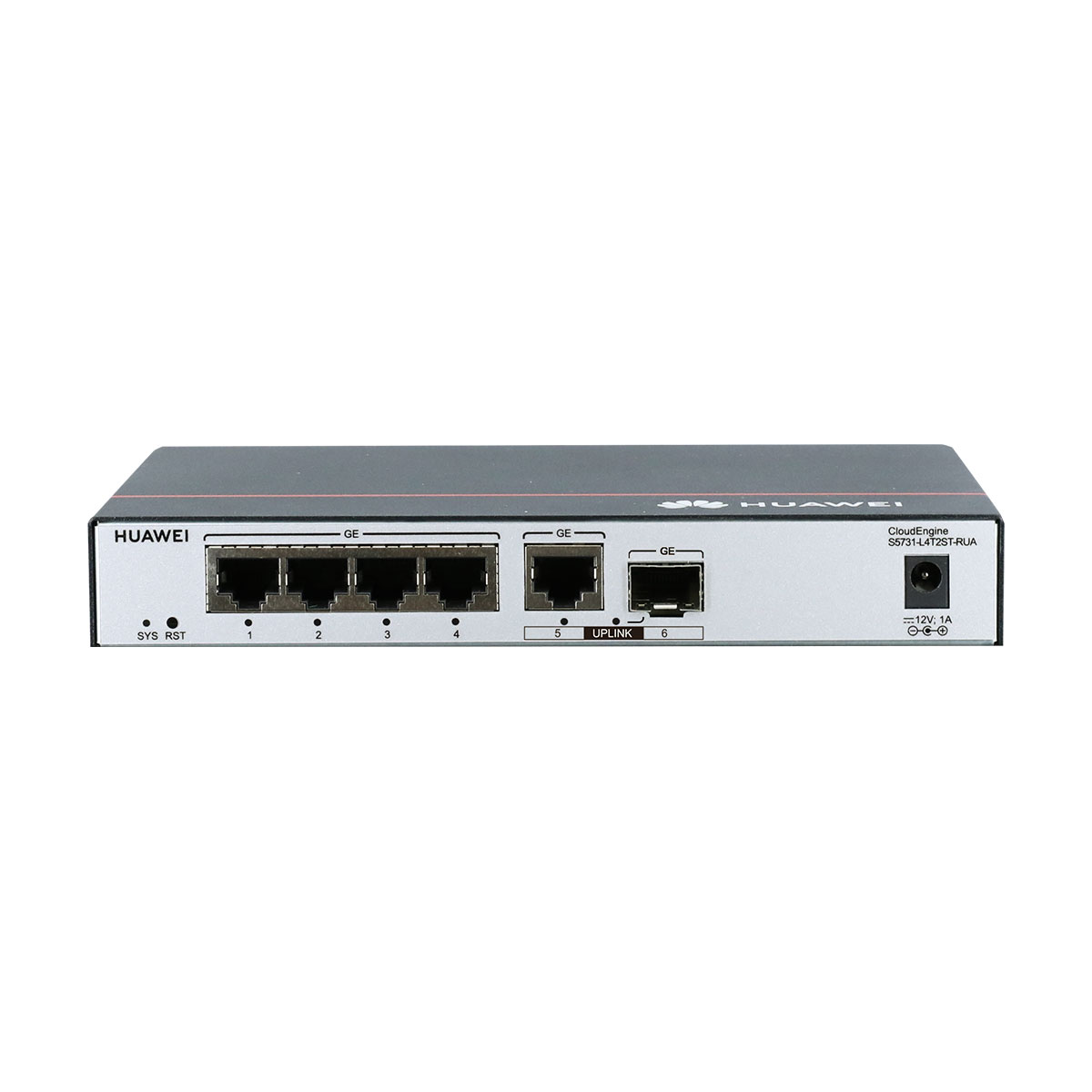

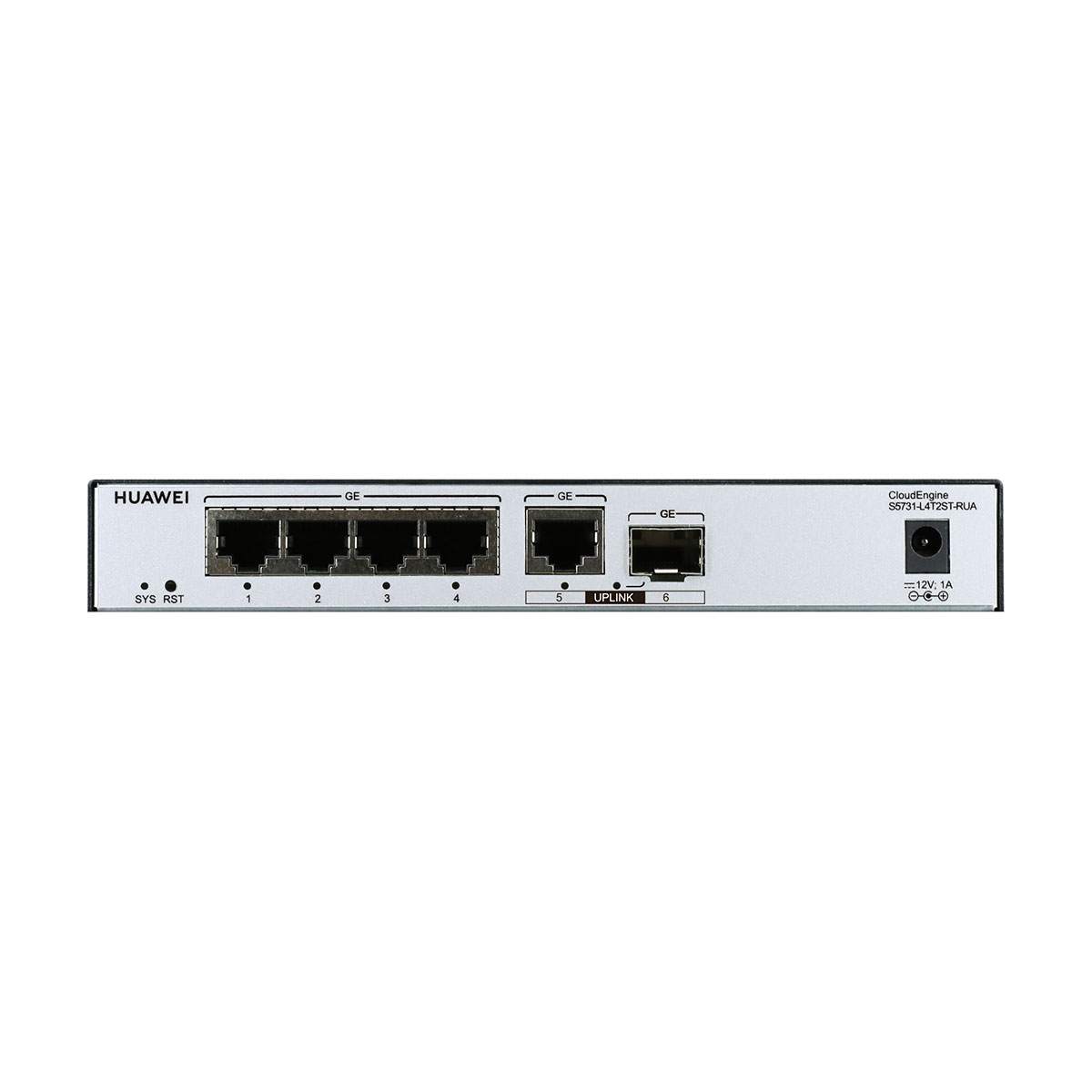

S5731-L4T2ST-RUA appearance

S5731 L4T2ST RUA TM



1 One RST button

NOTICE:

To reset the device, press and hold down the button for less than 6s.



2 Four 10/100/1000BASE-T ports
3 One 10/100/1000BASE-T port

NOTE:

The port is an uplink port.

4 One 1000BASE-X optical port

NOTE:

The port is an uplink port.

5 Power adapter socket

NOTE:

Use the power adapter (12 V, 1 A) delivered with the device.

6 Ground screw















 S5731-L4T2ST-RUA Specification
Chassis height [U] 0.61 U
Weight without packaging [kg(lb)] 0.74 kg (1.63 lb)
Weight with packaging [kg(lb)] 1.02 kg (2.25 lb)
Typical power consumption [W] 4.88 W (device) 5.08 W (device + power adapter)
Typical heat dissipation [BTU/hour] 16.65 (device) 17.33 (device + power adapter)
Maximum power consumption [W] 5.06 W (device) 5.26 W (device + power adapter)
Maximum heat dissipation [BTU/hour] 17.27 (device) 17.95 (device + power adapter)
Static power consumption [W] 2.62 W
MTBF [year] 83.23 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans): < 30
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans): < 20
Number of card slots 0
Number of power slots 0
Number of fans modules 0
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Power adapter
Rated input voltage [V] Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 12 V DC
Input voltage range [V] Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A] 1 A
Memory --
Flash memory --
Console port Not supported
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±6 kV
Power supply surge protection [kV] Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Types of fans None
Heat dissipation mode Natural heat dissipation
Airflow direction -
PoE Not supported
Certification EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 82.0 mm x 342.0 mm x 228.0 mm (3.23 in. x 13.46 in. x 8.98 in.)
Chassis height [U] 0.61 U

Additional information

Brand

Huawei

Condition

Warranty

12 Months

 S5731-L4T2ST-RUA Specification
Chassis height [U] 0.61 U
Weight without packaging [kg(lb)] 0.74 kg (1.63 lb)
Weight with packaging [kg(lb)] 1.02 kg (2.25 lb)
Typical power consumption [W] 4.88 W (device) 5.08 W (device + power adapter)
Typical heat dissipation [BTU/hour] 16.65 (device) 17.33 (device + power adapter)
Maximum power consumption [W] 5.06 W (device) 5.26 W (device + power adapter)
Maximum heat dissipation [BTU/hour] 17.27 (device) 17.95 (device + power adapter)
Static power consumption [W] 2.62 W
MTBF [year] 83.23 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans): < 30
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans): < 20
Number of card slots 0
Number of power slots 0
Number of fans modules 0
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Power adapter
Rated input voltage [V] Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 12 V DC
Input voltage range [V] Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A] 1 A
Memory --
Flash memory --
Console port Not supported
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±6 kV
Power supply surge protection [kV] Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Types of fans None
Heat dissipation mode Natural heat dissipation
Airflow direction -
PoE Not supported
Certification EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 82.0 mm x 342.0 mm x 228.0 mm (3.23 in. x 13.46 in. x 8.98 in.)
Chassis height [U] 0.61 U
