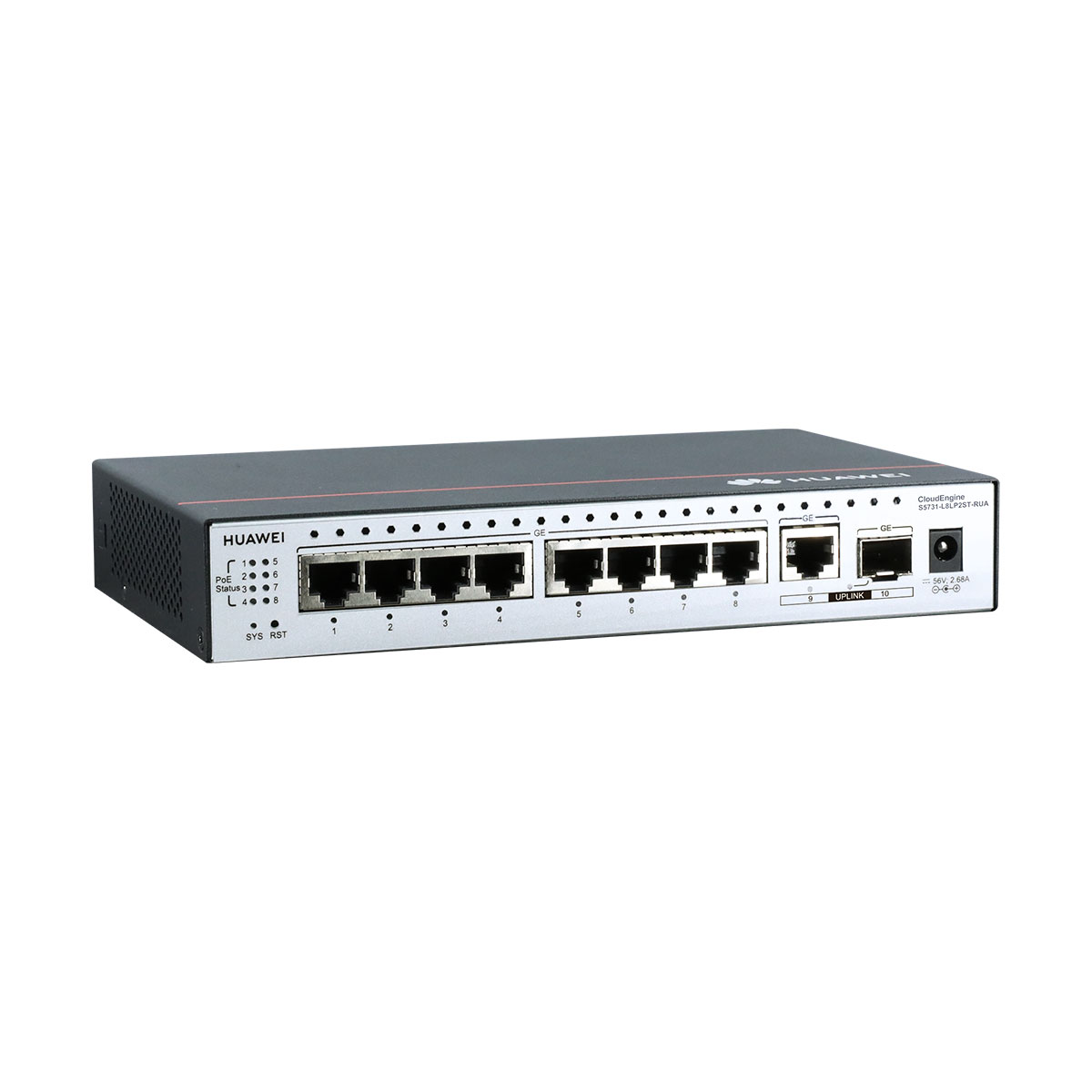

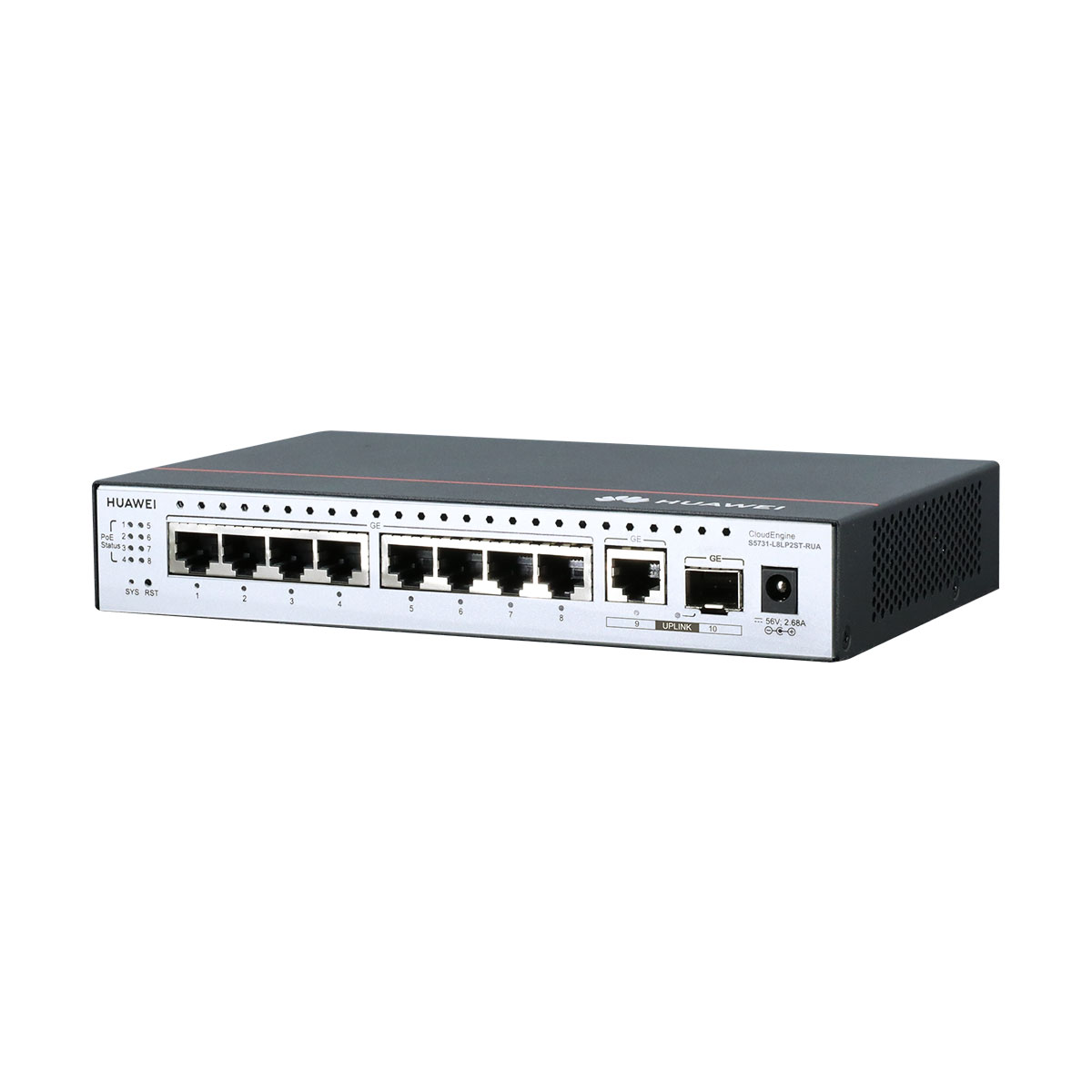

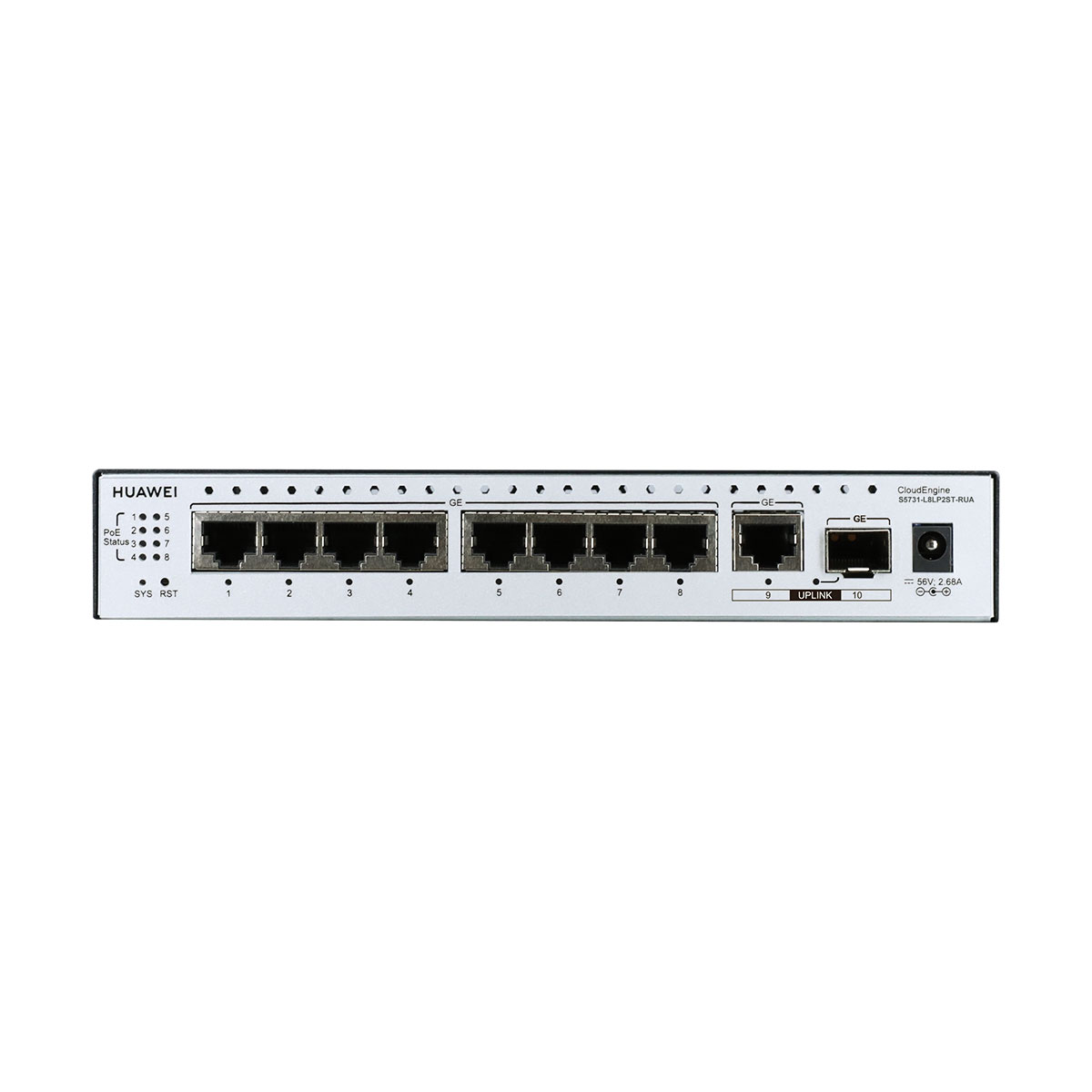

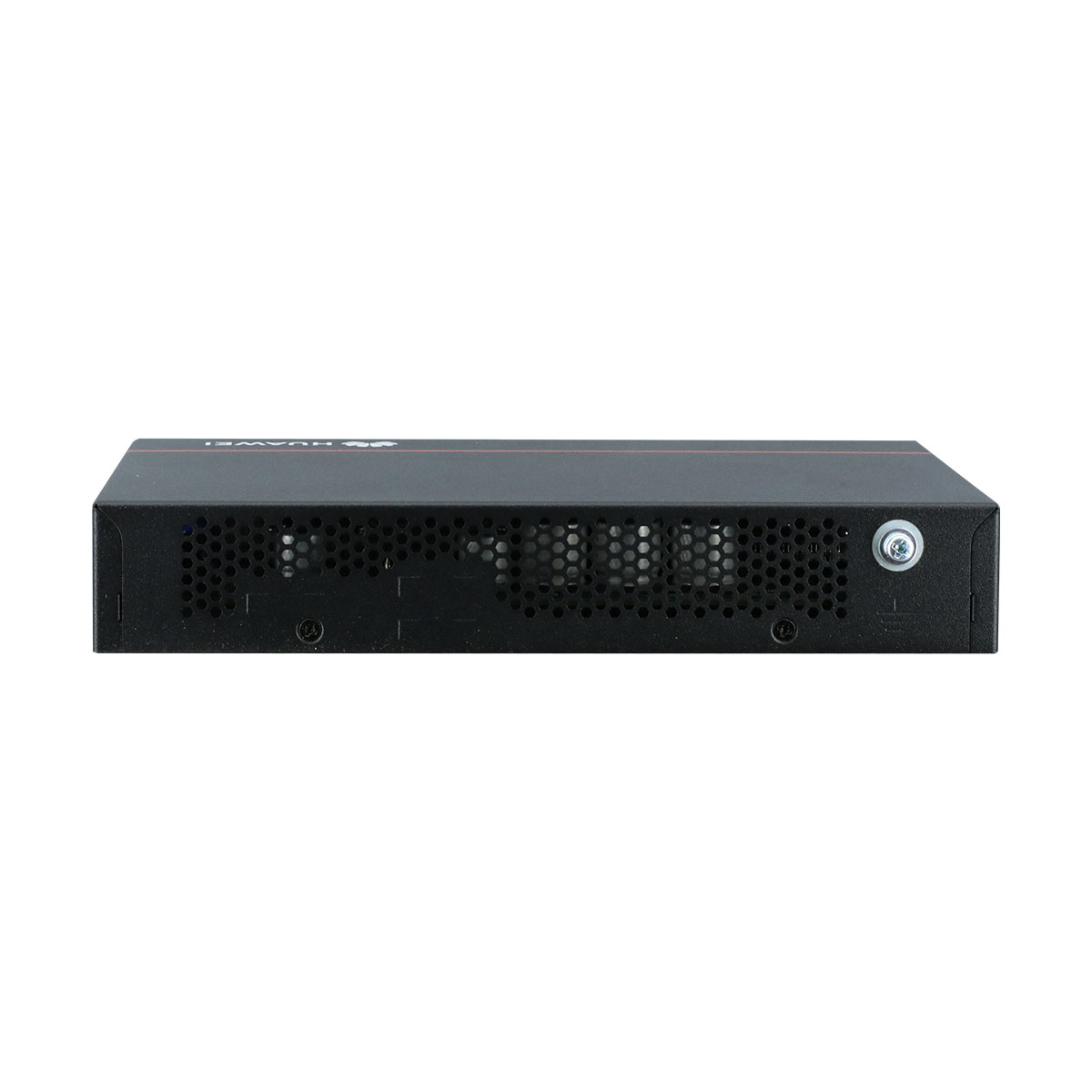

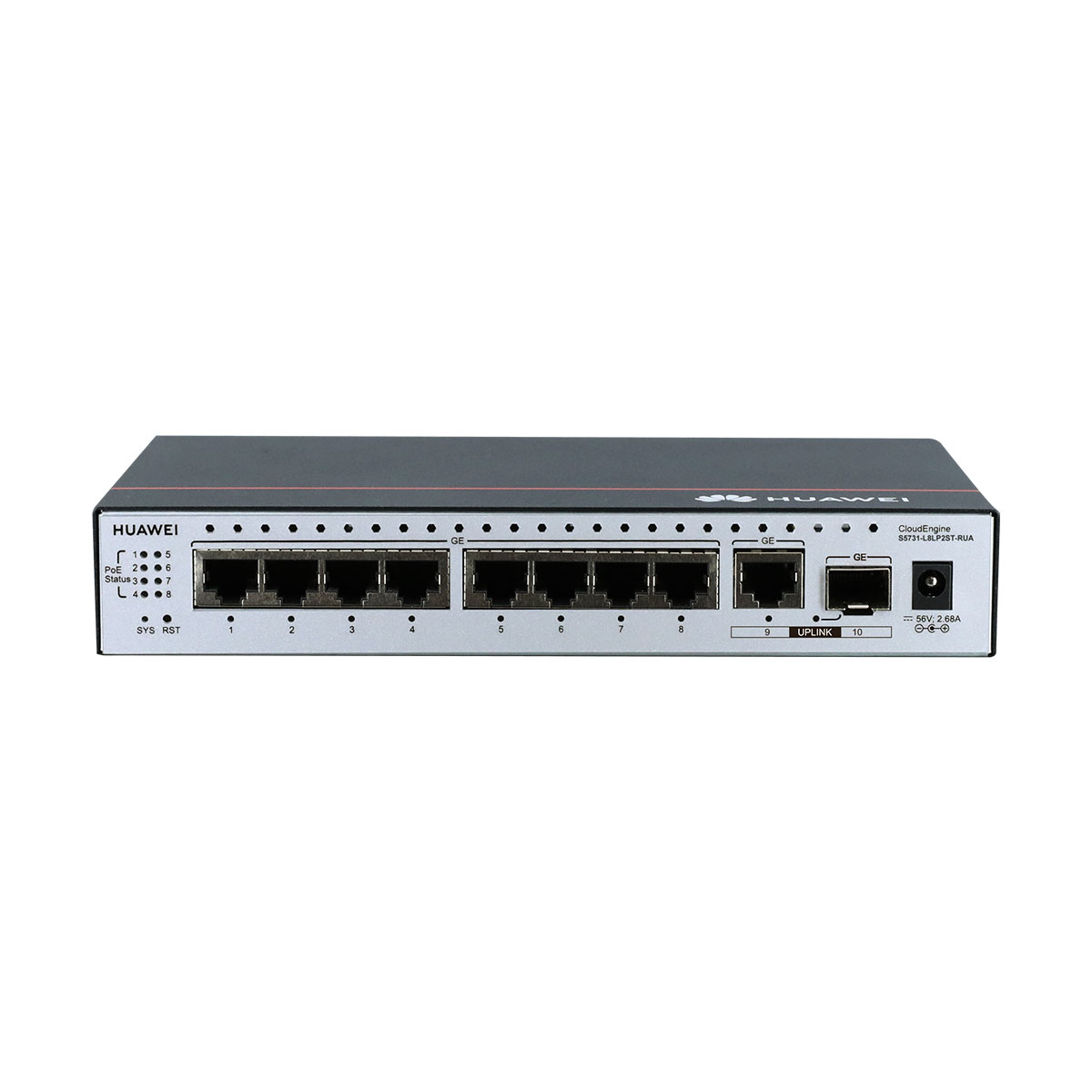

Huawei S5731-L8LP2ST-RUA supports 8*10/100/1000BASE-T ports, PoE+, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter
Huawei S5731-L8LP2ST-RUA supports 8*10/100/1000BASE-T ports, PoE+, 1*GE hybrid optical-electrical SFP port, 1*10/100/1000BASE-T port, PoE input
Basic information about the S5731-L8LP2ST-RUA
| Item | Details |
|---|---|
| Description | S5731-L8LP2ST-RUA (8*10/100/1000BASE-T ports, PoE+, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter) |
| Part Number | 98012186 |
| Model | S5731-L8LP2ST-RUA |
| First supported version | V200R022C10 |
| S5731-L8LP2ST-RUA | Specification |
|---|---|
| Chassis height [U] | 0.855 U |
| Weight without packaging [kg(lb)] | 1.06 kg (2.34 lb) |
| Weight with packaging [kg(lb)] | 1.36 kg (3.0 lb) |
| Typical power consumption [W] | 8.6 W (device) 9.44 W (device + power adapter) |
| Typical heat dissipation [BTU/hour] | 29.34 (device) 32.23 (device + power adapter) |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 4.1 W |
| MTBF [year] | 75.78 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage [V] | Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DC |
| Input voltage range [V] | Power adapter input: 90 V AC to 290 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 1.07 A |
| Memory | -- |
| Flash memory | -- |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±6 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Supported |
| Certification | EMC certification Safety certification Manufacturing certification |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 38.0 mm x 210.0 mm x 130.0 mm (1.5 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 38.0 mm x 210.0 mm x 130.0 mm (1.5 in. x 8.27 in. x 5.12 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 76.0 mm x 357.0 mm x 242.0 mm (2.99 in. x 14.06 in. x 9.53 in.) |
| Brand | Huawei |
|---|---|
| Condition | |
| Warranty | 12 Months |
| S5731-L8LP2ST-RUA | Specification |
|---|---|
| Chassis height [U] | 0.855 U |
| Weight without packaging [kg(lb)] | 1.06 kg (2.34 lb) |
| Weight with packaging [kg(lb)] | 1.36 kg (3.0 lb) |
| Typical power consumption [W] | 8.6 W (device) 9.44 W (device + power adapter) |
| Typical heat dissipation [BTU/hour] | 29.34 (device) 32.23 (device + power adapter) |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 4.1 W |
| MTBF [year] | 75.78 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage [V] | Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DC |
| Input voltage range [V] | Power adapter input: 90 V AC to 290 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 1.07 A |
| Memory | -- |
| Flash memory | -- |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±6 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Supported |
| Certification | EMC certification Safety certification Manufacturing certification |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 38.0 mm x 210.0 mm x 130.0 mm (1.5 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 38.0 mm x 210.0 mm x 130.0 mm (1.5 in. x 8.27 in. x 5.12 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 76.0 mm x 357.0 mm x 242.0 mm (2.99 in. x 14.06 in. x 9.53 in.) |
