Description
S5735-L48P4XE-A-V2 Overview
CloudEngine S5700 series Ethernet switches (S5700 for short) are Huawei’s next-generation energy-saving gigabit Ethernet switches that provide high-bandwidth access and Ethernet multi-service aggregation. Built on next-generation high-performance hardware, the S5700 provides large capacity, high reliability (two power slots and hardware-based Ethernet OAM), and high-density GE and multi-GE ports, as well as 25GE or 100GE uplink ports. It also supports Energy Efficient Ethernet (EEE) and stacking. The S5700 can be used in a wide range of enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, or a switch that provides gigabit to the desktop. In addition, the S5700 provides a broad spectrum of services, security policies, and quality of service (QoS) features to help customers build scalable, reliable, manageable, and secure networks.
| Item | S5735-L48P4XE-A-V2 |
|---|---|
| Description | S5735-L48P4XE-A-V2 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, 1*AC power) |
| Part Number | 98012120 |
| Model | S5735-L48P4XE-A-V2 |
| First supported version | V600R022C01 |

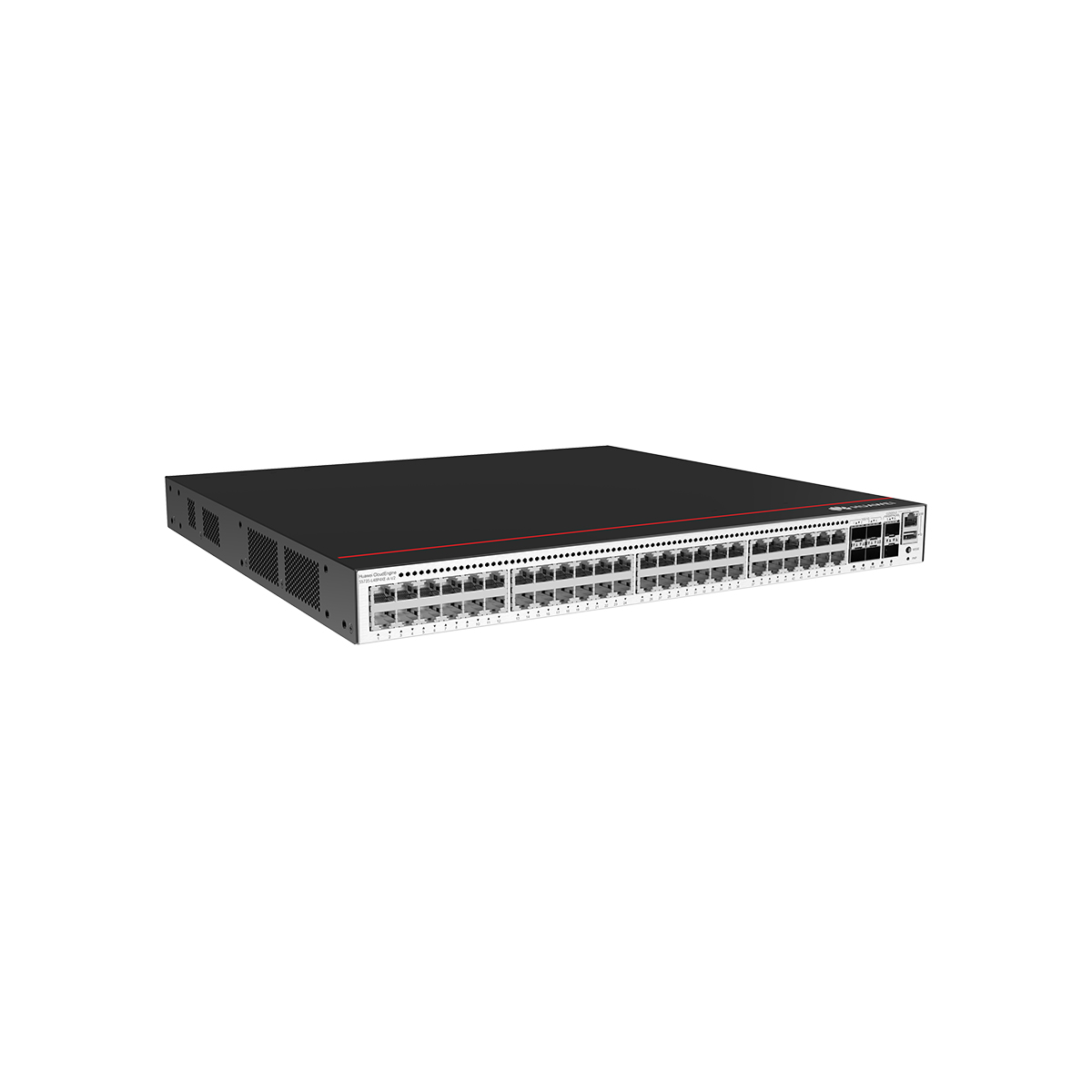

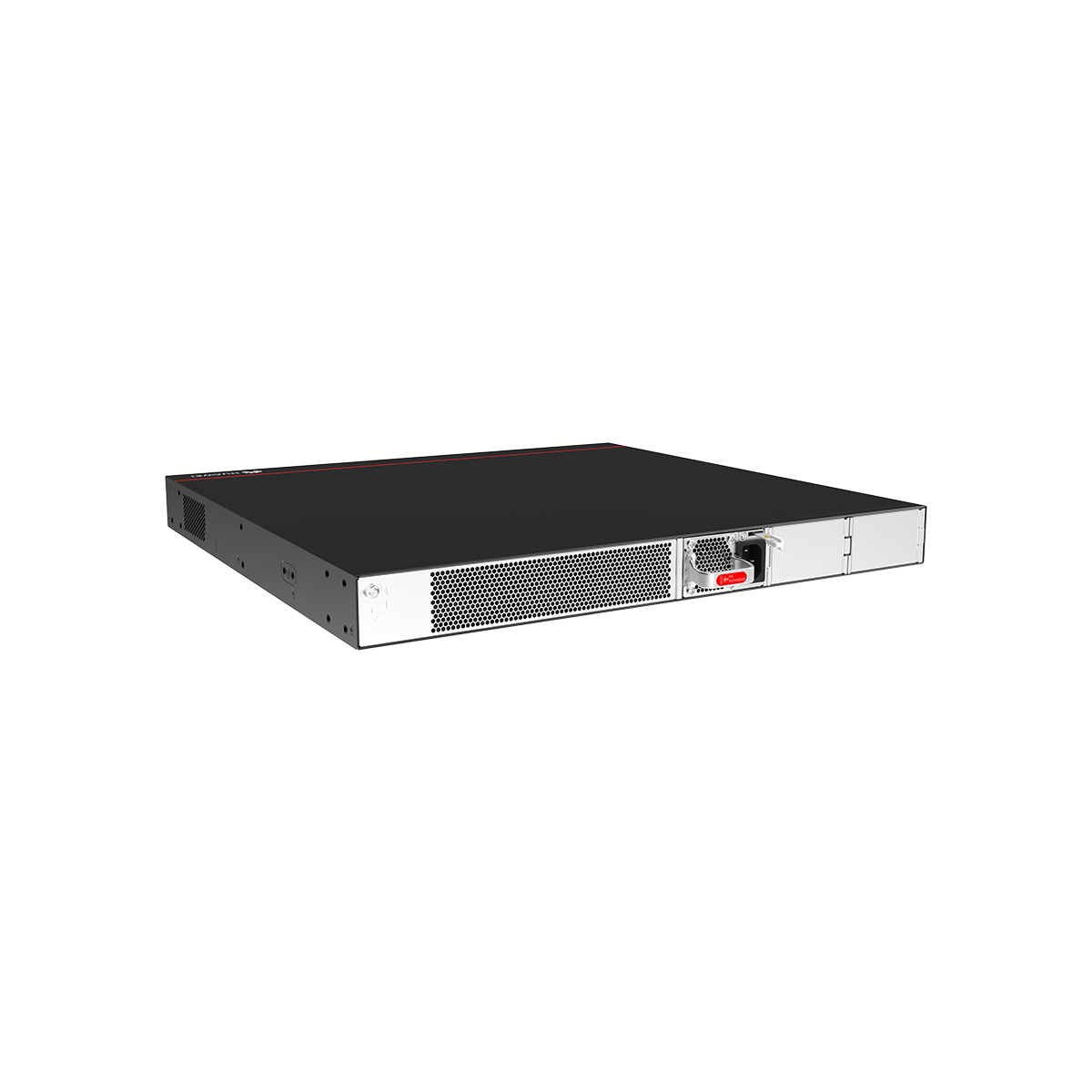

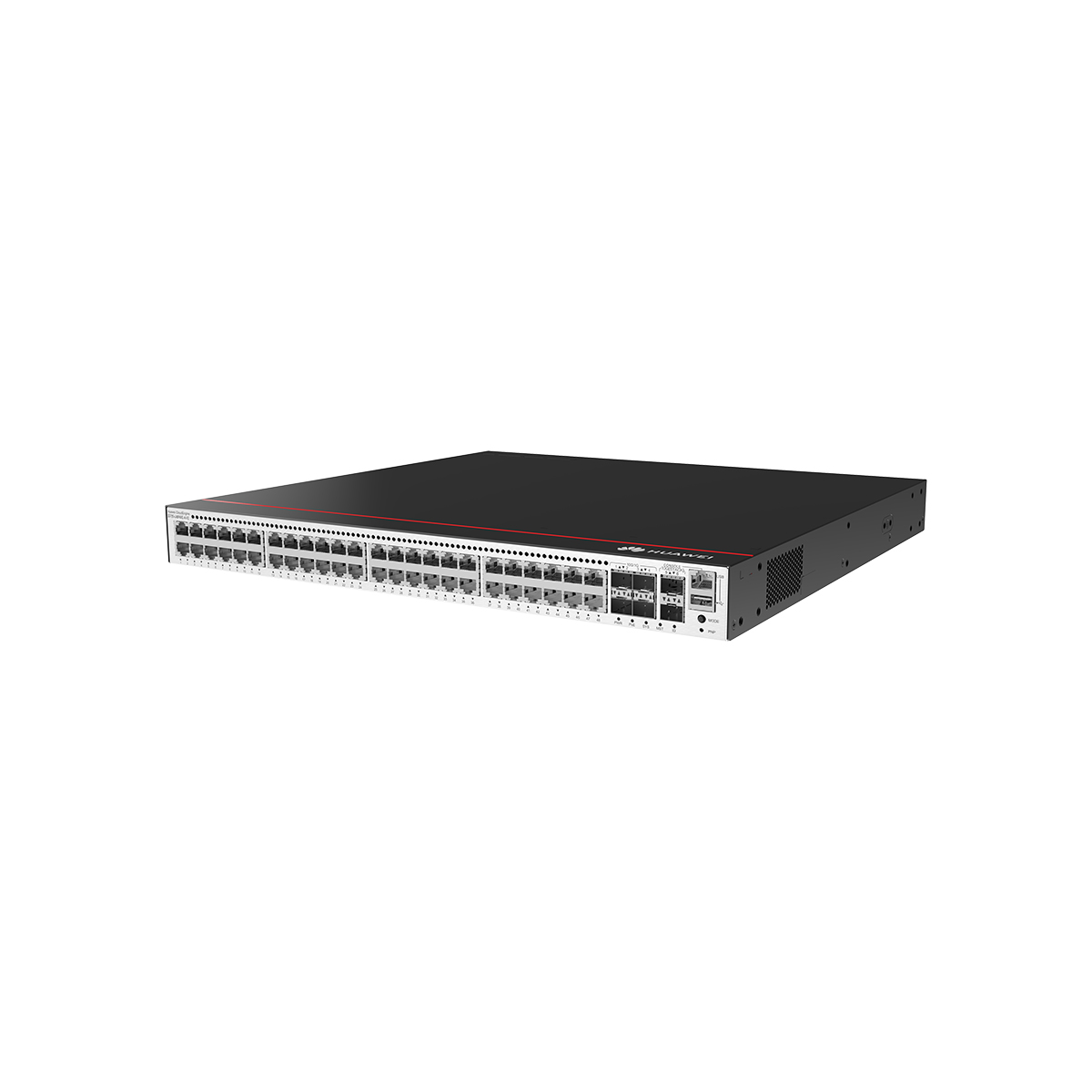

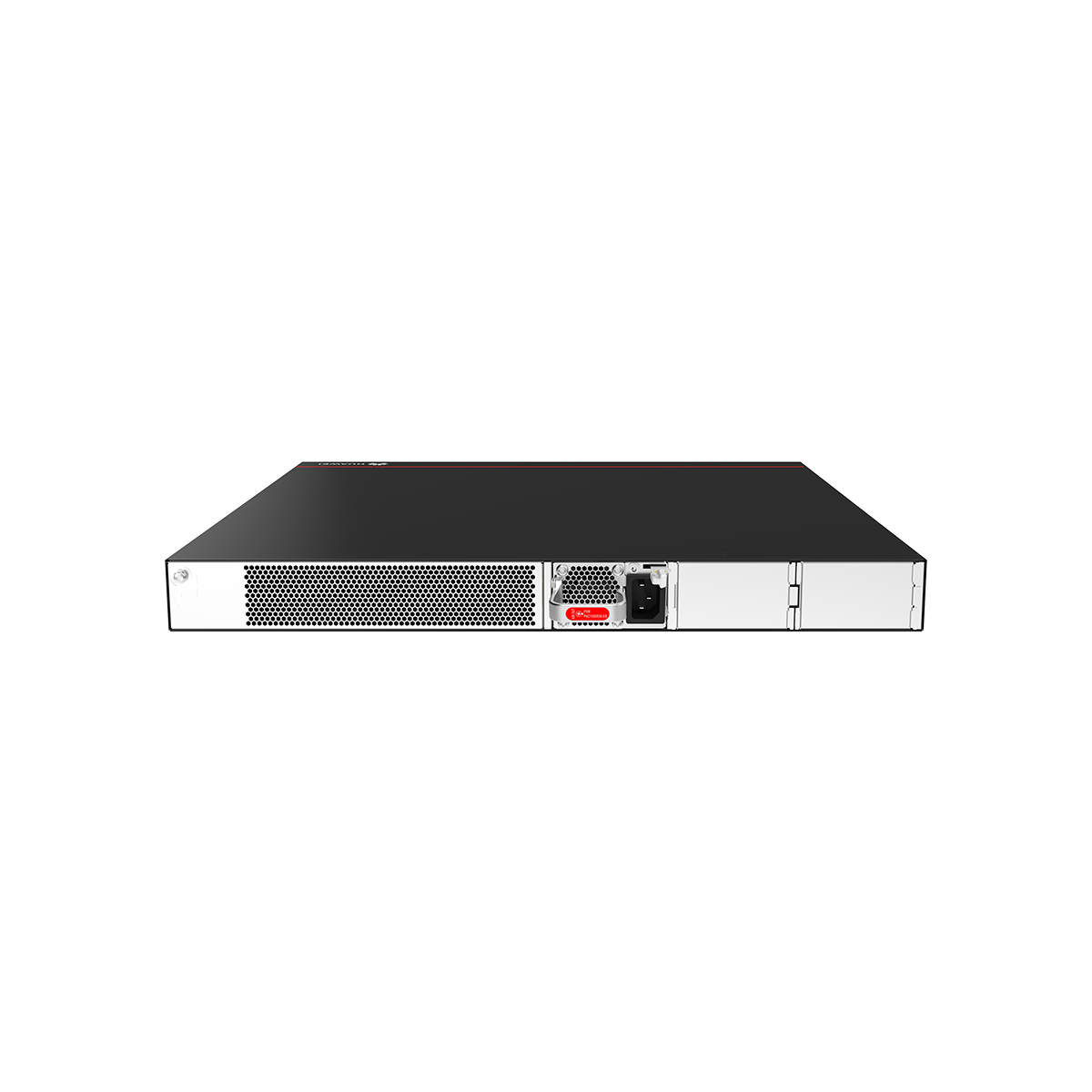

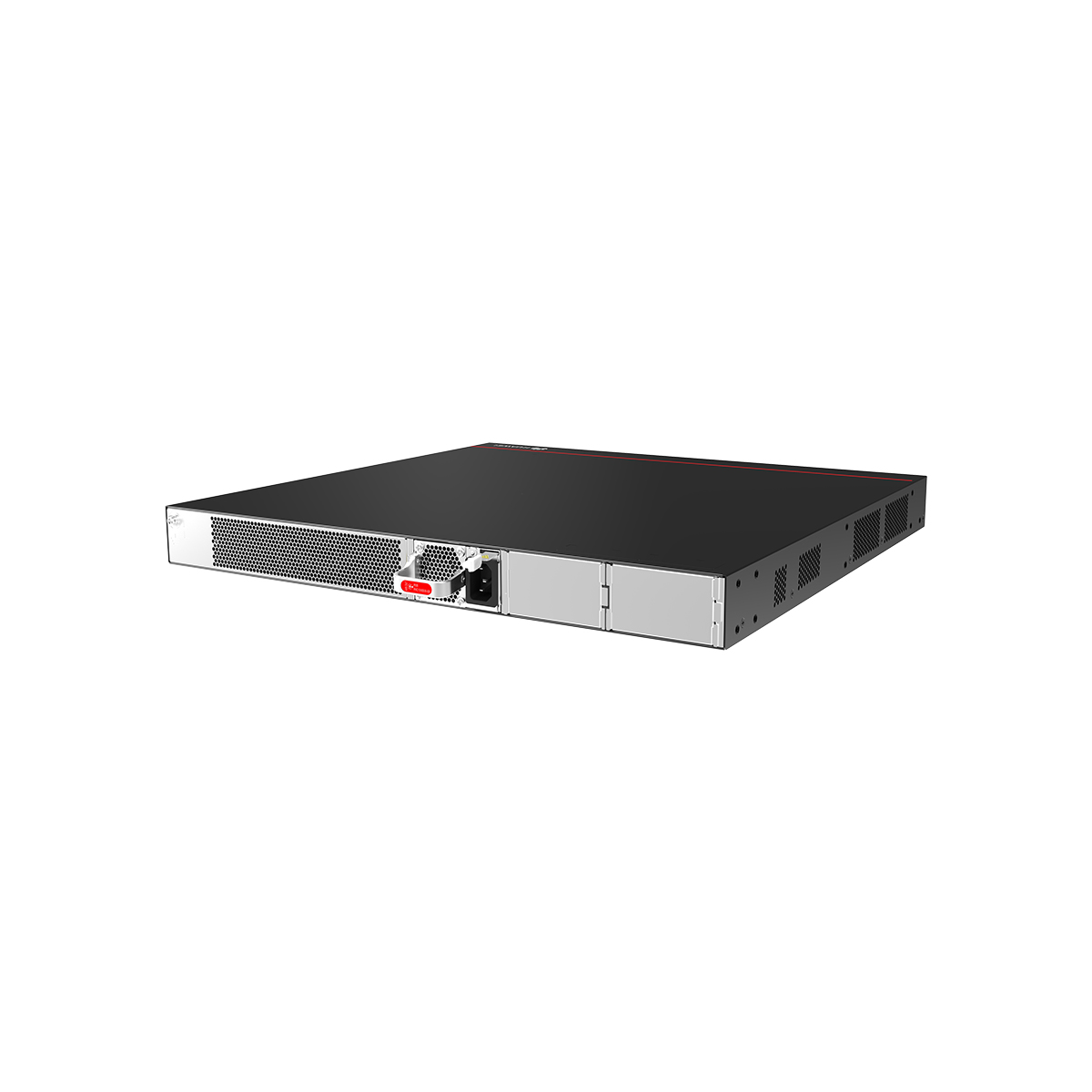

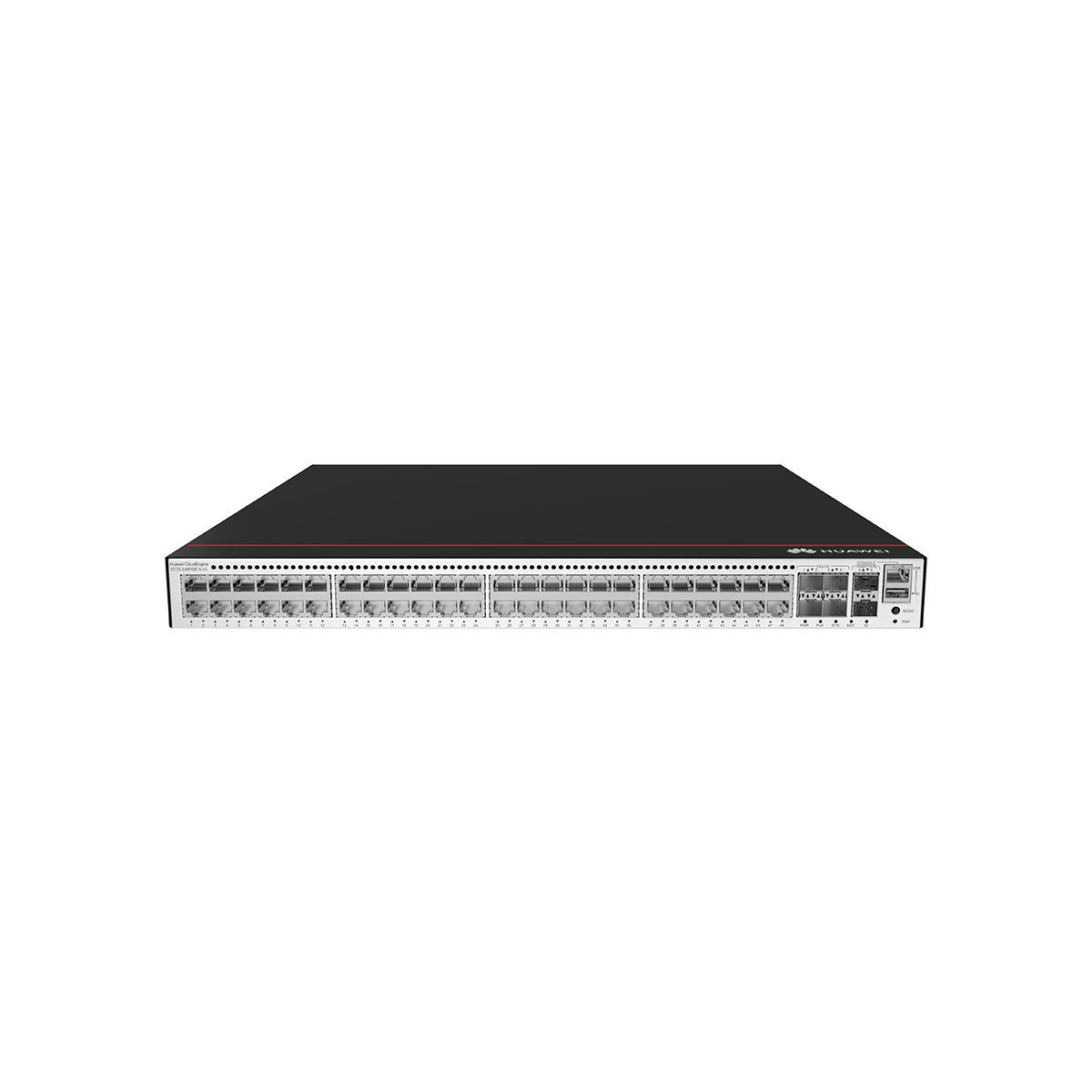

S5735-L48P4XE-A-V2 Appearance and Structure
| 1 | Forty-eight 10/100/1000BASE-T PoE+ ports | 2 | Four 10GE SFP+ ports |
| 3 | Two stack ports | 4 | One console port |
| 5 | One USB port | 6 | One MODE button |
| 7 | One PNP button
NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
8 | Ground screw
NOTE: It is used with a ground cable.
|
| 9 | Power module slot
NOTE: Applicable power modules: |
– | – |
