Huawei S5735-L8P4X-A1 switch supports 8 10/100/1000BASE-T ports, 4 10GE SFP+ ports, PoE+, AC power fixed

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei S5735-L8P4X-A1 switch Overview



Huawei S5735-L8P4X-A1 switch supports 8 10/100/1000BASE-T ports, 4 10GE SFP+ ports, PoE+, AC power fixed, which is one model of Huawei S5735-L series switch.

CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high-performance and service processing capabilities.

For Huawei’s full range of switches, power modules, expansion cards, original and compatible optical transceivers, contact [email protected]



Huawei S5735-L8P4X-A1 switch Quick Specs



8 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports
AC power supply
PoE+
Forwarding performance: 72 Mpps
Switching capacity: 96 Gbps/336 Gbps

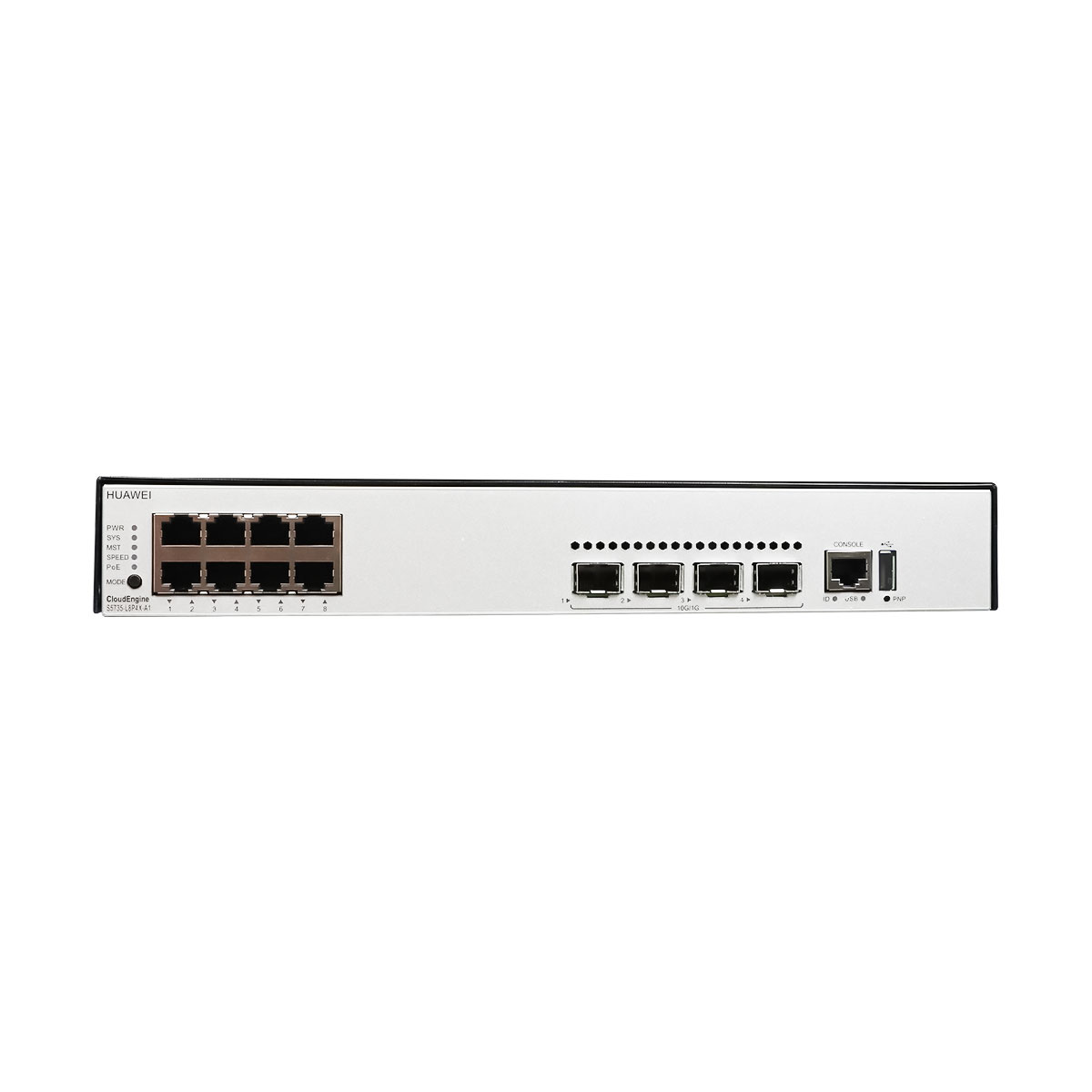

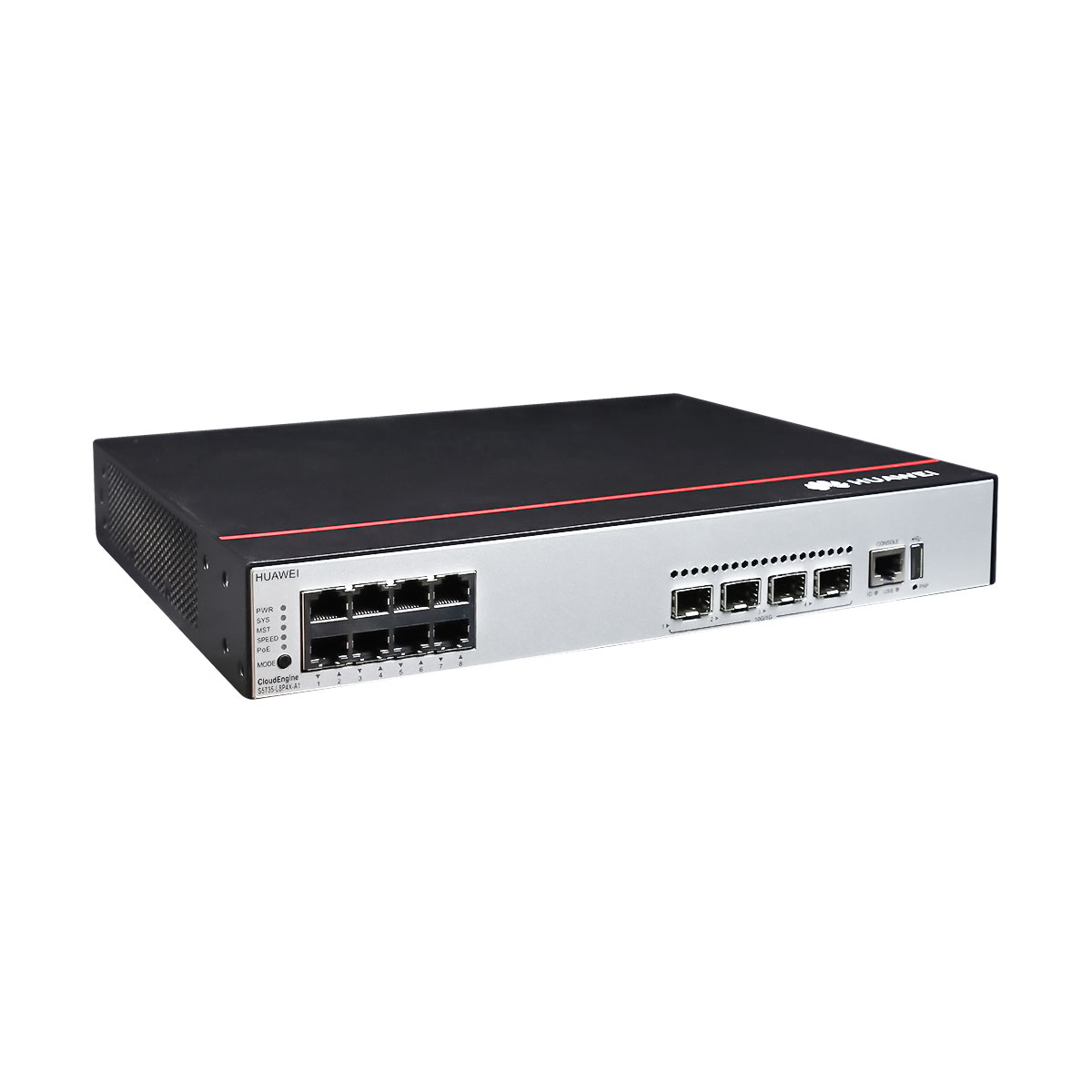

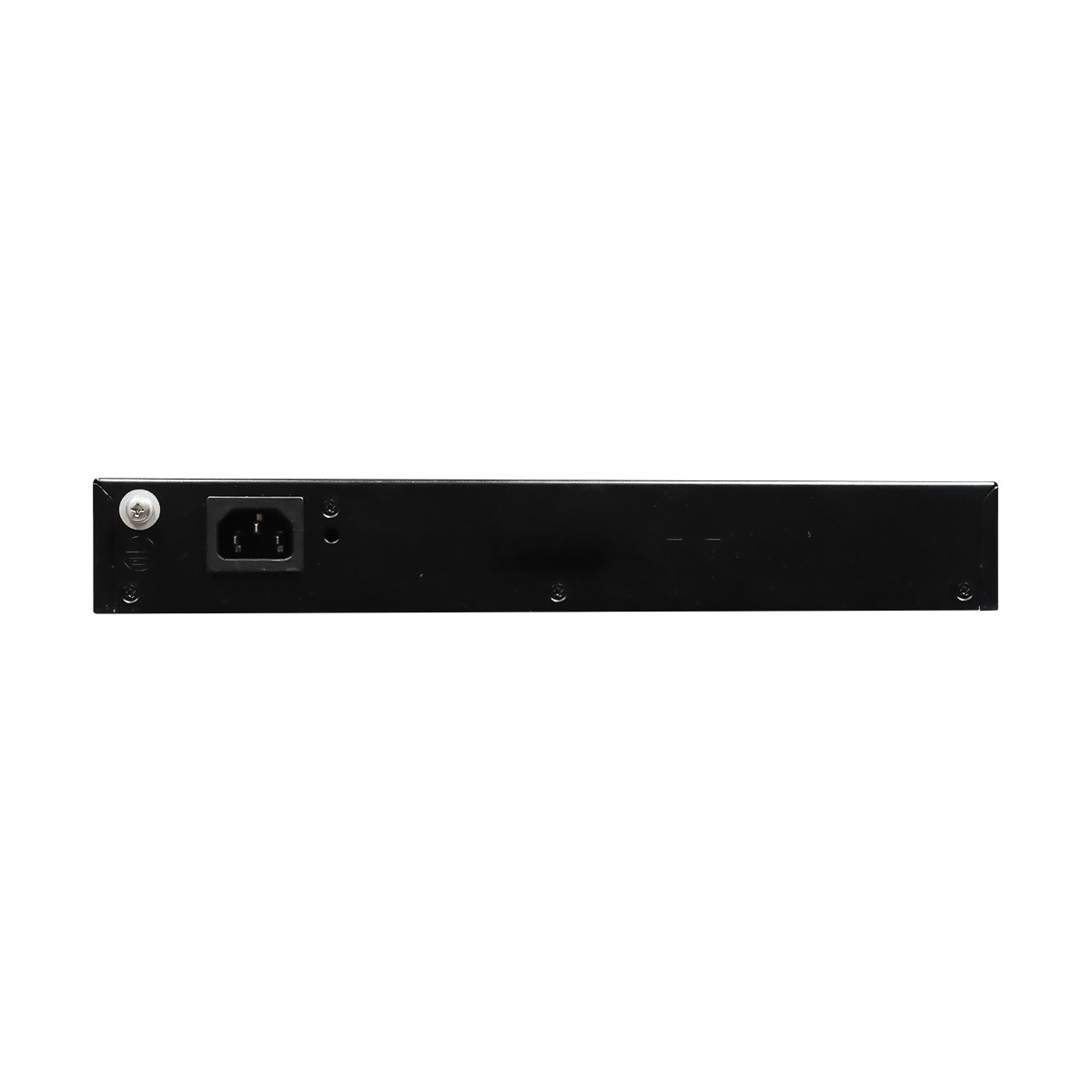

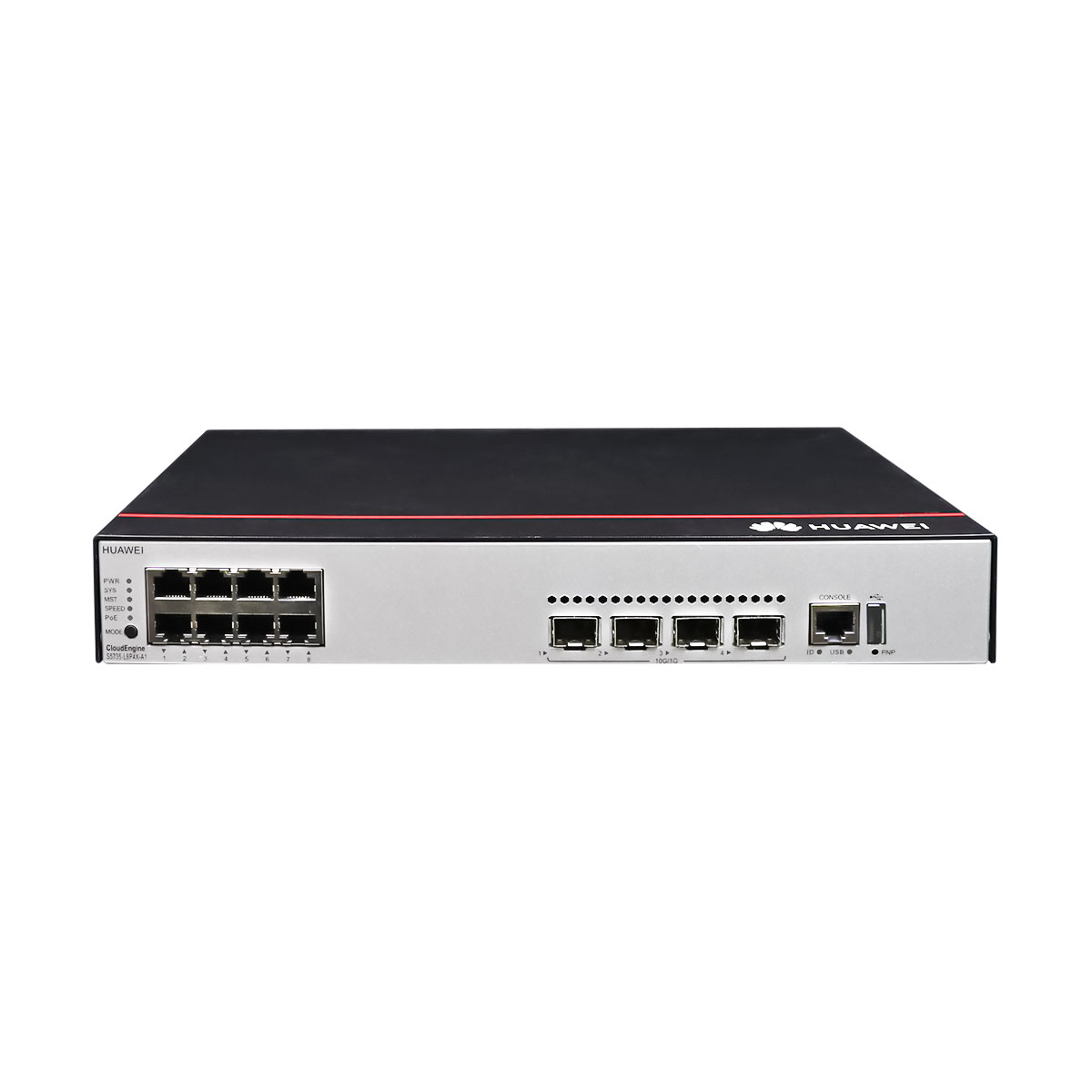

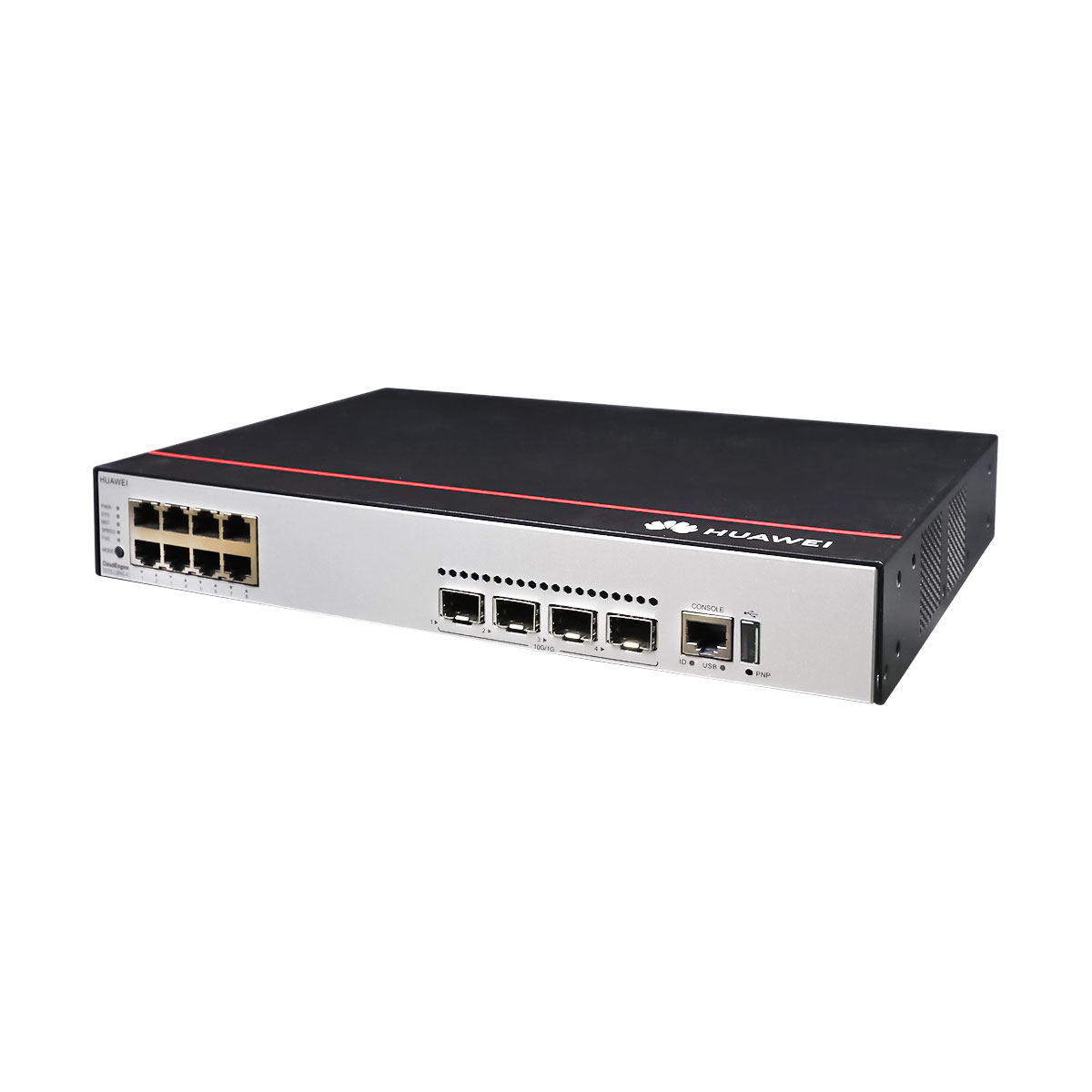

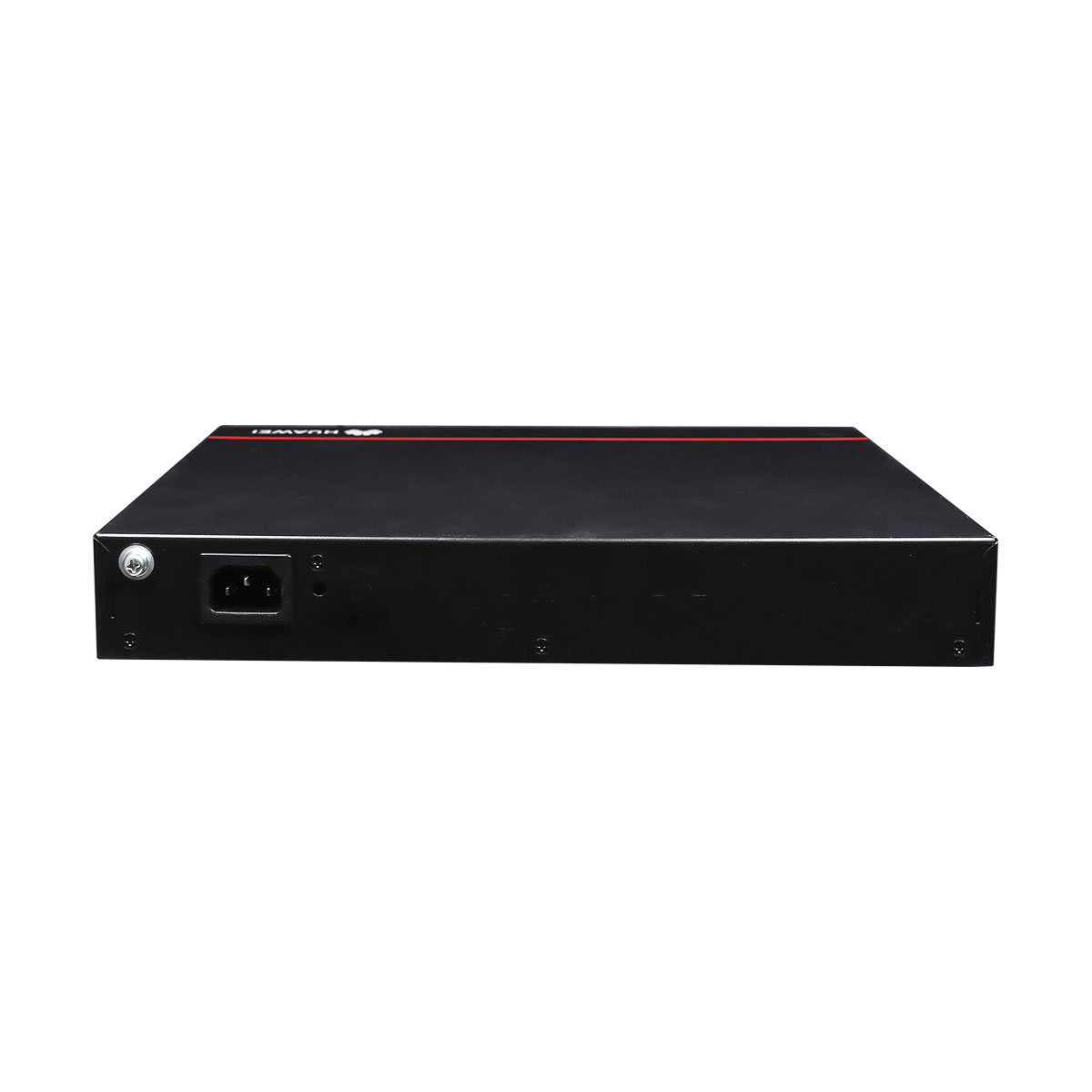

Huawei S5735-L8T4X-A1 switch Appearance and Structure

S5735 L8P4X A1

1 Eight 10/100/1000BASE-T PoE+ ports 2 Four 10GE SFP+ ports
3 One console port 4 One USB port
5 One PNP button 6 Ground screw
7 AC socket 8 Jack for AC power cable locking strap



Show More Show Less
Huawei S5735-L8P4X-A1 switch Datasheet

Item S5735-L8P4X-A1
Description 8 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports
AC power supply
PoE+
Forwarding performance: 72 Mpps
Switching capacity: 96 Gbps/336 Gbps
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 300.0 mm x 220.0 mm (1.72 in. x 11.8 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 300.0 mm x 227.0 mm (1.72 in. x 11.8 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 2.25 kg (4.96 lb)
Weight with packaging [kg(lb)] 3.17 kg (7 lb)
Typical power consumption [W] 28.7 W
Typical heat dissipation [BTU/hour] 97.93 BTU/hour
Maximum power consumption [W] Not providing the PoE function: 39.1 W
100% PoE loads: 163.1 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour] Not providing the PoE function: 133.41
100% PoE loads: 556.51
MTBF [year] 62.46 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 42.2 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules)
-5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)
Short-term operating temperature [°C(°F)] Not supported
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 3 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Supported
Certification EMC certification
Safety certification
Manufacturing certification

Additional information

Weight 6 kg
Dimensions 40 × 40 × 10 cm
Brand

Huawei
Lead Time

3-5 days
Ship From

Hongkong Warehouse
Campus Switch

Huawei S5735-L8P4X-A1 switch Datasheet

Item S5735-L8P4X-A1
Description 8 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports
AC power supply
PoE+
Forwarding performance: 72 Mpps
Switching capacity: 96 Gbps/336 Gbps
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 300.0 mm x 220.0 mm (1.72 in. x 11.8 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 300.0 mm x 227.0 mm (1.72 in. x 11.8 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 2.25 kg (4.96 lb)
Weight with packaging [kg(lb)] 3.17 kg (7 lb)
Typical power consumption [W] 28.7 W
Typical heat dissipation [BTU/hour] 97.93 BTU/hour
Maximum power consumption [W] Not providing the PoE function: 39.1 W
100% PoE loads: 163.1 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour] Not providing the PoE function: 133.41
100% PoE loads: 556.51
MTBF [year] 62.46 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 42.2 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules)
-5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)
Short-term operating temperature [°C(°F)] Not supported
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 3 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Supported
Certification EMC certification
Safety certification
Manufacturing certification
