S7706 PoE overview

The S7700 series switches offer intelligent service optimization features such as deep integration of wired and wireless networks, unified user management, network quality awareness with iPCA, comprehensive H-QoS policies, and integrated security. They support 100G ports and SVF 2.0 (Super Virtual Fabric), providing exceptional scalability and reliability. These switches are widely used as core devices in large campus networks across various sectors, including government, finance, and energy.

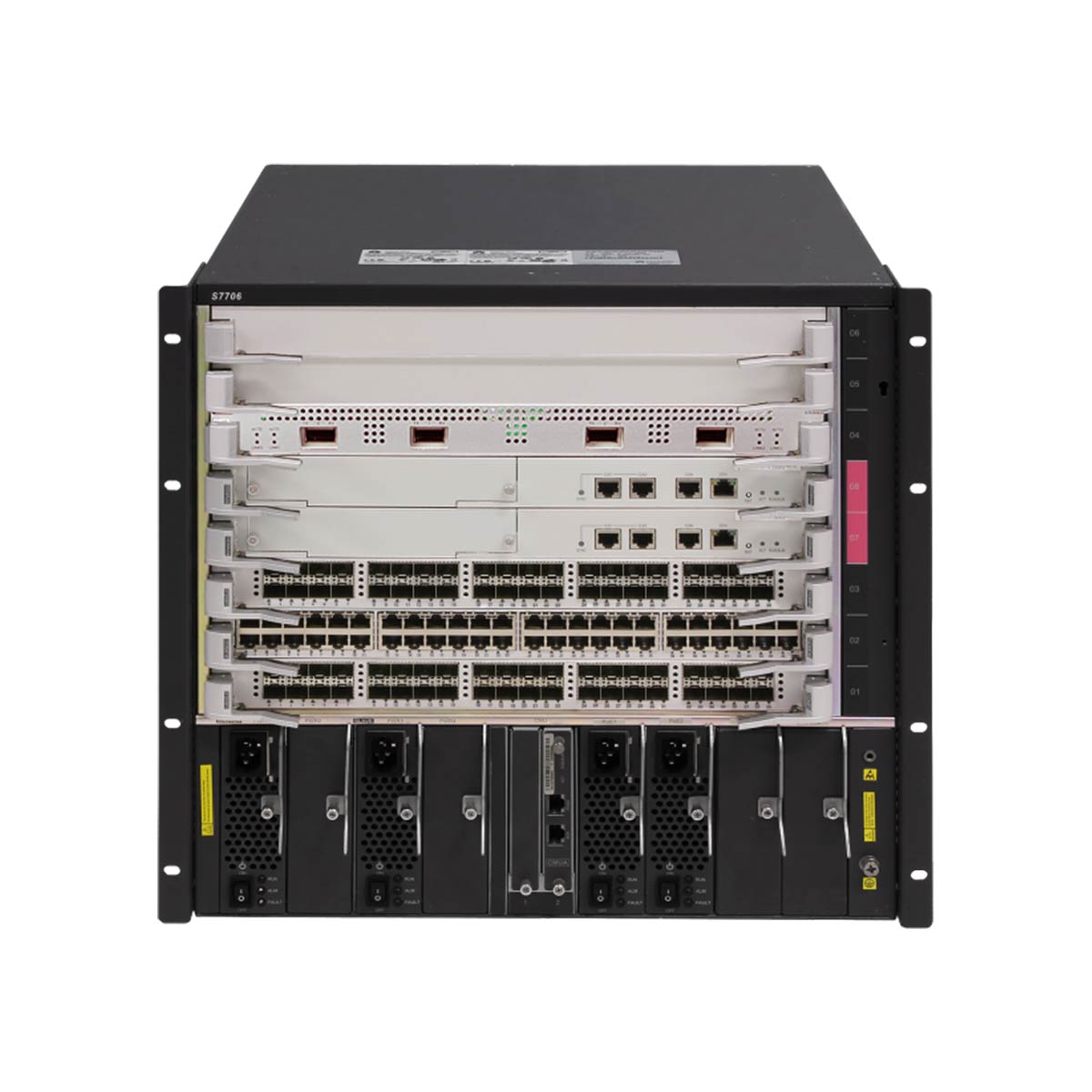

S7706 PoE chassis Appearance

S7706 PoE

1. Six of the following service cards can be installed:

  • Open Service Platform Unit
  • 100M Interface Card

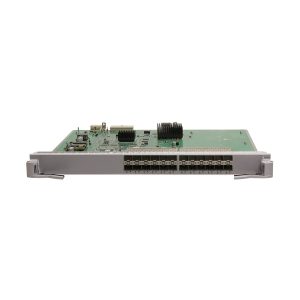

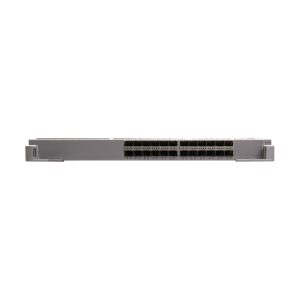

  • 1000M Interface Card
  • GE/10GE Interface Card
  • 10GE Interface Card
  • 40GE Interface Card
  • 40GE/100GE Interface Card
  • 100GE Interface Card

    NOTE:

    The cards supported by a switch depend on the software version. For details, see Info-finder.

 2. Two MPUs 3. A pair of mounting brackets

NOTE:

The mounting brackets are used to secure the chassis in the cabinet.
4. Eight power modules

  • 800 W AC Power Module
  • 2200 W AC Power Module
  • 2200 W DC Power Module
  • 3000 W AC Power Module

NOTE:

For details, see Power Module.

 5. Two EH1D200CMU00-Centralized Monitoring Unit 6. Ground screw

NOTE:

The ground screw is used to ground the chassis.
7. Front ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

 8. Cable management frames

NOTE:

Cable management frames are used to route cables.

 –

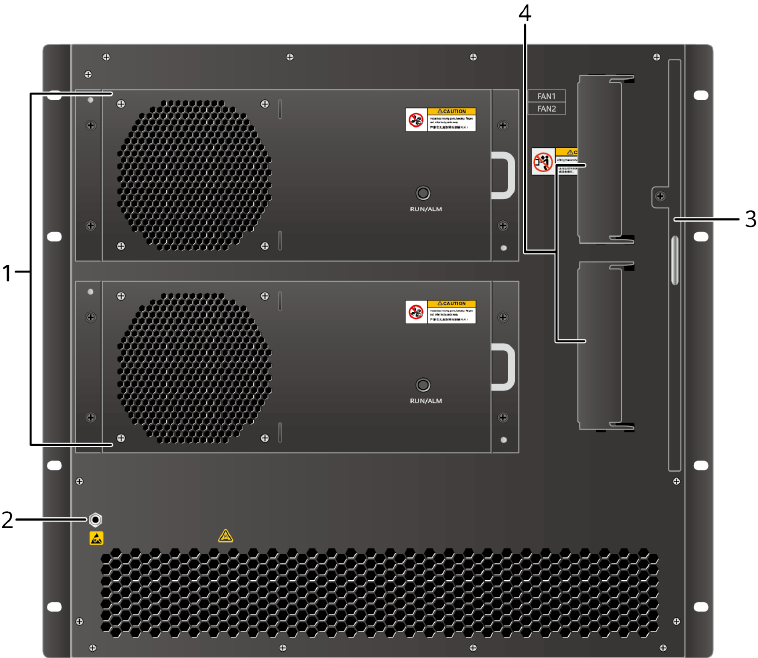

S7706 PoE-1

1. Two Fan Module 2. Rear ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

 3. Air filter

NOTE:

The air filter prevents dust from entering the chassis.
4. A pair of removable handles

NOTE:

You can install these handles on two sides of the chassis to lift the chassis.

 – –



S7706 PoE slot configuration

Slot Type Slot ID Module Supported Remarks
MPU slot SLOT7 and SLOT8 MPUs The SRUs work in active/standby mode.
LPU slot SLOT1 to SLOT6
  • Open Service Platform Unit
  • 100M Interface Card
  • 1000M Interface Card
  • GE/10GE Interface Card
  • 10GE Interface Card
  • 40GE Interface Card
  • 40GE/100GE Interface Card
  • 100GE Interface Card

NOTE:

The cards supported by a switch depend on the software version. For details, see Info-finder.
CMU slot CMU1 and CMU2 EH1D200CMU00-Centralized Monitoring Unit The CMUs work in active/standby mode.
Power supply slot PWR1 to PWR8 Power Modules

  • 800 W AC Power Module
  • 2200 W AC Power Module
  • 2200 W DC Power Module
  • 3000 W AC Power Module
 –
Fan module slot FAN1, FAN2 Fan Module –
Item S7703 PoE chassis
LPU slots 6
MPU slots 2
Fan slots 2
Power supply slots 8
Maximum port density
  • V200R013C00 to V200R019C00: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE
  • V200R019C00 to V200R020C10: 288xFE, 288xGE, 288x10GE, 48x40GE, 36x100GE
  • V200R021C00 and later versions: 288xFE, 288xGE, 288x10GE, 72x40GE, 36x100GE
Installation In an N66E or N68E cabinet, one or two chassis in a cabinet
CSS CSS card or service port clustering
Maximum power consumption (fully configured, no PoE power supply)
NOTE:
The heat dissipation value of a chassis equals the current power consumption of the chassis.
2640W
Power specifications

  • DC input voltage

    Rated voltage: -48 V DC/-60 V DC

    Maximum voltage range: -40 V DC to -72 V DC

  • AC input voltage

    Rated voltage: 110 V AC/220 V AC, 50/60 Hz

    Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.)

  • HVDC input voltage (3000 W AC)

    Rated voltage: 240 V DC

    Maximum voltage range: 190 V DC to 290 V DC
Dimensions (H x W x D, without rack-mounting brackets)
  • With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.)
  • Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured) 21.3 kg/78.1 kg (47.0 lb/172.2 lb)
Reliability and availability
  • MTBF: 24.2 years
  • Availability: 0.9999959
NOTE:

The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.
Environment specifications
  • Operating temperature and altitude:

    -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)

    1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).

    4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)

  • Relative humidity: 5% RH to 95% RH (noncondensing)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Storage altitude: < 5000 m (16404 ft.)
Noise at normal temperature (acoustic power) ≤ 72 dB(A)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Additional information
