SP3D overview

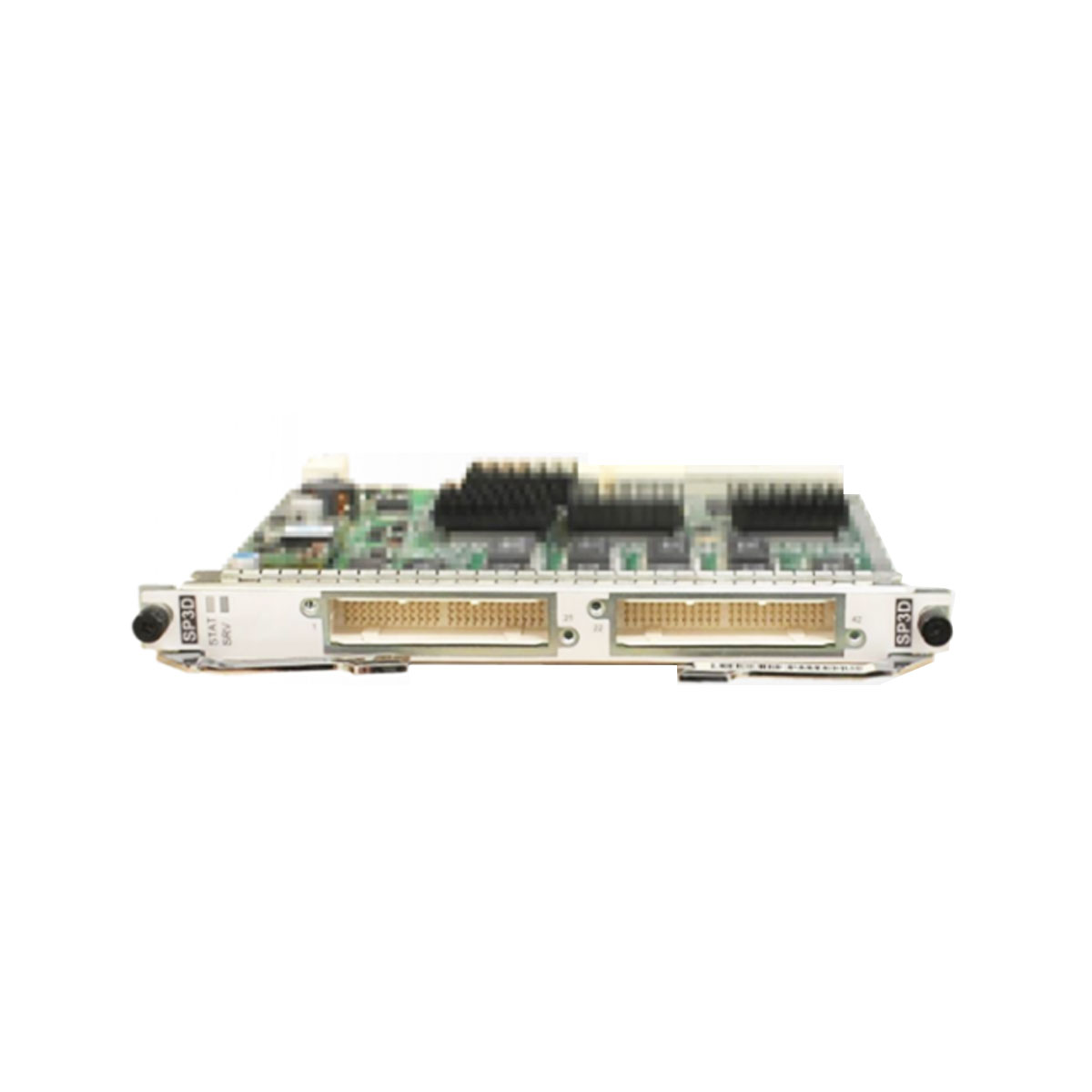

Huawei OSN1800V 42*E1/T1 electrical interface board SP3D.
The SP3D is a PDH processing board.
The SP3D can be used on the OptiX OSN equipment series to add and drop PDH signals.
The SP3D transmits/receives and processes 42*E1/T1 signals.
Version description of the SP3D board
|
Board |
Product Applicable-System Control Board-Initial Board Version Supported by System Control Board |
|---|---|
|
TNF1SP3D |
1800 I Enhanced-TMA1UXCL-V100R008C10 1800 V-TNF5UXCM-V100R003C05 1800 V-TNF5UXCME-V100R005C20 1800 V-TNZ5UXCMS-V100R006C10 1800 V-TNZ5XCS-V100R019C10SPC300 1800 II Enhanced-TNZ1UXCL-V100R007C10 1800 II Enhanced-TNZ2UXCL-V100R008C00SPC600 |
|
Item |
SP3D |
|---|---|
|
Service processing |
Receives/Transmits and processes 42*E1/T1 signals. |
|
Overhead processing |
Processes path overheads at the VC-12 level such as J2 and V5. |
|
Electrical port specifications |
Supports the 42*channel 75/120*ohm E1 interface and 100*ohm T1 interface. |
|
Alarms and performance events |
Provides various alarms and performance events, facilitating equipment management and maintenance. |
|
Tributary clock sources |
Extracts clock signals from the first and seventeenth channels. |
|
Physical Clock |
Supported |
|
Maintenance features |
|
|
SNCP protection |
Functions only as the service sink board to work with a line board or universal line board to implement SNCP protection. |
|
TPS protection |
Not supported |
|
2M ASON |
When working with TNZ5UXCMS, the board supports this function. |
