Description
HUAWEI
SS63S16A02
SS63S16A(S-16.1,SC)

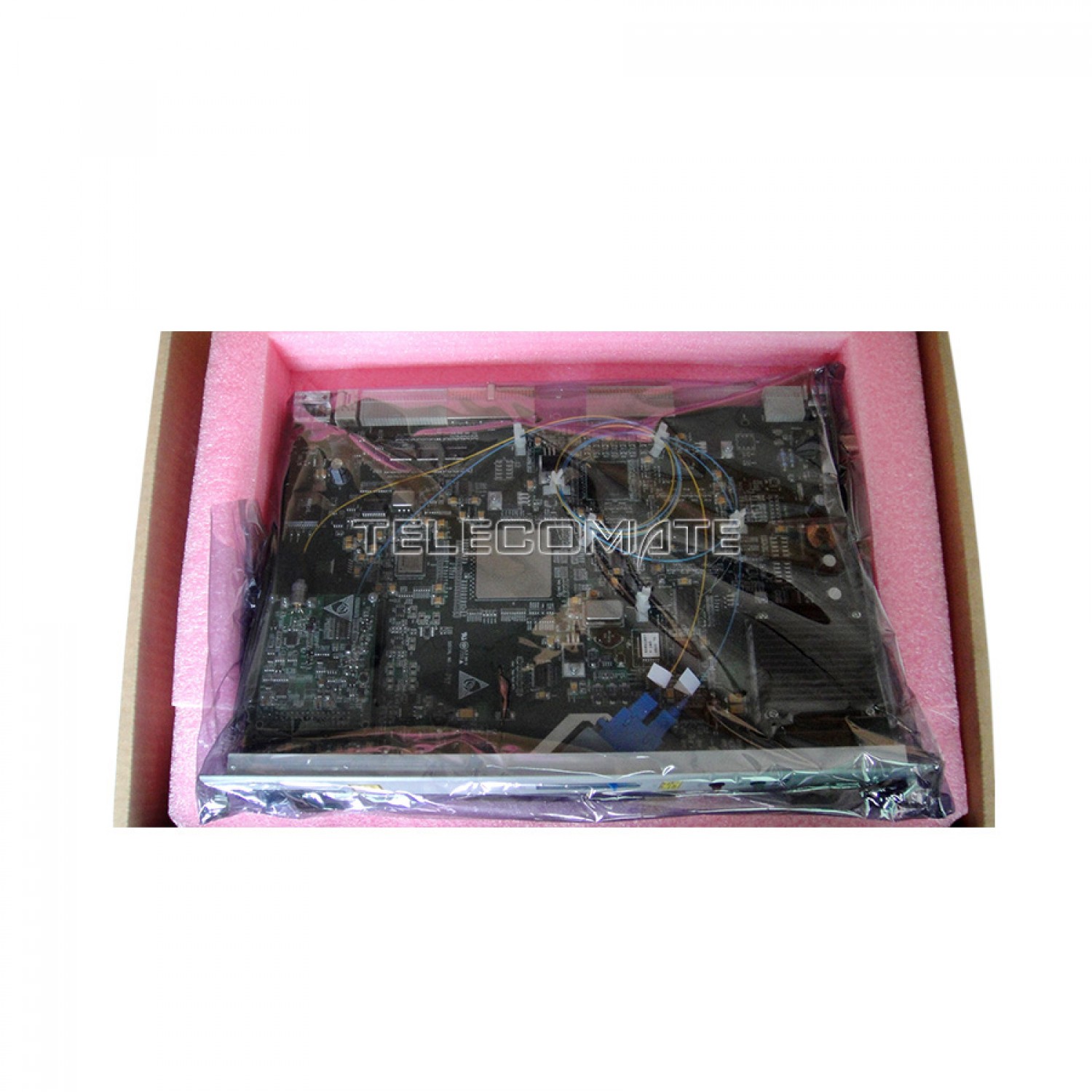

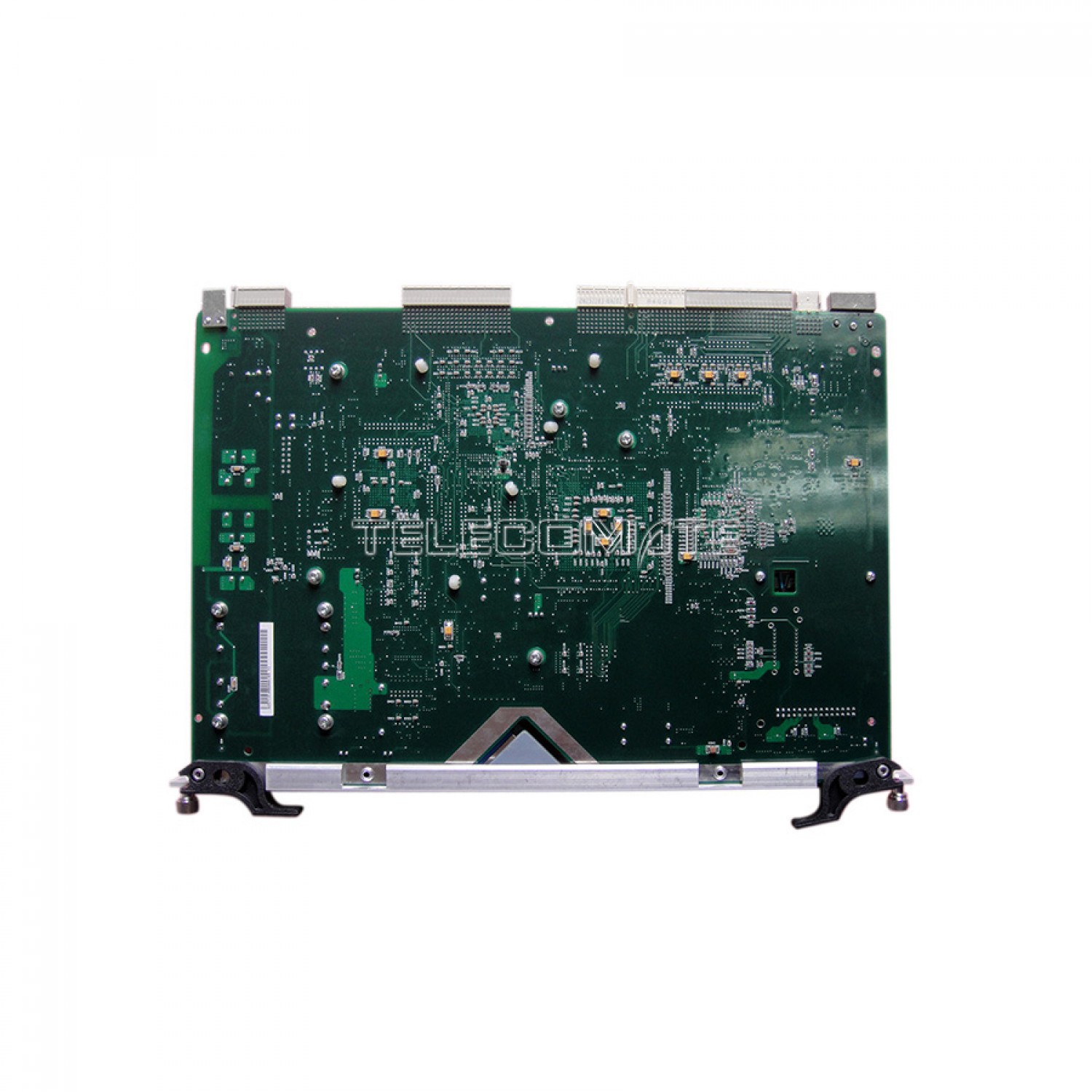

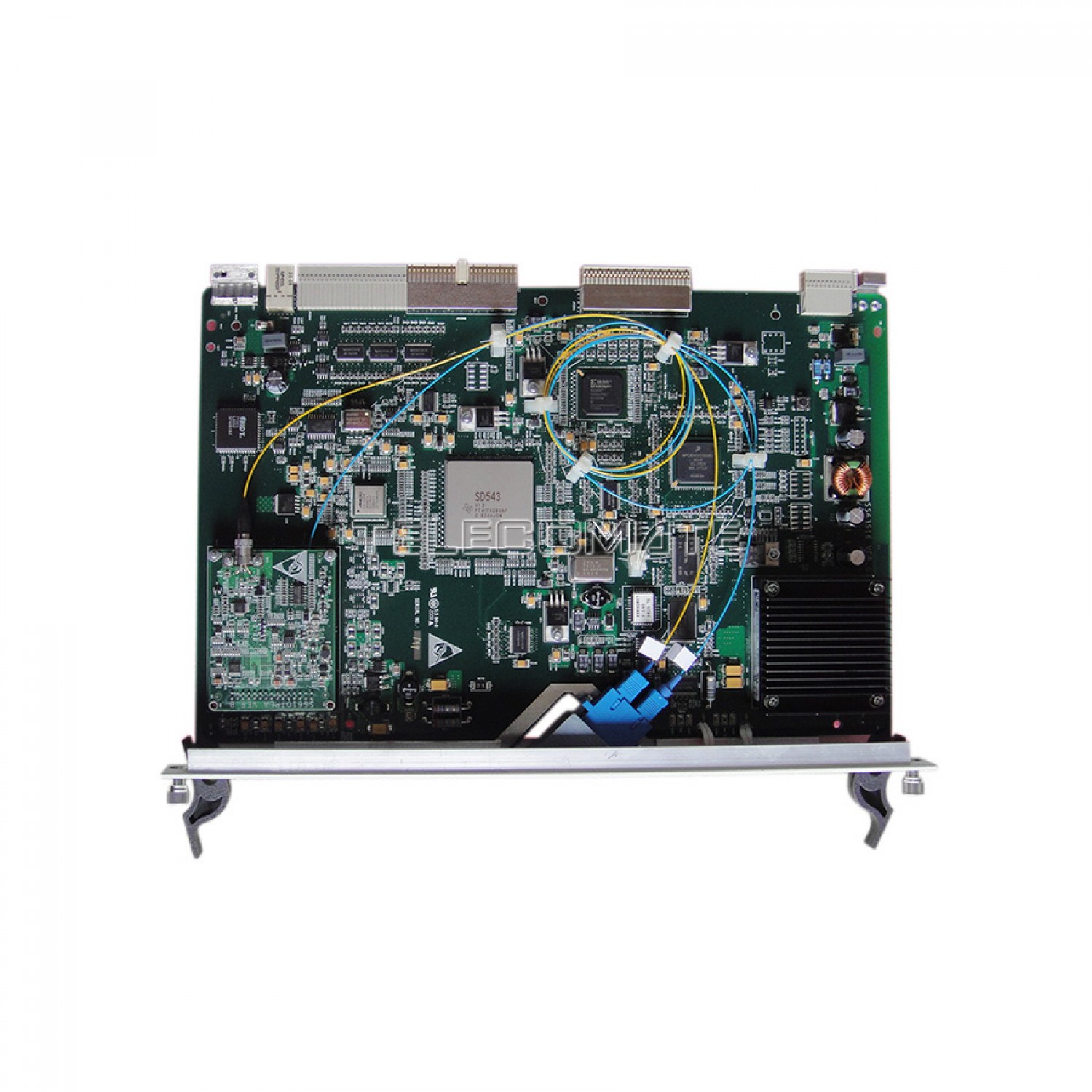

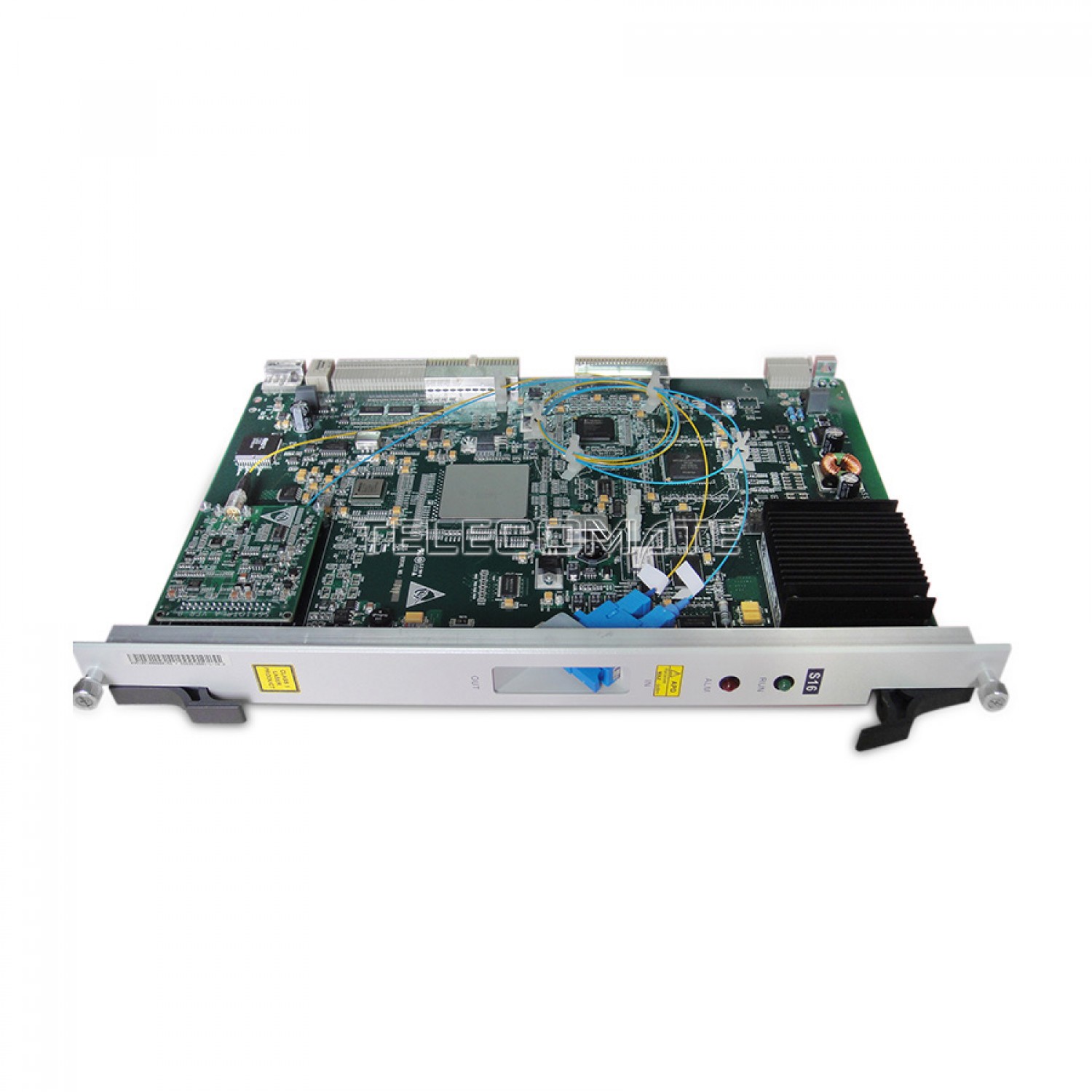

The SS63S16A02 is a line board. The SS63S16A02 can be used on the Metro 3000 equipment to transmit and receive STM-16 optical signals.
S-16.1, 15km
| Optical Interface Parameter | ||
| Application code | S-16.1 | |
| Transmission distance (km) | 0 to 15 | |
| Type of fiber | Single-mode SC | |
| Operating wavelength (nm) | 1310 | |
| Launched optical power range (dBm) | -5 to 0 | |
| Receiver sensitivity (dBm) | -18 | |
| Minimum overload (dBm) | 0 | |
| Mechanical Specifications | ||
| Dimensions (mm) | 32 (W) x 218.5 (D) x 340 (H) | |
| Weight (kg) | 0.73 | |
