SS63SQ1A01

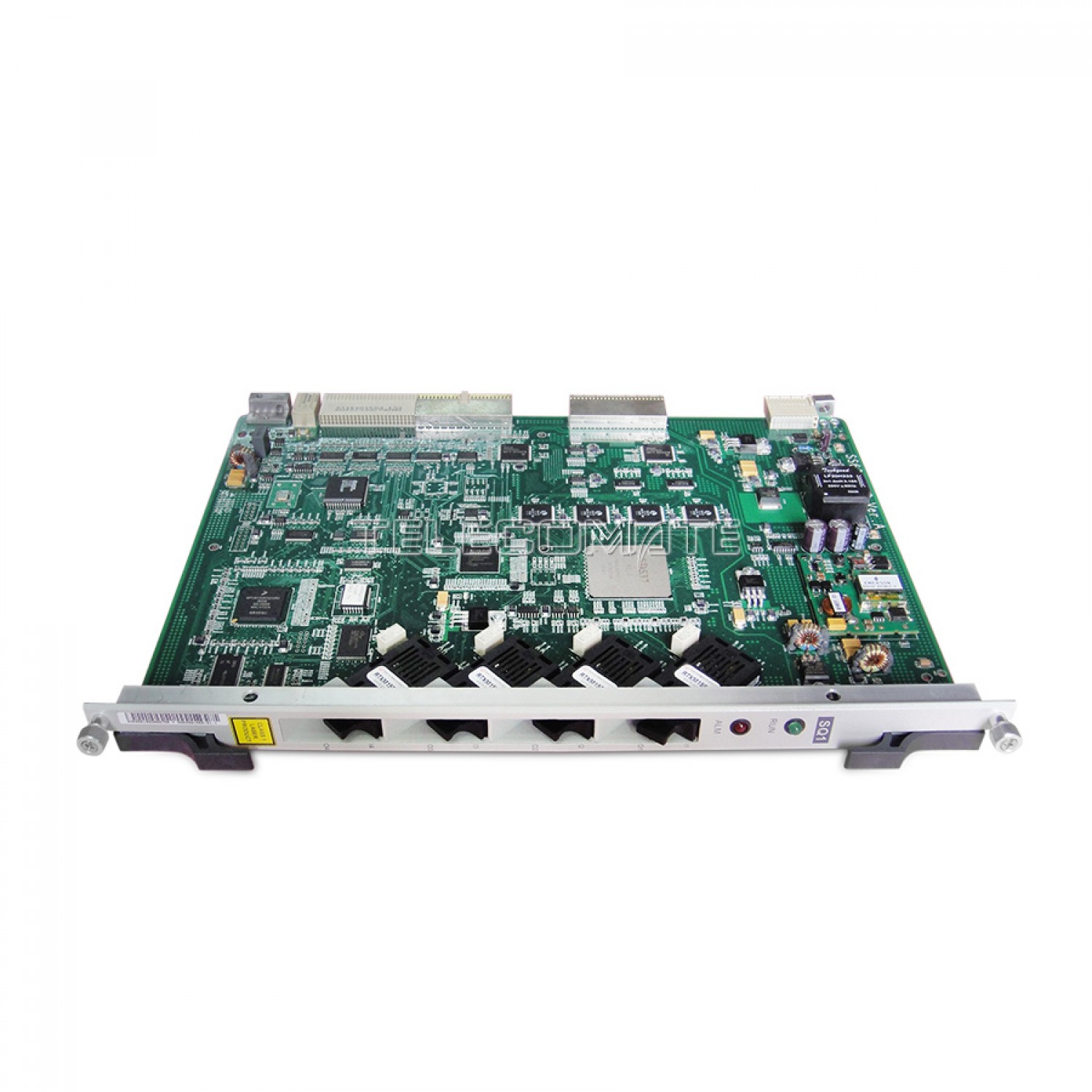

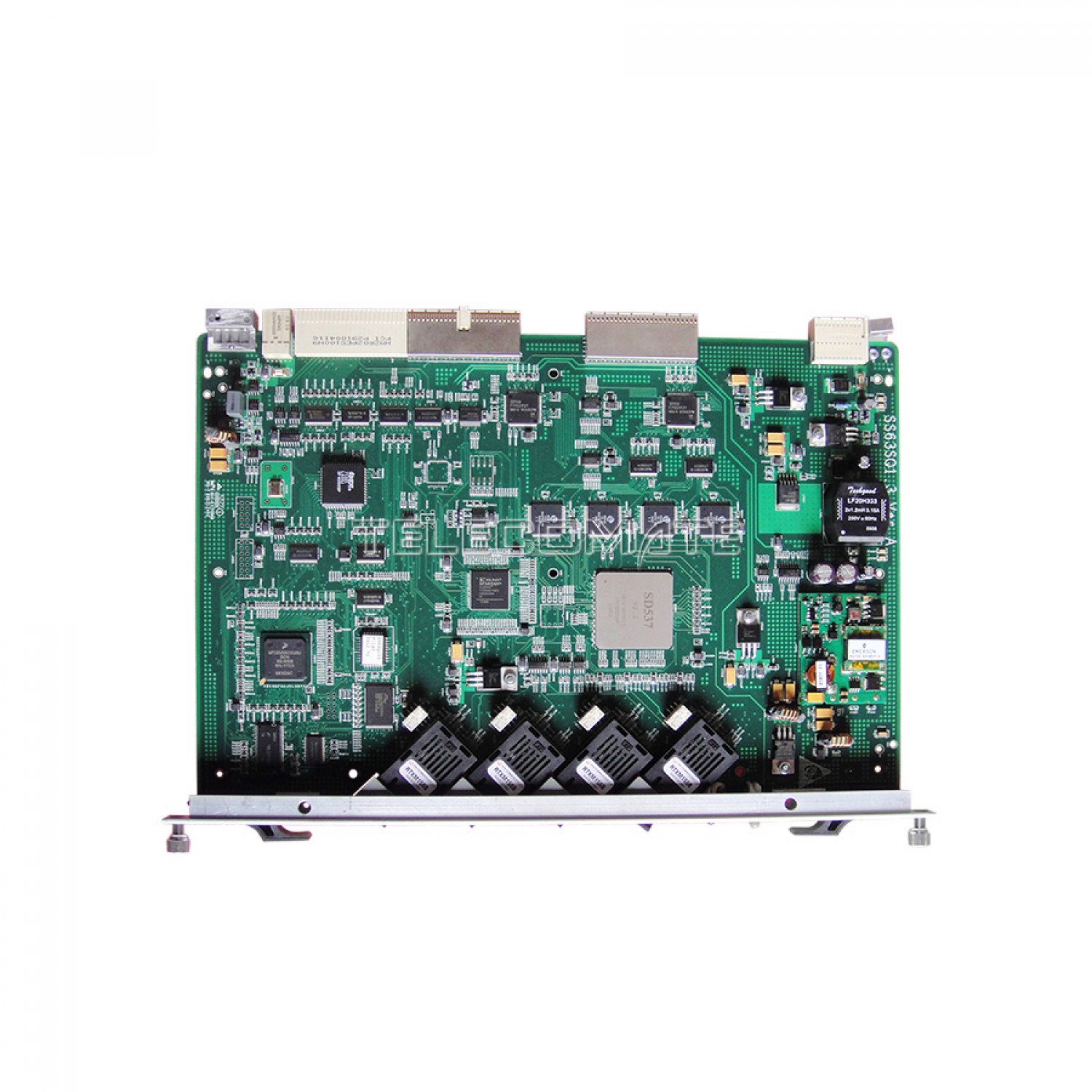

Metro 3000 series universal service board, 4STM-1 Optical Interface Board with 2 S-1.1 15km SFP module

SKU: 4188 PN: SS63SQ1A(Ie-1, SC) Category:

Description

Optical Interface Parameter
Parameter Value
Nominal bit rate 155520 kbit/s
Line code pattern NRZ
Application code Le-1
Transmission distance (km) 0.5
Type of fiber Multimode SC
Operating wavelength range (nm) 1310
Launched optical
power range (dBm)
-8 to -15
Receiver sensitivity (dBm) -23
Minimum overload (dBm) -14
Minimum extinction ratio (dB)
Maximum -20 dB spectral width (nm)
Minimum side mode suppression ratio (dB)
Mechanical Specifications
Dimensions (mm) 32(W) x 218.5 (D) x 340 (H)
Weight (kg) 0.82

Additional information

Weight 3.0000 kg
Dimensions 37.5000 × 34.0000 × 7.5000 cm
