Description

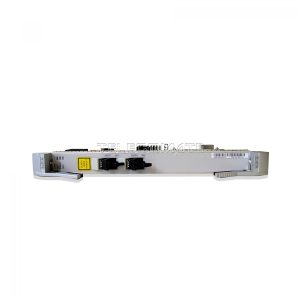

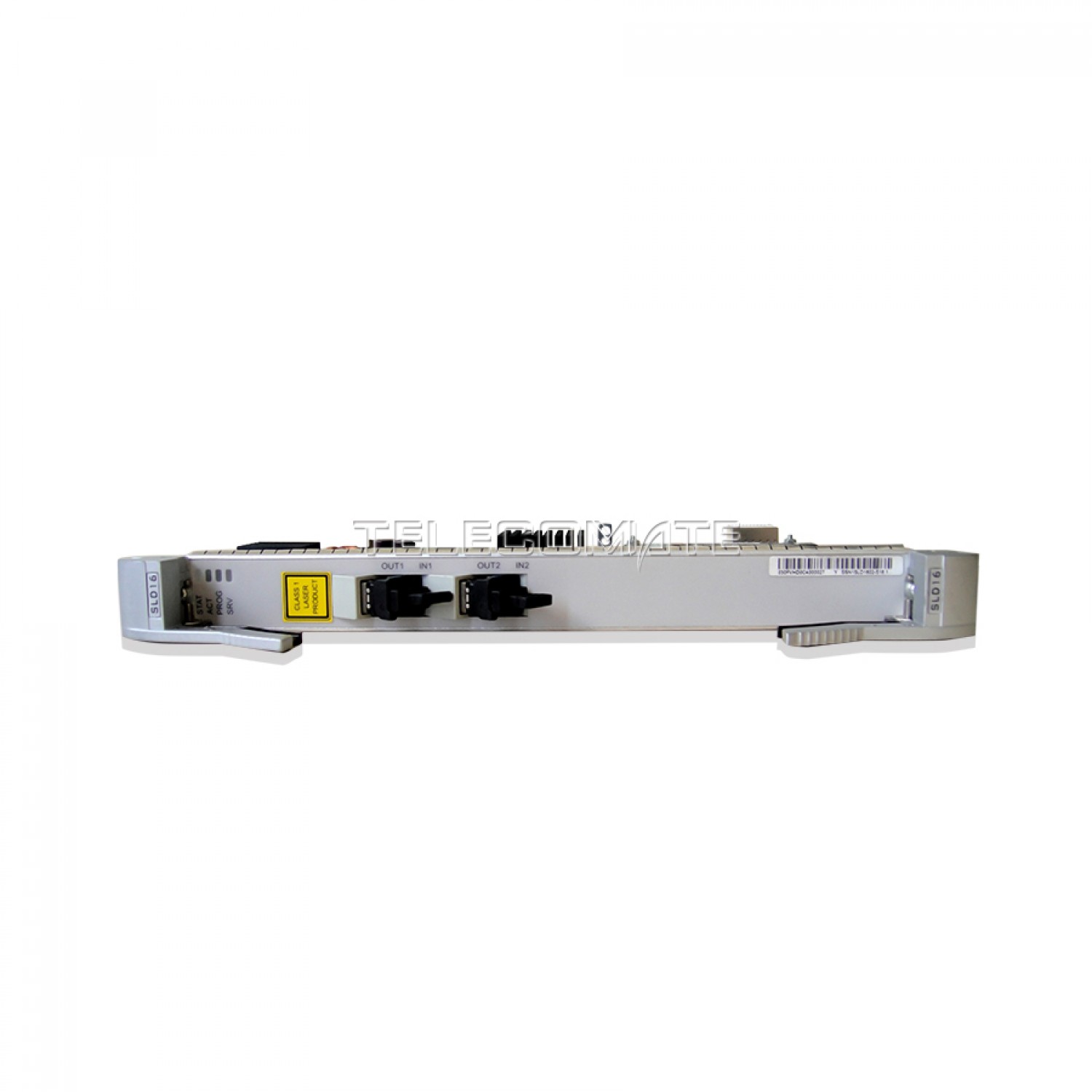

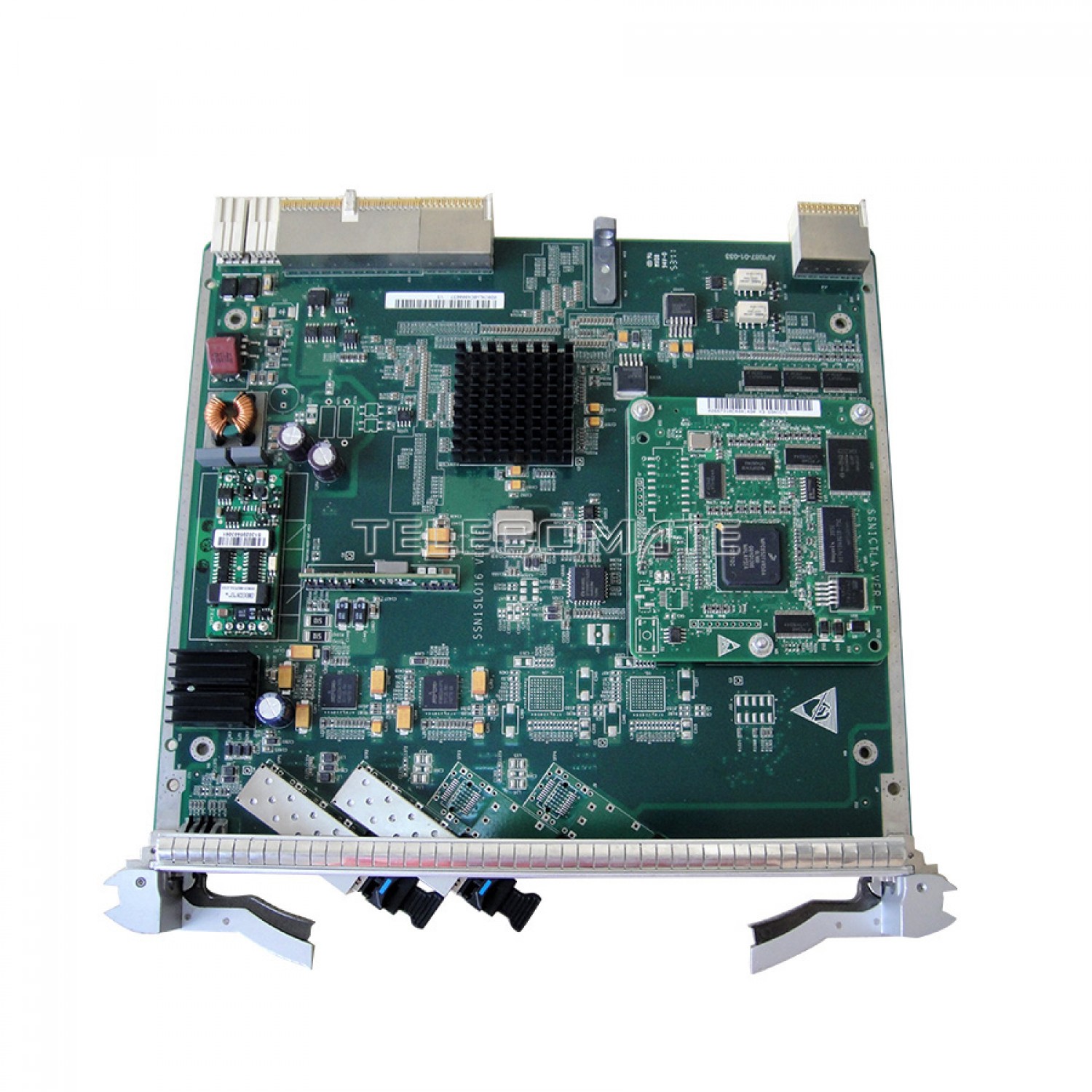

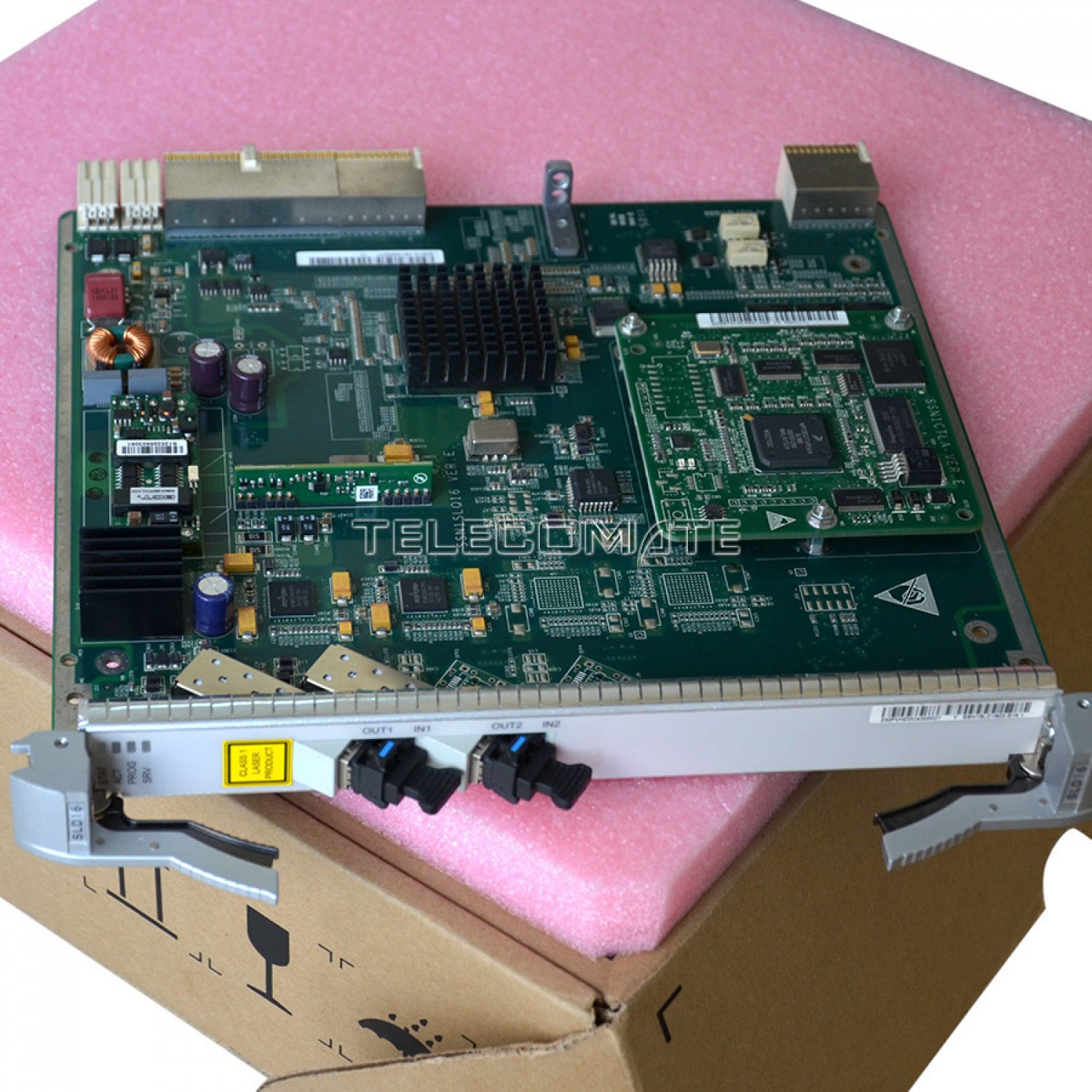

SSN1SLD16 overview
SSN1SLD16 is a universal service board, applied to OSN1500 2500 3500 7500 series.
Optical interface parameters |
||
| Parameter | Value | |
| Nominal bit rate | 2488320 kbit/s | |
| Line code pattern | NRZ | |
| Application code | L-16.2 | |
| Transmission distance (km) | 40 to 80 | |
| Type of fiber | Single-mode LC | |
| Operating wavelength range (nm) | 1500 to 1580 | |
| Launched optical power range (dBm) | -2 to +3 | |
| Receiver sensitivity (dBm) | -28 | |
| Minimum overload (dBm) | -9 | |
| Maximum -20 dB spectral width (nm) | 1 | |
| Minimum extinction ratio (dB) | 8.2 | |
| Minimum side mode suppression ratio (dB) | 30 | |
Mechanical Specifications |
||
| Dimensions (mm) | 25.4 (W) x 235.2 (D) x 261.4 (H) | |
| Weight (kg) | 0.9 | |
