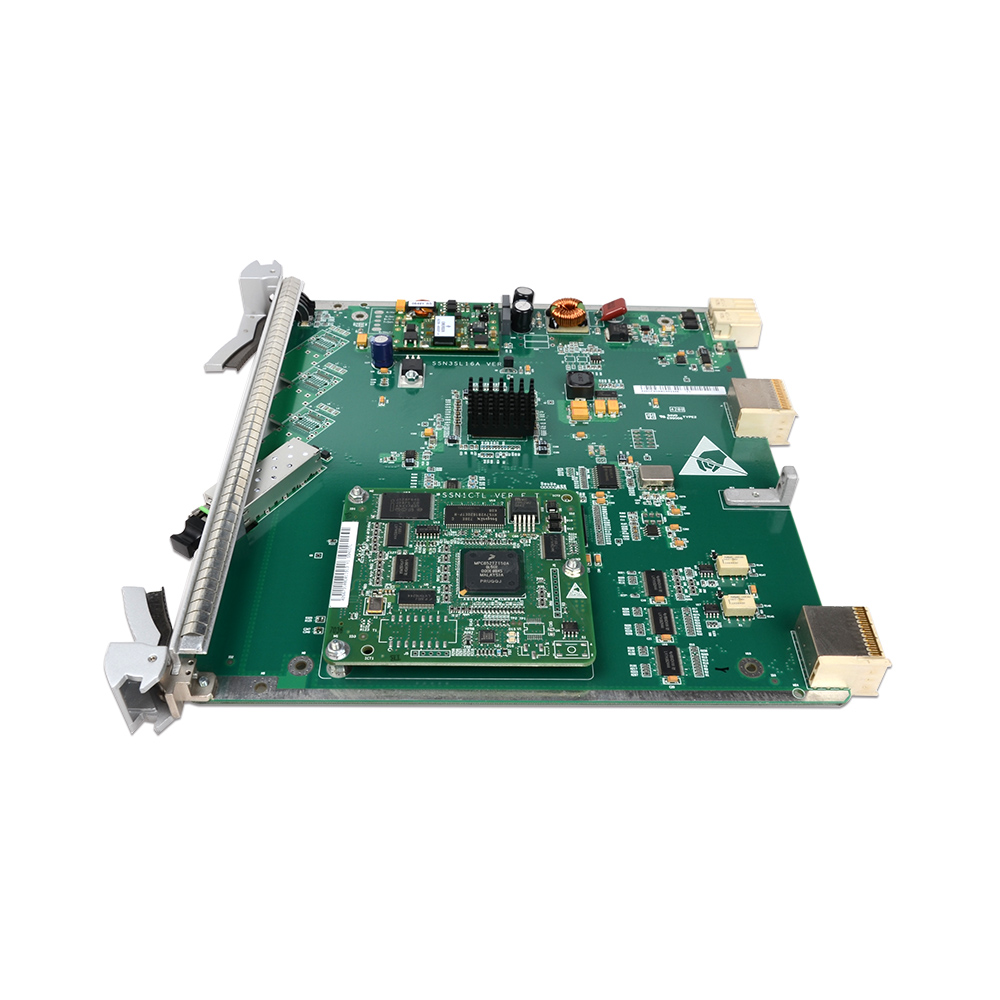

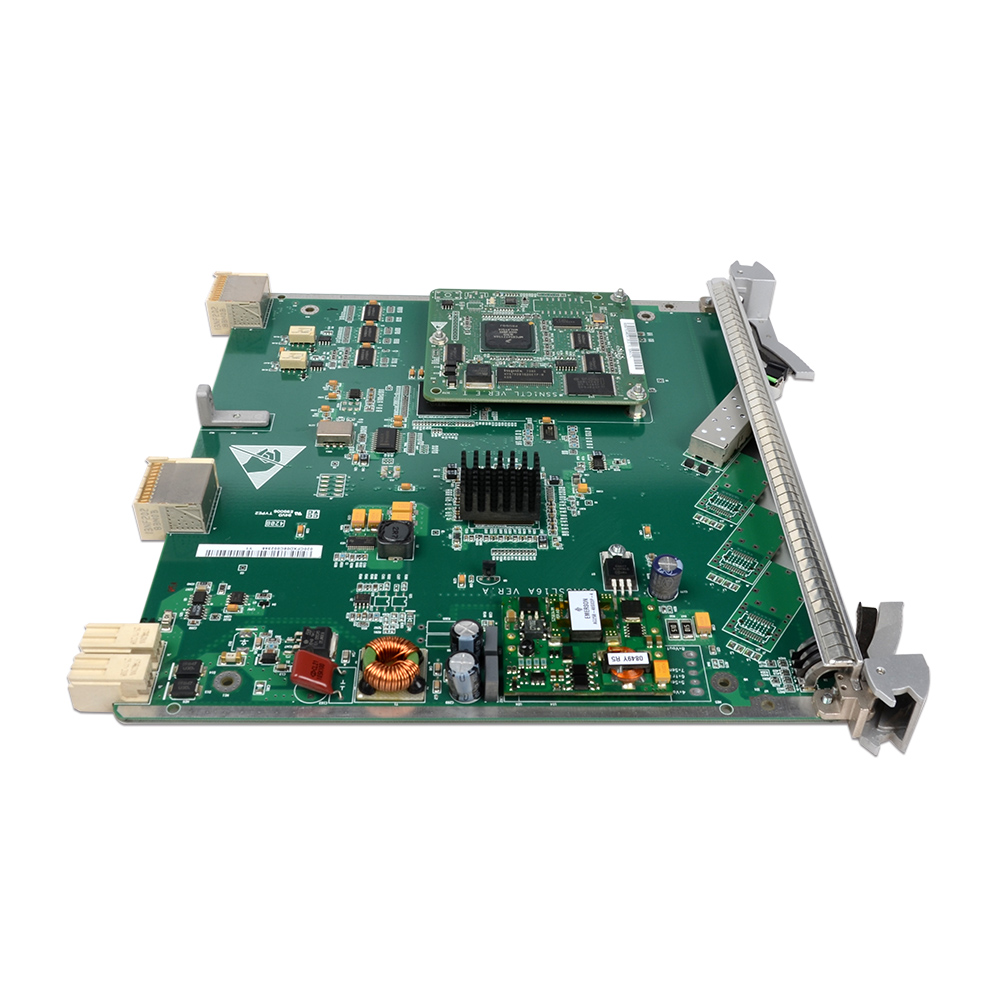

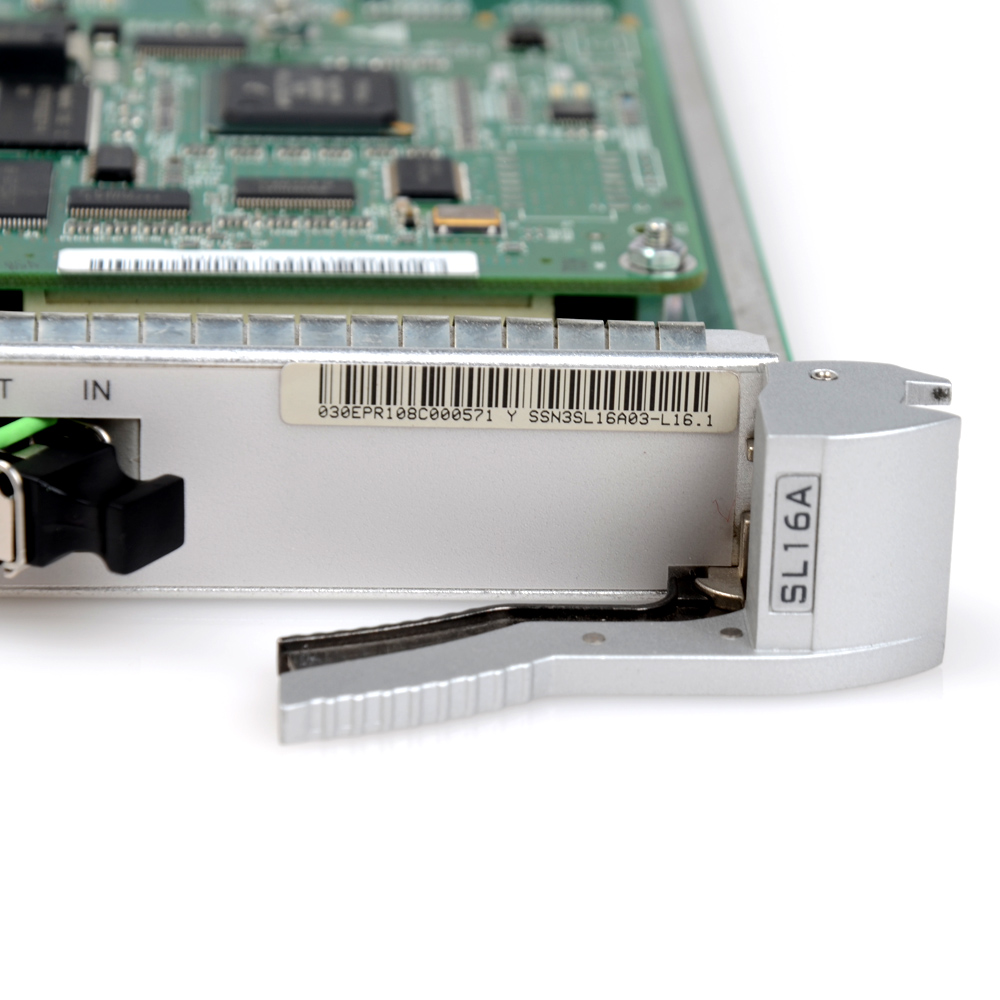

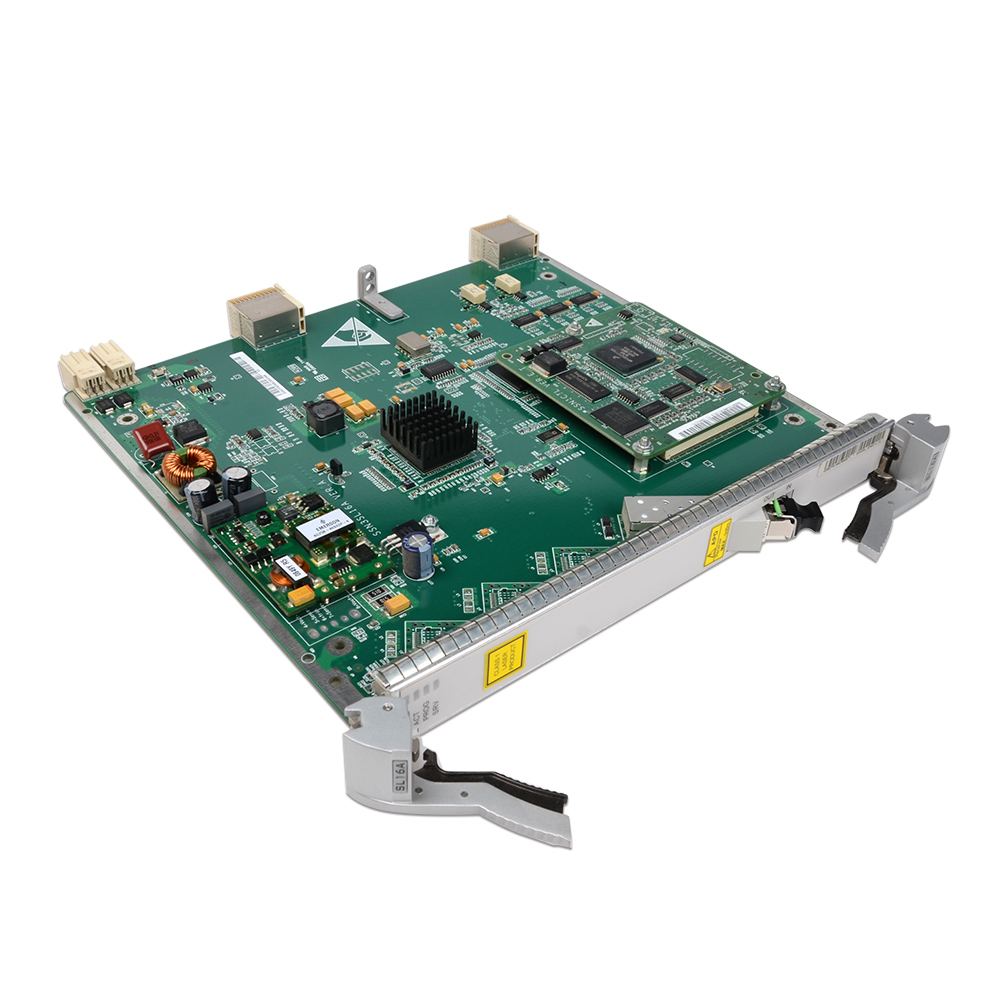

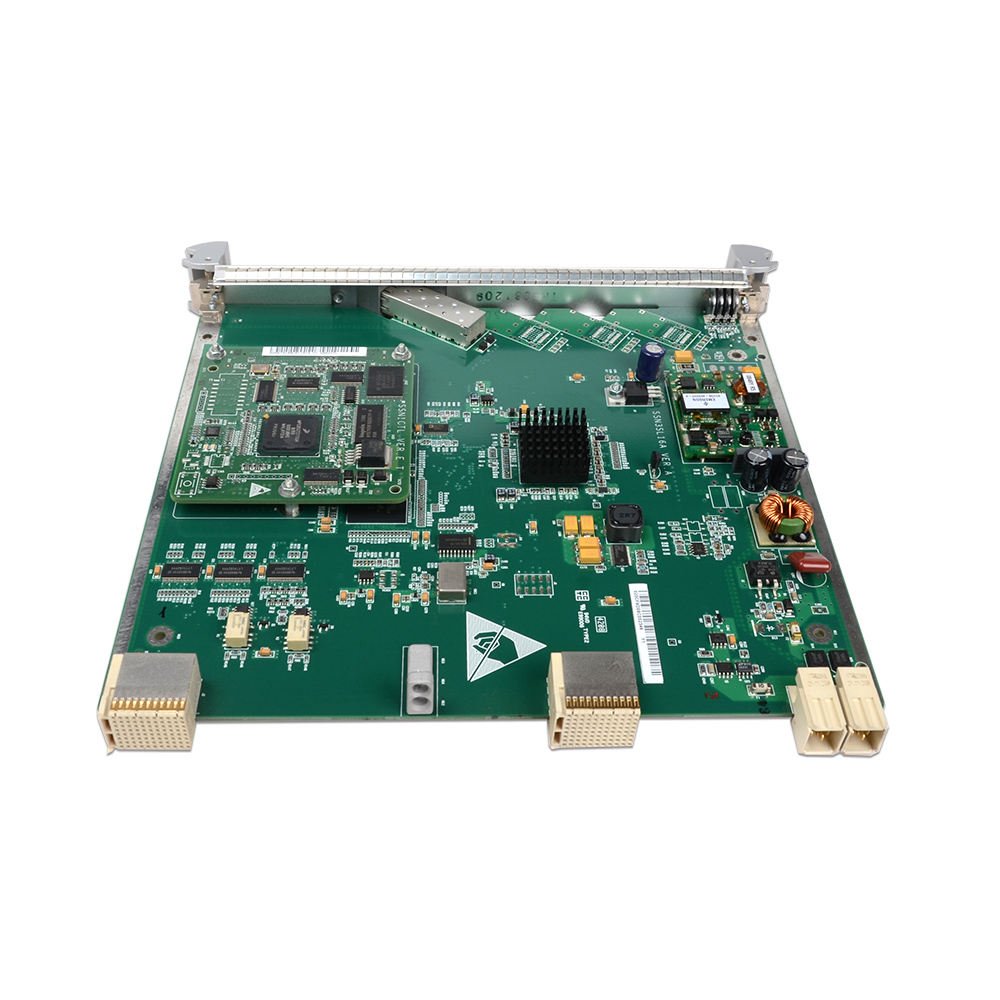

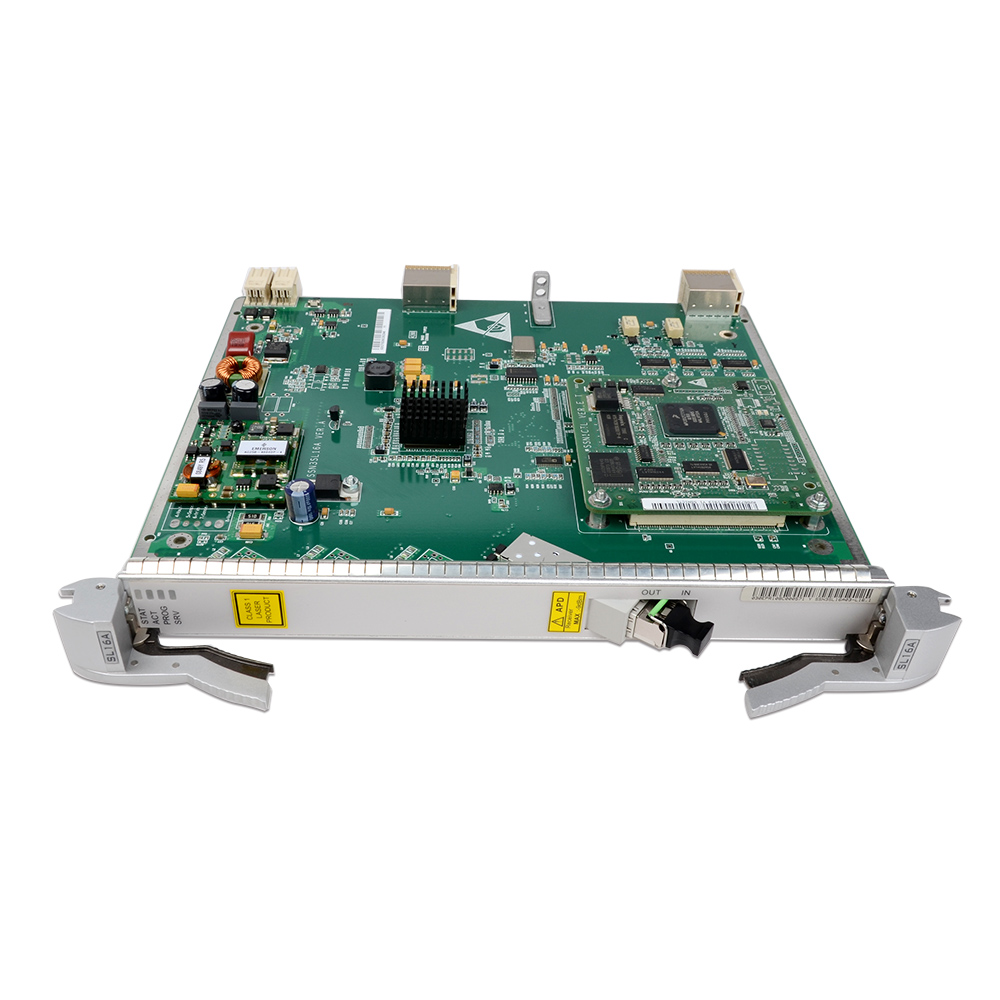

Huawei OSN7500 SSN3SL16A 1xSTM-16 optical interface board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

SSN3SL16A overview

Huawei OSN7500 SSN3SL16A 1xSTM-16 optical interface board. The SL16A is a line board. The SL16A can be used on the OptiX OSN equipment series to transmit and receive STM-16 optical signals. The SL16A converts the received optical signals into electrical signals and sends the electrical signals to the cross-connect side. In addition, the SL16A converts the electrical signals sent from the cross-connect side into optical signals and transmits the optical signals.

Version Description

The SL16A is available in the following functional versions: N3, N2, and N1.

Item
Description
Functional versions The SL16A is available in the following functional versions: N3, N2, and N1. The N1SL16A and N2SL16A are discontinued.
Differences
  • Specifications of optical interfaces: DWDM colored optical interfaces.
  • Service processing: AU-3 service processing.
  • REG specifications: REG function.
  • Maintenance features: loopbacks on VC-4 paths and TCM function.
Substitution
  • The N1SL16A and N2SL16A cannot be substituted with each other.
  • The N3SL16A supports the board version replacement function.
    • The N3SL16A can substitute for the N1SL16A.
    • When the AU-3 services are not configured, the N3SL16A can substitute for the N2SL16A.
  • After the N3SL16A substitutes for the N1SL16A or N2SL16A, the configuration and service status of the N3SL16A are the same as the configuration and service status of the N1SL16A or N2SL16A.
Valid Slots

The SL16A must be installed in a valid slot in the subrack. Otherwise, the SL16A fails to work normally.

The slots valid for the SL16A vary with the cross-connect capacity of the subrack. The slots valid for the SL16A are as follows:

  • When the cross-connect capacity is 360 Gbit/s, the SL16A can be installed in slots 1–8, 11–18, and 26–31.
Relationship between the feature code of the SL16A and the type of optical interface
Board
Feature Code
Type of Optical Interface
SSN1SL16A01, SSN2SL16A01, SSN3SL16A01 01 I-16
SSN1SL16A02, SSN2SL16A02, SSN3SL16A02 02 S-16.1
SSN1SL16A03, SSN2SL16A03, SSN3SL16A03 03 L-16.1
SSN1SL16A04, SSN2SL16A04, SSN3SL16A04 04 L-16.2
SSN3SL16A06 06 I-16
SSN3SL16A07 07 S-16.1
SSN3SL16A08 08 L-16.1
SSN3SL16A09 09 L-16.2
SSN3SL16A10 10 U-16.2
SSN3SL16A11 11 U-16.2
SSN3SL16A14 14 S-16.1
SSN3SL16A15 15 L-16.1
SSN3SL16A13 13 I-16
SSN3SL16A16 16 L-16.2
SSN3SL16A17 17 U-16.2
Specifications of the ports of the SL16A
Port type
Description
I-16 2 km STM-16 two-fiber bidrectional optical interfaces
S-16.1 15 km STM-16 two-fiber bidrectional optical interfaces
L-16.1 40 km STM-16 two-fiber bidrectional optical interfaces
L-16.2 80 km STM-16 two-fiber bidrectional optical interfaces
U-16.2Je (BA+PA) 170 km STM-16 two-fiber bidrectional optical interfaces

NOTE:

Only N3SL16A board supports U-16.2Je (BA+PA).
Show More Show Less
Item
SSN3SL16A
Basic functions Transmits and receives 1xSTM-16 optical signals.
Specifications of the optical interface Supports different types of standard optical interfaces, namely, the I-16, S-16.1, L-16.1, and L-16.2. The characteristics of the optical interfaces comply with ITU-T G.957 and ITU-T G.692. The N3SL16A supports U-16.2Je (with the BA and pre-amplifier (PA)). The characteristics of the optical interfaces of the U-16.2Je (with the BA and PA) comply with the standards defined by Huawei. U-16.2Je is compatible with U-16.2. The N3SL16A supports the CWDM and DWDM colored optical interfaces. The optical interface uses the LC connector. The CWDM optical interface supports the transmission distance of 80 km, and the DWDM optical interface supports the transmission distance of 120 km.
Specifications of the optical module
  • Supports the detection and query of the information about the optical module.
  • Provides the ALS function. The optical interface supports the setting of the on/off state of a laser.
  • Supports the usage and monitoring of the SFP optical module, which facilitates the maintenance and upgrading of the optical module.
Service processing
  • Supports the VC-12 services, VC-3 services, VC-4 services, VC-4-4c concatenation services, VC-4-8c concatenation services, and VC-4-16c concatenation services.
  • The N2SL16A supports the AU-3 services.
Overhead processing
  • Processes the section overheads of the STM-16 signals.
  • Supports the transparent transmission and termination of the path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports one channel of ECC communication.
Alarms and performance events Reports various alarms and performance events, which facilitates the management and maintenance of the equipment.
Specifications of the REG
  • The N2SL16A/N3SL16A board supports the setting and query of the REG working mode.
  • With the REG function enabled, the board is in RS loopback mode and processes only the regeneration section overhead.
Protection schemes
  • Supports the Two-fiber ring MSP.
  • Supports the Four-fiber ring MSP.
  • Supports the Linear MSP.
  • Supports the SNCP.
  • Supports the SNCMP.
  • Supports the SNCTP.
  • Supports the fiber-shared virtual trail protection.
  • Supports the fiber-shared MSP and processes two sets of K bytes. One SL16A supports a maximum of two MSP rings.
Maintenance features
  • Supports inloops and outloops at optical interfaces.
  • The N1SL16A supports inloops on VC-4 paths. The N3SL16A board supports inloops and outloops on VC-4 paths.
  • Supports warm resets and cold resets. The warm reset does not affect services.
  • Supports the query of the manufacturing information of the board.
  • Supports the in-service loading of the FPGA.
  • The N2SL16A/N3SL16A board supports the TCM function.
  • Supports the upgrade of the board software without affecting services.
  • Supports the PRBS function. For details, see Availability.
  • Supports the press-to-collect function in fault data collection.
