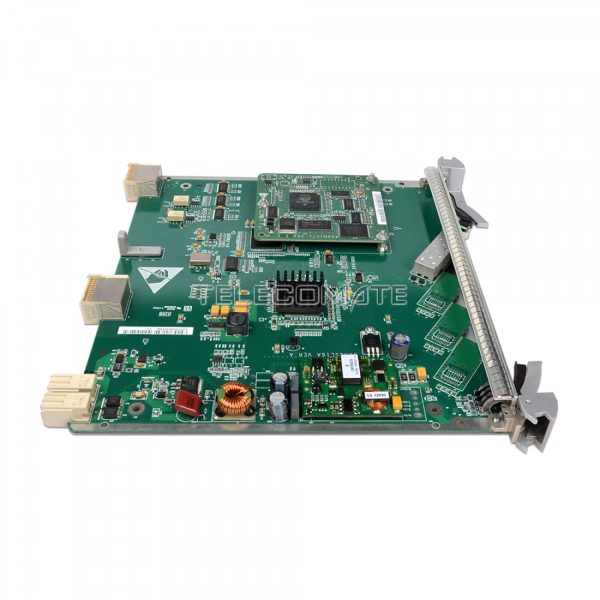

Description
| Optical interface parameters | ||
| Parameter | Value | |
| Nominal bit rate | 2488320 kbit/s | |
| Line code pattern | NRZ | |
| Application code | U-16.2Je (BA+PA) | |
| Transmission distance (km) | U-16.2Je (BA+PA) | |
| Type of fiber | Single-mode LC | |
| Operating wavelength range (nm) | 1550.12 | |
| Launched optical power range (dBm) | -2 to +3 (without the BA or PA) | 15 to 18 (with the BA) |
| Receiver sensitivity (dBm) | -28 (without the PA or BA | -32 (with the PA) |
| Minimum overload (dBm) | -9 (without the PA or BA) | -10 (with the PA) |
| Dispersion tolerance (ps/nm) | 3400 | |
| Minimum side mode suppression ratio (dB) | 30 | |
| Maximum -20 dB spectral width (nm) | 1 | |
| Mechanical Specifications | ||
| Dimensions (mm) | 25.4 (W) x 235.2 (D) x 261.4 (H) | |
| Dimensions (mm) | 0.9 | |
