SSN4SF6401

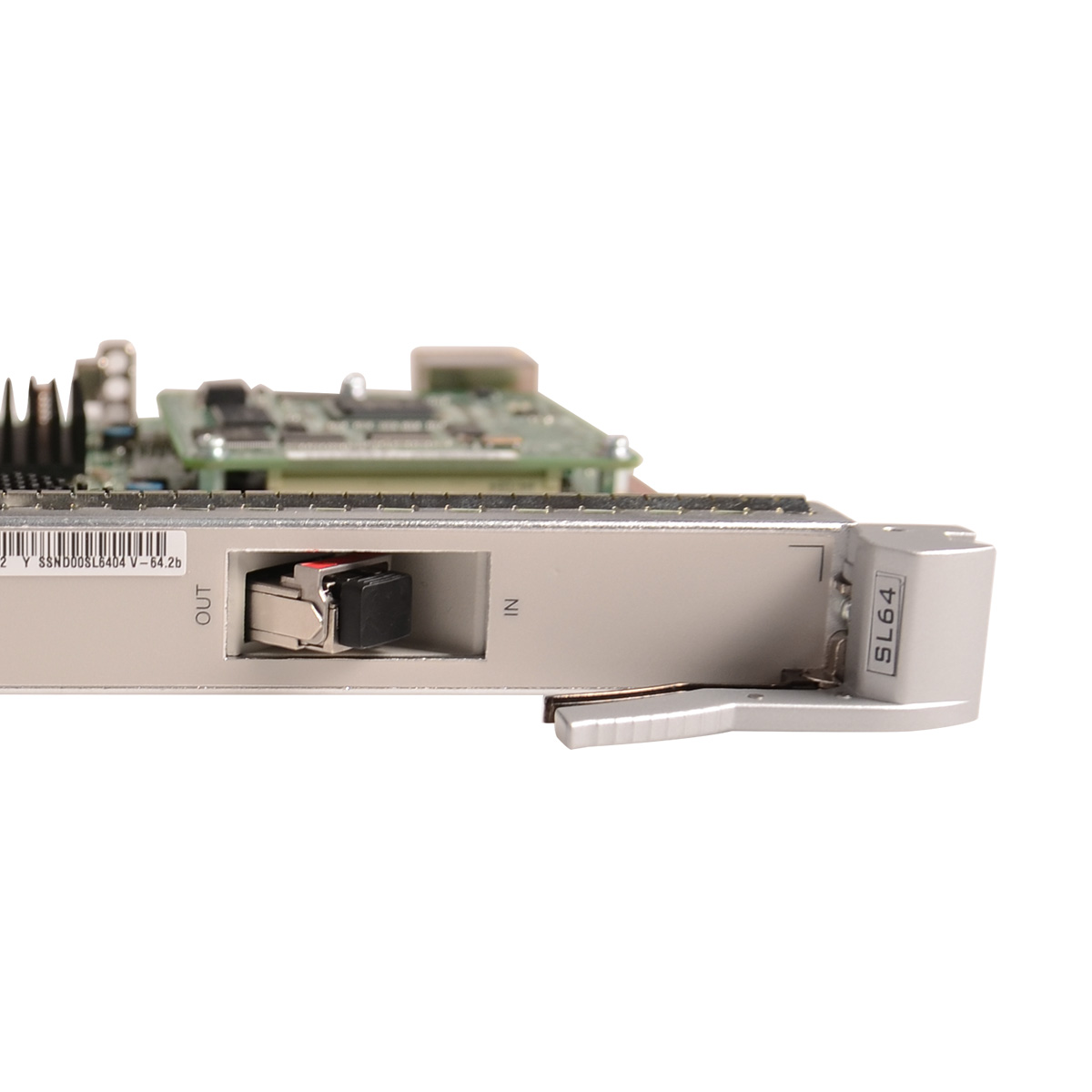

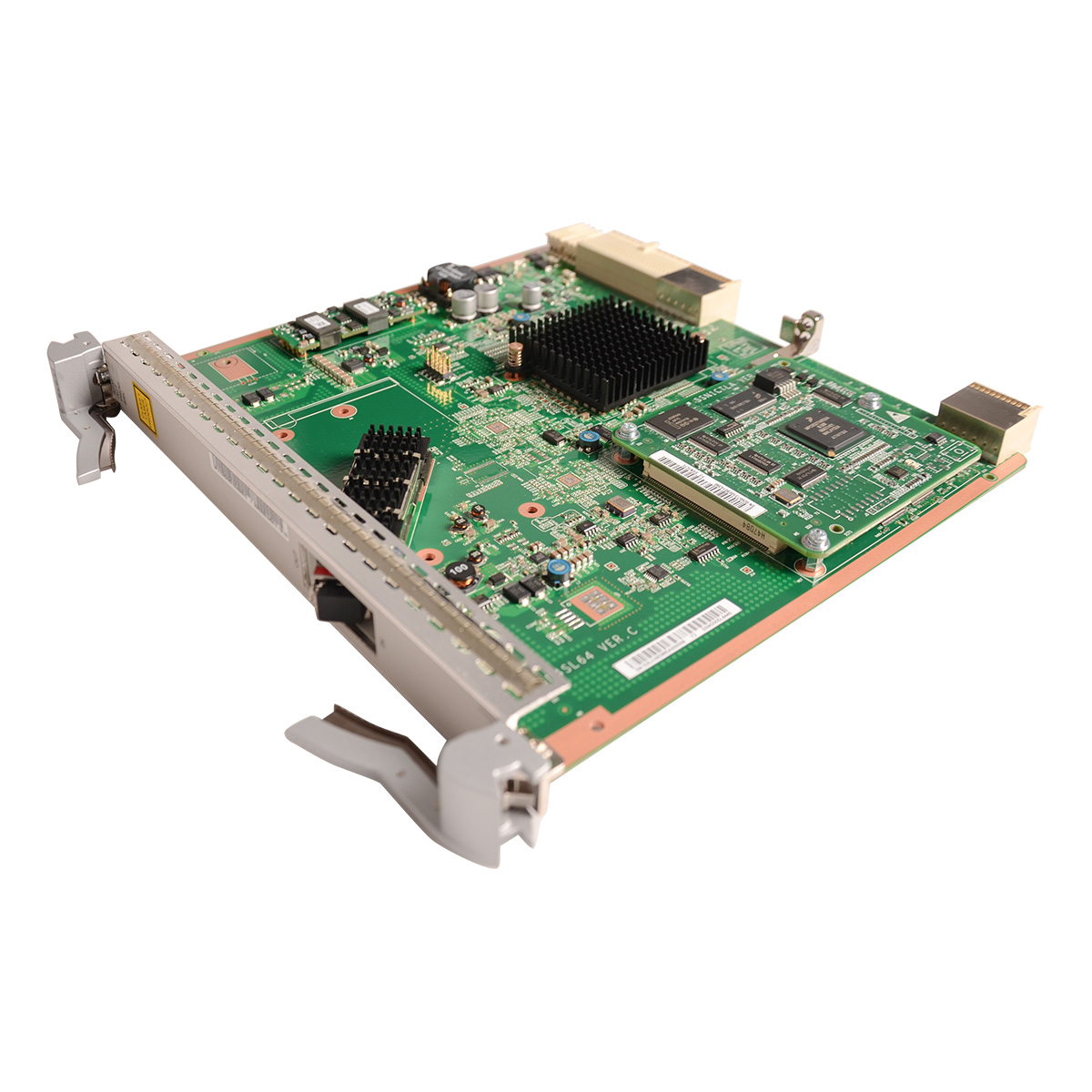

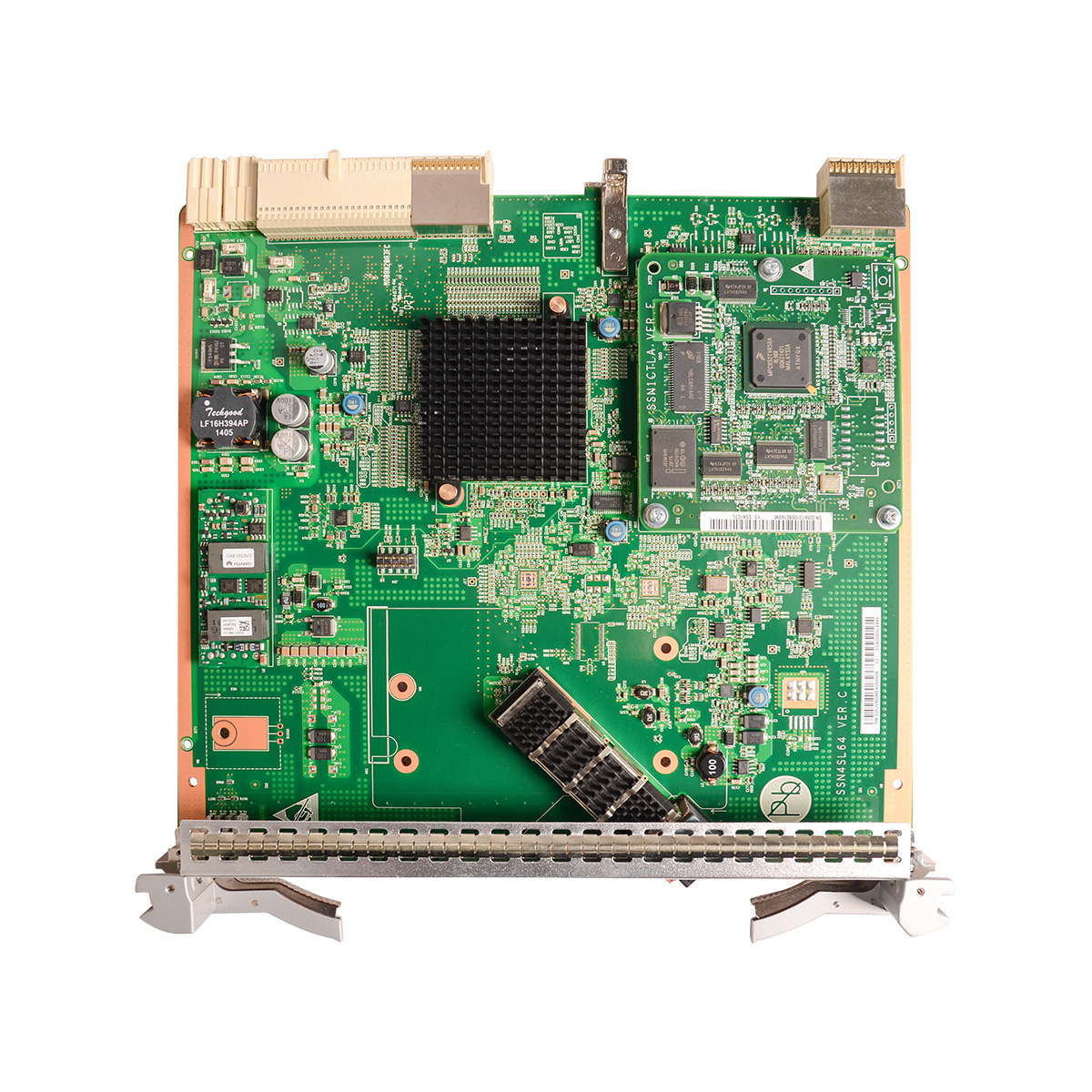

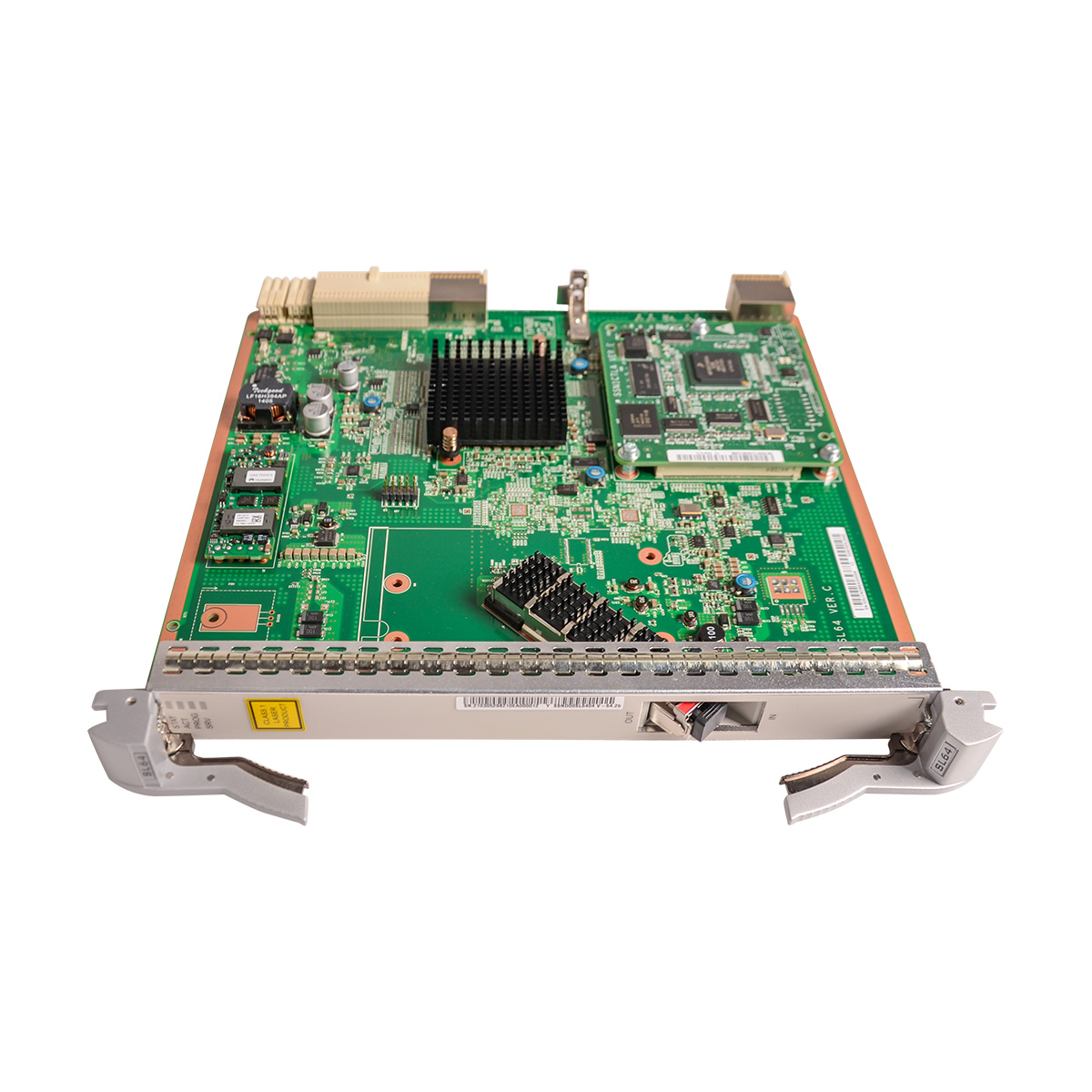

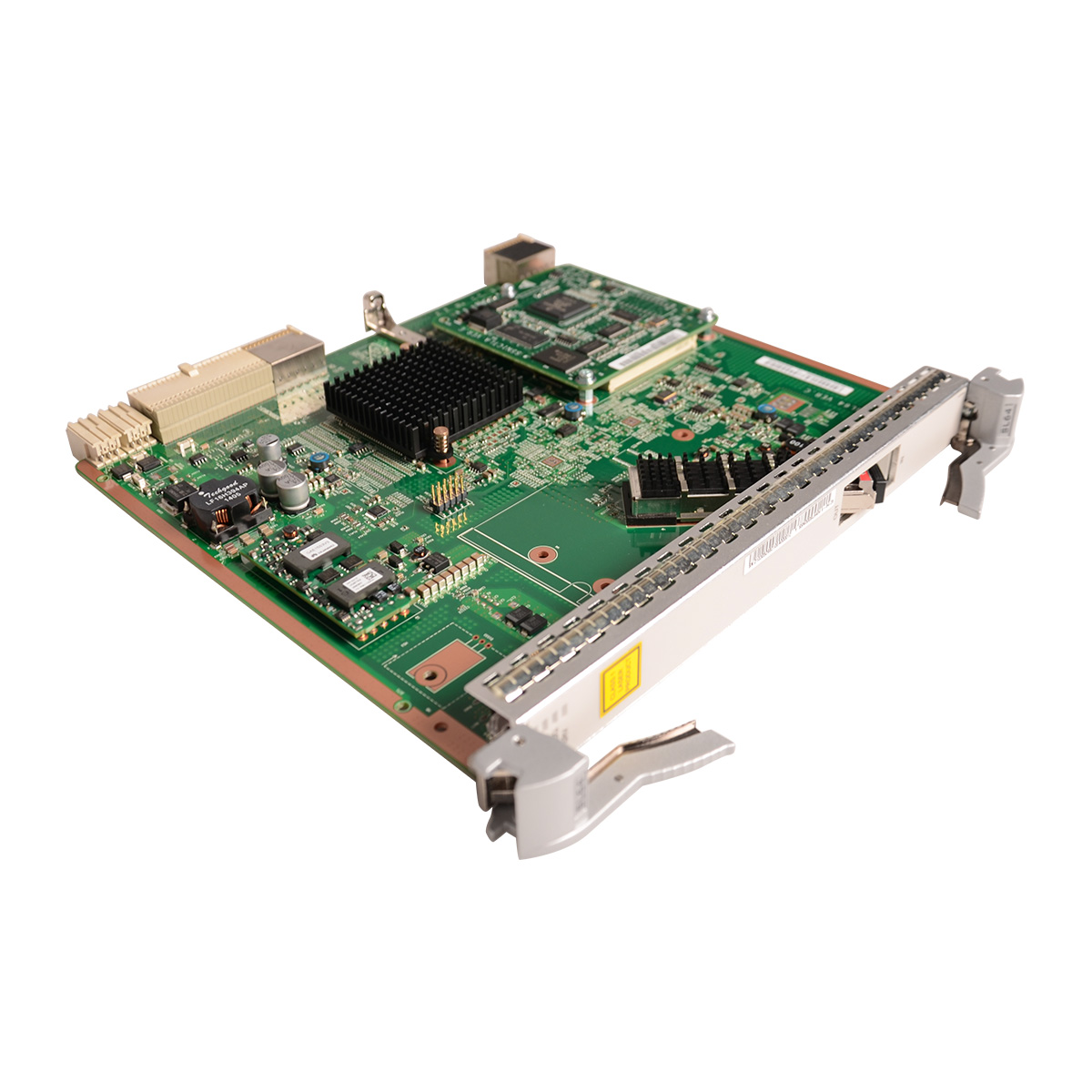

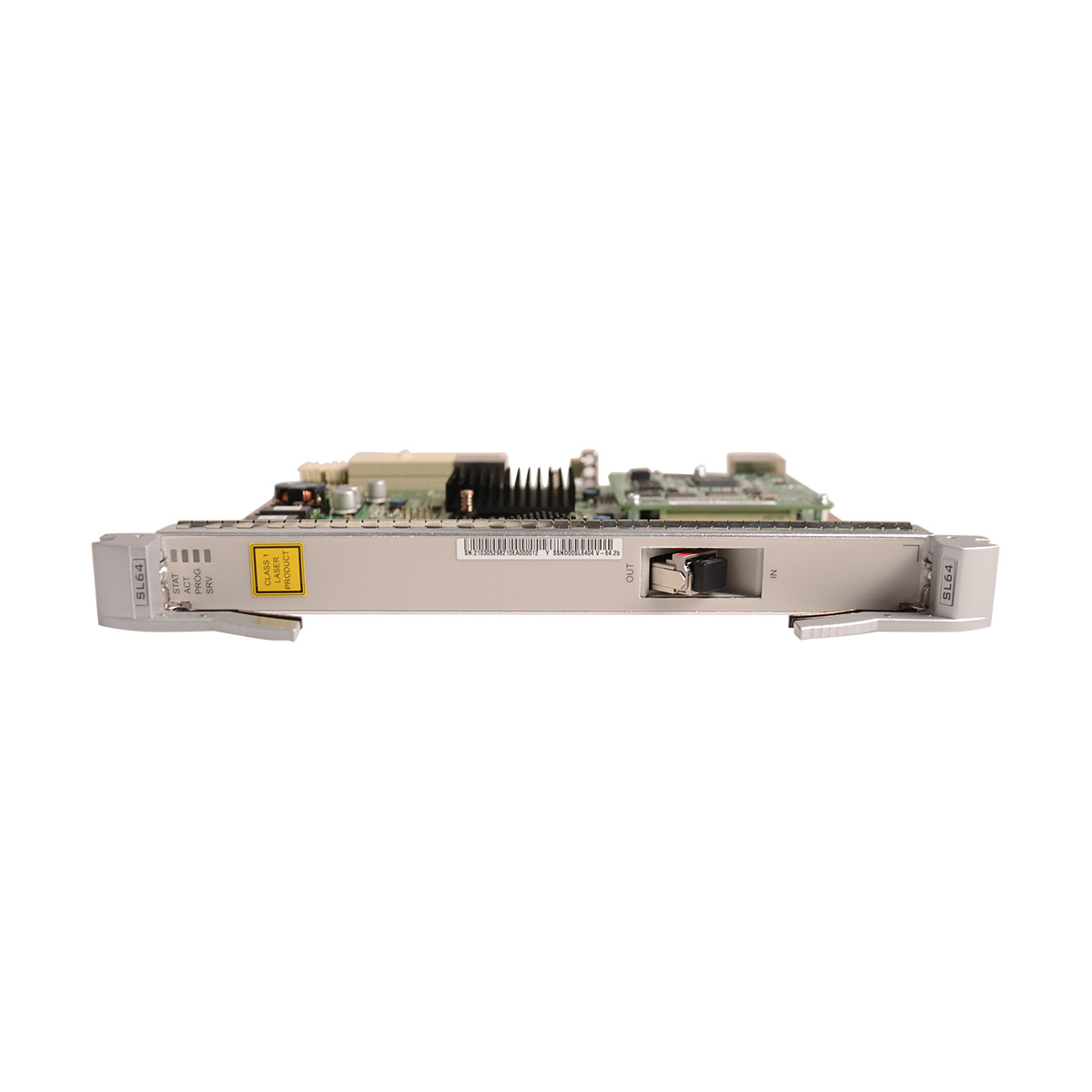

Huawei OSN3500 7500 series universal service board, 1 STM-64 Optical Interface Board with 1 Ue-64.2c-e 160km SFP module

SKU: 4202 Category:

Description

Optical Interface Parameter
Parameter Value
Nominal bit rate 10709225 kbit/s
Line code pattern NRZ
Application code Ue-64.2c
Transmission distance (km) 140 to 160
Type of fiber Single-mode LC
Operating wavelength range (nm) 1550.12
Launched optical power range (dBm) -4 to -1
Receiver sensitivity (dBm) -14
Minimum overload (dBm) -1
Minimum extinction ratio (dB) 10
Maximum -20 dB spectral width (nm) 1
Minimum side mode suppression ratio (dB) 30
Mechanical Specifications
Dimensions (mm) 25.4 (W) x 220 (D) x 254.1 (H)
Weight (kg) 1.2

Additional information

Weight 3.0000 kg
Dimensions 37.5000 × 34.0000 × 7.5000 cm
