SSND00SL6405

0 Reviews Write a review
SKU3868
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

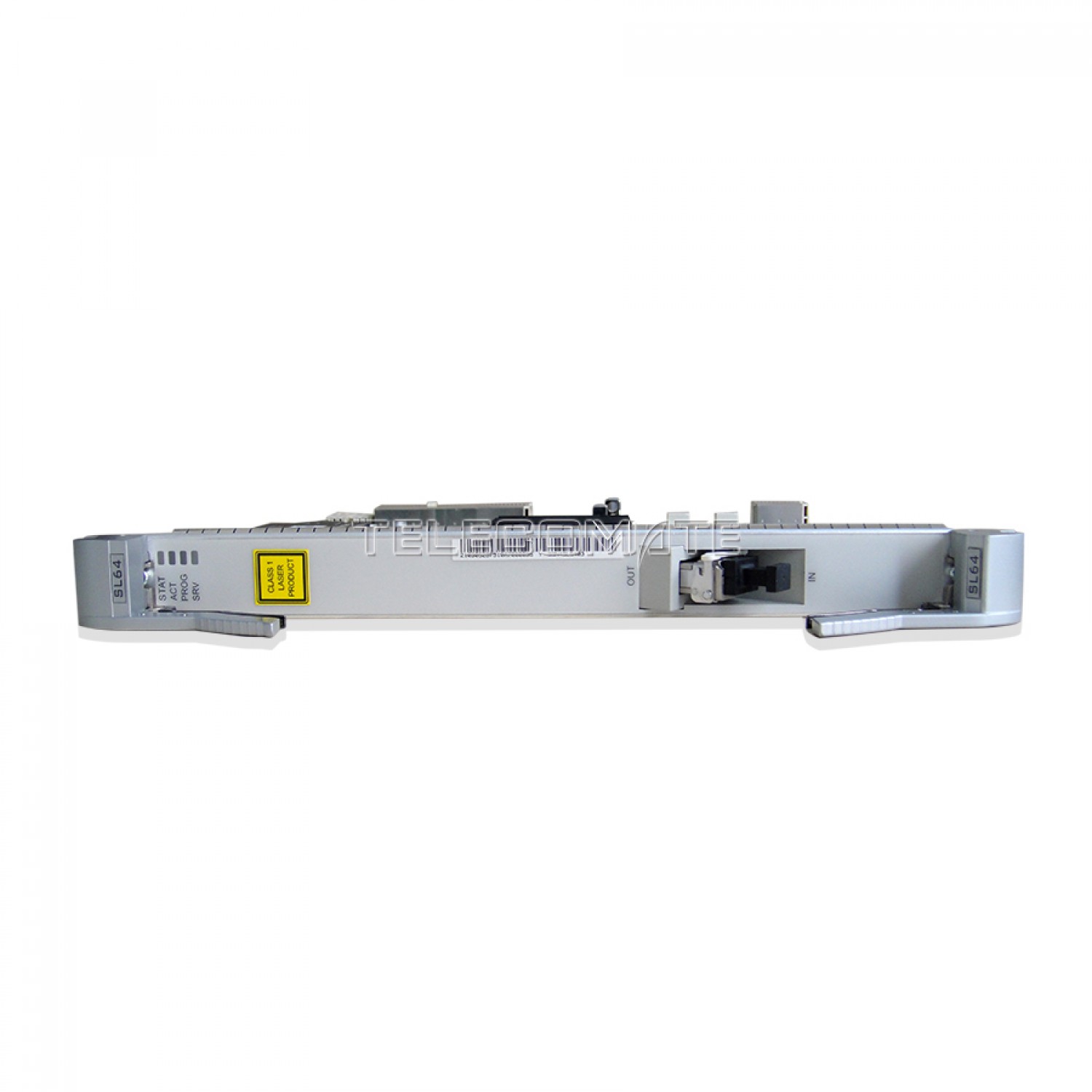

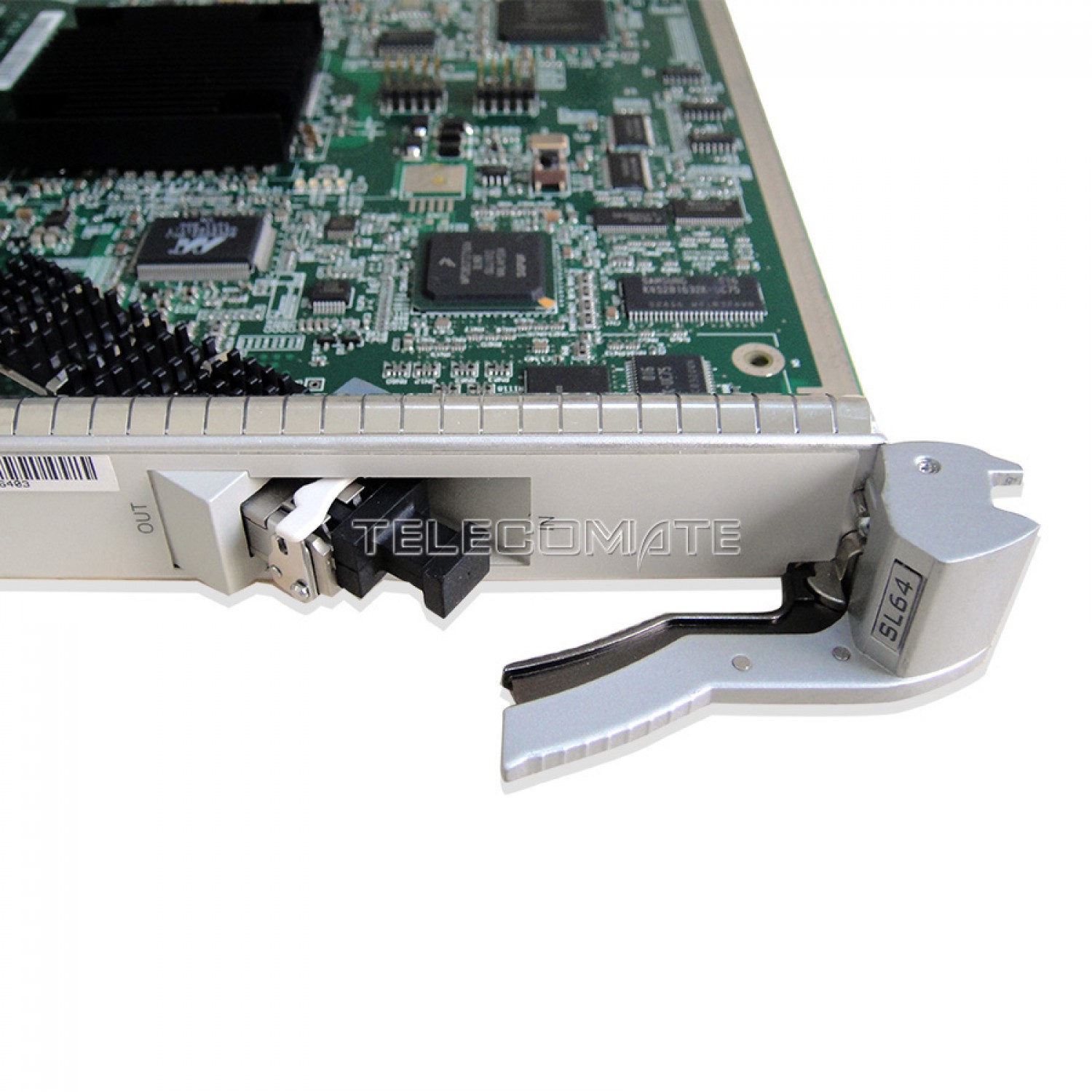

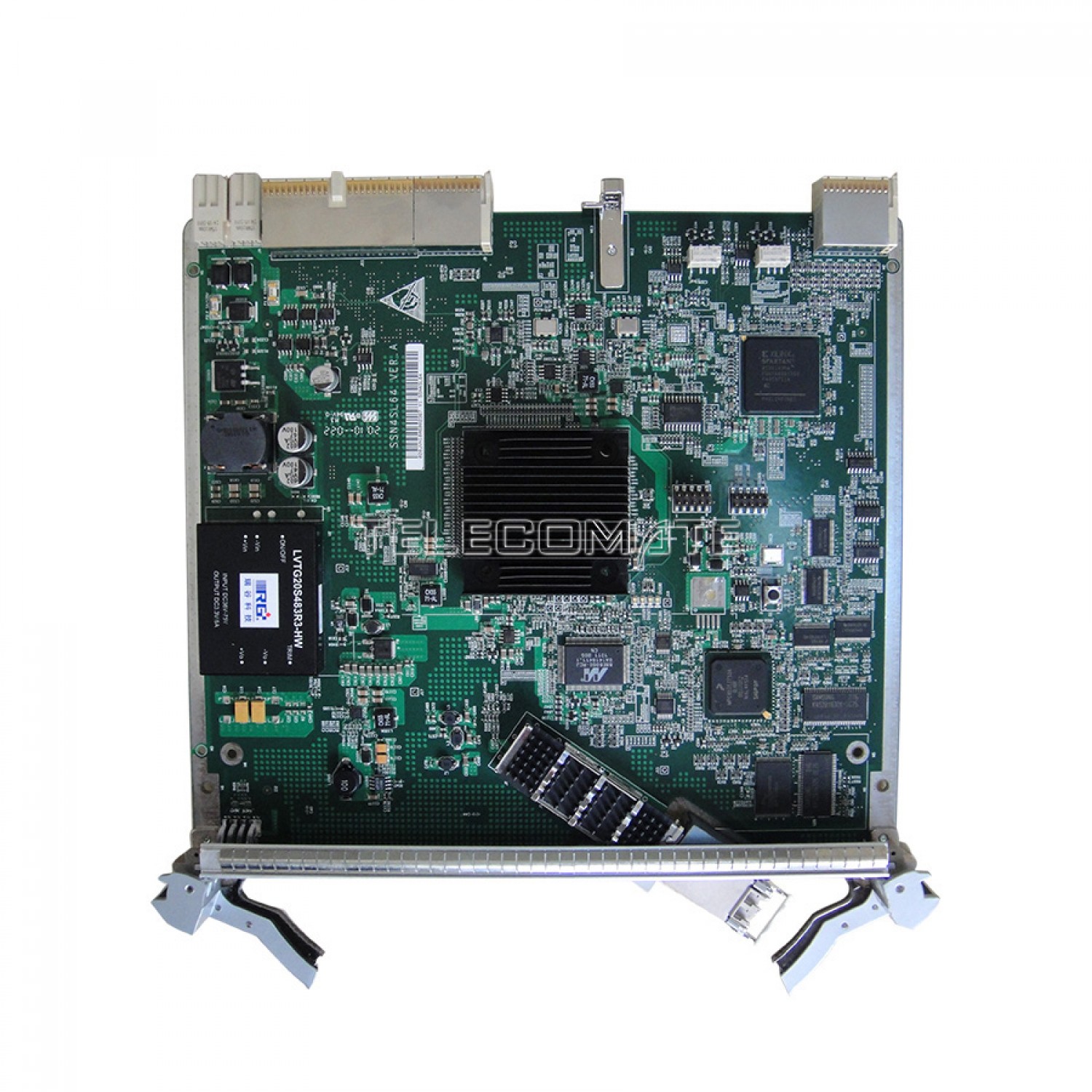

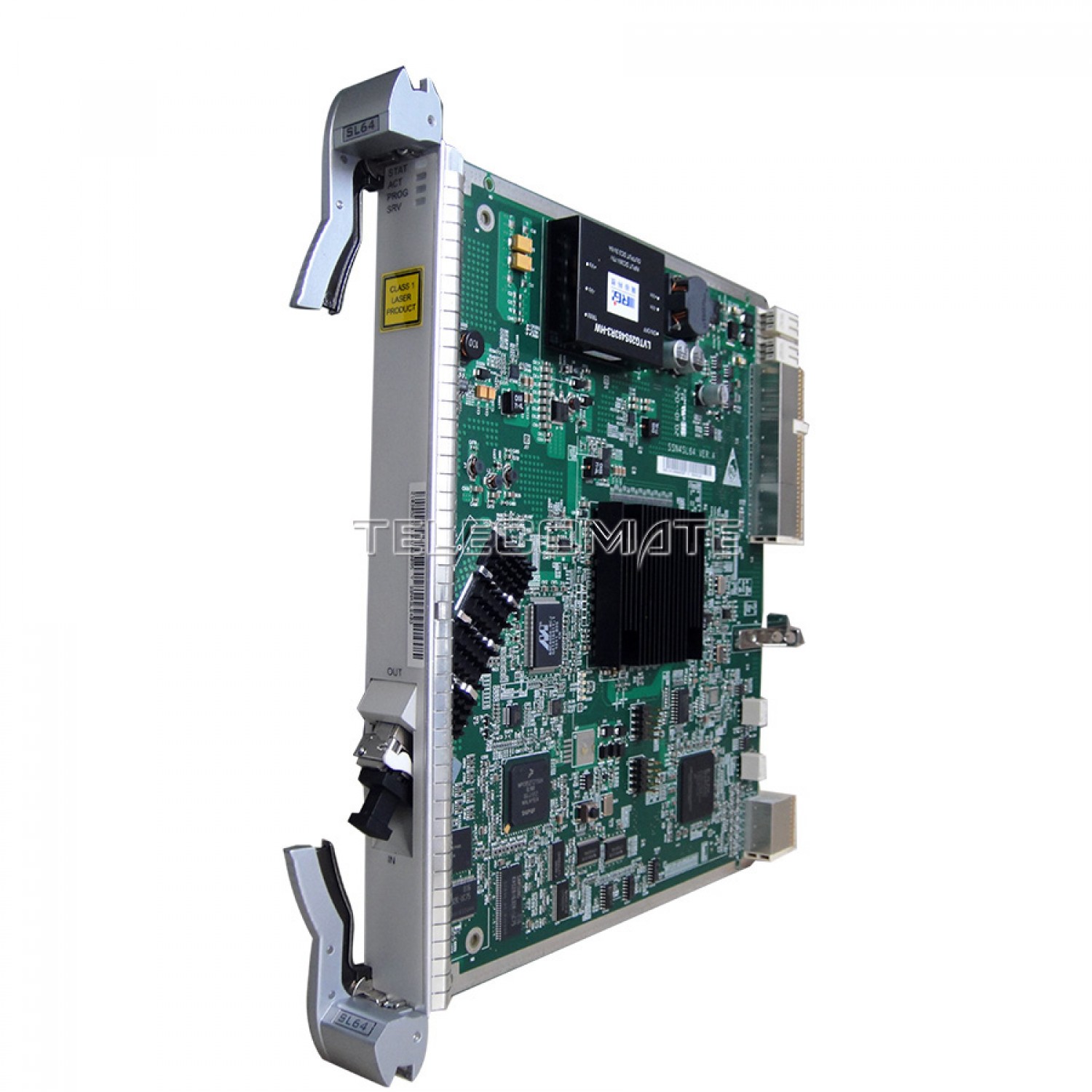

Huawei OSN3500 7500 series universal service board, 1 STM-64 Optical Interface Board with 1 Le-64.2 60km SFP module

Description

Optical Interface Parameter
Parameter Value
Nominal bit rate 9953280 kbit/s
Line code pattern NRZ
Application code V-64.2b
Transmission distance (km) 35 to 60
Type of fiber Single-mode LC
Operating wavelength range (nm) 1530 to 1565
Launched optical power range (dBm) 0 to 4
Receiver sensitivity (dBm) -21
Minimum overload (dBm) -8
Minimum extinction ratio (dB) 8.2
Maximum -20 dB spectral width (nm) 1
Minimum side mode suppression ratio (dB) 30
Mechanical Specifications
Dimensions (mm) 25.4 (W) x 235.2 (D) x 261.4 (H)
Weight (kg) 1.1

Additional information

Weight 3.0000 kg
Dimensions 37.5000 × 34.0000 × 7.5000 cm
