SSND0SLQ1603

0 Reviews Write a review
SKU3717
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

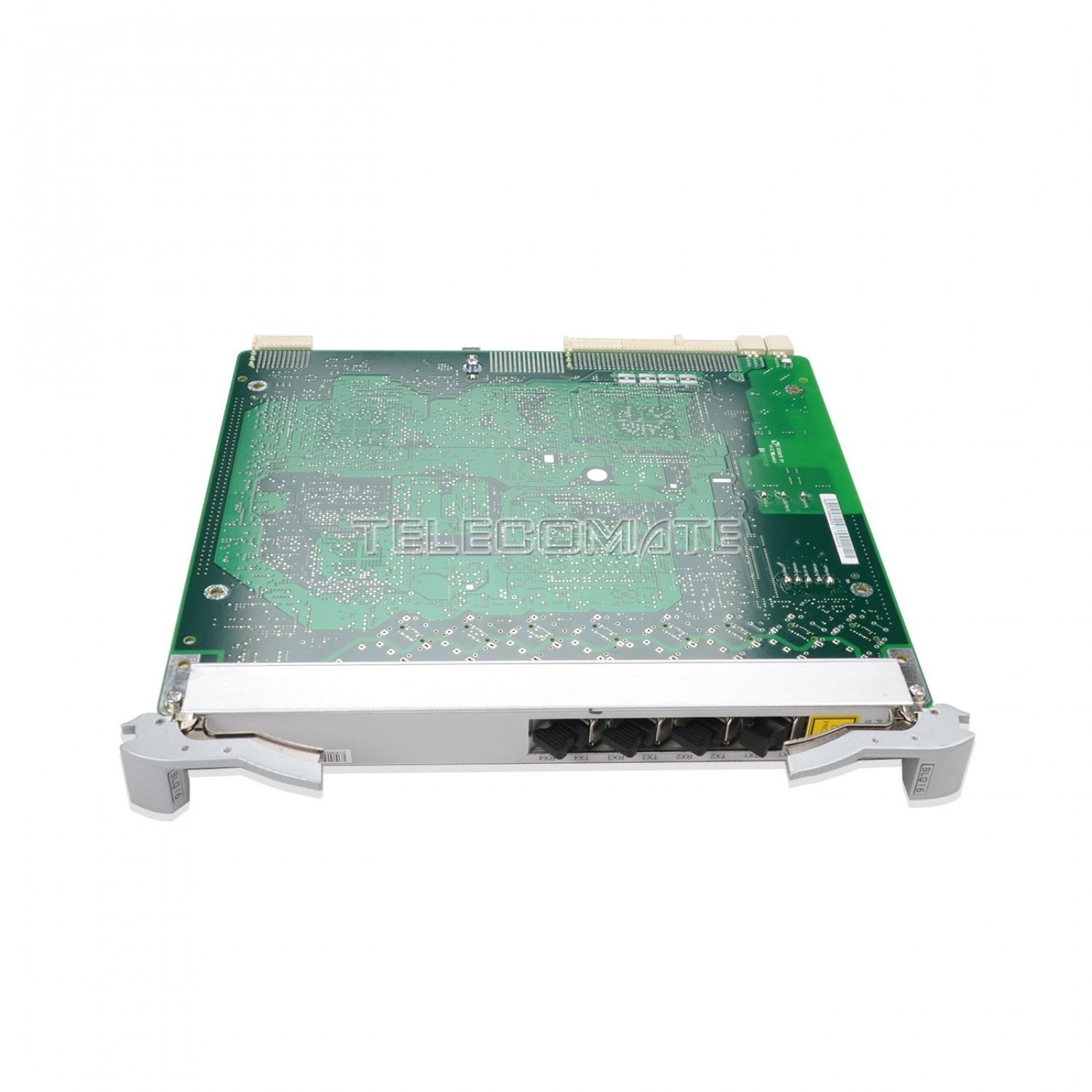

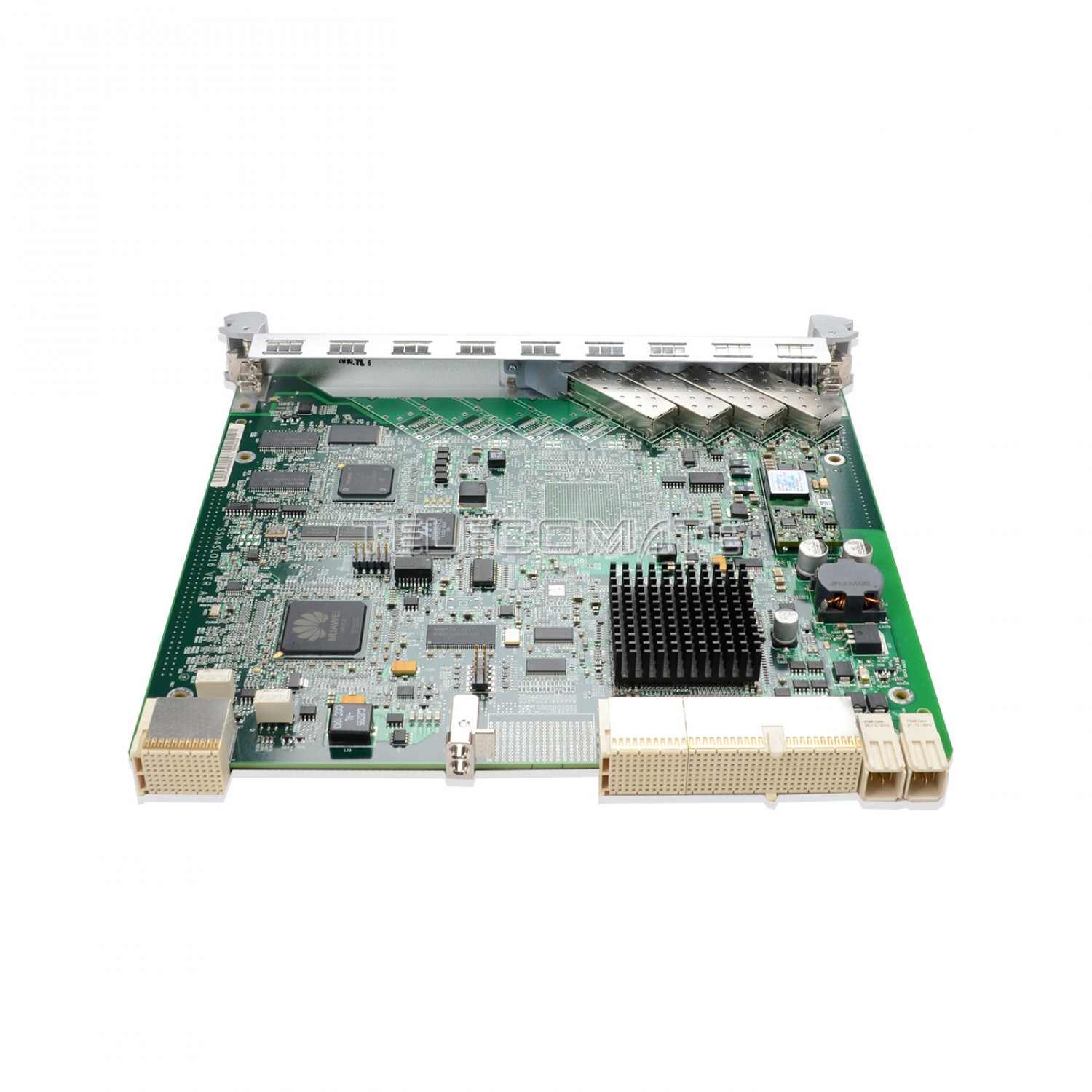

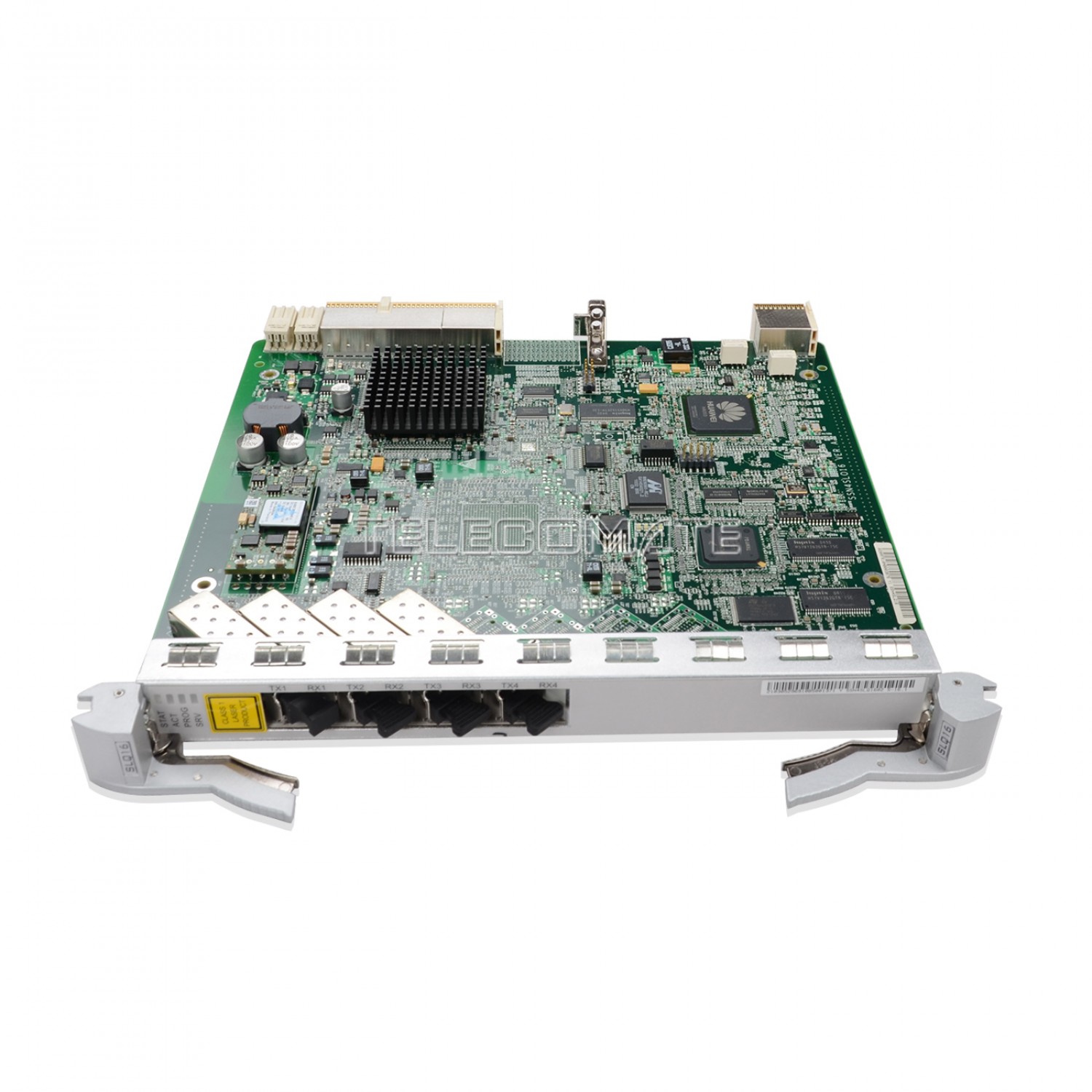

Huawei OSN1500 2500 3500 7500 series universal service board, 4 STM-16 Optical Interface Board with 4 L-16.1 40km SFP module

Description

Optical interface parameters
Parameter Value
Nominal bit rate 2488320 kbit/s
Line code pattern NRZ
Application code L-16.1
Transmission distance (km) 15 to 40
Type of fiber Single-mode LC
Operating wavelength range (nm) 1280 to 1335
Launched optical power range (dBm) -2 to +3
Receiver sensitivity (dBm) -27
Minimum overload (dBm) -9
Maximum -20 dB spectral width (nm) 1
Minimum extinction ratio (dB) 8.2
Minimum side mode suppression ratio (dB) 30
Mechanical Specifications
Dimensions (mm) 25.4 (W) x 235.2 (D) x 261.4 (H)
Weight (kg) 0.9

Additional information

Weight 3.0000 kg
Dimensions 37.5000 × 34.0000 × 7.5000 cm
MSTP
