Huawei OptiX OSN 8800 TN11LOA 8 x Any-rate MUX OTU2 wavelength conversion board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN11LOA overview



TN11LOA 8 x Any-rate MUX OTU2 wavelength conversion board applied to OptiX OSN 8800/6800/3800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

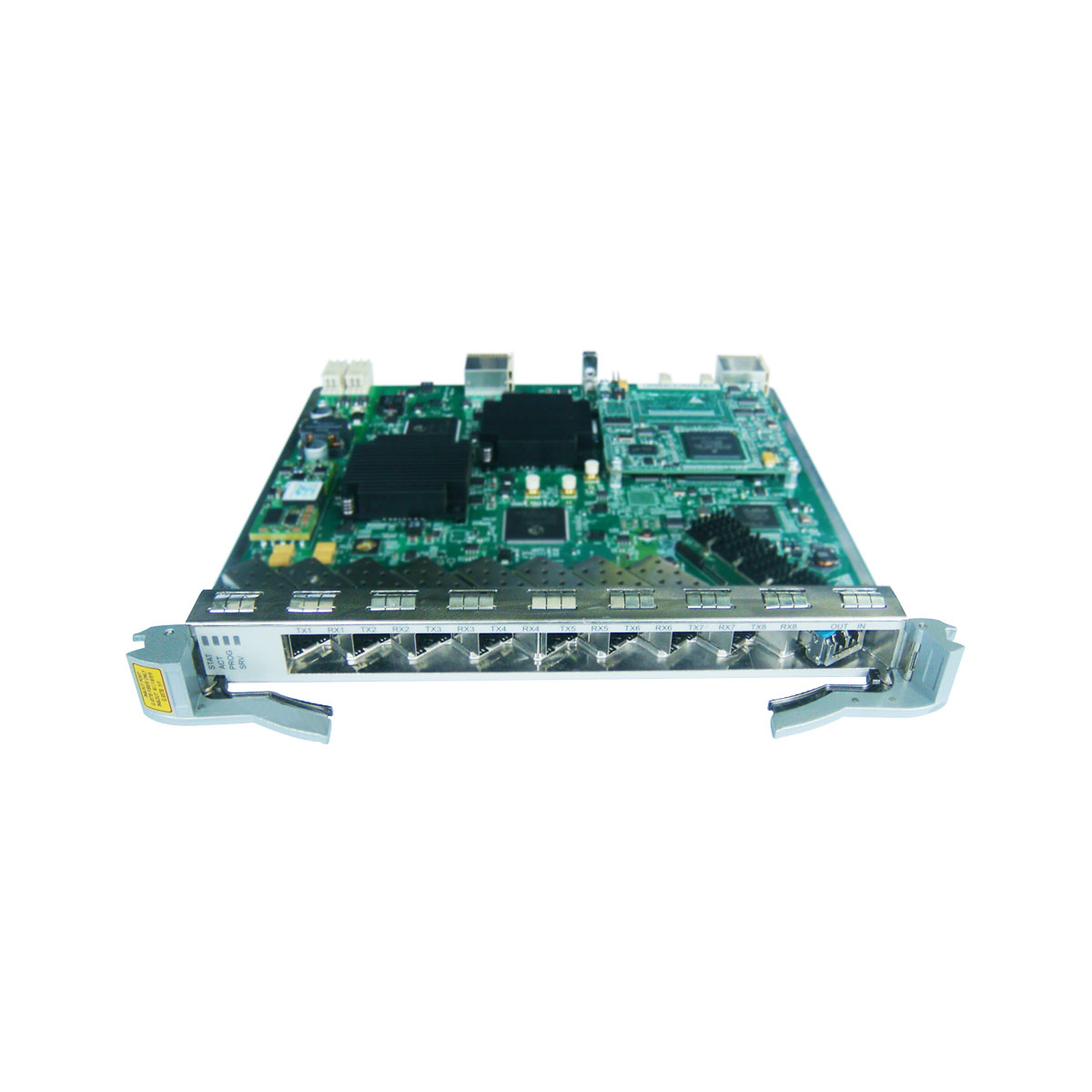

Front panel of the TN11LOA board

TN11LOA

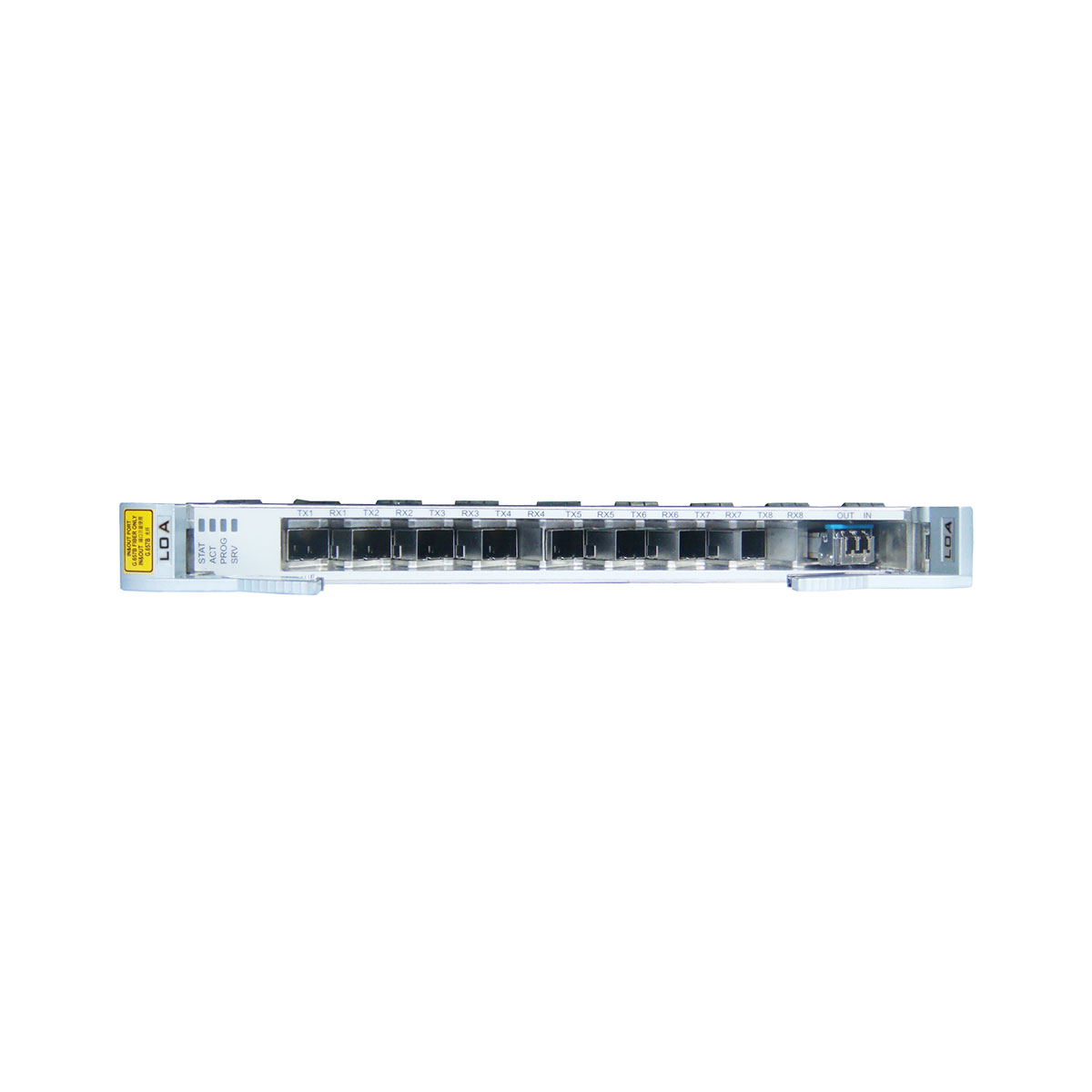

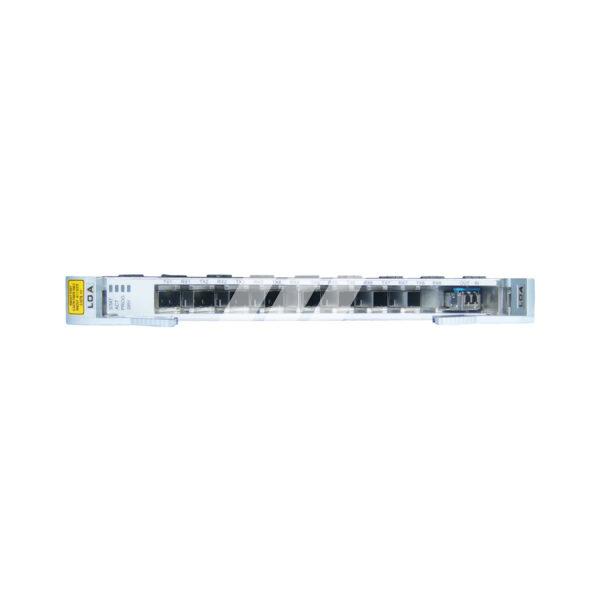

Front panel of the TN11LOA board



Valid slots for the TN11LOA board in a OptiX OSN 8800/6800/3800 T64/T32/T16 subrack  and chassis

Device Valid Slot
OptiX OSN 8800 T64 subrack IU1–IU8, IU11–IU42, IU45–IU68
OptiX OSN 8800 T32 subrack IU1–IU8, IU12–IU27, IU29–IU36
OptiX OSN 8800 T16 subrack IU1–IU8, IU11–IU18
OptiX OSN 8800 universal platform subrack IU3–IU16
OptiX OSN 6800 subrack IU1–IU8, IU11–IU16
OptiX OSN 3800 chassis IU2–IU5



Item TN11LOA
Basic function LOA converts signals as follows:
  • 8 x (125 Mbit/s to 1.25 Gbit/s signals) <-> 1 x OTU2
  • 4 x (1.49 Gbit/s to 2.67 Gbit/s signals)<-> 1 x OTU2
  • 4 x OTU1 <-> 1 x OTU2
  • 2 x 3G-SDI/3G-SDIRBR/FC400/FICON4G/Infiniband 2.5G <-> 1 x OTU2
  • 1 x FC800/FICON8G/Infiniband 5G <-> 1 x OTU2
  • 1 x FC1200/FICON10G/10GE LAN<-> 1 x OTU2e
Supports hybrid transmission of signals at a rate of 4.25 Gibt/s or lower, but does not support hybrid transmission of FC800/FICON8G/Infiniband 5G signals. The total rate of signals received at the client side cannot exceed 10 Gbit/s.
Client-side service type FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FC400: SAN service at a rate of 4.25 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s FICON4G: SAN service at a rate of 4.25 Gbit/s FICON8G: SAN service at a rate of 8.5 Gbit/s FICON10G: SAN service at a rate of 10.51 Gbit/s Infiniband 2.5G: SAN service at a rate of 2.5 Gbit/s Infiniband 5G: SAN service at a rate of 5 Gbit/s ESCON: SAN service at a rate of 200 Mbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s FDDI: SAN service at a rate of 125 Mbit/s HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s OTU1: OTN service at a rate of 2.67 Gbit/s SDI: Serial digital interface at a rate of 270 Mbit/s DVB-ASI: Video service at a rate of 270 Mbit/s 3G-SDI: Video service at a rate of 2.97 Gbit/s 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s ISC 1G: SAN service at a rate of 1.06 Gbit/s ISC 2G: SAN service at a rate of 2.12 Gbit/s
NOTE:
The LOA board supports both GE electrical signal and GE optical signal. For GE electrical signal transmission, it is recommended that the board be equipped with at most two GE electrical modules to facilitate fiber routing. Only the TN11LOA02 supports FC1200, FICON10G, 10GE LAN, Infiniband 2.5G, Infiniband 5G. When InfiniBand 5G and InfiniBand 2.5G services are received on the client side of an LOA02 board, the WDM-side optical signals can be transmitted at a maximum distance of 100 km. The LOA board supports access of SDI, HD-SDI, HD-SDIRBR, 3G-SDI, 3G-SDIRBR, and DVB-ASI electrical signals. When the board is used to accept these electrical signals, a digital video O/E converter must be used for O/E or E/O conversion and the optical module of the converter must agree with the board optical module specifications. The digital video O/E converter is a third-party device. Customers can purchase a digital video O/E converter by themselves. The FICON4G service and the FC400 service are processed identically. For the FICON4G service, you can configure it as the FC400 service on the U2000.
OTN function
  • Provides the OTU2/OTU2e interface on WDM-side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • ODU0 layer: supports the PM function and PM non-intrusive monitoring.
  • ODUk(k=1, 2) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring.
  • ODUflex layer: supports the PM function and PM non-intrusive monitoring functions.
  • OTUk (k=1, 2) layer: supports the SM function.
WDM specification Supports DWDM specifications.
Tunable wavelength function Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
ESC function Supported
PRBS test function Supports the PRBS function on the client and WDM sides.
NOTE:
The PRBS function on the client side is only supported when the client-side service type is STM-1, STM-4, STM-16, OC-3, OC-12, OC-48, or OTU1.
LPT function The board supports the LPT function only when the client-side service type is GE/FE/10GE LAN.
FEC coding
  • Supports forward error correction (FEC) on the client side that complies with ITU-T G.709, only when the client side service type is OTU1.
  • Supports forward error correction (FEC) on the WDM side that complies with ITU-T G.709.
  • Supports advanced forward error correction (AFEC-2) on the WDM side that complies with ITU-T G.975.1.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
Regeneration board The WDM-side signals from one LOA board can be regenerated by another TN12ND2/TN52ND2/TN53ND2/TN55NO2/TN53NQ2/TN54NQ2 board.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame The board supports the test frame function only when the client-side service type is GE or FE.
Latency measurement Supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports client 1+1 protection.
  • Supports OWSP protection.
NOTE:
When receiving InfiniBand 5G and InfiniBand 2.5G services on the client side, an LOA02 board can only work with TN12OLP and TN13OLP boards to support the bidirectional switching of optical line protection. Do not configure client 1+1 protection when FC and FICON services are received by the client side of the LOA02 board.
Ethernet service mapping mode Supports encapsulation of GE services in GE(GFP-T) and GE(TTT-GMP) modes. Supports encapsulation of 10GE LAN services in Bit Transparent Mapping(11.1G).
Ethernet port working mode
  • FE: 100M Full-Duplex
  • GE(TTT-GMP): 1000M Full-Duplex, Auto-Negotiation
IEEE 1588v2 Not Supported
Physical clock
  • When the board receives GE services and the port mapping is TTT-GMP on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
  • When the board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
Loopback Channel Loopback Inloop Supported
NOTE:
For FC800/FICON8G/Infiniband 5G services, Inloop is not supported only in ODUflex non-convergence mode (Any->ODUflex->ODU2->OTU2).
Outloop
WDM side Inloop Not supported
Outloop Supported
NOTE:
It is supported only in FC800/FICON8G/FC1200/FICON10G/10GE LAN services in ODU2 non-convergence mode (Any->ODU2->OTU2).
Client side Inloop Supported
NOTE:
Inloop is not supported in FC800/FICON8G /FC1200/FICON10G/10GE LAN services.
Outloop
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight 1.19 kg (2.64b.)

Additional information

Item TN11LOA
Basic function LOA converts signals as follows:
  • 8 x (125 Mbit/s to 1.25 Gbit/s signals) <-> 1 x OTU2
  • 4 x (1.49 Gbit/s to 2.67 Gbit/s signals)<-> 1 x OTU2
  • 4 x OTU1 <-> 1 x OTU2
  • 2 x 3G-SDI/3G-SDIRBR/FC400/FICON4G/Infiniband 2.5G <-> 1 x OTU2
  • 1 x FC800/FICON8G/Infiniband 5G <-> 1 x OTU2
  • 1 x FC1200/FICON10G/10GE LAN<-> 1 x OTU2e
Supports hybrid transmission of signals at a rate of 4.25 Gibt/s or lower, but does not support hybrid transmission of FC800/FICON8G/Infiniband 5G signals. The total rate of signals received at the client side cannot exceed 10 Gbit/s.
Client-side service type FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FC400: SAN service at a rate of 4.25 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s FICON4G: SAN service at a rate of 4.25 Gbit/s FICON8G: SAN service at a rate of 8.5 Gbit/s FICON10G: SAN service at a rate of 10.51 Gbit/s Infiniband 2.5G: SAN service at a rate of 2.5 Gbit/s Infiniband 5G: SAN service at a rate of 5 Gbit/s ESCON: SAN service at a rate of 200 Mbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s FDDI: SAN service at a rate of 125 Mbit/s HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s OTU1: OTN service at a rate of 2.67 Gbit/s SDI: Serial digital interface at a rate of 270 Mbit/s DVB-ASI: Video service at a rate of 270 Mbit/s 3G-SDI: Video service at a rate of 2.97 Gbit/s 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s ISC 1G: SAN service at a rate of 1.06 Gbit/s ISC 2G: SAN service at a rate of 2.12 Gbit/s
NOTE:
The LOA board supports both GE electrical signal and GE optical signal. For GE electrical signal transmission, it is recommended that the board be equipped with at most two GE electrical modules to facilitate fiber routing. Only the TN11LOA02 supports FC1200, FICON10G, 10GE LAN, Infiniband 2.5G, Infiniband 5G. When InfiniBand 5G and InfiniBand 2.5G services are received on the client side of an LOA02 board, the WDM-side optical signals can be transmitted at a maximum distance of 100 km. The LOA board supports access of SDI, HD-SDI, HD-SDIRBR, 3G-SDI, 3G-SDIRBR, and DVB-ASI electrical signals. When the board is used to accept these electrical signals, a digital video O/E converter must be used for O/E or E/O conversion and the optical module of the converter must agree with the board optical module specifications. The digital video O/E converter is a third-party device. Customers can purchase a digital video O/E converter by themselves. The FICON4G service and the FC400 service are processed identically. For the FICON4G service, you can configure it as the FC400 service on the U2000.
OTN function
  • Provides the OTU2/OTU2e interface on WDM-side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • ODU0 layer: supports the PM function and PM non-intrusive monitoring.
  • ODUk(k=1, 2) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring.
  • ODUflex layer: supports the PM function and PM non-intrusive monitoring functions.
  • OTUk (k=1, 2) layer: supports the SM function.
WDM specification Supports DWDM specifications.
Tunable wavelength function Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
ESC function Supported
PRBS test function Supports the PRBS function on the client and WDM sides.
NOTE:
The PRBS function on the client side is only supported when the client-side service type is STM-1, STM-4, STM-16, OC-3, OC-12, OC-48, or OTU1.
LPT function The board supports the LPT function only when the client-side service type is GE/FE/10GE LAN.
FEC coding
  • Supports forward error correction (FEC) on the client side that complies with ITU-T G.709, only when the client side service type is OTU1.
  • Supports forward error correction (FEC) on the WDM side that complies with ITU-T G.709.
  • Supports advanced forward error correction (AFEC-2) on the WDM side that complies with ITU-T G.975.1.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
Regeneration board The WDM-side signals from one LOA board can be regenerated by another TN12ND2/TN52ND2/TN53ND2/TN55NO2/TN53NQ2/TN54NQ2 board.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame The board supports the test frame function only when the client-side service type is GE or FE.
Latency measurement Supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports client 1+1 protection.
  • Supports OWSP protection.
NOTE:
When receiving InfiniBand 5G and InfiniBand 2.5G services on the client side, an LOA02 board can only work with TN12OLP and TN13OLP boards to support the bidirectional switching of optical line protection. Do not configure client 1+1 protection when FC and FICON services are received by the client side of the LOA02 board.
Ethernet service mapping mode Supports encapsulation of GE services in GE(GFP-T) and GE(TTT-GMP) modes. Supports encapsulation of 10GE LAN services in Bit Transparent Mapping(11.1G).
Ethernet port working mode
  • FE: 100M Full-Duplex
  • GE(TTT-GMP): 1000M Full-Duplex, Auto-Negotiation
IEEE 1588v2 Not Supported
Physical clock
  • When the board receives GE services and the port mapping is TTT-GMP on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
  • When the board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
Loopback Channel Loopback Inloop Supported
NOTE:
For FC800/FICON8G/Infiniband 5G services, Inloop is not supported only in ODUflex non-convergence mode (Any->ODUflex->ODU2->OTU2).
Outloop
WDM side Inloop Not supported
Outloop Supported
NOTE:
It is supported only in FC800/FICON8G/FC1200/FICON10G/10GE LAN services in ODU2 non-convergence mode (Any->ODU2->OTU2).
Client side Inloop Supported
NOTE:
Inloop is not supported in FC800/FICON8G /FC1200/FICON10G/10GE LAN services.
Outloop
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight 1.19 kg (2.64b.)
