Huawei OptiX OSN 8800 TN11LQCPT16 4*100Gbit/s or 16*10Gbit/s Service Programmable Wavelength Conversion Board

Description

TN11LQCPT16 overview



TN11LQCPT16 4*100Gbit/s or 16*10Gbit/s Service Programmable Wavelength Conversion Board applied to OptiX OSN 8800/6800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

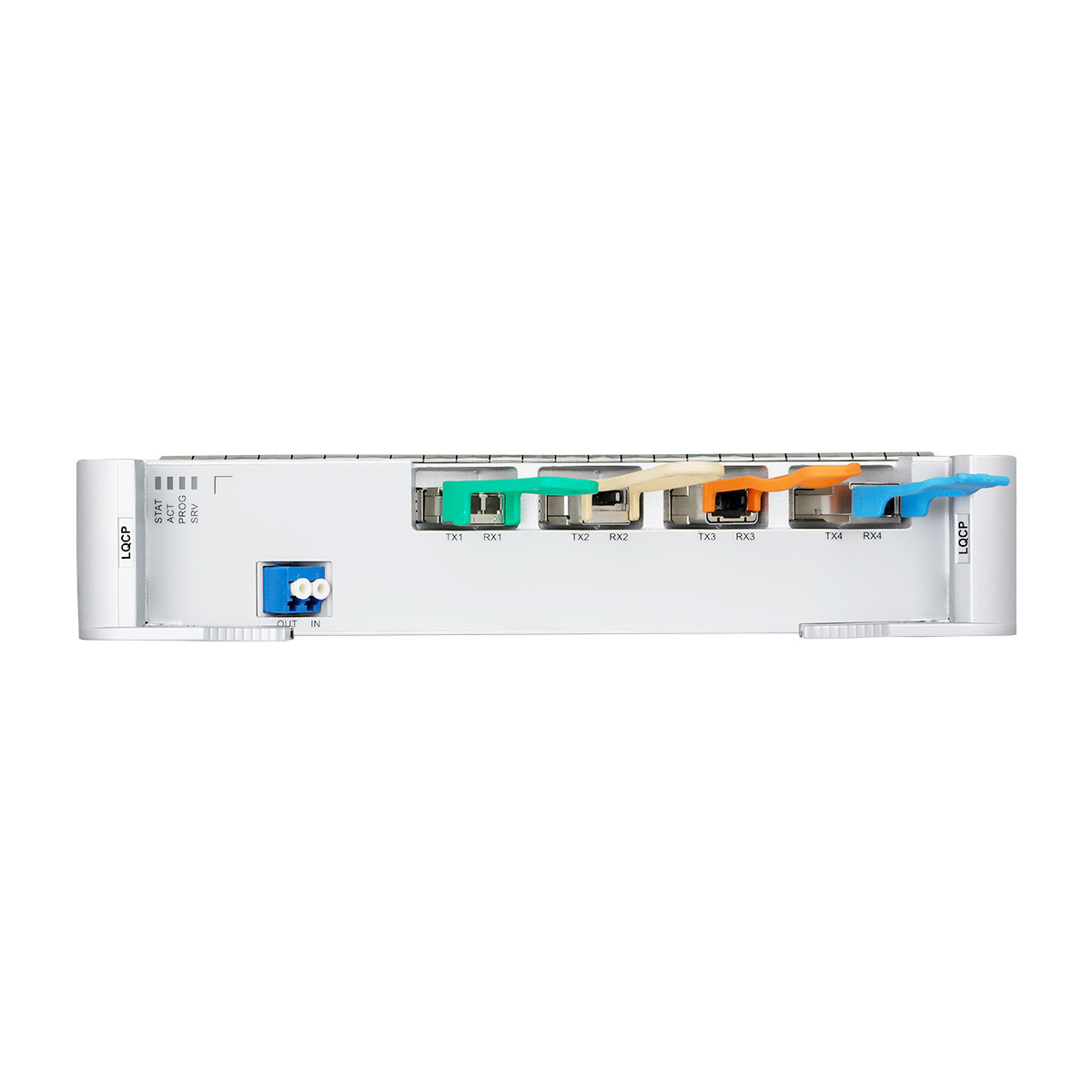

Front panel of the TN11LQCPT16 board

TN11LQCP

Front panel of the TN11LQCPT16 board



Valid slots for the TN11LQCPT16 board in a OptiX OSN 8800 T64/T32/T16 subrack

Device Valid Slot
OptiX OSN 8800 T64 IU2 to IU8, IU12 to IU18, IU20 to IU26, IU28 to IU34, IU36 to IU42, IU46 to IU52, IU54 to IU60, and IU62 to IU68
OptiX OSN 8800 T32 IU2 to IU8, IU13 to IU19, IU21 to IU27, and IU30 to IU36
OptiX OSN 8800 T16 IU2 to IU8, and IU12 to IU18
OptiX OSN 8800 universal platform subrack IU2 to IU16



Item TN11LQCPT16
Functions and features of the LQCP board
Basic functions The LQCP board supports the access of OTU4/100GE/40GE/10GE signals on the client side. The signal conversion relationships are as follows: 400G line:
  • 4 x OTU4 <-> 4 x ODU4 <-> 1 x ODUC4 <-> 1 x OTUC4
  • 4 x 100GE <->4 x ODU4 (bit transparent mapping/MAC transparent mapping) <-> 1 x ODUC4<-> 1 x OTUC4
  • 4 x 40GE <-> 4 x ODU3 (TTT+GMP) <-> 1 x ODUC4 <-> 1 x OTUC4
  • 16 x 10GE LAN <-> 16 x ODU2 (MAC transparent mapping) <-> 1 x ODUC4 <-> 1 x OTUC4
  • 16 x 10GE LAN <-> 16 x ODU2e (IMP+BMP) <-> 1 x ODUC4 <-> 1 x OTUC4
200G line:
  • 2 x OTU4 <-> 2 x ODU4 <-> 1 x ODUC2 <-> 1 x OTUC2
  • 2 x 100GE <->2 x ODU4 (bit transparent mapping/MAC transparent mapping) <-> 1 x ODUC2 <-> 1 x OTUC2
  • 4 x 40GE <-> 4 x ODU3 (TTT+GMP) <-> 2 x ODU4<-> 1 x ODUC2 <-> 1 x OTUC2
  • 16 x 10GE LAN <-> 16 x ODU2 (MAC transparent mapping) <-> 2 x ODU4<-> 1 x ODUC2<-> 1 x OTUC2
  • 16 x 10GE LAN <-> 16 x ODU2e (IMP+BMP) <-> 2 x ODU4 <-> 1 x ODUC2<-> 1 x OTUC2
Client-side service type 100GE: Ethernet service at a rate of 103.125 Gbit/s OTU4: OTN service at a rate of 111.81 Gbit/s 40GE: Ethernet service at a rate of 41.25 Gbit/s 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
LLDP Supported.
NOTE:
The LQCP board supports this function only when Ethernet services are received on the client side. When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
OTN functions
  • Supports OTUC4 and OTUC2 interfaces on the WDM side.
  • Uses the frame formats and overhead processing compliant with ITU-T G.709.
  • ODU4 layer:
    • Supports PM and TCM overhead processing when 100GE/40GE/10GE services are received on the client side.
    • Supports PM and TCM overhead processing when OTU4 services are received on the client side. This board supports non-intrusive monitoring of PM and TCM overheads.
  • ODU3 layer:
    • Supports PM and TCM overhead processing when 40GE services are received on the client side.
  • ODU2/ODU2e layer:
    • Supports PM and TCM overhead processing when 10GE LAN services are received on the client side.
  • Supports SM overhead processing at the OTU4 layer on the client side.
  • Supports PM and TCM overhead processing at the ODUC2 and ODUC4 layers on the WDM side.
  • Supports SM overhead processing at the OTUC2 and OTUC4 layers on the WDM side.
Service encryption Supported.
NOTE:
The LQCP board supports this function only when non-OTU4 services are received on the client side.
Tunable wavelength The LQCP board tunes optical signals on the WDM side within the range of 96 wavelengths in extended C band.
Spectral width of WDM-side signals
  • 400G 16QAM: 75GHz flex / 100GHz fix
  • 200G QPSK: 75GHz flex / 100GHz fix
  • 200G 8QAM: 62.5GHz flex / 75GHz flex / 100GHz fix
NOTE:
During the modulation format switching of the board, if the spectrum width increases, the modulation format switching fails, an error message indicating wavelength conflict is displayed, and the system prompts that the current wavelength spectrum width is too small to switch the modulation format. In this case, you need to change the wavelength spectrum width to a larger value before switching the modulation format. For example, modulation format A whose spectrum width is 75G can be directly switched to modulation format B whose spectrum width is 62.5G, but cannot be directly switched to modulation format C whose spectrum width is 100G. In this case, you need to change the wavelength spectrum width to a larger value first. Otherwise, the modulation format switching fails.
WDM specifications Supports DWDM specifications.
ESC Supported.
PRBS Supports PRBS on the client and WDM sides.
NOTE:
The client side supports the PRBS function only when OTU4 services are received.
LPT Supported.
NOTE:
The client side supports the LPT function only when 10GE LAN services are received.
Error correction encoding
  • The client side supports the ITU-T G.709-compliant FEC only when OTU4 services are received.
  • The client side supports RS_FEC encoding only when 100GE services are received.
  • The WDM side of the TN11LQCPF16/TN11LQCPT16/TN11LQCPT15 board supports SDFEC encoding.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Performance and alarm monitoring
  • Monitors BIP8 bytes (BIP8 bytes of OTU4 are in Bursty mode) for 40GE, 100GE, and OTU4 services on the client side to help locate service failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports CD and PMD performance monitoring.
Regeneration board Supported.
ALS Supports the ALS function on the client side when client services are non-OTN services.
Test frame Supports test frames only when 100GE, 40GE, and 10GE services are received on the client side.
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
Latency measurement
Supports PM and TCM latency measurement.
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
NOTE:
In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.

IEEE 1588v2 Supported
Physical-layer clock When receiving 100GE services on the client side, synchronous Ethernet transparent transmission is supported in bit transparent mapping mode, and synchronous Ethernet processing is supported in MAC transparent mapping mode. When receiving 10GE services on the client side, synchronous Ethernet processing is supported in MAC transparent mapping mode, but synchronous Ethernet transparent transmission is not supported in IMP+BMP mapping mode.
Optical-layer ASON Supported.
NOTE:
The optical-layer ASON supported by the LQCP board is flex ASON. The flex ASON function can be used only when it is enabled on the NMS.
Electrical-layer ASON Not supported.
Protection mode
  • Supports client 1+1 protection.
    NOTE:
    • When 100GE/40GE services are received on the client side, the LQCP board supports only bidirectional switching but not unidirectional switching for client 1+1 protection. When OTU4 services are received on the client side, the LQCP board supports unidirectional switching for client 1+1 protection.
    • When the MPO optical module is used on the client side to receive services, the LQCP board does not support client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Ethernet service mapping mode Supports Bit Transparent Mapping ODU4(100G), MAC Transparent Mapping ODU4(100G), ODU3(TTT+GMP), Bit Transparent Mapping(11.1G IMP+BMP), MAC Transparent Mapping(10.7G).
NOTE:
The Bit Transparent Mapping(11.1G IMP+BMP) mode can be used for service interconnection with the Bit Transparent Mapping(11.1G) mode.
Loopback ODUk Channels 400G line Not supported.
200G line: ODU4 channel loopback Supported.
NOTE:
ODU4 channel loopback is supported only when the client-side service type of the LQCP board is 40GE or 10GE.
WDM Side Inloop Supported.
Outloop Supported.
Client Side Inloop Supported.
Outloop Supported.
Channel Loopback Inloop Supported.
NOTE:
Channel loopback is supported only when the client-side service type of the LQCP board is 10GE.
Outloop Supported.
NOTE:
Channel loopback is supported only when the client-side service type of the LQCP board is 10GE.
Functions and features of the LQCP board (in regeneration mode)
Basic functions Applies to electrical regenerator stations in the system to electrically regenerate optical signals.
Regeneration rate OTUC2: For OTN services, the rate in standard mode is 210.52 Gbit/s, and the rate in compatible mode is 211.45 Gbit/s. OTUC4: OTN service at a rate of 421.03 Gbit/s.
OTN functions 400G regeneration:
  • Supports OTUC4 interfaces on the WDM side.
  • Uses the frame formats and overhead processing compliant with ITU-T G.709.
  • ODUC4 layer: Supports PM overhead processing, and non-intrusive monitoring on PM and TCM overheads.
  • OTUC4 layer: Supports SM overhead processing.
  200G regeneration:
  • Supports OTUC2 interfaces on the WDM side.
  • Uses the frame formats and overhead processing compliant with ITU-T G.709.
  • ODUC2 layer: Supports PM overhead processing, and non-intrusive monitoring on PM and TCM overheads.
  • OTUC2 layer: Supports SM overhead processing.
WDM specifications Supports DWDM specifications.
Tunable wavelength The LQCP board tunes optical signals on the WDM side within the range of 96 wavelengths in extended C band.
Spectral width of WDM-side signals
  • 400G 16QAM: 75GHz flex / 100GHz fix
  • 200G QPSK: 75GHz flex / 100GHz fix
  • 200G 8QAM: 62.5GHz flex / 75GHz flex / 100GHz fix
ESC Supported.
PRBS test Not supported.
LPT Not supported.
Error correction encoding
  • TN11LQCPF16/TN11LQCPT16/TN11LQCPT15 supports SDFEC encoding.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance monitoring
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports CD and PMD performance monitoring.
ALS Not supported.
Test frame Not supported.
Electrical-layer ASON Not supported.
Optical-layer ASON Supported.
Protection Not supported.
Loopback Not supported.
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
Weight 2.65 kg (5.84 lb.)

Additional information

Item TN11LQCPT16
Functions and features of the LQCP board
Basic functions The LQCP board supports the access of OTU4/100GE/40GE/10GE signals on the client side. The signal conversion relationships are as follows: 400G line:
  • 4 x OTU4 <-> 4 x ODU4 <-> 1 x ODUC4 <-> 1 x OTUC4
  • 4 x 100GE <->4 x ODU4 (bit transparent mapping/MAC transparent mapping) <-> 1 x ODUC4<-> 1 x OTUC4
  • 4 x 40GE <-> 4 x ODU3 (TTT+GMP) <-> 1 x ODUC4 <-> 1 x OTUC4
  • 16 x 10GE LAN <-> 16 x ODU2 (MAC transparent mapping) <-> 1 x ODUC4 <-> 1 x OTUC4
  • 16 x 10GE LAN <-> 16 x ODU2e (IMP+BMP) <-> 1 x ODUC4 <-> 1 x OTUC4
200G line:
  • 2 x OTU4 <-> 2 x ODU4 <-> 1 x ODUC2 <-> 1 x OTUC2
  • 2 x 100GE <->2 x ODU4 (bit transparent mapping/MAC transparent mapping) <-> 1 x ODUC2 <-> 1 x OTUC2
  • 4 x 40GE <-> 4 x ODU3 (TTT+GMP) <-> 2 x ODU4<-> 1 x ODUC2 <-> 1 x OTUC2
  • 16 x 10GE LAN <-> 16 x ODU2 (MAC transparent mapping) <-> 2 x ODU4<-> 1 x ODUC2<-> 1 x OTUC2
  • 16 x 10GE LAN <-> 16 x ODU2e (IMP+BMP) <-> 2 x ODU4 <-> 1 x ODUC2<-> 1 x OTUC2
Client-side service type 100GE: Ethernet service at a rate of 103.125 Gbit/s OTU4: OTN service at a rate of 111.81 Gbit/s 40GE: Ethernet service at a rate of 41.25 Gbit/s 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
LLDP Supported.
NOTE:
The LQCP board supports this function only when Ethernet services are received on the client side. When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
OTN functions
  • Supports OTUC4 and OTUC2 interfaces on the WDM side.
  • Uses the frame formats and overhead processing compliant with ITU-T G.709.
  • ODU4 layer:
    • Supports PM and TCM overhead processing when 100GE/40GE/10GE services are received on the client side.
    • Supports PM and TCM overhead processing when OTU4 services are received on the client side. This board supports non-intrusive monitoring of PM and TCM overheads.
  • ODU3 layer:
    • Supports PM and TCM overhead processing when 40GE services are received on the client side.
  • ODU2/ODU2e layer:
    • Supports PM and TCM overhead processing when 10GE LAN services are received on the client side.
  • Supports SM overhead processing at the OTU4 layer on the client side.
  • Supports PM and TCM overhead processing at the ODUC2 and ODUC4 layers on the WDM side.
  • Supports SM overhead processing at the OTUC2 and OTUC4 layers on the WDM side.
Service encryption Supported.
NOTE:
The LQCP board supports this function only when non-OTU4 services are received on the client side.
Tunable wavelength The LQCP board tunes optical signals on the WDM side within the range of 96 wavelengths in extended C band.
Spectral width of WDM-side signals
  • 400G 16QAM: 75GHz flex / 100GHz fix
  • 200G QPSK: 75GHz flex / 100GHz fix
  • 200G 8QAM: 62.5GHz flex / 75GHz flex / 100GHz fix
NOTE:
During the modulation format switching of the board, if the spectrum width increases, the modulation format switching fails, an error message indicating wavelength conflict is displayed, and the system prompts that the current wavelength spectrum width is too small to switch the modulation format. In this case, you need to change the wavelength spectrum width to a larger value before switching the modulation format. For example, modulation format A whose spectrum width is 75G can be directly switched to modulation format B whose spectrum width is 62.5G, but cannot be directly switched to modulation format C whose spectrum width is 100G. In this case, you need to change the wavelength spectrum width to a larger value first. Otherwise, the modulation format switching fails.
WDM specifications Supports DWDM specifications.
ESC Supported.
PRBS Supports PRBS on the client and WDM sides.
NOTE:
The client side supports the PRBS function only when OTU4 services are received.
LPT Supported.
NOTE:
The client side supports the LPT function only when 10GE LAN services are received.
Error correction encoding
  • The client side supports the ITU-T G.709-compliant FEC only when OTU4 services are received.
  • The client side supports RS_FEC encoding only when 100GE services are received.
  • The WDM side of the TN11LQCPF16/TN11LQCPT16/TN11LQCPT15 board supports SDFEC encoding.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Performance and alarm monitoring
  • Monitors BIP8 bytes (BIP8 bytes of OTU4 are in Bursty mode) for 40GE, 100GE, and OTU4 services on the client side to help locate service failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports CD and PMD performance monitoring.
Regeneration board Supported.
ALS Supports the ALS function on the client side when client services are non-OTN services.
Test frame Supports test frames only when 100GE, 40GE, and 10GE services are received on the client side.
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
Latency measurement
Supports PM and TCM latency measurement.
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
NOTE:
In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.

IEEE 1588v2 Supported
Physical-layer clock When receiving 100GE services on the client side, synchronous Ethernet transparent transmission is supported in bit transparent mapping mode, and synchronous Ethernet processing is supported in MAC transparent mapping mode. When receiving 10GE services on the client side, synchronous Ethernet processing is supported in MAC transparent mapping mode, but synchronous Ethernet transparent transmission is not supported in IMP+BMP mapping mode.
Optical-layer ASON Supported.
NOTE:
The optical-layer ASON supported by the LQCP board is flex ASON. The flex ASON function can be used only when it is enabled on the NMS.
Electrical-layer ASON Not supported.
Protection mode
  • Supports client 1+1 protection.
    NOTE:
    • When 100GE/40GE services are received on the client side, the LQCP board supports only bidirectional switching but not unidirectional switching for client 1+1 protection. When OTU4 services are received on the client side, the LQCP board supports unidirectional switching for client 1+1 protection.
    • When the MPO optical module is used on the client side to receive services, the LQCP board does not support client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Ethernet service mapping mode Supports Bit Transparent Mapping ODU4(100G), MAC Transparent Mapping ODU4(100G), ODU3(TTT+GMP), Bit Transparent Mapping(11.1G IMP+BMP), MAC Transparent Mapping(10.7G).
NOTE:
The Bit Transparent Mapping(11.1G IMP+BMP) mode can be used for service interconnection with the Bit Transparent Mapping(11.1G) mode.
Loopback ODUk Channels 400G line Not supported.
200G line: ODU4 channel loopback Supported.
NOTE:
ODU4 channel loopback is supported only when the client-side service type of the LQCP board is 40GE or 10GE.
WDM Side Inloop Supported.
Outloop Supported.
Client Side Inloop Supported.
Outloop Supported.
Channel Loopback Inloop Supported.
NOTE:
Channel loopback is supported only when the client-side service type of the LQCP board is 10GE.
Outloop Supported.
NOTE:
Channel loopback is supported only when the client-side service type of the LQCP board is 10GE.
Functions and features of the LQCP board (in regeneration mode)
Basic functions Applies to electrical regenerator stations in the system to electrically regenerate optical signals.
Regeneration rate OTUC2: For OTN services, the rate in standard mode is 210.52 Gbit/s, and the rate in compatible mode is 211.45 Gbit/s. OTUC4: OTN service at a rate of 421.03 Gbit/s.
OTN functions 400G regeneration:
  • Supports OTUC4 interfaces on the WDM side.
  • Uses the frame formats and overhead processing compliant with ITU-T G.709.
  • ODUC4 layer: Supports PM overhead processing, and non-intrusive monitoring on PM and TCM overheads.
  • OTUC4 layer: Supports SM overhead processing.
  200G regeneration:
  • Supports OTUC2 interfaces on the WDM side.
  • Uses the frame formats and overhead processing compliant with ITU-T G.709.
  • ODUC2 layer: Supports PM overhead processing, and non-intrusive monitoring on PM and TCM overheads.
  • OTUC2 layer: Supports SM overhead processing.
WDM specifications Supports DWDM specifications.
Tunable wavelength The LQCP board tunes optical signals on the WDM side within the range of 96 wavelengths in extended C band.
Spectral width of WDM-side signals
  • 400G 16QAM: 75GHz flex / 100GHz fix
  • 200G QPSK: 75GHz flex / 100GHz fix
  • 200G 8QAM: 62.5GHz flex / 75GHz flex / 100GHz fix
ESC Supported.
PRBS test Not supported.
LPT Not supported.
Error correction encoding
  • TN11LQCPF16/TN11LQCPT16/TN11LQCPT15 supports SDFEC encoding.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance monitoring
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports CD and PMD performance monitoring.
ALS Not supported.
Test frame Not supported.
Electrical-layer ASON Not supported.
Optical-layer ASON Supported.
Protection Not supported.
Loopback Not supported.
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
Weight 2.65 kg (5.84 lb.)
