Huawei OptiX OSN 8800 TN11LQG 4 x GE-multiplex-optical wavelength conversion board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN11LQG overview



TN11LQG 4 x GE-multiplex-optical wavelength conversion board applied to OptiX OSN 8800/6800/3800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

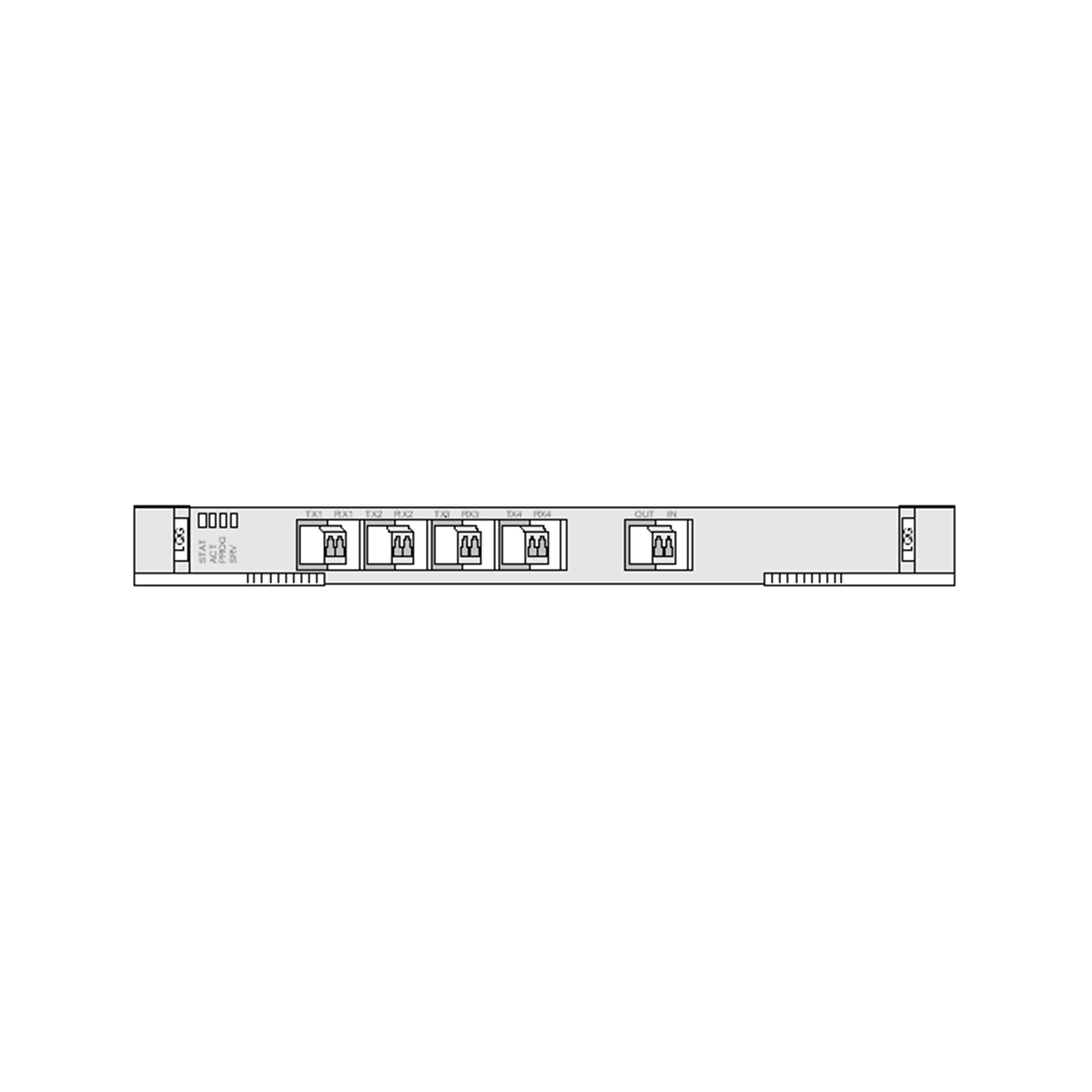

Front panel of the TN11LQG board

TN11LOG 1

Front panel of the TN11LQG board



Valid slots for the TN11LQG board in a OptiX OSN 8800/6800/3800 T64/T32/T16 subrack  and chassis

Device Valid Slot
OptiX OSN 6800 subrack IU1-IU8, IU11-IU16
OptiX OSN 3800 chassis IU2-IU5



Show More Show Less
Item TN11LQG
Basic function LQG converts signals: 4 x GE <-> 1 x OTU5G/FEC5G
Client-side service type GE: Ethernet service at a rate of 1.25 Gbit/s
Cross-connect capabilities
  • OptiX OSN 6800: Supports the grooming of four channels of GE services each to working/protection cross-connection boards respectively through the backplane, and supports the transmission of four GE signals to the paired slots through the backplane.
  • OptiX OSN 3800: Supports the grooming of four GE signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
OTN function
  • Provides the OTU5G/FEC5G interface on WDM-side.
  • Supports PM and TCM function for ODU5G.
  • Supports SM functions for OTU5G.
WDM specification
  • Supports DWDM specifications.
  • Supports ITU-T G.694.2-compliant CWDM specifications.
Tunable wavelength function Supports the tunable wavelength optical module. Equipped with this module, the board can tune the optical signal output on the WDM side within the range of the 40 wavelengths in C-band with the channel spacing of 100 GHz.
ESC function Supported
PRBS test function Supports the PRBS function on the WDM side.
LPT function Supported
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side.
Test frame Supported
Latency measurement Not supported
Optical-layer ASON Not supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports SW SNCP.
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
  • Supports MS SNCP protection.
Ethernet service mapping mode Supports encapsulation of GE services in GE(GFP-F) (displayed as GE on the NMS) and GE(GFP-T) modes.
Ethernet port working mode GE(GFP-F): 1000M Full-Duplex, Auto-Negotiation
Port MTU The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Loopback WDM side Inloop Supported
Outloop Supported
Client side Inloop Supported
Outloop Supported
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight 1.3 kg (2.9 lb.)

Additional information

Brand
Lead Time
Ship From
Warranty
Condition
Item TN11LQG
Basic function LQG converts signals: 4 x GE <-> 1 x OTU5G/FEC5G
Client-side service type GE: Ethernet service at a rate of 1.25 Gbit/s
Cross-connect capabilities
  • OptiX OSN 6800: Supports the grooming of four channels of GE services each to working/protection cross-connection boards respectively through the backplane, and supports the transmission of four GE signals to the paired slots through the backplane.
  • OptiX OSN 3800: Supports the grooming of four GE signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
OTN function
  • Provides the OTU5G/FEC5G interface on WDM-side.
  • Supports PM and TCM function for ODU5G.
  • Supports SM functions for OTU5G.
WDM specification
  • Supports DWDM specifications.
  • Supports ITU-T G.694.2-compliant CWDM specifications.
Tunable wavelength function Supports the tunable wavelength optical module. Equipped with this module, the board can tune the optical signal output on the WDM side within the range of the 40 wavelengths in C-band with the channel spacing of 100 GHz.
ESC function Supported
PRBS test function Supports the PRBS function on the WDM side.
LPT function Supported
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side.
Test frame Supported
Latency measurement Not supported
Optical-layer ASON Not supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports SW SNCP.
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
  • Supports MS SNCP protection.
Ethernet service mapping mode Supports encapsulation of GE services in GE(GFP-F) (displayed as GE on the NMS) and GE(GFP-T) modes.
Ethernet port working mode GE(GFP-F): 1000M Full-Duplex, Auto-Negotiation
Port MTU The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Loopback WDM side Inloop Supported
Outloop Supported
Client side Inloop Supported
Outloop Supported
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight 1.3 kg (2.9 lb.)
