Huawei OptiX OSN 8800 TN11LSQ 40 Gbit/s wavelength conversion board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN11LSQ overview



TN11LSQ 40 Gbit/s wavelength conversion board, single fed and single receiving applied to OptiX OSN 8800/6800/3800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

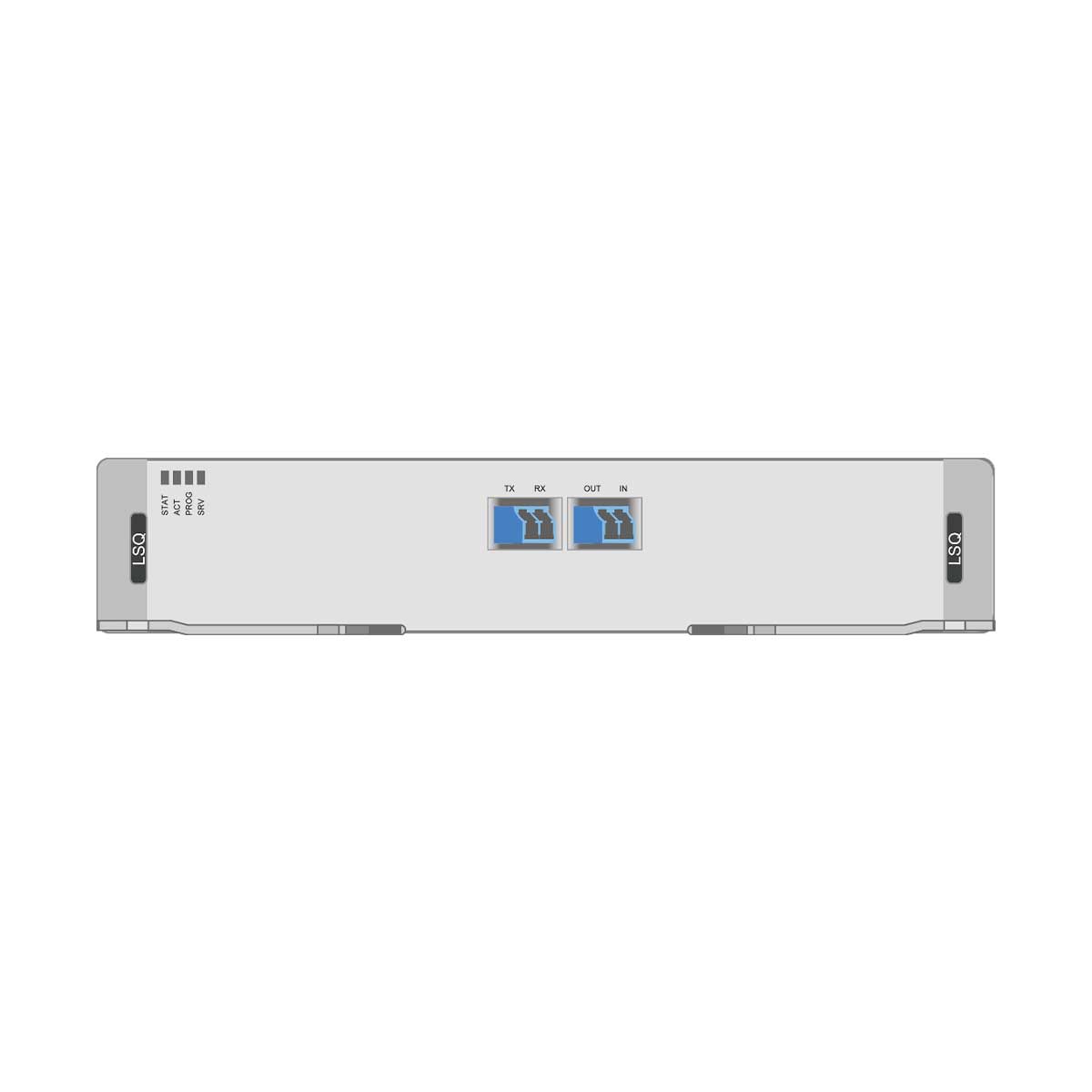

Front panel of the TN11LSQ board

TN11LSQ

Front panel of the TN11LSQ board



Valid slots for the TN11LSQ board in a OptiX OSN 8800/6800/3800 T64/T32 subrack and chassis

Product Valid Slots
OptiX OSN 8800 T64 subrack IU1-IU7, IU11-IU17, IU19-IU25, IU27-IU33, IU35-IU41, IU45-IU51, IU53-IU59, IU61-IU67
OptiX OSN 8800 T32 subrack IU1-IU7, IU12-IU18, IU20-IU26, IU29-IU35
OptiX OSN 8800 T16 subrack IU1-IU7, IU11-IU17
OptiX OSN 8800 universal platform subrack IU1-IU15
OptiX OSN 6800 subrack IU1-IU16
OptiX OSN 3800 chassis IU2-IU5
Show More Show Less
Item TN11LSQ
Basic function LSQ converts signals as follows: 1x STM-256/OC-768/OTU3<->1x OTU3
Client-side service type STM-256/OC-768: SDH/SONET service at a rate of 39.81 Gbit/s OTU3: OTN service at a rate of 43.02 Gbit/s
OTN function
  • Provides the OTU3 interface on WDM-side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU3 layer: supports the SM function.
  • ODU3 layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
WDM specification Supports DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function Supports the PRBS function on the client side.
NOTE:
The PRBS function of LSQ on the client side is supported only when the client-side service type is STM-256/OC-768.
LPT function Not supported
FEC coding
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU3.
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
Regeneration board The WDM-side signals of the LSQ board can be regenerated by a TN54NS3 board.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Not supported
Latency measurement Not supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Protection scheme
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Loopback Client side Inloop Supported
Outloop
WDM side Inloop Supported
Outloop
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
Weight 2.5 kg (5.51 lb.)

Additional information

Brand
Lead Time
Ship From
Warranty
Condition
Item TN11LSQ
Basic function LSQ converts signals as follows: 1x STM-256/OC-768/OTU3<->1x OTU3
Client-side service type STM-256/OC-768: SDH/SONET service at a rate of 39.81 Gbit/s OTU3: OTN service at a rate of 43.02 Gbit/s
OTN function
  • Provides the OTU3 interface on WDM-side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU3 layer: supports the SM function.
  • ODU3 layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
WDM specification Supports DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function Supports the PRBS function on the client side.
NOTE:
The PRBS function of LSQ on the client side is supported only when the client-side service type is STM-256/OC-768.
LPT function Not supported
FEC coding
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU3.
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
Regeneration board The WDM-side signals of the LSQ board can be regenerated by a TN54NS3 board.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Not supported
Latency measurement Not supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Protection scheme
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Loopback Client side Inloop Supported
Outloop
WDM side Inloop Supported
Outloop
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
Weight 2.5 kg (5.51 lb.)
