TN11LSXLR overview

Huawei OptiX OSN 8800 TN11LSXL 40 Gbit/s wavelength conversion relay board

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

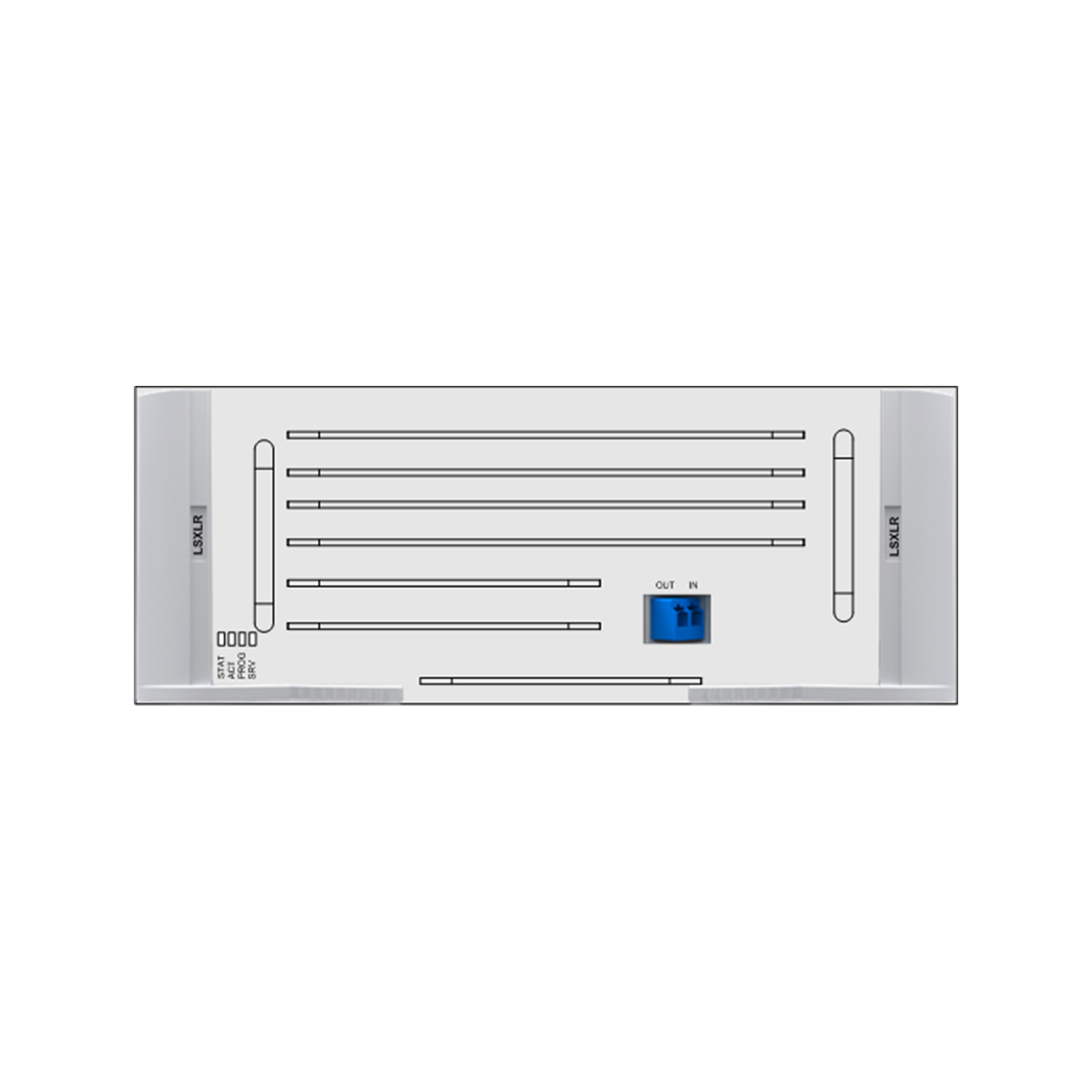

Front panel of the TN11LSX board

TN11LSXLR

Front panel of the TN11LSX board



Valid slots for the TN12LSX board in a OptiX OSN 8800/6800 T64/T32/T16 subrack

Product Valid Slots
OptiX OSN 6800 subrack IU1-IU14



Item TN11LSXLR
Basic function The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals.
Regenerating rate OTU3: OTN service at a rate of 43.02 Gbit/s OTU3e: OTN service at a rate of 44.57 Gbit/s
NOTE:
Only TN12LSXLR supports OTU3e service.
OTN function
  • Provides the OTU3/OTU3e interface on WDM-side.
  • Supports the OTN frame format and overhead processing by complying with the ITU-T G.709.
  • ODU3 layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
  • OTU3 layer: supports the SM function.
WDM specification Supports DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function Not supported
LPT function Not supported
FEC coding
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC) on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
ALS function Not supported
Test frame Not supported
Latency measurement Not supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme Not supported
Dimensions of front panel (H x W x D) 264.6 mm (10.4 in.) x 101.6 mm (4.0 in.) x 220 mm (8.7 in.)
Weight 3.1 kg (6.7 lb.)

Additional information

Brand

Huawei
Item TN11LSXLR
Basic function The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals.
Regenerating rate OTU3: OTN service at a rate of 43.02 Gbit/s OTU3e: OTN service at a rate of 44.57 Gbit/s
NOTE:
Only TN12LSXLR supports OTU3e service.
OTN function
  • Provides the OTU3/OTU3e interface on WDM-side.
  • Supports the OTN frame format and overhead processing by complying with the ITU-T G.709.
  • ODU3 layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
  • OTU3 layer: supports the SM function.
WDM specification Supports DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function Not supported
LPT function Not supported
FEC coding
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC) on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
ALS function Not supported
Test frame Not supported
Latency measurement Not supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme Not supported
Dimensions of front panel (H x W x D) 264.6 mm (10.4 in.) x 101.6 mm (4.0 in.) x 220 mm (8.7 in.)
Weight 3.1 kg (6.7 lb.)
