Description

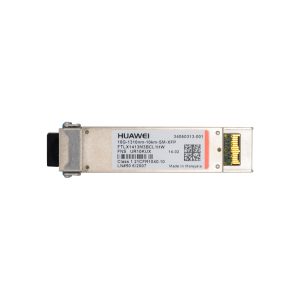

Huawei OSN6800 10Gbit/s Tunable Wavelength Transponder Board with 800 ps/nm C Band (D)RZ-PIN WDM-Side Fixed Module and 1PCS 10G-1310nm-10km-SM XFP Client-Side Pluggable Module
| WDM client-side optical module | |
| 10 Gbit/s Multirate-10 km-XFP
10 Gbit/s Multirate-40 km-XFP 10 Gbit/s Multirate-80 km-XFP 10 Gbit/s Single Rate -0.3 km-XFP |
|
| WDM client-side equipped optical module | |
| Parameter | Value |
| Optical Module Type | 10 Gbit/s Multirate-10 km-XFP |
| Line code format | NRZ |
| Optical source type | SLM |
| Target transmission distance(km) | 10 |
| Transmitter parameter specifications at point S | |
| Operating wavelength range(nm) | 1290 to 1330 |
| Maximum mean launched power(dBm) | -1 |
| Minimum mean launched power(dBm) | -6 |
| Minimum extinction ratio(dB) | 6 |
| Minimum side mode suppression ratio(dB) | 30 |
| Eye pattern mask | G.691-compliant |
| Receiver parameter specifications at point R | |
| Receiver type | PIN |
| Operating wavelength range(nm) | 1260 to 1565 |
| Receiver sensitivity(multirate)a(dBm) | -11 |
| Receiver sensitivity(10GE LAN) (dBm) | -14.4 |
| Minimum receiver overload (10GE LAN)(dBm) | 0.5 |
| Minimum receiver overload(STM-64)a (dBm) | -1 |
| Maximum reflectance(dB) | -27 |
| WDM-side fixed optical module specifications (tunable wavelengths) | |
| Optical Module Type | 800 ps/nm-C Band-Tunable Wavelength-(D)RZ-PIN |
| Line code format | (D)RZ |
| Transmitter parameter specifications at point S | |
| Maximum mean launched power(dBm) | 2 |
| Minimum mean launched power(dBm) | -3 |
| Minimum extinction ratio(dB) | 10 |
| Operating frequency range(THz) | 192.10 to 196.05 |
| Center frequency deviation(GHz) | ±5 |
| Maximum -20 dB spectral width(nm) | 0.3 |
| Minimum side mode suppression ratio(dB) | 35 |
| Dispersion tolerance(ps/nm) | 800 |
| Receiver parameter specifications at point R | |
| Receiver type | PIN |
| Operating wavelength range(nm) | 1200 to 1650 |
| Receiver sensitivity, EOL (FEC on)(dBm) | -16 |
| Minimum receiver overload (FEC on)(dBm) | 0 |
| Maximum reflectance | -27 |
| Mechanical Specifications | |
| Dimensions(mm) | 264.6(H) x 25.4(W) x 220(D) |
| Weight(kg) | 1.3 |
| Power Consumption(W) | Typical Power Consumption: 49.7 Maximum Power Consumptiona: 52.7 |
