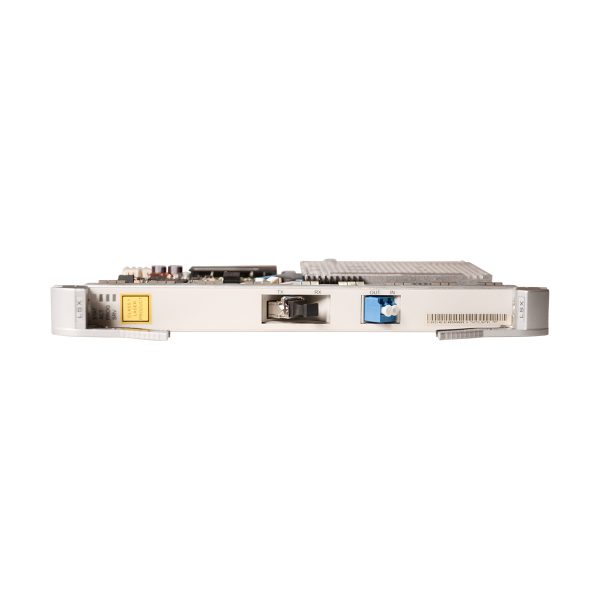

TN11LSXT05 Tunable 10G 10km

0 Reviews Write a review
PN02314616
AvailabilityIn Stock
WDM Module Tunable Module
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

10Gbit/s Tunable Transponder With 10G-10km-XFP Client Module

Description

Huawei OSN6800 10Gbit/s Tunable Wavelength Transponder Board with 800 ps/nm C Band (D)RZ-PIN WDM-Side Fixed Module and 1PCS 10G-1310nm-10km-SM XFP Client-Side Pluggable Module

WDM client-side optical module
10 Gbit/s Multirate-10 km-XFP

10 Gbit/s Multirate-40 km-XFP

10 Gbit/s Multirate-80 km-XFP

10 Gbit/s Single Rate -0.3 km-XFP

WDM client-side equipped optical module
Parameter Value
Optical Module Type 10 Gbit/s Multirate-10 km-XFP
Line code format NRZ
Optical source type SLM
Target transmission distance(km) 10
Transmitter parameter specifications at point S
Operating wavelength range(nm) 1290 to 1330
Maximum mean launched power(dBm) -1
Minimum mean launched power(dBm) -6
Minimum extinction ratio(dB) 6
Minimum side mode suppression ratio(dB) 30
Eye pattern mask G.691-compliant
Receiver parameter specifications at point R
Receiver type PIN
Operating wavelength range(nm) 1260 to 1565
Receiver sensitivity(multirate)a(dBm) -11
Receiver sensitivity(10GE LAN)  (dBm) -14.4
Minimum receiver overload (10GE LAN)(dBm) 0.5
Minimum receiver overload(STM-64)a (dBm) -1
Maximum reflectance(dB) -27
WDM-side fixed optical module specifications (tunable wavelengths)
Optical Module Type 800 ps/nm-C Band-Tunable Wavelength-(D)RZ-PIN
Line code format (D)RZ
Transmitter parameter specifications at point S
Maximum mean launched power(dBm) 2
Minimum mean launched power(dBm) -3
Minimum extinction ratio(dB) 10
Operating frequency range(THz) 192.10 to 196.05
Center frequency deviation(GHz) ±5
Maximum -20 dB spectral width(nm) 0.3
Minimum side mode suppression ratio(dB) 35
Dispersion tolerance(ps/nm) 800
Receiver parameter specifications at point R
Receiver type PIN
Operating wavelength range(nm) 1200 to 1650
Receiver sensitivity, EOL (FEC on)(dBm) -16
Minimum receiver overload (FEC on)(dBm) 0
Maximum reflectance -27
Mechanical Specifications
Dimensions(mm) 264.6(H) x 25.4(W) x 220(D)
Weight(kg) 1.3
Power Consumption(W) Typical Power Consumption: 49.7
Maximum Power Consumptiona: 52.7
