Description
TN11M40V Overview

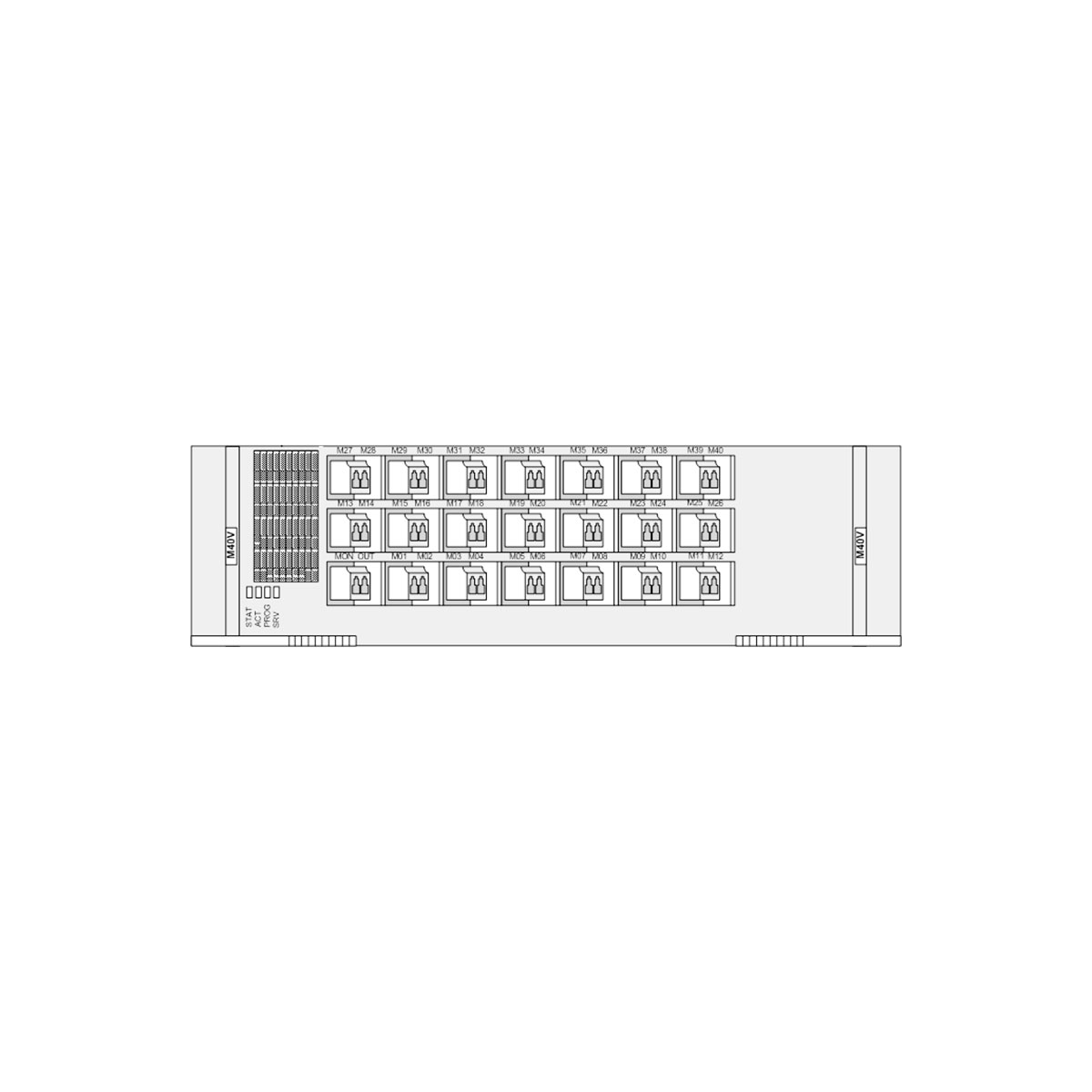

TN11M40V 40-channel multiplexing board with VOA applied to OptiX OSN 8800.
The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.
Valid slots for the TN11M40V board in a OptiX OSN 8800 subrack
| Product | Valid Slots |
|---|---|
| OptiX OSN 8800 T64 subrack | IU1-IU6, IU11-IU16, IU19-IU24, IU27-IU32, IU35-IU40, IU45-IU50, IU53-IU58, IU61-IU66 |
| OptiX OSN 8800 T32 subrack | IU1-IU6, IU11-IU17, IU20-IU25, IU29-IU34 |
| OptiX OSN 8800 T16 subrack | IU1-IU6, IU11-IU16 |
| OptiX OSN 8800 universal platform subrack | IU1-IU15 |
| OptiX OSN 6800 subrack | IU1-IU15 |
