Huawei OptiX OSN 6800 struck of TN11TBE 10 Gigabit Ethernet tributary board

Description

TN11TBE overview



TN11TBE 10 Gigabit Ethernet tributary board applied to OptiX OSN 8800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

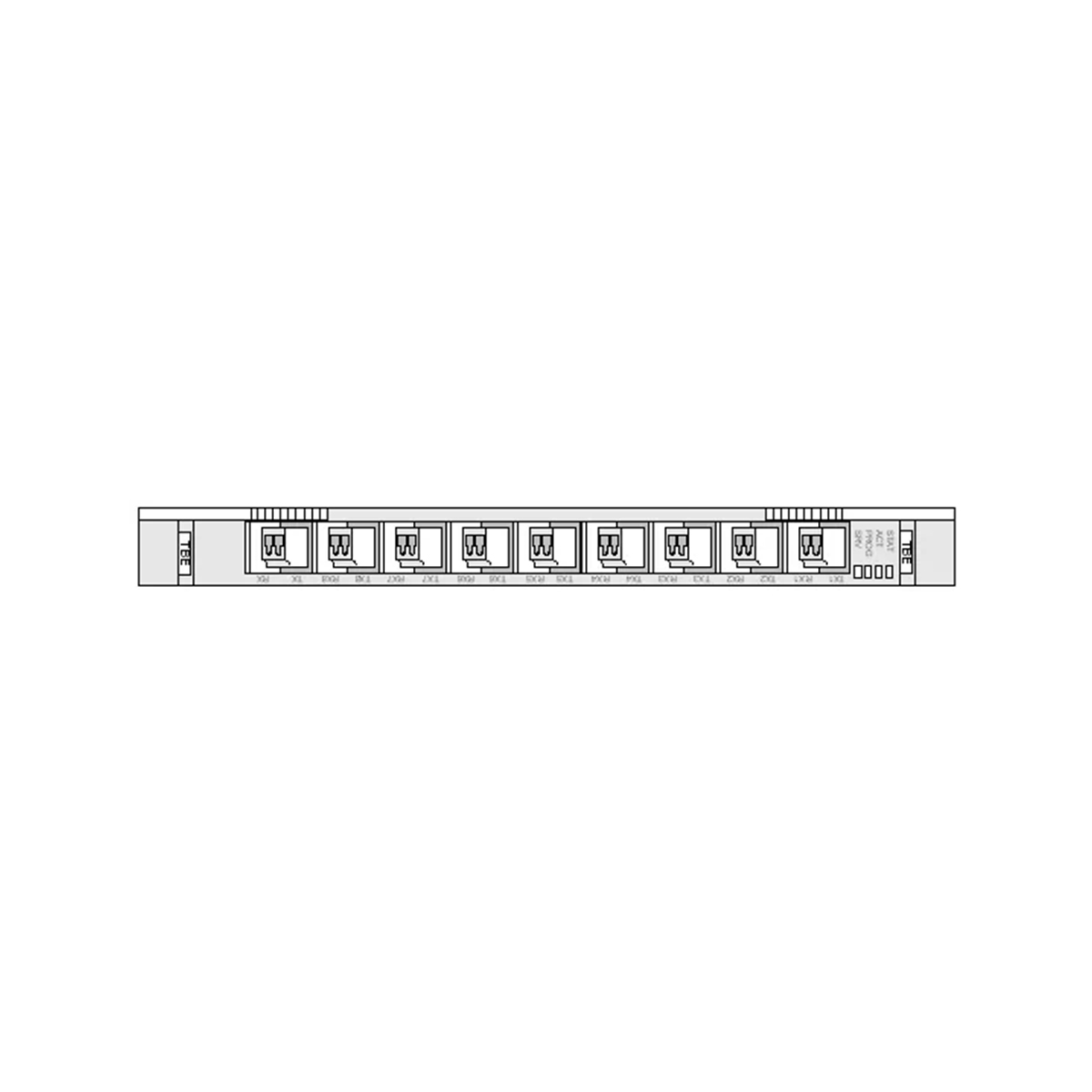

Front panel of the TN11TBE board

TN11TBE

Front panel of the TN11TBE board



Valid slots for the TN11TBE board in a OptiX OSN 6800 Subrack

Product Valid Slots
OptiX OSN 6800 subrack IU1-IU8, IU11-IU16
OptiX OSN 3800 chassis IU2-IU5
Item TN11TBE
Basic function
  • Converges eight channels of GE services and a maximum of 16 channels of cross-connect GE services into one channel of 10GE services and deconverges one channel of 10GE services into multiple GE services.
  • Converges multiple flat-rate GE services into one full-rate GE service.
  • Implements transparent transmission of GE-GE services.
The reverse process is similar.
Client-side service type FE: Ethernet service at a rate of 125 Mbit/s. Supports FE optical signals and FE electrical signals. GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
NOTE:
The TBE board supports both FE/GE electrical signal and FE/GE optical signal. For FE/GE electrical signal transmission, it is recommended that the board be equipped with at most two GE electrical modules to facilitate fiber routing.
Cross-connect capabilities
OptiX OSN 6800:
  • Supports backplane cross-connections of 16 GE services from/to the active/standby cross-connect board when the TBE board is installed in slot IU1/IU4/IU11/IU14.
  • Supports backplane cross-connections of 8 GE services from/to the active/standby cross-connect board when the TBE board is installed in any of slots IU2/IU3, IU5-IU8, IU12/IU13, and IU15/IU16. Each of the VCTRUNK1-VCTRUNK8 and VCTRUNK9-VCTRUNK16 ports on the board supports a maximum of 4 GE services.
OptiX OSN 3800:
  • Supports backplane cross-connections of 16 GE services from/to another service board when the TBE board and the other service board are installed in non-paired slots.
  • Supports backplane cross-connections of 8 GE services from/to another service board when the TBE board and the other service board are installed in paired slots. Each of the VCTRUNK1-VCTRUNK8 and VCTRUNK9-VCTRUNK16 ports on the board supports a maximum of 4 GE services.
Alarms and performance events monitoring
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports the monitoring of the alarms and performance events of the FE, GE, 10GE WAN and 10GE LAN.
ALS function Supports the ALS function on the client side.
NOTE:
ALS function is supported only when EPL services (port <-> VCTRUNK) are provisioned.
QinQ supported
QoS (Quality of Service) Supports CAR (Committed Access Rate) and CoS (Class of Service).
ETH OAM Supports IEEE802.1ag and IEEE802.3ah-compliant ETH OAM protocol.
LAG (Link Aggregation Group)
  • Supports the aggregation group protocol to aggregate services from IP port to Trunk port.
  • Supports manual and static link aggregation.
  • Supports payload equalization and non-payload equalization
VLAN broadcast Supports VLAN-based service group broadcast.
CVLAN group port Supports a group of CVLAN to be used as one VLAN.
Layer 2 switching Supports the MAC address learning and aging. Supports one VB.
Flow control Supports IEEE802.3X-compliant Ethernet flow control protocol and flow control termination.
EPL (Ethernet Private Line) Provides point-to-point EPL dedicated line.
EVPL (Ethernet Virtual Private Line) Provides point-to-multipoint EVPL dedicated line and supports VLAN-based switching.
Port working mode 10GE optical interface: 10GE LAN, 10GE WANGE optical interface: 1000MFULL, auto-negotiation GE electric interface: auto-negotiation FE optical interface: 100MFULL FE electric interface: 10MHALF, 10MFULL, 100MHALF, 100MFULL, auto-negotiation
Protection schemes Supports VLAN SNCP. Supports DBPS protection. Supports LAG protection. Supports DLAG protection. Supports ERPS protection. Supports client 1+1 protection.
NOTE:
RX/TX ports do not support client 1+1 protection. Client 1+1 protection is supported only when EPL services (port <-> VCTRUNK) are configured on the board.
Test frame Supported
PRBS test function Not supported
LPT function Supported
NOTE:
The LPT function cannot be configured for EVPL services but only for bidirectional EPL services (port <-> VCTRUNK). When the LPT function is enabled, Source C-VLAN and Sink C-VLAN of an EPL service must be left empty.
Electrical-layer ASON Not supported
Loopback 10GE optical interface MAC Inloop Supported
Outloop Supported
PHY Inloop Supported
Outloop Supported
GE optical interface MAC Inloop Supported
Outloop Not supported
PHY Inloop Supported
Outloop Not supported
GE electric interface MAC Inloop Supported
Outloop Not supported
PHY Inloop Supported
Outloop Supported
FE optical interface MAC Inloop Supported
Outloop Not supported
PHY Inloop Supported
Outloop Not supported
FE electric interface MAC Inloop Supported
Outloop Not supported
PHY Inloop Supported
Outloop Supported
