TN11TDG overview



TN11TDG 2 x GE tributary service processing board applied to OptiX OSN 8800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

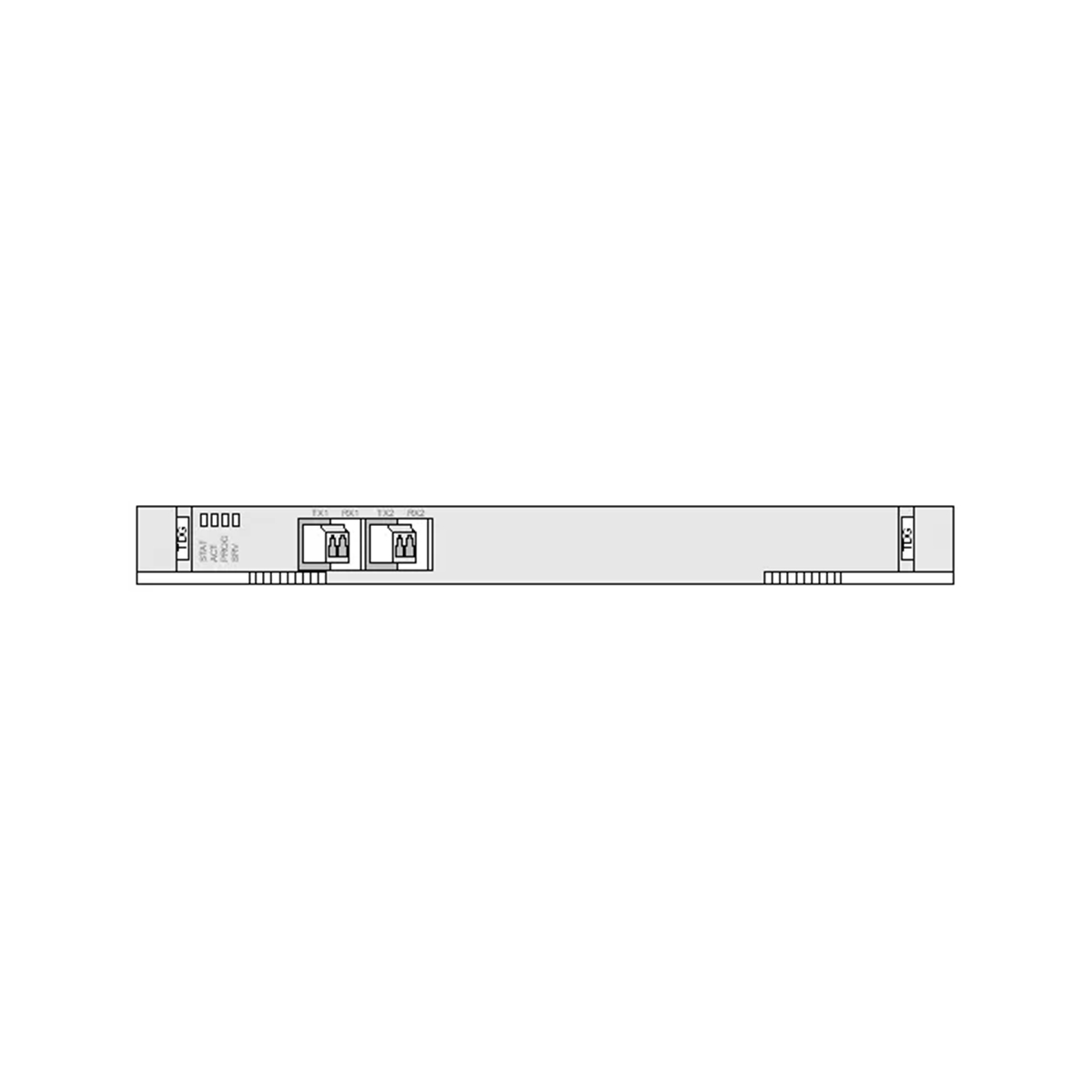

Front panel of the TN11TDG board

TN11TDG

Front panel of the TN11TDG board



Valid slots for the TN11TDG board in a OptiX OSN 6800 Subrack

Product Valid Slots
OptiX OSN 6800 subrack IU1-IU8 and IU11-IU16.
OptiX OSN 3800 chassis IU2-IU5
Item TN11TDG
Basic function Converts between two channels of GE optical signals and two channels of GE electrical signals or one channel of ODU1 electrical signals through the cross-connect board or with the board in the paired slot.
Client-side service type GE: Ethernet service at a rate of 1.25 Gbit/s
Cross-connect capabilities
  • OptiX OSN 6800: Supports the cross-connection of an ODU1 signal and two GE signals between the TDG and the cross-connect board or the board in the paired slot through the backplane.
  • OptiX OSN 3800: Supports the grooming of one ODU1 signal and two GE signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side.
PRBS test function Not supported
LPT function Supported
Test frame Supported
Latency measurement Not supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports SW SNCP.
  • Supports ODUk SNCP.
  • Supports client 1+1 protection.
  • Supports MS SNCP protection.
Loopback WDM side -
Client side Inloop Supported
Outloop Supported

Additional information

Brand

Huawei
Item TN11TDG
Basic function Converts between two channels of GE optical signals and two channels of GE electrical signals or one channel of ODU1 electrical signals through the cross-connect board or with the board in the paired slot.
Client-side service type GE: Ethernet service at a rate of 1.25 Gbit/s
Cross-connect capabilities
  • OptiX OSN 6800: Supports the cross-connection of an ODU1 signal and two GE signals between the TDG and the cross-connect board or the board in the paired slot through the backplane.
  • OptiX OSN 3800: Supports the grooming of one ODU1 signal and two GE signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side.
PRBS test function Not supported
LPT function Supported
Test frame Supported
Latency measurement Not supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports SW SNCP.
  • Supports ODUk SNCP.
  • Supports client 1+1 protection.
  • Supports MS SNCP protection.
Loopback WDM side -
Client side Inloop Supported
Outloop Supported
