Huawei OptiX OSN 6800 struck of  TN11TDX 2 x 10G tributary service processing board

Description

TN11TDX overview



TN11TDX 2 x 10G tributary service processing board applied to OptiX OSN 8800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

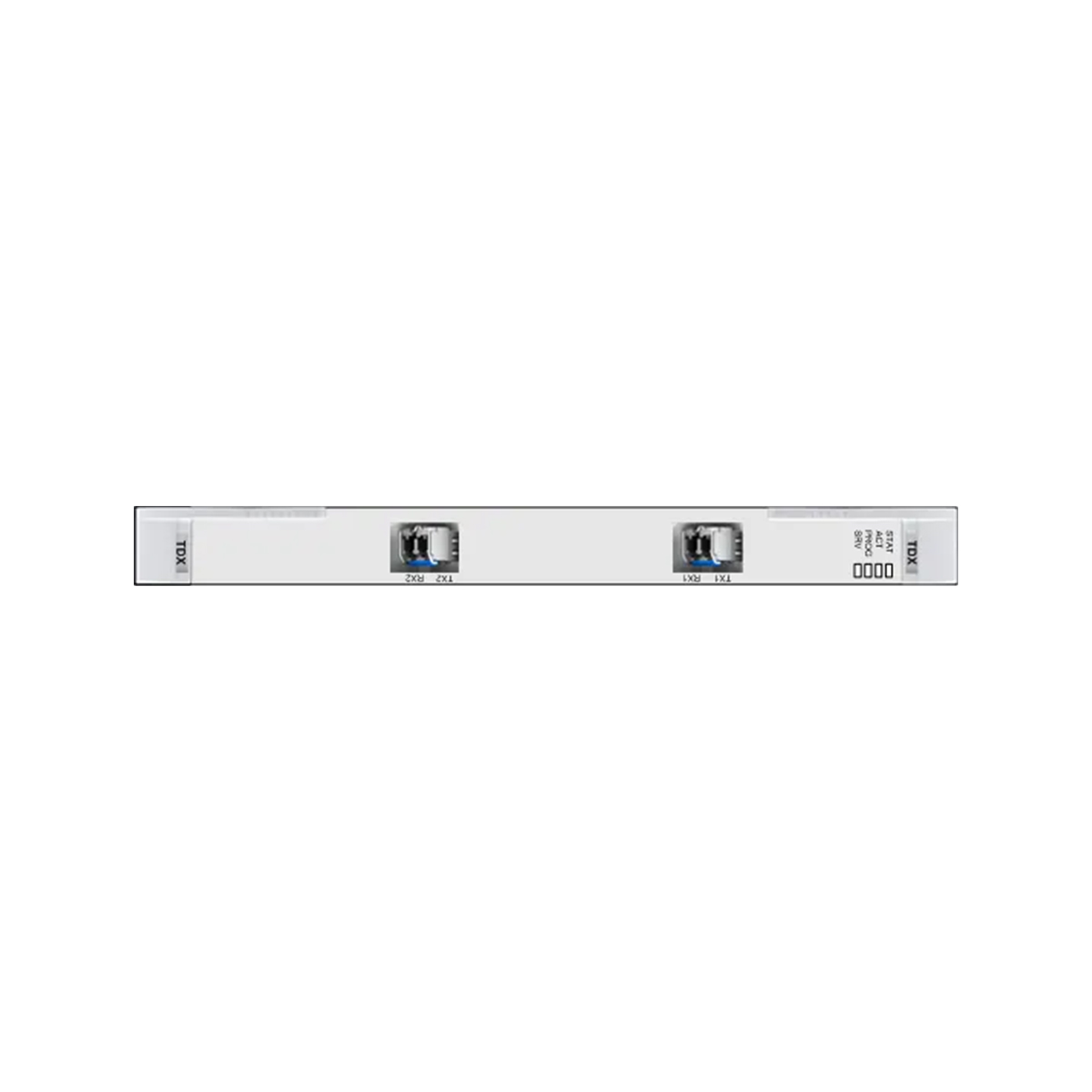

Front panel of the TN11TDX board

TN11TDX

Front panel of the TN11TDG board



Valid slots for the TN11TDX board in a OptiX OSN 6800 Subrack

Product Valid Slots
OptiX OSN 6800 subrack IU1-IU8 and IU11-IU16.
OptiX OSN 3800 chassis IU2-IU5
Item TN11TDX
Basic function TDX converts signals as follows:
  • TN11TDX: 2x10GE LAN/10GE WAN/STM-64/OC-192<->8xODU1 virtual concatenation electrical signals
  • TN12TDX:2x10GE LAN/10GE WAN/STM-64/OC-192<->2xODU22x10GE LAN<->2xODU2e
  • TN52TDX:2x10GE LAN/10GE WAN/STM-64/OC-192/OTU2<->2xODU22x10GE LAN/OTU2e<->2xODU2e
  • TN53TDX:2x10GE LAN/10GE WAN/STM-64/OC-192/OTU2/FC800<->2xODU22x10GE LAN/OTU2e/FC1200<->2xODU2e 2xFC800<->2xODUflex
Client-side service type STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s
NOTE:
The processing of the 10GE WAN service and the STM-64 service is the same. Therefore, For TN11TDX/TN12TDX/TN52TDX board, when the 10GE WAN service is transmitted, you can configure it as the STM-64 service on the NMS.
Cross-connect capabilities
OptiX OSN 8800:
  • TN52TDX: Supports the cross-connection of two channels of ODU2/ODU2e signals between the TDX board and the cross-connect board using the backplane.
  • TN53TDX: Supports the cross-connection of two channels of ODU2/ODU2e/ODUflex signals between the TDX board and the cross-connect board using the backplane.
OptiX OSN 6800:
  • TN11TDX: Supports the cross-connection of eight channels of ODU1 signals between the TDX board and the cross-connect board or the board in the paired slot using the backplane.
  • TN12TDX/TN52TDX/TN53TDX: Supports the cross-connection of two channels of ODU2/ODU2e signals between the TDX board and the cross-connect board using the backplane.
OptiX OSN 3800:
  • TN11TDX: Supports the grooming of eight channels of ODU1 signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
OTN function
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709. The mapping process is compliant with ITU-T G.709 and G.Sup43.
  • Supports PM functions for ODU2.
ESC function Supported by the TN52TDX/TN53TDX when the client-side service type is OTU2 or OTU2e.
PRBS test function Supports the PRBS function on the client side.
NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-64/OC-192, OTU2 or OTU2e.
LPT function The board supports the LPT function only when the client-side service type is 10GE LAN.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the service type is OTU2/OTU2e.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
NOTE:
TN11TDX only supports Poisson mode. TN12TDX/TN52TDX/TN53TDX only supports Bursty mode.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Supports the test frame function when the client-side service type is 10GE LAN and the Port mapping is MAC Transparent Mapping (10.7 G).
Latency measurement The TN53TDX board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000.
NOTE:
This function is not supported when the client-side service type is OTU2/OTU2e.
IEEE 1588v2 The TN53TDX board supports the TC, TC+OC, BC, and OC modes when the client-side service type is 10GE LAN and the Port mapping is MAC Transparent Mapping (10.7 G).
Physical clock TN53TDX:
  • When the board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
  • When the board receives 10GE LAN services and the port mapping is MAC Transparent Mapping (10.7 G). on its client side, the board can support synchronous Ethernet processing instead of synchronous Ethernet transparent transmission.
TN52TDX: When the board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
Electrical-layer ASON Supported by the TN52TDX/TN53TDX.
Protection scheme
  • Supports ODUk SNCP.
  • Supports client 1+1 protection.
  • Supports tributary SNCP protection (TN12TDX/TN52TDX/TN53TDX).
NOTE:
When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
NOTE:
When the board receives OTN services, SDH/SONET services, and 10GE WAN services the board supports tributary SNCP protection.
NOTE:
When the board receives FC or FICON services, the client 1+1 protection is not recommended.
Ethernet service mapping mode
  • TN11TDX: doesn't support this parameter
  • TN12TDX/TN52TDX/TN53TDX: Bit Transparent Mapping(11.1G), MAC transparent mapping (10.7G)
Port MTU The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
NOTE:
when Port Mapping is set to Bit Transparent Mapping(11.1G)Maximum Packet Length is unavailable on the U2000.
Loopback WDM side -
Client side Inloop Supported
Outloop Supported
