TN11TOM overview



TN11TOM 8 x multi-rate ports service processing board applied to OptiX OSN 6800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

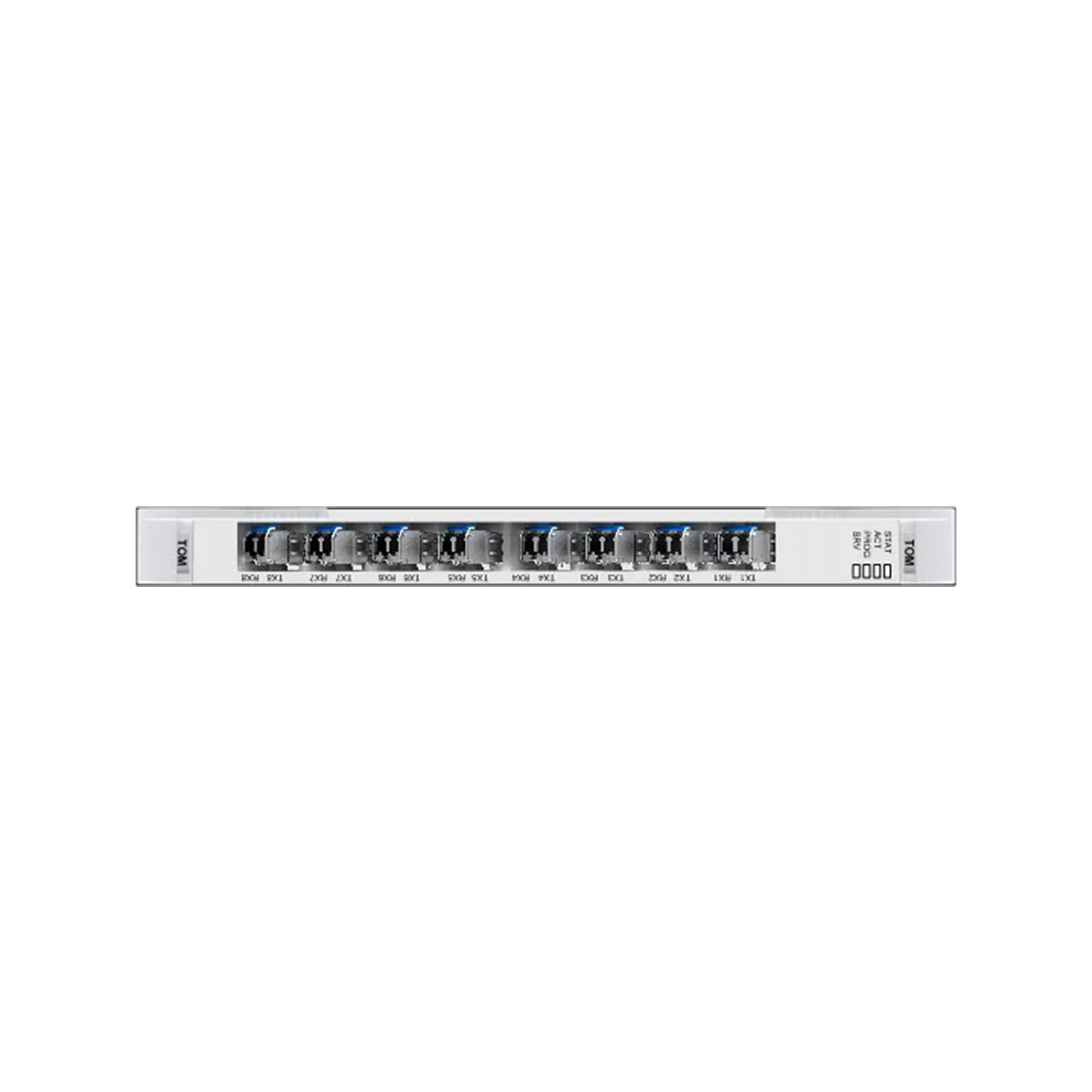

Front panel of the TN11TOM board

TN11TOM

Front panel of the TN11TOM board



Valid slots for the TN11TOM board in a OptiX OSN 6800 Subrack

Product Valid Slots
OptiX OSN 6800 subrack IU1-IU8, IU11-IU16
OptiX OSN 3800 chassis IU2-IU5
Item TN11TOM
Basic function
  • Performs conversion between client services at rates within the range of 100 Mbit/s to 2.67 Gbit/s and ODU0 or ODU1 signals when functioning as a tributary board.
  • Performs conversion between client services at rates within the range of 100 Mbit/s to 2.67 Gbit/s and OTU1 signals when functioning as a tributary-line board.
  • Supports convergence of multiple services into one ODU0 or ODU1 signal.
The TOM board supports multiple application scenarios. For details, see Application Overview.
Client-side service type FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. OTU1: OTN service at a rate of 2.67 Gbit/s STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s SDI: Serial digital interface at a rate of 270 Mbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s
NOTE:
When the TOM board transmits GE electrical signals, it is recommended that the board be equipped with at most two GE electrical modules to facilitate fiber routing. You are advised to install electrical modules at the RX1/TX1 and RX2/TX2 ports. The TOM board supports access of SDI, HD-SDI, and DVB-ASI electrical signals. When the board is used to accept these electrical signals, a digital video O/E converter must be used for O/E or E/O conversion and the optical module of the converter must agree with the board optical module specifications. The digital video O/E converter is a third-party device. Customers can purchase a digital video O/E converter by themselves. Only the TN52TOM board supports access of SDI, HD-SDI signals.
Cross-connect capabilities
OptiX OSN 8800:
  • TN52TOM
    • Supports the cross-connection of four ODU1 signals or eight ODU0 signals through the cross-connect bus on the backplane and the cross-connect board.
OptiX OSN 6800:
  • TN11TOM
    • Supports the cross-connection of four ODU1 signals between the TOM and the cross-connect board. Supports the cross-connection of four ODU1 signals to the paired slots through the backplane.
    • Supports the cross-connection of a maximum of eight channels of GE signals between the TOM and the cross-connect board. Supports the cross-connection of a maximum of eight channels of GE signals to the paired slots through the backplane.
    • Supports the transmission of maximum of eight signals at the rate between 100 Mbit/s and 2.5 Gbit/s to the paired slots through the backplane.
  • TN52TOM
    • Supports the cross-connection of four ODU1 signals between the TOM and the cross-connect board.
    • Supports the cross-connection of six channels of GE signals to the paired slots through the backplane.
    • Supports the transmission of six signals at the rate between 100 Mbit/s and 2.5 Gbit/s to the paired slots through the backplane.
OptiX OSN 3800:
  • TN11TOM
    • Supports the cross-connection of four channels of ODU1 signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
    • Supports the cross-connection of a maximum of eight channels of GE signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
    • Supports the cross-connection of a maximum of eight signals at the rate between 100 Mbit/s and 2.5 Gbit/s from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
  • TN52TOM
    • Supports the cross-connection of four channels of ODU1 signals between one board of the mesh group (consisting of four boards) and any two boards in the non-paired slots of the four-slot mesh group, that is, supports the ODU1 cross-connection between slots IU2 and IU4, slots IU2 and IU5, slots IU3 and IU4, and slots IU3 and IU5.
    • Supports the cross-connection of six channels of GE signals between one board of the mesh group (consisting of four boards) and the paired slot of the four-slot mesh group, that is, supports the GE cross-connection between slots IU2 and IU3 and slots IU4 and IU5.
    • Supports the cross-connection of six signals at the rate between 100 Mbit/s and 2.5 Gbit/s, except ODU1 signals, between one board of the mesh group (consisting of four boards) and the paired slot of the four-slot mesh group, that is, supports the cross-connection of six signals at the rate between 100 Mbit/s and 2.5 Gbit/s, except ODU1 signals, between slots IU2 and IU3 and slots IU4 and IU5.
NOTE:
The Any cross-connection between the TN11TOM board and the TN52TOM board cannot be configured.
OTN function
  • The mapping process is compliant with ITU-T G.7041 and ITU-T G.709. Supports the frame format and overhead processing by referring to the ITU-T G.709.
  • Supports the SM and TCM functions at the OTU1 and ODU1 layers on the WDM side.
  • Supports the PM and TCM non-intrusive monitoring functions at the ODU1 layer.
  • Supports the PM functions at the ODU1 layers.
  • TN52TOM supports the PM function at the ODU0 layer.
WDM specification Supports DWDM specifications. Supports ITU-T G.694.2-compliant CWDM specifications.
ESC function Supported.
FEC coding Supports forward error correction (FEC) on the client side that complies with ITU-T G.709, only when the service type is OTU1.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
NOTE:
Only the TN11TOM supports Poisson mode.
ALS function Supports the ALS function on the client side.
PRBS test function
Supports the PRBS function on the client side and WDM side.
NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-1/OC-3, STM-4/OC-12, or STM-16/OC-48.
LPT function The board supports the LPT function only when the client-side service type is FE or GE.
Test frame The board supports the test frame function only when the client-side service type is FE or GE.
Latency measurement Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Not supported
Electrical-layer ASON Supported by the TN52TOM.
Protection scheme
OptiX OSN 3800/OptiX OSN 6800:
  • Supports SW SNCP.
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
  • Supports MS SNCP protection.
OptiX OSN 8800:
  • Supports SW SNCP.
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
NOTE:
When the board receives OTN services, SDH/SONET services the board supports tributary SNCP protection. For the TN52TOM board, ODU0 tributary SNCP protection is supported only in ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Ethernet service mapping mode Supports encapsulation of GE services in GE(GFP-F) (displayed as GE on the NMS) and GE(GFP-T) modes.
Ethernet port working mode
  • Auto-Negotiation
  • 1000M Full-Duplex
Port MTU The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Loopback WDM side Inloop Supported
Outloop Supported
NOTE:
When being used as tributary & line board, the TOM board only supports the loopback between ClientLP1-ClientLP4.
Client side Inloop Supported
Outloop Supported
Channel Inloop Supported
Outloop Supported


Additional information

Brand

Huawei
Item TN11TOM
Basic function
  • Performs conversion between client services at rates within the range of 100 Mbit/s to 2.67 Gbit/s and ODU0 or ODU1 signals when functioning as a tributary board.
  • Performs conversion between client services at rates within the range of 100 Mbit/s to 2.67 Gbit/s and OTU1 signals when functioning as a tributary-line board.
  • Supports convergence of multiple services into one ODU0 or ODU1 signal.
The TOM board supports multiple application scenarios. For details, see Application Overview.
Client-side service type FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. OTU1: OTN service at a rate of 2.67 Gbit/s STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s SDI: Serial digital interface at a rate of 270 Mbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s
NOTE:
When the TOM board transmits GE electrical signals, it is recommended that the board be equipped with at most two GE electrical modules to facilitate fiber routing. You are advised to install electrical modules at the RX1/TX1 and RX2/TX2 ports. The TOM board supports access of SDI, HD-SDI, and DVB-ASI electrical signals. When the board is used to accept these electrical signals, a digital video O/E converter must be used for O/E or E/O conversion and the optical module of the converter must agree with the board optical module specifications. The digital video O/E converter is a third-party device. Customers can purchase a digital video O/E converter by themselves. Only the TN52TOM board supports access of SDI, HD-SDI signals.
Cross-connect capabilities
OptiX OSN 8800:
  • TN52TOM
    • Supports the cross-connection of four ODU1 signals or eight ODU0 signals through the cross-connect bus on the backplane and the cross-connect board.
OptiX OSN 6800:
  • TN11TOM
    • Supports the cross-connection of four ODU1 signals between the TOM and the cross-connect board. Supports the cross-connection of four ODU1 signals to the paired slots through the backplane.
    • Supports the cross-connection of a maximum of eight channels of GE signals between the TOM and the cross-connect board. Supports the cross-connection of a maximum of eight channels of GE signals to the paired slots through the backplane.
    • Supports the transmission of maximum of eight signals at the rate between 100 Mbit/s and 2.5 Gbit/s to the paired slots through the backplane.
  • TN52TOM
    • Supports the cross-connection of four ODU1 signals between the TOM and the cross-connect board.
    • Supports the cross-connection of six channels of GE signals to the paired slots through the backplane.
    • Supports the transmission of six signals at the rate between 100 Mbit/s and 2.5 Gbit/s to the paired slots through the backplane.
OptiX OSN 3800:
  • TN11TOM
    • Supports the cross-connection of four channels of ODU1 signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
    • Supports the cross-connection of a maximum of eight channels of GE signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
    • Supports the cross-connection of a maximum of eight signals at the rate between 100 Mbit/s and 2.5 Gbit/s from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
  • TN52TOM
    • Supports the cross-connection of four channels of ODU1 signals between one board of the mesh group (consisting of four boards) and any two boards in the non-paired slots of the four-slot mesh group, that is, supports the ODU1 cross-connection between slots IU2 and IU4, slots IU2 and IU5, slots IU3 and IU4, and slots IU3 and IU5.
    • Supports the cross-connection of six channels of GE signals between one board of the mesh group (consisting of four boards) and the paired slot of the four-slot mesh group, that is, supports the GE cross-connection between slots IU2 and IU3 and slots IU4 and IU5.
    • Supports the cross-connection of six signals at the rate between 100 Mbit/s and 2.5 Gbit/s, except ODU1 signals, between one board of the mesh group (consisting of four boards) and the paired slot of the four-slot mesh group, that is, supports the cross-connection of six signals at the rate between 100 Mbit/s and 2.5 Gbit/s, except ODU1 signals, between slots IU2 and IU3 and slots IU4 and IU5.
NOTE:
The Any cross-connection between the TN11TOM board and the TN52TOM board cannot be configured.
OTN function
  • The mapping process is compliant with ITU-T G.7041 and ITU-T G.709. Supports the frame format and overhead processing by referring to the ITU-T G.709.
  • Supports the SM and TCM functions at the OTU1 and ODU1 layers on the WDM side.
  • Supports the PM and TCM non-intrusive monitoring functions at the ODU1 layer.
  • Supports the PM functions at the ODU1 layers.
  • TN52TOM supports the PM function at the ODU0 layer.
WDM specification Supports DWDM specifications. Supports ITU-T G.694.2-compliant CWDM specifications.
ESC function Supported.
FEC coding Supports forward error correction (FEC) on the client side that complies with ITU-T G.709, only when the service type is OTU1.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
NOTE:
Only the TN11TOM supports Poisson mode.
ALS function Supports the ALS function on the client side.
PRBS test function
Supports the PRBS function on the client side and WDM side.
NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-1/OC-3, STM-4/OC-12, or STM-16/OC-48.
LPT function The board supports the LPT function only when the client-side service type is FE or GE.
Test frame The board supports the test frame function only when the client-side service type is FE or GE.
Latency measurement Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Not supported
Electrical-layer ASON Supported by the TN52TOM.
Protection scheme
OptiX OSN 3800/OptiX OSN 6800:
  • Supports SW SNCP.
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
  • Supports MS SNCP protection.
OptiX OSN 8800:
  • Supports SW SNCP.
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
NOTE:
When the board receives OTN services, SDH/SONET services the board supports tributary SNCP protection. For the TN52TOM board, ODU0 tributary SNCP protection is supported only in ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Ethernet service mapping mode Supports encapsulation of GE services in GE(GFP-F) (displayed as GE on the NMS) and GE(GFP-T) modes.
Ethernet port working mode
  • Auto-Negotiation
  • 1000M Full-Duplex
Port MTU The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Loopback WDM side Inloop Supported
Outloop Supported
NOTE:
When being used as tributary & line board, the TOM board only supports the loopback between ClientLP1-ClientLP4.
Client side Inloop Supported
Outloop Supported
Channel Inloop Supported
Outloop Supported
