Huawei OptiX OSN 8800 TN12LDX 2 x 10 Gbit/s wavelength conversion unit

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN12LDX overview



TN12LDX 2 x 10 Gbit/s wavelength conversion unit applied to OptiX OSN 8800/6800/3800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

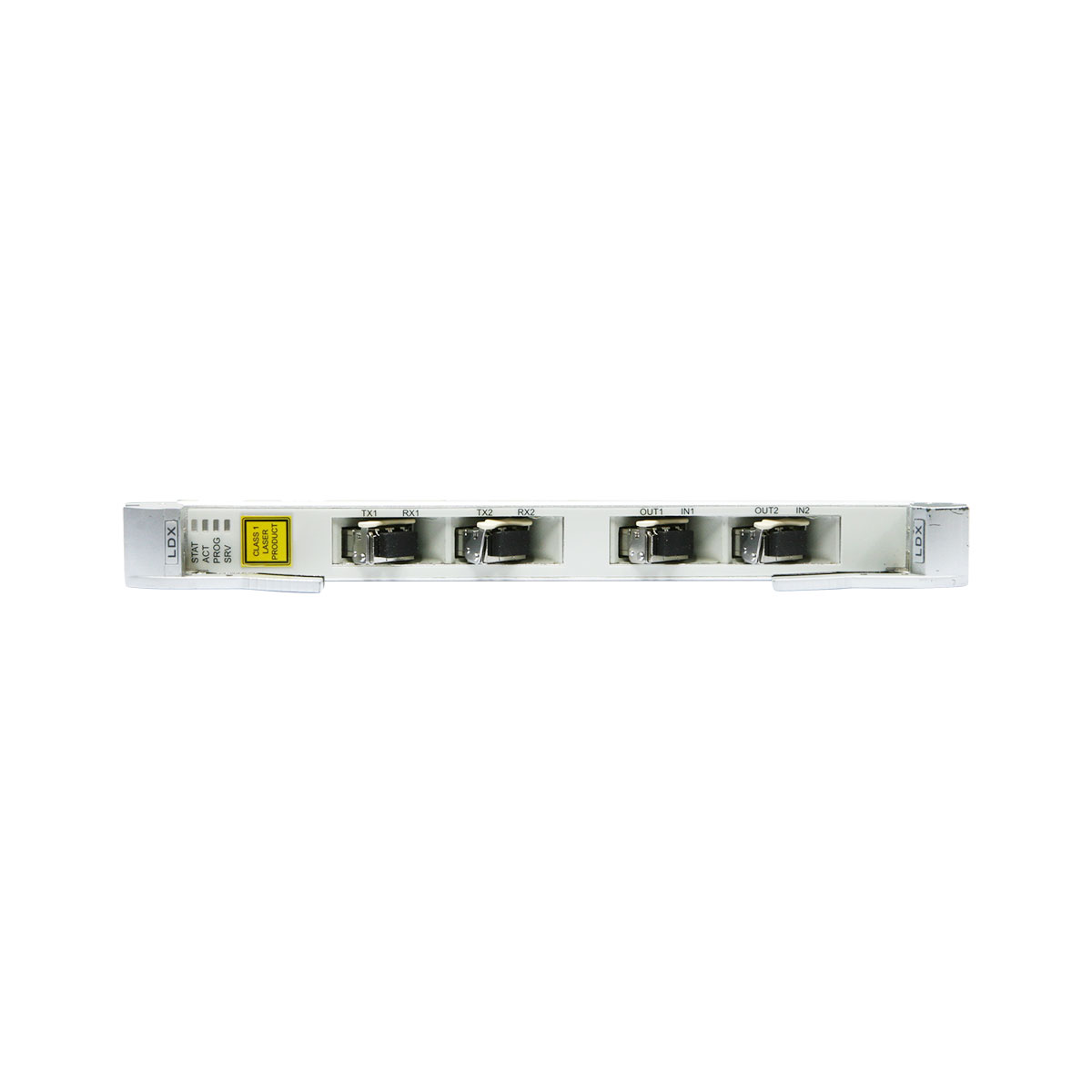

Front panel of the TN12LDX board

TN12LDX

Front panel of the TN12LDX board



Valid slots for the TN12LDX board in a OptiX OSN 8800/6800/3800 T64/T32/T16 subrack and chassis

Device Valid Slot
OptiX OSN 8800 T64 subrack IU1-IU8, IU11-IU42, IU45-IU68
OptiX OSN 8800 T32 subrack IU1-IU8, IU12-IU27, IU29-IU36
OptiX OSN 8800 T16 subrack IU1-IU18
OptiX OSN 8800 universal platform subrack IU1-IU16
OptiX OSN 6800 subrack IU1-IU17
OptiX OSN 3800 chassis IU2-IU5, IU11



Item TN12LDX
Basic function LDX converts signals as follows:
  • 2 x 10GE LAN/10GE WAN/STM-64/OC-192/OTU2 <-> 2 x OTU2
  • 2 x 10GE LAN/OTU2e <-> 2 x OTU2e
Client-side service type 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s
OTN function
  • Provides the OTU2/OTU2e interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • Supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions for ODU2.
  • Supports SM function for OTU2.
WDM specification Supports DWDM specifications.
Tunable wavelength function Supports the tunable wavelength optical module. Equipped with this module, the board can tune the optical signal output on the WDM side within the range of: 80 wavelengths in C-band with the channel spacing of 50 GHz.
ESC function Supported
PRBS test function Supports the PRBS function on the client and WDM sides.
NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-64/OC-192, OTU2 or OTU2e.
LPT function The board supports the LPT function only when the client-side service type is 10GE LAN.
FEC coding
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU2/OTU2e.
  • Supports forward error correction (FEC) on the WDM side that complies with ITU-T G.709.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
Regeneration board The WDM-side signals from one LDX board can be regenerated by another TN12ND2/TN52ND2/TN53ND2/TN55NO2/TN53NQ2/TN54NQ2 board.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Not supported
Latency measurement Not supported
IEEE 1588v2 Not supported
Physical clock When the board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
Ethernet service mapping mode Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G)
Loopback WDM side Inloop Supported
Outloop Supported
Client side Inloop Supported
Outloop Supported
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight 1.45 kg (3.19 lb.)

Additional information

Item TN12LDX
Basic function LDX converts signals as follows:
  • 2 x 10GE LAN/10GE WAN/STM-64/OC-192/OTU2 <-> 2 x OTU2
  • 2 x 10GE LAN/OTU2e <-> 2 x OTU2e
Client-side service type 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s
OTN function
  • Provides the OTU2/OTU2e interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • Supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions for ODU2.
  • Supports SM function for OTU2.
WDM specification Supports DWDM specifications.
Tunable wavelength function Supports the tunable wavelength optical module. Equipped with this module, the board can tune the optical signal output on the WDM side within the range of: 80 wavelengths in C-band with the channel spacing of 50 GHz.
ESC function Supported
PRBS test function Supports the PRBS function on the client and WDM sides.
NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-64/OC-192, OTU2 or OTU2e.
LPT function The board supports the LPT function only when the client-side service type is 10GE LAN.
FEC coding
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU2/OTU2e.
  • Supports forward error correction (FEC) on the WDM side that complies with ITU-T G.709.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
Regeneration board The WDM-side signals from one LDX board can be regenerated by another TN12ND2/TN52ND2/TN53ND2/TN55NO2/TN53NQ2/TN54NQ2 board.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Not supported
Latency measurement Not supported
IEEE 1588v2 Not supported
Physical clock When the board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
Ethernet service mapping mode Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G)
Loopback WDM side Inloop Supported
Outloop Supported
Client side Inloop Supported
Outloop Supported
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight 1.45 kg (3.19 lb.)
