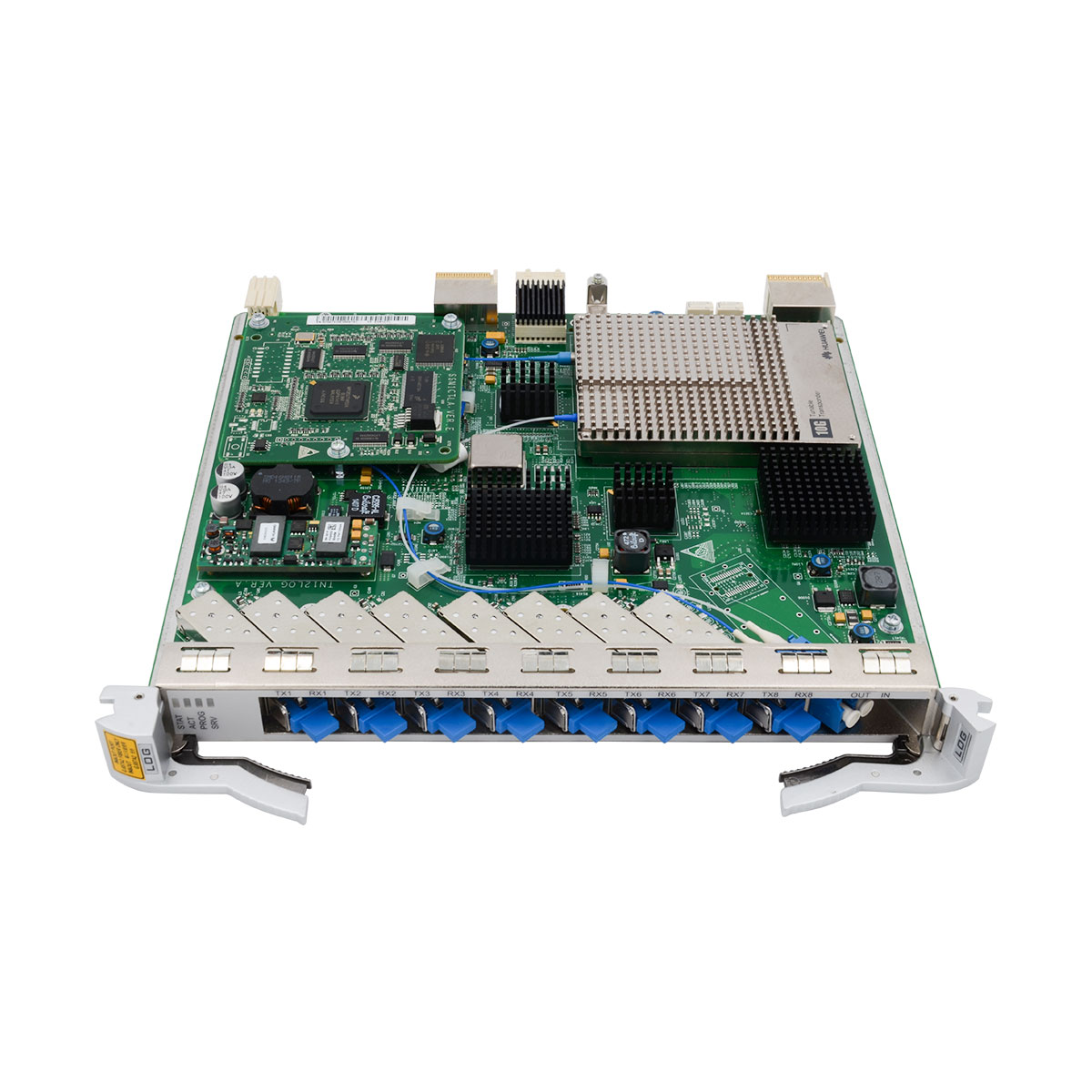

Huawei OSN6800 OSN8800 8xGE Tunable Wavelength Transponder Board with 800 ps/nm C Band NRZ-PIN WDM-Side Fixed Module and 8PCS GE-1310nm-10km-SM eSFP Client-Side Pluggable Modules
| WDM client-side optical module | |
| 2.125 Gbit/s Multirate-0.5 km-eSFP
1000 BASE-LX-10 km-eSFP 1000 BASE-LX-40 km-eSFP 1000 BASE-ZX-80 km-eSFP 1.25 Gbit/s Multirate (CWDM)-40 km-eSFP 2.67 Gbit/s Multirate (CWDM)-80 km-eSFP |
|
| WDM client-side equipped optical module | |
| Parameter | Value |
| Optical Module Type | 1000 BASE-LX-10 km-eSFP |
| Line code format | NRZ |
| Optical source type | SLM |
| Target transmission distance(km) | 10 |
| Transmitter parameter specifications at point S | |
| Operating wavelength range(nm) | 1270 to 1355 |
| Maximum mean launched power(dBm) | -3 |
| Minimum mean launched power(dBm) | -9 |
| Minimum extinction ratio(dB) | 9 |
| Eye pattern mask | IEEE802.3z-compliant |
| Receiver parameter specifications at point R | |
| Receiver type | PIN |
| Operating wavelength range(nm) | 1270 to 1355 |
| Receiver sensitivity (multirate)a(dBm) | -20 |
| Receiver sensitivity(10GE LAN(dBm) | -3 |
| WDM-side fixed optical module specifications (tunable wavelengths) | |
| Optical Module Type | 800 ps/nm-C Band-Tunable Wavelength-NRZ-PIN |
| Line code format | NRZ |
| Transmitter parameter specifications at point S | |
| Maximum mean launched power(dBm) | 2 |
| Minimum mean launched power(dBm) | -3 |
| Minimum extinction ratio(dB) | 10 |
| Operating frequency range(THz) | 192.10 to 196.05 |
| Center frequency deviation(GHz) | ±5 |
| Maximum -20 dB spectral width(nm) | 0.3 |
| Minimum side mode suppression ratio(dB) | 35 |
| Dispersion tolerance(ps/nm) | 800 |
| Receiver parameter specifications at point R | |
| Receiver type | PIN |
| Operating wavelength range(nm) | 1200 to 1650 |
| Receiver sensitivity, EOL (FEC on)(dBm) | -16 |
| Minimum receiver overload (FEC on)(dBm) | 0 |
| Maximum reflectance | -27 |
| Mechanical Specifications | |
| Dimensions of front panel | 264.6(H) x 25.4(W) x 220(D) |
| Weight(kg) | 1.1 |
| Power Consumption(W) | Typical Power Consumption:43.04 Maximum Power Consumptiona: 48.0 |
