Huawei OptiX OSN 8800 TN12LOM 8-port multi-service multiplexing & optical wavelength conversion board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN12LOM overview



TN11LOM 8-port multi-service multiplexing & optical wavelength conversion board applied to OptiX OSN 8800/6800/3800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

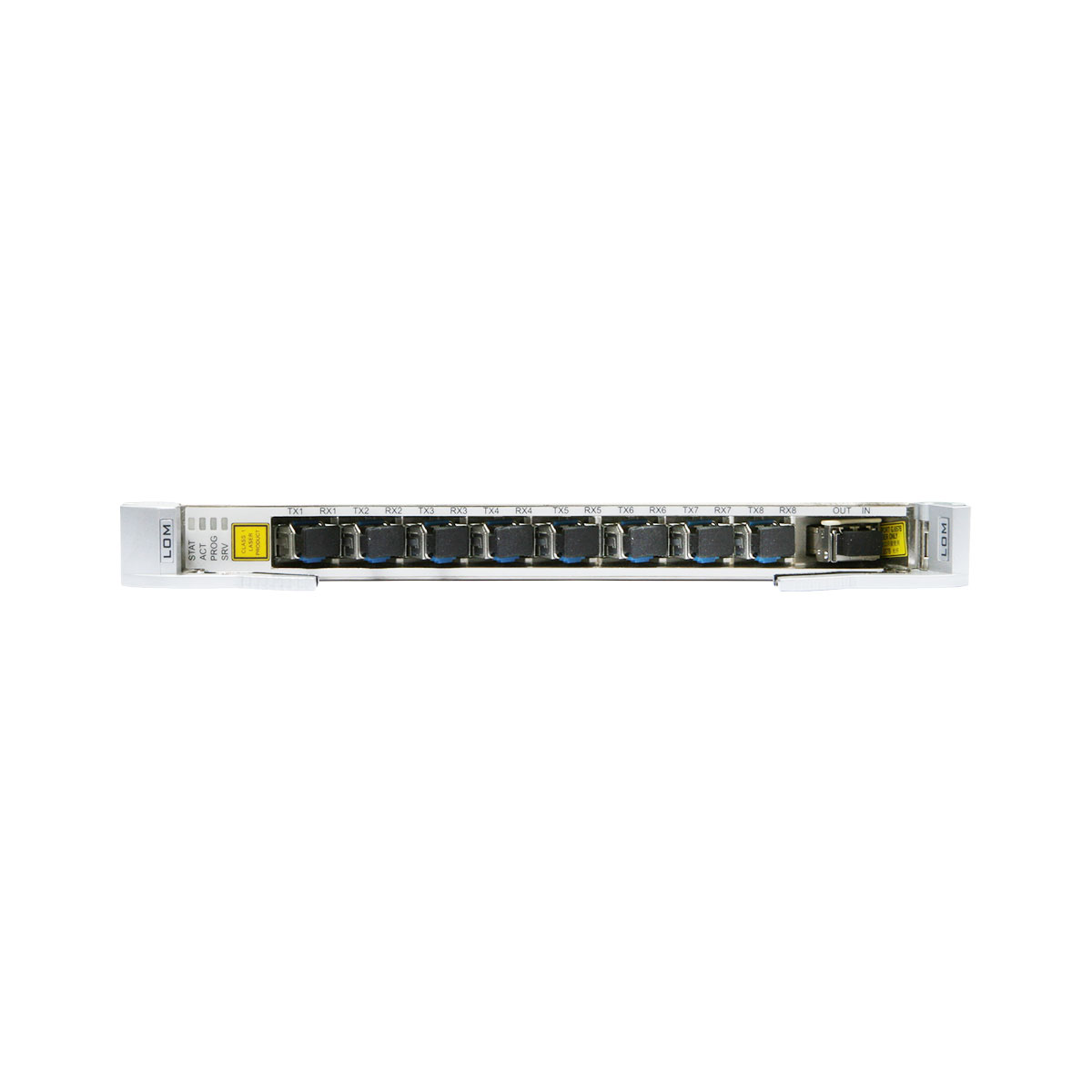

Front panel of the TN12LOM board

TN12LOM

Front panel of the TN12LOM board



Valid slots for the TN12LOM board in a OptiX OSN 8800/6800/3800 T64/T32/T16 subrack  and chassis

Device Valid Slot
OptiX OSN 8800 T64 subrack IU1-IU8, IU11-IU42, IU45-IU68
OptiX OSN 8800 T32 subrack IU1-IU8, IU12-IU27, IU29-IU36
OptiX OSN 8800 T16 subrack IU1-IU18
OptiX OSN 8800 universal platform subrack IU1-IU16
OptiX OSN 6800 subrack IU1-IU17
OptiX OSN 3800 chassis IU2-IU5, IU11



Show More Show Less
Item TN12LOM
Basic function LOM converts signals as follows:
  • 8 x GE/FC100/FICON/ISC 1G <->1 x OTU2
  • 4 x FC200/FICON Express/ISC 2G <->1 x OTU2
  • 2 x FC400/FICON4G <->1 x OTU2
Supports hybrid transmission of the services mentioned above. The overall bandwidth of the first and last four optical interfaces should be equal to or less than 5 Gbit/s, respectively. Supports FC extension and ensures that the data width does not decrease during long-haul transmission of FC services. For FC100/FC200/FC400 services, the maximum transmission distance of the WDM side is 3000 km.
Client-side service type GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FC400: SAN service at a rate of 4.25 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s FICON4G: SAN service at a rate of 4.25 Gbit/s ISC 1G: SAN service at a rate of 1.06 Gbit/s ISC 2G: SAN service at a rate of 2.12 Gbit/s
NOTE:
The LOM board supports both GE electrical signal and GE optical signal. For GE electrical signal transmission, it is recommended that the board be equipped with at most two GE electrical modules to facilitate fiber routing.
OTN function
  • Provides the OTU2 interface on WDM-side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • Supports PM and TCM functions for ODU2.
  • Supports SM function for OTU2.
WDM specification Supports DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function Supports the PRBS function on the WDM side.
LPT function The board supports the LPT function only when the client-side service type is GE.
FEC coding
TN11LOM:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC) on the WDM side.
TN12LOM:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
Regeneration board
  • The WDM-side signals from one TN11LOM board can be regenerated by another TN11LSXR board.
  • The WDM-side signals from one TN12LOM board can be regenerated by another TN12ND2/TN52ND2/TN53ND2/TN55NO2/TN53NQ2/TN54NQ2 board.
ALS function Supports the ALS function on the client side.
Test frame The board supports the test frame function only when the client-side service type is GE.
Latency measurement Not supported
Optical-layer ASON Supported by the TN12LOM
Electrical-layer ASON Not supported
Protection scheme
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
Ethernet service mapping mode Supports encapsulation of GE services in GE(GFP-F) (displayed as GE on the NMS) and GE(GFP-T) modes.
Ethernet port working mode GE(GFP-F): 1000M Full-Duplex, Auto-Negotiation
IEEE 1588v2 Not supported
Physical clock Not supported
Port MTU The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Loopback WDM side Inloop Supported
Outloop Supported
Client side Inloop Supported
Outloop Supported
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight 1.1 kg (2.42 lb.)
