Description

TN12PTQX overview

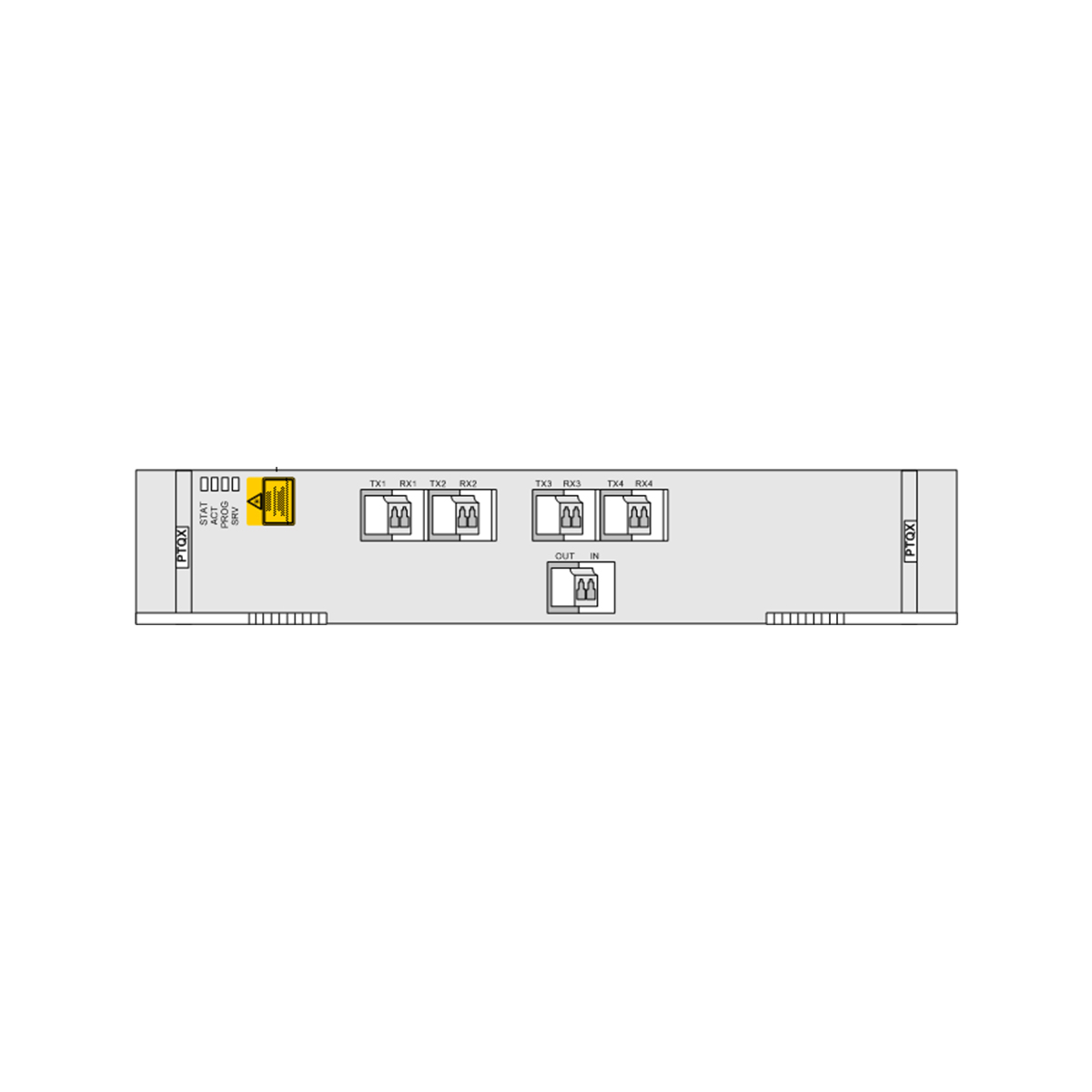

TN12PTQX 12 x OTU2 PID board with 4 x 10G tributary applied to OptiX OSN 8800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.



Valid slots for the TN12PTQX board in a OptiX OSN 8800/6800 subrack

Product Valid Slots
OptiX OSN 6800 subrack IU1, IU4, IU5, IU8, IU11, IU14
Item TN12ELQX
Basic function PTQX converts signals as follows:
  • 4 x 10GE LAN/10GE WAN/STM-64/OC-192/OTU2<->4 x OTU2
  • 4 x 10GE LAN/OTU2e<->4 x OTU2e
  • 16 x ODU1/4 x ODU2<->4 x OTU2
  • 4 x ODU2e<->4 x OTU2e
  • Supports hybrid transmission of the ODU1 and ODU2/ODU2e services.
Client-side service type 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s
OTN function
  • The encapsulation and mapping comply with ITU-T G.7041, ITU-T G.709, and GDPS.
  • Supports PM and TCM functions for ODU1.
  • Supports PM and TCM function for ODU2.
  • Supports SM functions for OTU2 .
WDM specification Supports DWDM specifications.
ESC function Supported
PRBS test Supports the PRBS function on the client and WDM sides.
NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-64/OC-192, OTU2 or OTU2e.
LPT function The board supports the LPT function only when the client-side service type is 10GE LAN.
FEC coding
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side.
Optical-layer ASON Not supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports client-side 1+1 protection.
  • Supports ODUk SNCP.
Ethernet service mapping mode
  • Bit Transparent Mapping(11.1G)
  • MAC Transparent Mapping(10.7G)
  • Bit Transparent Mapping(10.7G)
Ethernet port working mode
  • 10GE LAN FULL_Duplex
  • 10GE WAN FULL_Duplex

Additional information
