Description

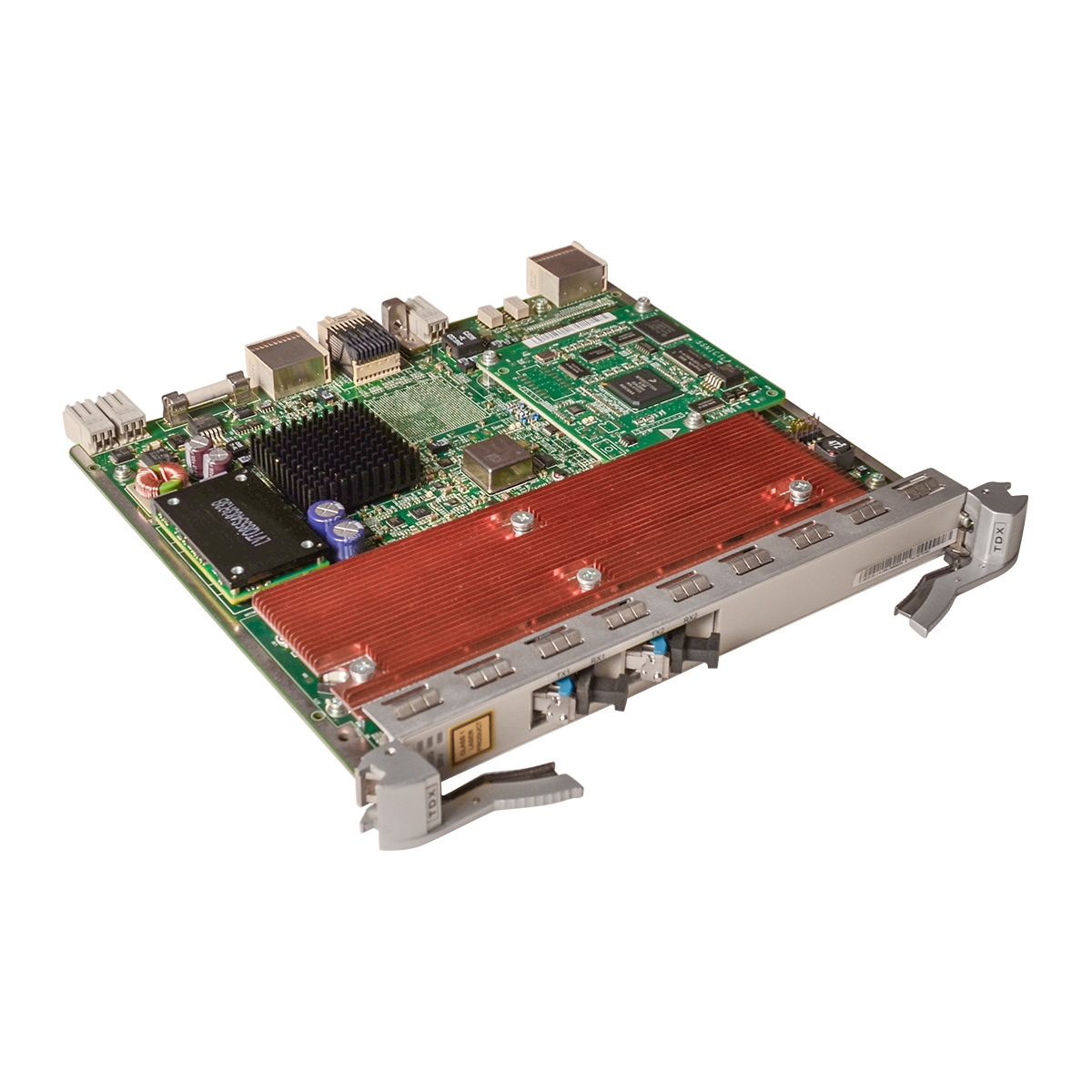

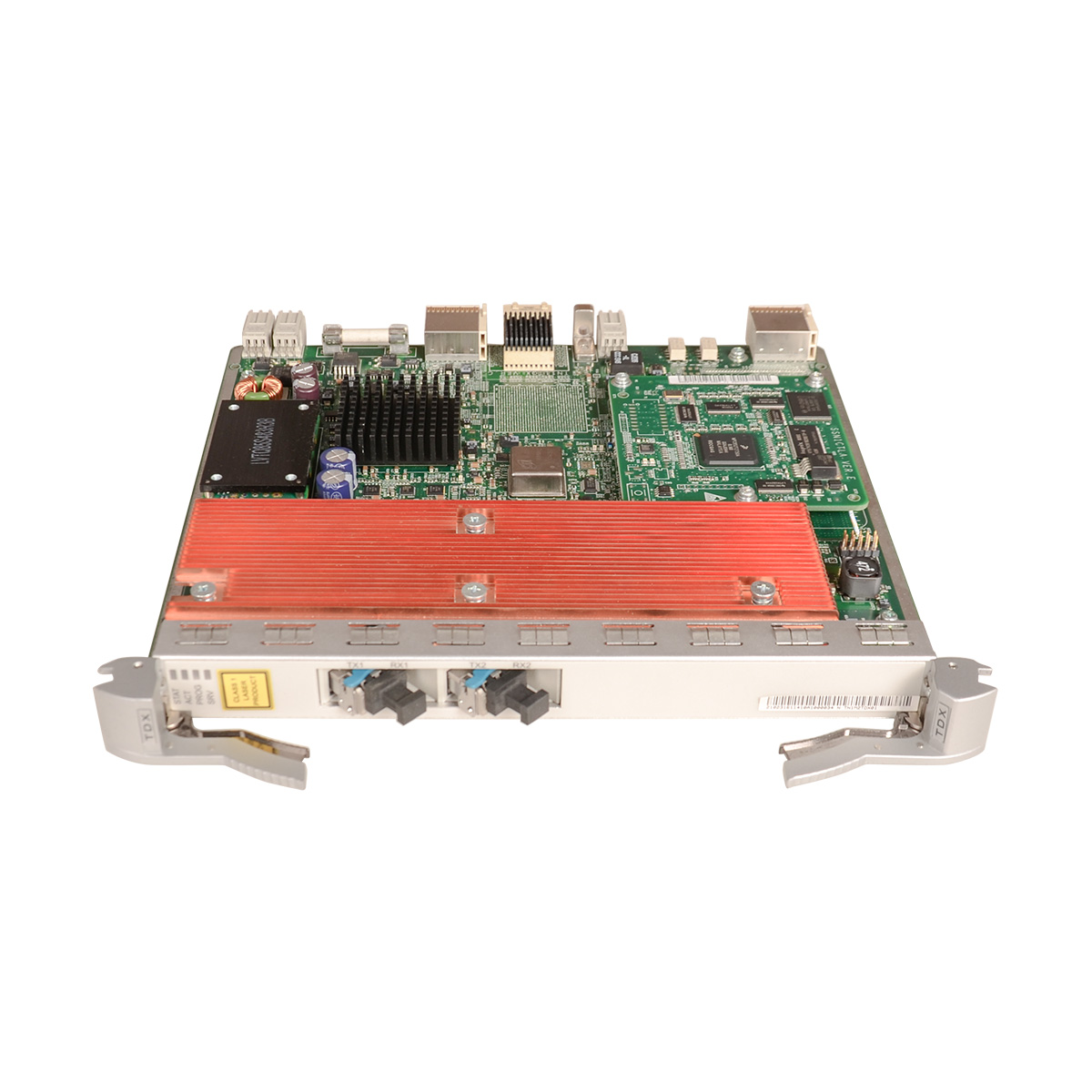

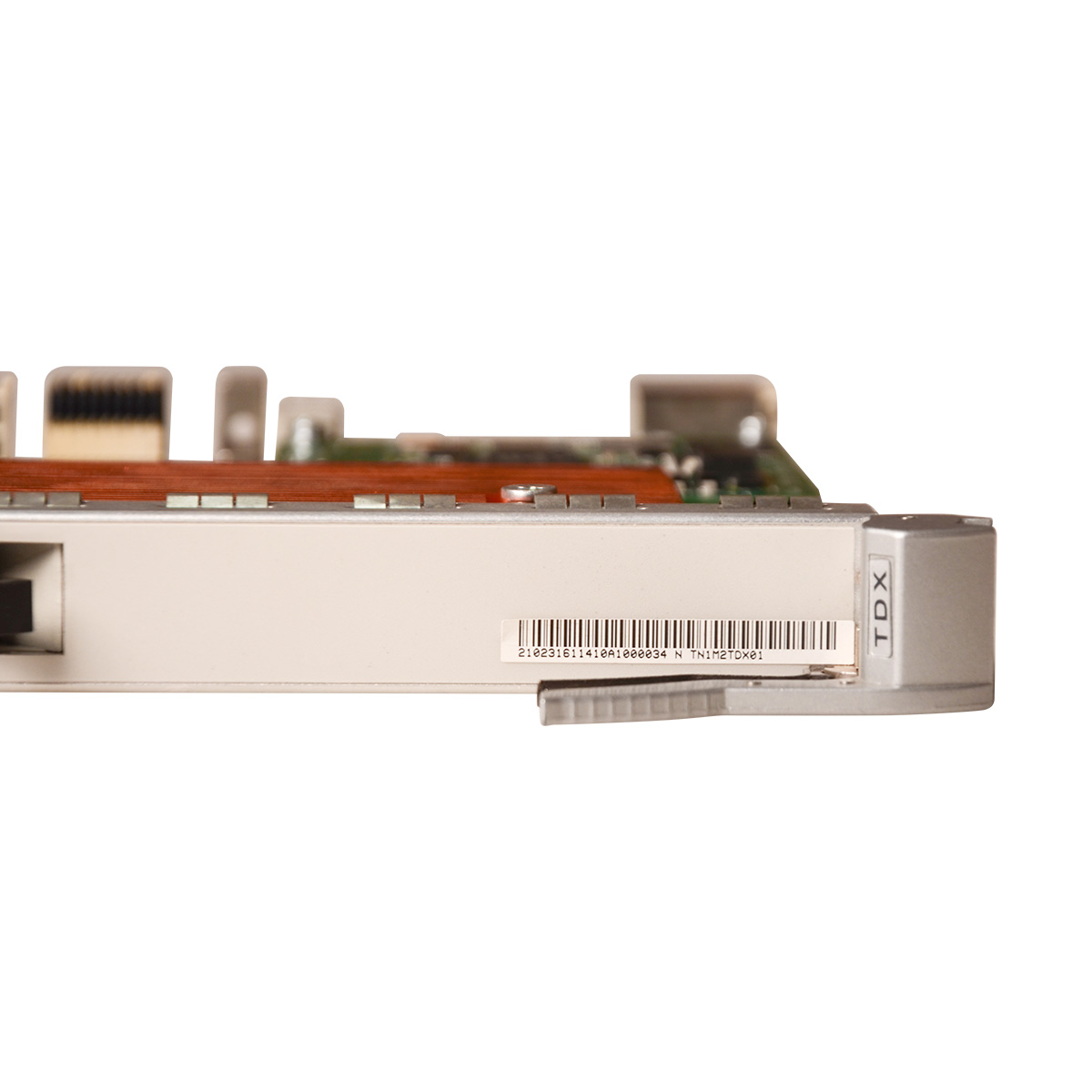

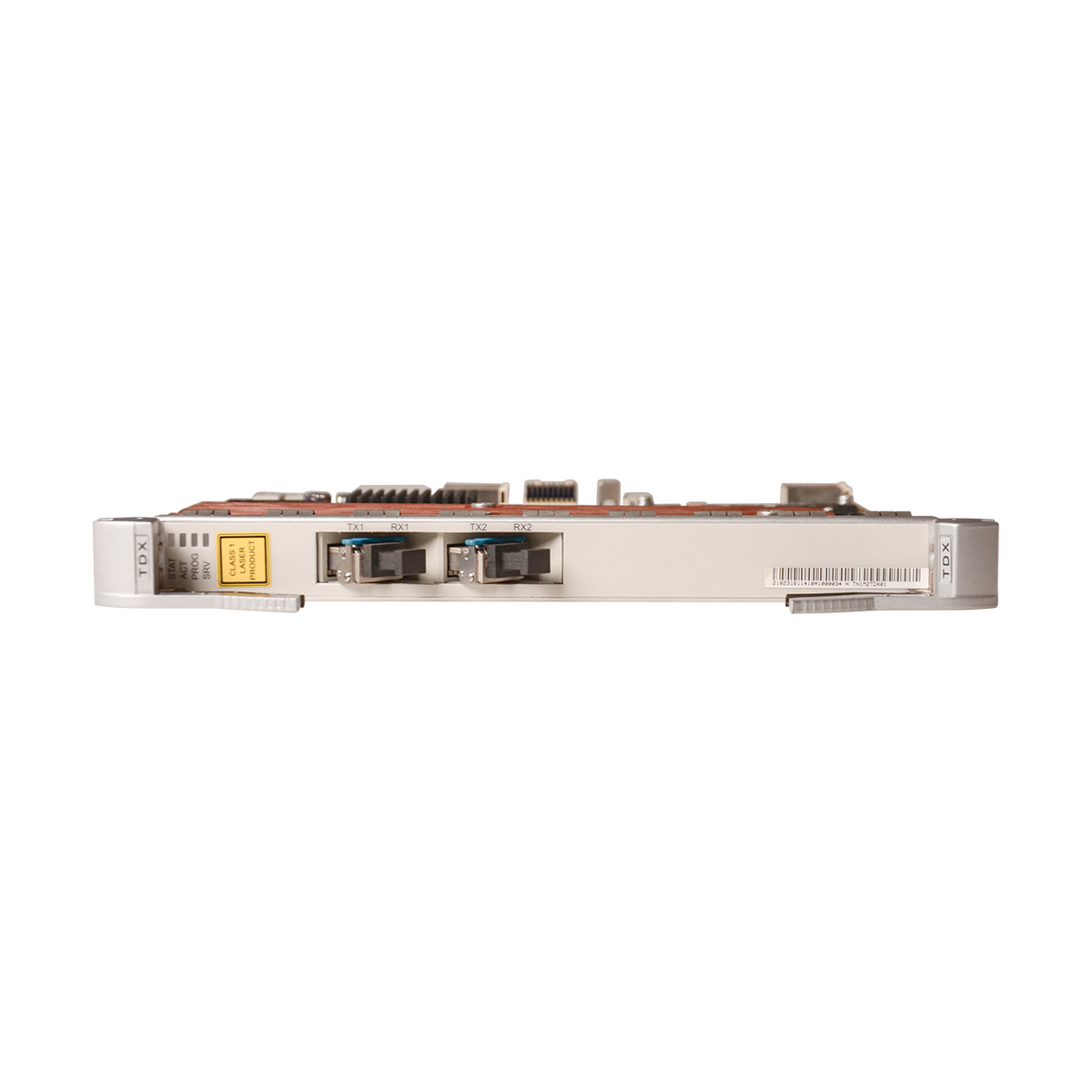

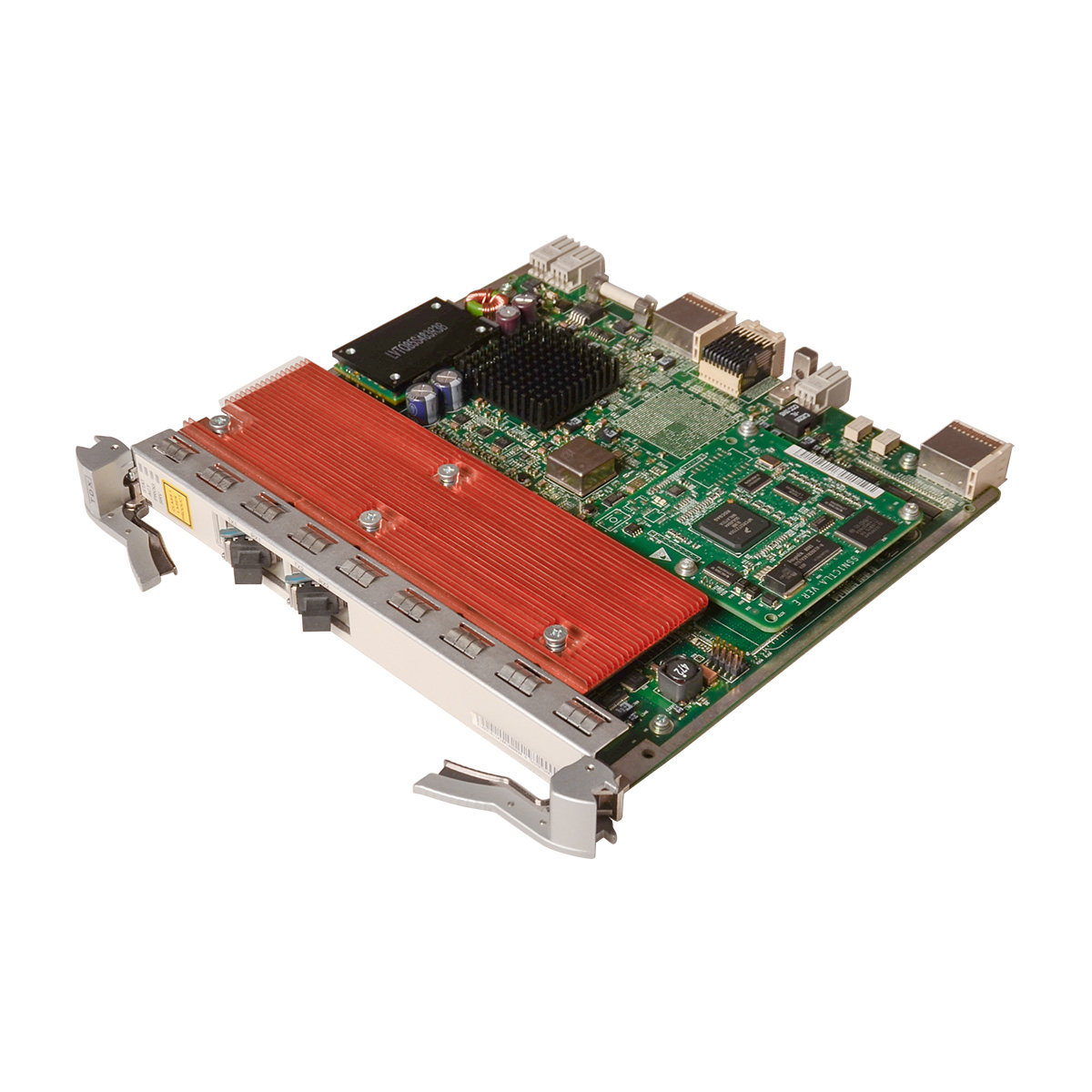

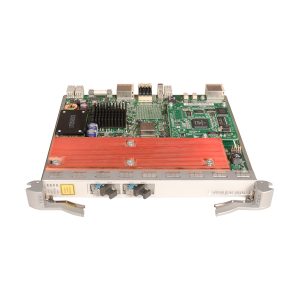

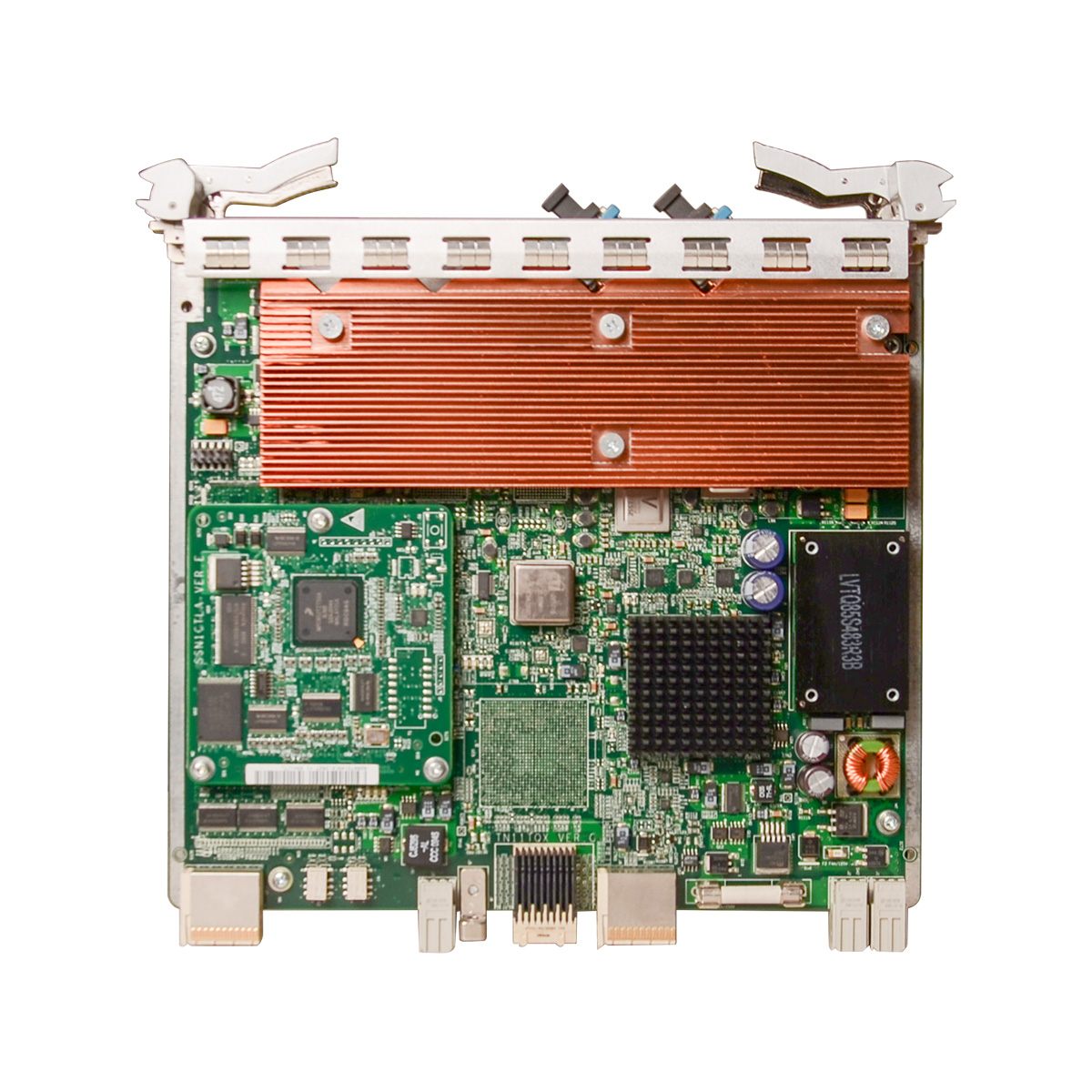

Huawei OSN6800 OSN8800 2x10G Tributary Service Processing Board With 2PCS 10G-10km-XFP Client-Side Pluggable Modules
| WDM client-side optical module | ||
| 10 Gbit/s Multirate-10 km-XFP
10 Gbit/s Multirate-40 km-XFP 10 Gbit/s Multirate-80 km-XFP 10 Gbit/s Single Rate-0.3 km-XFP |
||
| WDM client-side equipped optical module | ||
| Parameter | Value | |
| Optical Module Type | 10 Gbit/s Multirate-10km-XFP | |
| Line code format | NRZ | |
| Optical source type | SLM | |
| Target transmission distance(km) | 10 | |
| Transmitter parameter specifications at point S | ||
| Operating wavelength range(nm) | 1290 to 1330 | |
| Maximum mean launched power(dBm) | -1 | |
| Minimum mean launched power(dBm) | -6 | |
| Minimum extinction ratio(dB) | 6 | |
| Minimum side mode suppression ratio(dB) | 30 | |
| Eye pattern mask | G.691-compliant | |
| Receiver parameter specifications at point R | ||
| Receiver type | PIN | |
| Operating wavelength range(nm) | 1260 to 1565 | |
| Receiver sensitivity(multirate)(dBm) | -11 | |
| Receiver sensitivity(10GE LAN)(dBm) | -14.4 | |
| Minimum receiver overload(10GE LAN)(dBm) | 0.5 | |
| Minimum receiver overload (STM-64)(dBm) | -1 | |
| Maximum reflectance(dB) | -27 | |
| Mechanical Specifications | ||
| Dimensions(mm) | 25.4(W) x 220(D) x 264.6 (H) | |
| Weight(kg) | 1.4 | |
