Huawei OptiX OSN 8800 TN13LQM 4-channel multi-rate (100Mbit/s-2.5Gbit/s) OTU1 wavelength conversion board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN13LQM overview



TN13LQM 4-channel multi-rate (100Mbit/s-2.5Gbit/s) OTU1 wavelength conversion board applied to OptiX OSN 8800/6800/3800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

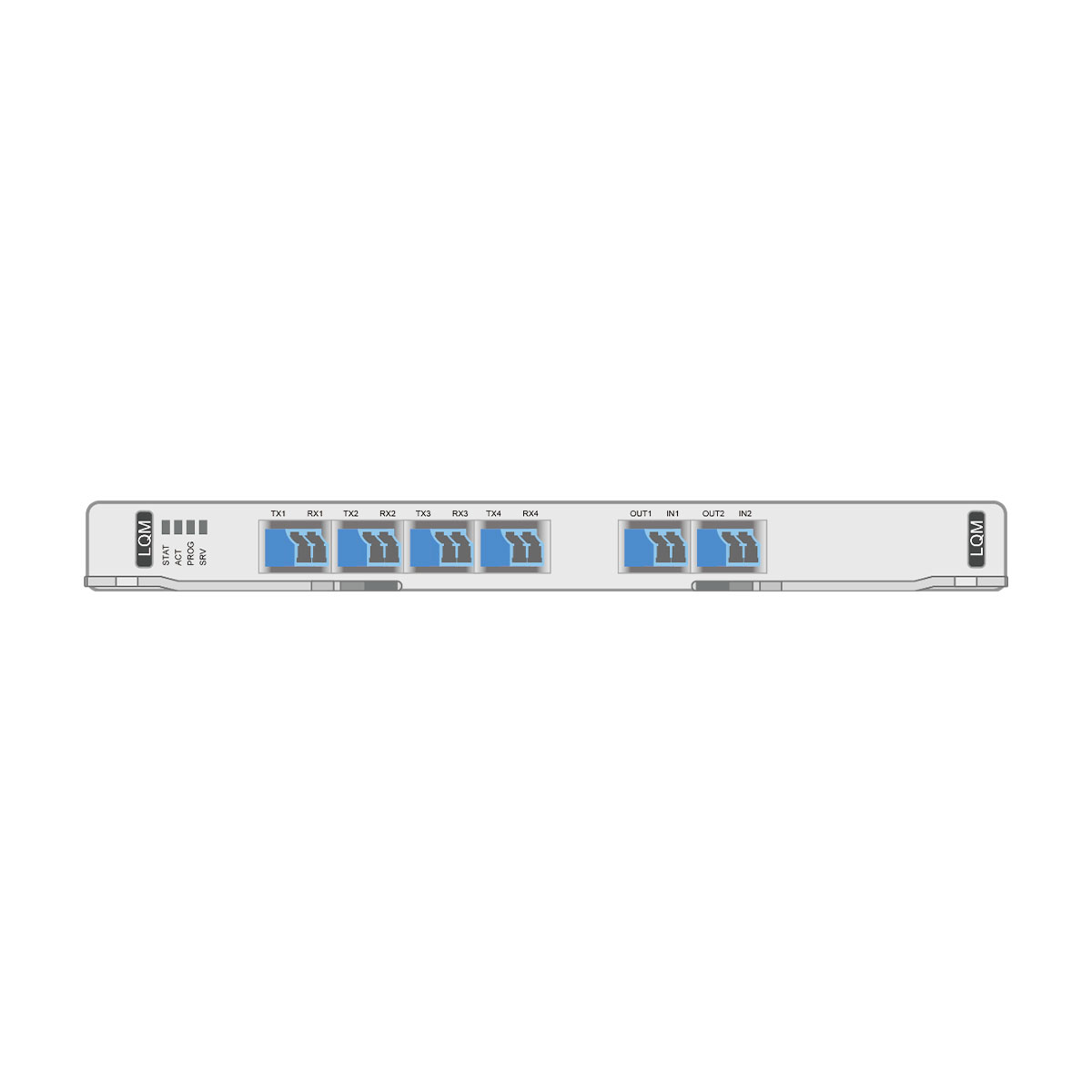

Front panel of the TN13LQM board

TN13LQM

Front panel of the TN13LQM board



Valid slots for the  board TN13LQM in a OptiX OSN 8800/6800/3800 T64/T32 subrack  and chassis

Device Valid Slot
OptiX OSN 8800 T64 subrack IU1-IU8, IU11-IU42, IU45-IU68
OptiX OSN 8800 T32 subrack IU1-IU8, IU12-IU27, IU29-IU36
OptiX OSN 8800 universal platform subrack IU3-IU16
OptiX OSN 6800 subrack IU1-IU8, IU11-IU16
OptiX OSN 3800 chassis IU2-IU5



Item TN13LQM
Basic function LQM converts signals:
  • 4 x (100 Mbit/s to 2.5 Gbit/s) signals<-> 1 x OTU1.
  • Implements the dual fed and selective receiving function or single fed and single receiving function on the WDM side according to the application scenario.
Client-side service type FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s OTU1: OTN service at a rate of 2.67 Gbit/s STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s
Cross-connect capabilities OptiX OSN 8800: N/A.
OptiX OSN 6800:
  • Supports the grooming of four channels of GE services each to working/protection cross-connection boards respectively through the backplane.
  • Supports the transmission of four signals at the rate between 100 Mbit/s and 2.5 Gbit/s to the paired slots through the backplane.
OptiX OSN 3800:
  • Supports the grooming of four signals at the rate between 100 Mbit/s and 2.5 Gbit/s from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
  • Supports the grooming of four GE signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
OTN function
  • The encapsulation and mapping process is compliant with GDPS, ITU-T G.709.
  • Supports PM and TCM functions for ODU1.
  • Supports SM function for OTU1.
WDM specification
  • Supports ITU-T G.694.1-compliant DWDM specifications.
  • Supports ITU-T G.694.2-compliant CWDM specifications.
ESC function Supported
PRBS test function Supports the PRBS function on the client side.
NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-1/OC–3, STM-4/OC-12, or STM-16/OC-48.
LPT function The board supports the LPT function only when the client-side service type is FE or GE.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame The board supports the test frame function only when the client-side service type is FE or GE.
Latency measurement Not supported
Optical-layer ASON Not supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports SW SNCP.
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection.
  • Supports OWSP protection.
  • Supports MS SNCP protection.
NOTE:
OptiX OSN 8800 supports client-side 1+1 protection, intra-board 1+1 protection and the OWSP protection.
Ethernet service mapping mode Supports encapsulation of GE services in GE(GFP-F) (displayed as GE on the NMS) and GE(GFP-T) modes.
Ethernet port working mode GE(GFP-F): 1000M Full-Duplex, Auto-Negotiation
Port MTU The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Loopback WDM side Inloop Supported
Outloop Supported
Client side Inloop Supported
Outloop Supported
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight 1.1 kg (2.4 lb.)

Additional information

Item TN13LQM
Basic function LQM converts signals:
  • 4 x (100 Mbit/s to 2.5 Gbit/s) signals<-> 1 x OTU1.
  • Implements the dual fed and selective receiving function or single fed and single receiving function on the WDM side according to the application scenario.
Client-side service type FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s OTU1: OTN service at a rate of 2.67 Gbit/s STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s
Cross-connect capabilities OptiX OSN 8800: N/A.
OptiX OSN 6800:
  • Supports the grooming of four channels of GE services each to working/protection cross-connection boards respectively through the backplane.
  • Supports the transmission of four signals at the rate between 100 Mbit/s and 2.5 Gbit/s to the paired slots through the backplane.
OptiX OSN 3800:
  • Supports the grooming of four signals at the rate between 100 Mbit/s and 2.5 Gbit/s from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
  • Supports the grooming of four GE signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
OTN function
  • The encapsulation and mapping process is compliant with GDPS, ITU-T G.709.
  • Supports PM and TCM functions for ODU1.
  • Supports SM function for OTU1.
WDM specification
  • Supports ITU-T G.694.1-compliant DWDM specifications.
  • Supports ITU-T G.694.2-compliant CWDM specifications.
ESC function Supported
PRBS test function Supports the PRBS function on the client side.
NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-1/OC–3, STM-4/OC-12, or STM-16/OC-48.
LPT function The board supports the LPT function only when the client-side service type is FE or GE.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame The board supports the test frame function only when the client-side service type is FE or GE.
Latency measurement Not supported
Optical-layer ASON Not supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports SW SNCP.
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection.
  • Supports OWSP protection.
  • Supports MS SNCP protection.
NOTE:
OptiX OSN 8800 supports client-side 1+1 protection, intra-board 1+1 protection and the OWSP protection.
Ethernet service mapping mode Supports encapsulation of GE services in GE(GFP-F) (displayed as GE on the NMS) and GE(GFP-T) modes.
Ethernet port working mode GE(GFP-F): 1000M Full-Duplex, Auto-Negotiation
Port MTU The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Loopback WDM side Inloop Supported
Outloop Supported
Client side Inloop Supported
Outloop Supported
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight 1.1 kg (2.4 lb.)
