Huawei OptiX OSN 8800 TN15LSXL 40 Gbit/s wavelength conversion board

Description

TN15LSXL overview

Huawei OptiX OSN 8800 TN15LSXL 40 Gbit/s wavelength conversion board

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

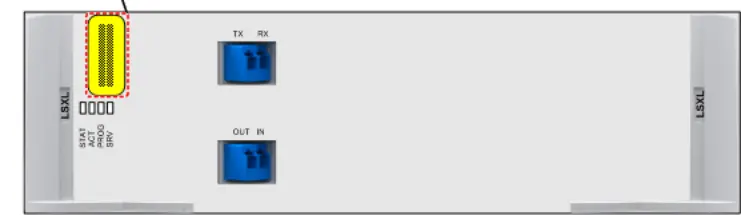

Front panel of the TN15LSX board

TN15LSXL

Front panel of the TN15LSX board



Valid slots for the TN12LSX board in a OptiX OSN 8800/6800 T64/T32/T16 subrack

Product Valid Slots
OptiX OSN 8800 T64 subrack IU2-IU7, IU12-IU17, IU20-IU25, IU28-IU33, IU36-IU41, IU46-IU51, IU54-IU59, IU62-IU67
OptiX OSN 8800 T32 subrack IU2-IU7, IU13-IU18, IU21-IU26, IU30-IU35
OptiX OSN 8800 T16 subrack IU2-IU7, IU12-IU17
OptiX OSN 8800 universal platform subrack IU2-IU15
OptiX OSN 6800 subrack IU2-IU16



Item TN15LSXL
Basic function LSXL converts signals as follows: 1x STM-256/OC-768/OTU3<->1x OTU3
Client-side service type STM-256/OC-768: SDH/SONET service at a rate of 39.81 Gbit/s OTU3: OTN service at a rate of 43.02 Gbit/s
NOTE:
Only TN12LSXL/TN15LSXL support OTU3 services.
OTN function
  • Provides the OTU3 interface on WDM-side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU3 layer: supports the SM function.
  • ODU3 layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
WDM specification Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function
  • 40 wavelengths in C-band with the channel spacing of 100 GHz
  • 80 wavelengths in C-band with the channel spacing of 50 GHz
ESC function Supported
NOTE:
When being provisioned with the OTU3 service on the client side, the TN12LSXL board supports ESC transparent transmission, but not ESC processing.
PRBS test function
  • TN11LSXL:Not supported.
  • TN12LSXL:Supports the PRBS function on the client side.
  • TN15LSXL:Supports the PRBS function on the client and WDM sides.
NOTE:
The PRBS function of TN12LSXL on the client side is supported only when the client-side service type is STM-256/OC-768.
LPT function Not supported
FEC coding
TN11LSXL/TN12LSXL:
  • Supports forward error correction (FEC) on the WDM side that complies with ITU-T G.709.
  • Supports advanced forward error correction (AFEC) on the WDM side that complies with ITU-T G.975.1.
TN15LSXL:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU3.
  • Supports HFEC on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
Regeneration board The WDM-side signals of the TN11LSXL board can be regenerated by a TN11LSXLR board. The WDM-side signals of the TN12LSXL board can be regenerated by a TN12LSXLR board. The WDM-side signals of the TN15LSXL board can be regenerated by a TN55NS3/TN56NS3 board.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Not supported
Latency measurement Not supported
Optical-layer ASON Supported by the TN12LSXL/TN15LSXL.
Electrical-layer ASON Not supported
Protection scheme
TN11LSXL:
  • Supports client 1+1 protection.
  • Supports OWSP protection.
TN12LSXL:
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
TN15LSXL:
  • Supports client 1+1 protection.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Loopback Client side Inloop
  • Not supported by the TN11LSXL
  • Supported by the TN12LSXL/TN15LSXL
Outloop
WDM side Inloop Supported
Outloop Supported
Protocols or standards compliance Protocols or standards for transparent transmission (non-performance monitoring) ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic
Protocols or standards for service processing (performance monitoring) ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 ITU-T G.8261 ITU-T G.8262
Dimensions of front panel (H x W x D): 264.6 mm (10.4 in.) x 76.2 mm (3.0 in.) x 220 mm (8.7 in.)
Weight: 3.8 kg (8.4 lb.)
