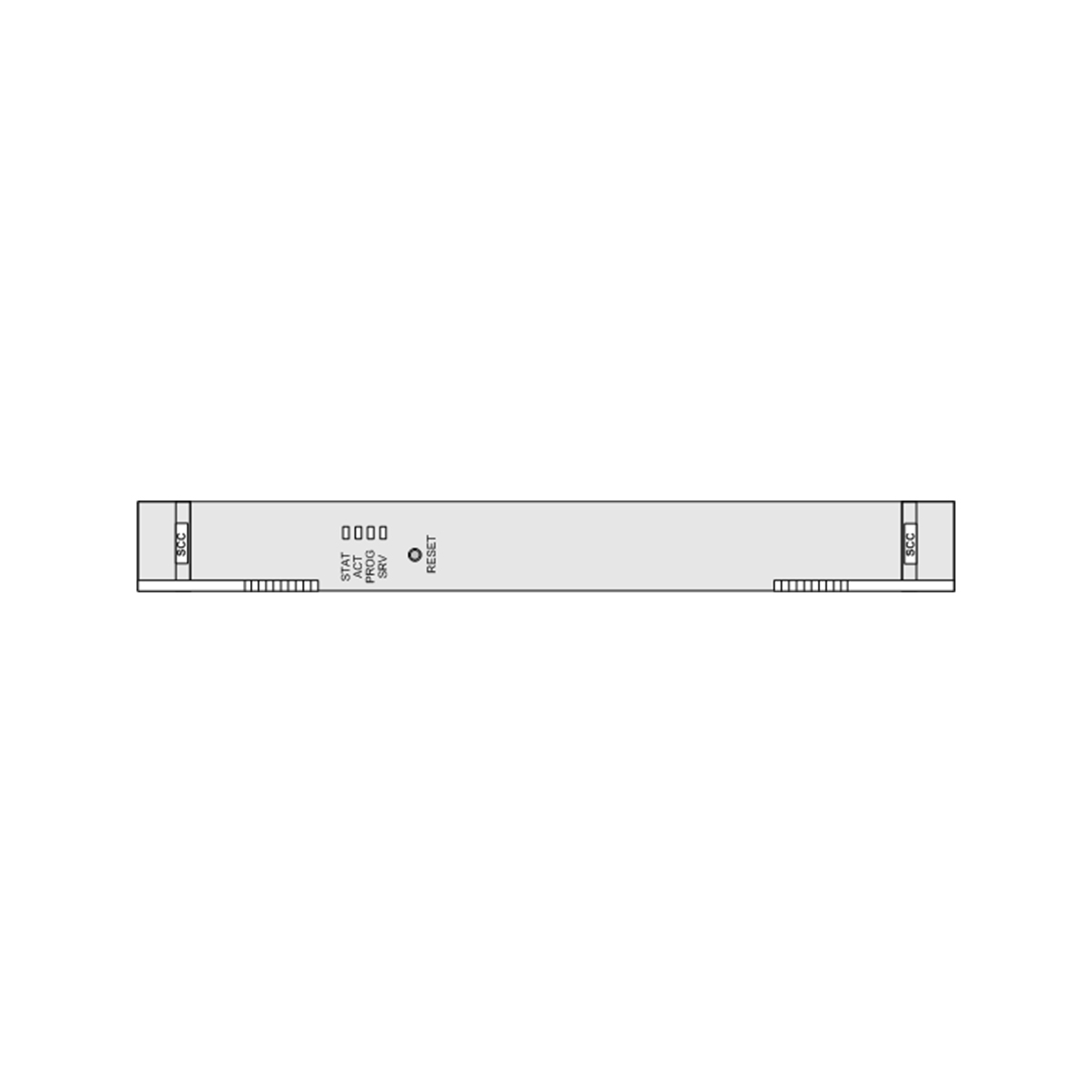

Huawei TN16SCC OptiX OSN 8800 system control and communication board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN16SCC Overview

TN16SCC OptiX OSN 8800 system control and communication board

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.



Valid slots for the TN16SCC board in T64 subrack

Product Valid Slots
OptiX OSN 8800 T16 subrack IU9, IU10
Item TN16SCC
Basic function
  • Accomplishes the configuration management and alarm output of an NE.
  • Supports the backup of the NE data. When the NE data changes, the real-time database backup function immediately saves the changed configuration data into the storage medium to ensure that no configuration data is lost after the NE is reset (cold) or powered off. This improves the reliability of the NE.
  • Supports the function of the CF card to back up database. The NE date (except NE IP, NE ID, Gateway ID and Node ID) and the board software are backed up to the CF card, so that the NE needs not to be re-configured after the replacement of the SCC.
DCN communication Supports interconnection and communication between NEs through IP over DCC, or HWECCwhen used with the TN16AUX.
Active/Standby backup Supports active/standby backup: There are two SCCs in the system that can provide 1+1 hot backup. If the active board fails, the standby board automatically becomes active.
Clock function
  • Basic function:
    • Locks the reference clock source.
    • Provides the system with ITU-T clock signals that comply with G.813- and ITU-T G.823 and frame signals.
    • Synchronizes the time of an NE with the time of the upstream system.
  • Clock source selection function:Traces the external clock source, service clock source, or local clock source, to provide the synchronization clock source for itself and the system.
  • Time synchronization function:Synchronizes the time of an NE with the time of the upstream NE.
Subrack cascading Supports subrack cascading. The SCC accomplishes different functions based on the mode (master or slave) of the subrack in which it is installed. The SCC in a slave subrack processes the overhead bytes, handles alarms and manages the configuration inside the subrack. The SCC in a master subrack performs the same functions as the SCC in the slave subrack, and also processes overhead bytes and handles the alarms of all its slave subracks. The SCC in the master subrack connects to the network management system (NM). The configuration commands are issued to the SCC of a slave subrack through the SCC in the master subrack.
Optical-layer ASON Supported
Electrical-layer ASON Not supported
G.8275.1 Supported.

Additional information

Item TN16SCC
Basic function
  • Accomplishes the configuration management and alarm output of an NE.
  • Supports the backup of the NE data. When the NE data changes, the real-time database backup function immediately saves the changed configuration data into the storage medium to ensure that no configuration data is lost after the NE is reset (cold) or powered off. This improves the reliability of the NE.
  • Supports the function of the CF card to back up database. The NE date (except NE IP, NE ID, Gateway ID and Node ID) and the board software are backed up to the CF card, so that the NE needs not to be re-configured after the replacement of the SCC.
DCN communication Supports interconnection and communication between NEs through IP over DCC, or HWECCwhen used with the TN16AUX.
Active/Standby backup Supports active/standby backup: There are two SCCs in the system that can provide 1+1 hot backup. If the active board fails, the standby board automatically becomes active.
Clock function
  • Basic function:
    • Locks the reference clock source.
    • Provides the system with ITU-T clock signals that comply with G.813- and ITU-T G.823 and frame signals.
    • Synchronizes the time of an NE with the time of the upstream system.
  • Clock source selection function:Traces the external clock source, service clock source, or local clock source, to provide the synchronization clock source for itself and the system.
  • Time synchronization function:Synchronizes the time of an NE with the time of the upstream NE.
Subrack cascading Supports subrack cascading. The SCC accomplishes different functions based on the mode (master or slave) of the subrack in which it is installed. The SCC in a slave subrack processes the overhead bytes, handles alarms and manages the configuration inside the subrack. The SCC in a master subrack performs the same functions as the SCC in the slave subrack, and also processes overhead bytes and handles the alarms of all its slave subracks. The SCC in the master subrack connects to the network management system (NM). The configuration commands are issued to the SCC of a slave subrack through the SCC in the master subrack.
Optical-layer ASON Supported
Electrical-layer ASON Not supported
G.8275.1 Supported.
