Huawei OptiX OSN 8800 TN17LSCM 100Gbit/s Wavelength Conversion Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN17LSCM overview



TN11LDMS 100Gbit/s Wavelength Conversion Board, single fed and single receiving applied to OptiX OSN 8800/6800/3800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

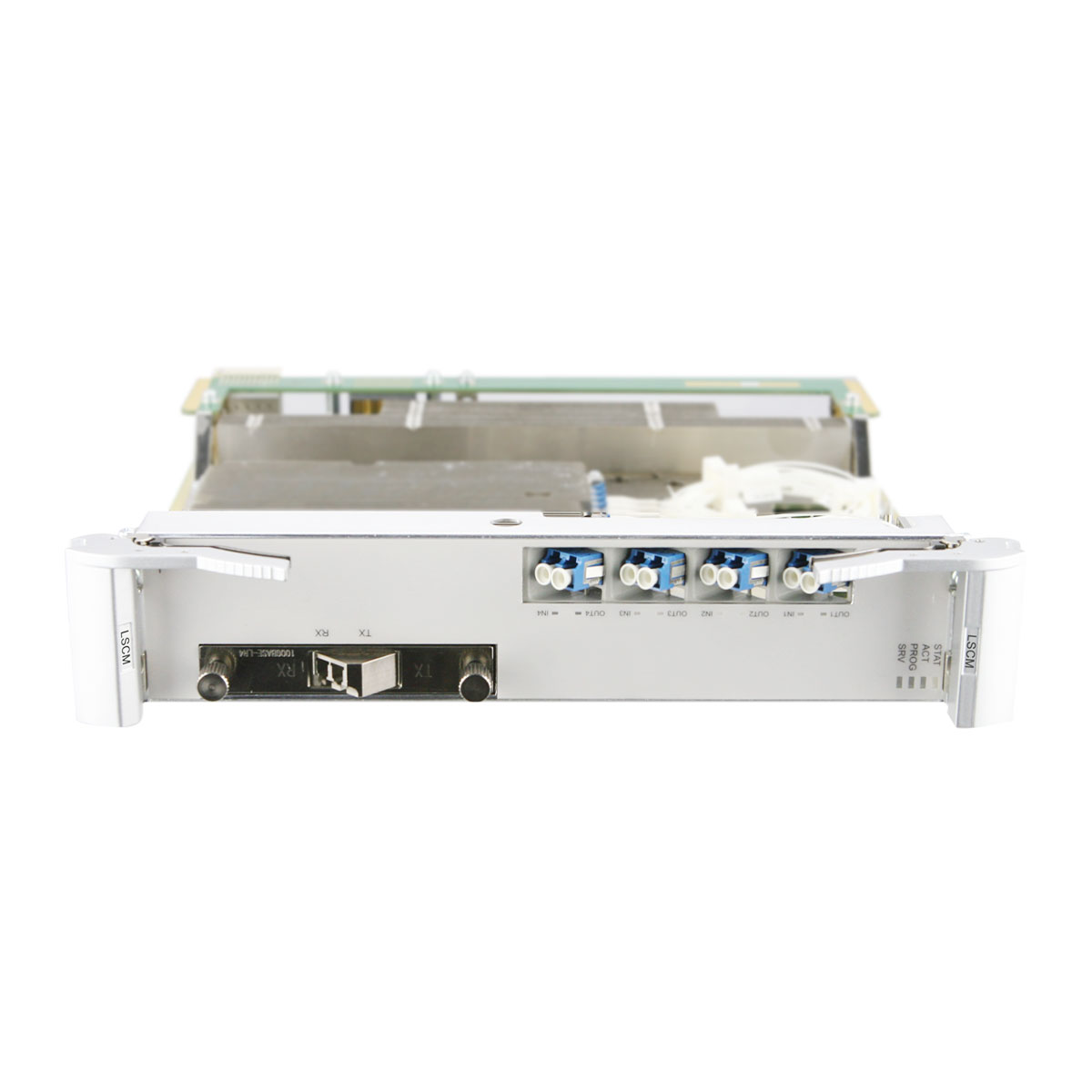

Front panel of the TN17LSCM board

TN17LSCM

Front panel of the TN17LSCM board



Valid slots for the TN17LSCM board in a OptiX OSN 8800/6800/3800 T64/T32 subrack and chassis

Product Valid Slots
OptiX OSN 8800 T64 subrack IU1-IU7, IU11-IU17, IU19-IU25, IU27-IU33, IU35-IU41, IU45-IU51, IU53-IU59, IU61-IU67
OptiX OSN 8800 T32 subrack IU1-IU7, IU12-IU18, IU20-IU26, IU29-IU35
OptiX OSN 8800 T16 subrack IU1-IU7, IU11-IU17
OptiX OSN 8800 universal platform subrack IU1-IU15
OptiX OSN 6800 subrack IU1-IU16
OptiX OSN 3800 chassis IU2-IU5



Item TN17LSCM
Basic function LSCM converts signal as follows: 100GE/OTU4<->1x OTU4
Client-side service type 100GE: Ethernet service at a rate of 103.125 Gbit/s. OTU4: OTN service at a rate of 111.81 Gbit/s
OTN function
  • Provides the OTU4 interface on WDM-side.
  • Supports the OTN frame format and overhead processing compliant with ITU-T G.709.
  • ODU4 layer:
    • When the client-side service type is 100GE, the board supports the PM function.
    • When the client-side service type is OTU4, the board supports the PM and TCM functions, PM and TCM non-intrusive monitoring functions.
  • OTU4 layer: supports the SM function.
WDM specification Supports DWDM specifications.
Tunable wavelength function Not supported
ESC function Supported
NOTE:
When being provisioned with the OTU4 service on the client side, the LSCM board supports ESC transparent transmission, but not ESC processing.
PRBS test function When the client-side service type is OTU4, the PRBS function is supported on the client side. When the client-side service type is 100GE or OTU4, the PRBS function is also supported on the WDM side.
LPT function Not supported
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU4. Supports HFEC on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (BIP8 bytes of OTU4 are in Bursty mode) for the 100GE and OTU4 services on the client side to help locate service failures.
  • Monitors BIP8 bytes (Bursty mode) for the OTN service on the WDM side to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Supported only when the client-side service type is 100GE.
Latency measurement The board supports latency measurement. The bidirectional latency at the ODU4 layer between two OTU boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. This function is not supported when the client-side service type is OTU4.
IEEE 1588v2 Not supported
Physical clock When receiving 100GE/OTU4 services on the client side, the board supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing
Optical-layer ASON Not supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports client 1+1 protection.
Loopback Client side Inloop Supported
Outloop
WDM side Inloop Supported
Outloop
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
Weight 2.5 kg (5.51 lb.)

Additional information

Item TN17LSCM
Basic function LSCM converts signal as follows: 100GE/OTU4<->1x OTU4
Client-side service type 100GE: Ethernet service at a rate of 103.125 Gbit/s. OTU4: OTN service at a rate of 111.81 Gbit/s
OTN function
  • Provides the OTU4 interface on WDM-side.
  • Supports the OTN frame format and overhead processing compliant with ITU-T G.709.
  • ODU4 layer:
    • When the client-side service type is 100GE, the board supports the PM function.
    • When the client-side service type is OTU4, the board supports the PM and TCM functions, PM and TCM non-intrusive monitoring functions.
  • OTU4 layer: supports the SM function.
WDM specification Supports DWDM specifications.
Tunable wavelength function Not supported
ESC function Supported
NOTE:
When being provisioned with the OTU4 service on the client side, the LSCM board supports ESC transparent transmission, but not ESC processing.
PRBS test function When the client-side service type is OTU4, the PRBS function is supported on the client side. When the client-side service type is 100GE or OTU4, the PRBS function is also supported on the WDM side.
LPT function Not supported
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU4. Supports HFEC on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (BIP8 bytes of OTU4 are in Bursty mode) for the 100GE and OTU4 services on the client side to help locate service failures.
  • Monitors BIP8 bytes (Bursty mode) for the OTN service on the WDM side to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Supported only when the client-side service type is 100GE.
Latency measurement The board supports latency measurement. The bidirectional latency at the ODU4 layer between two OTU boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. This function is not supported when the client-side service type is OTU4.
IEEE 1588v2 Not supported
Physical clock When receiving 100GE/OTU4 services on the client side, the board supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing
Optical-layer ASON Not supported
Electrical-layer ASON Not supported
Protection scheme
  • Supports client 1+1 protection.
Loopback Client side Inloop Supported
Outloop
WDM side Inloop Supported
Outloop
Dimensions (H x W x D) 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
Weight 2.5 kg (5.51 lb.)
