TN52UXCM

0 Reviews Write a review
PN03021KSK
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

3.2T Universal Cross Connect Board

Description

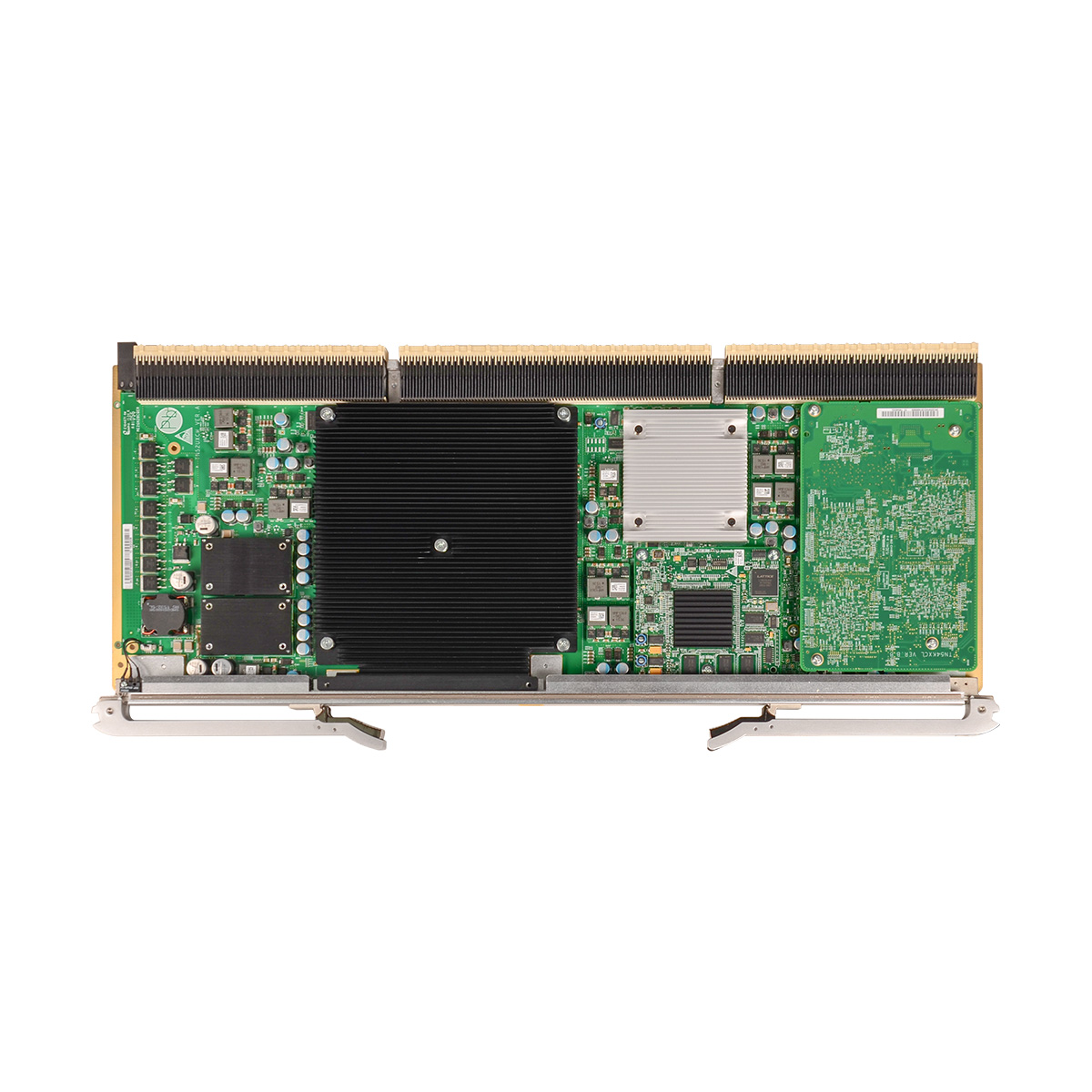

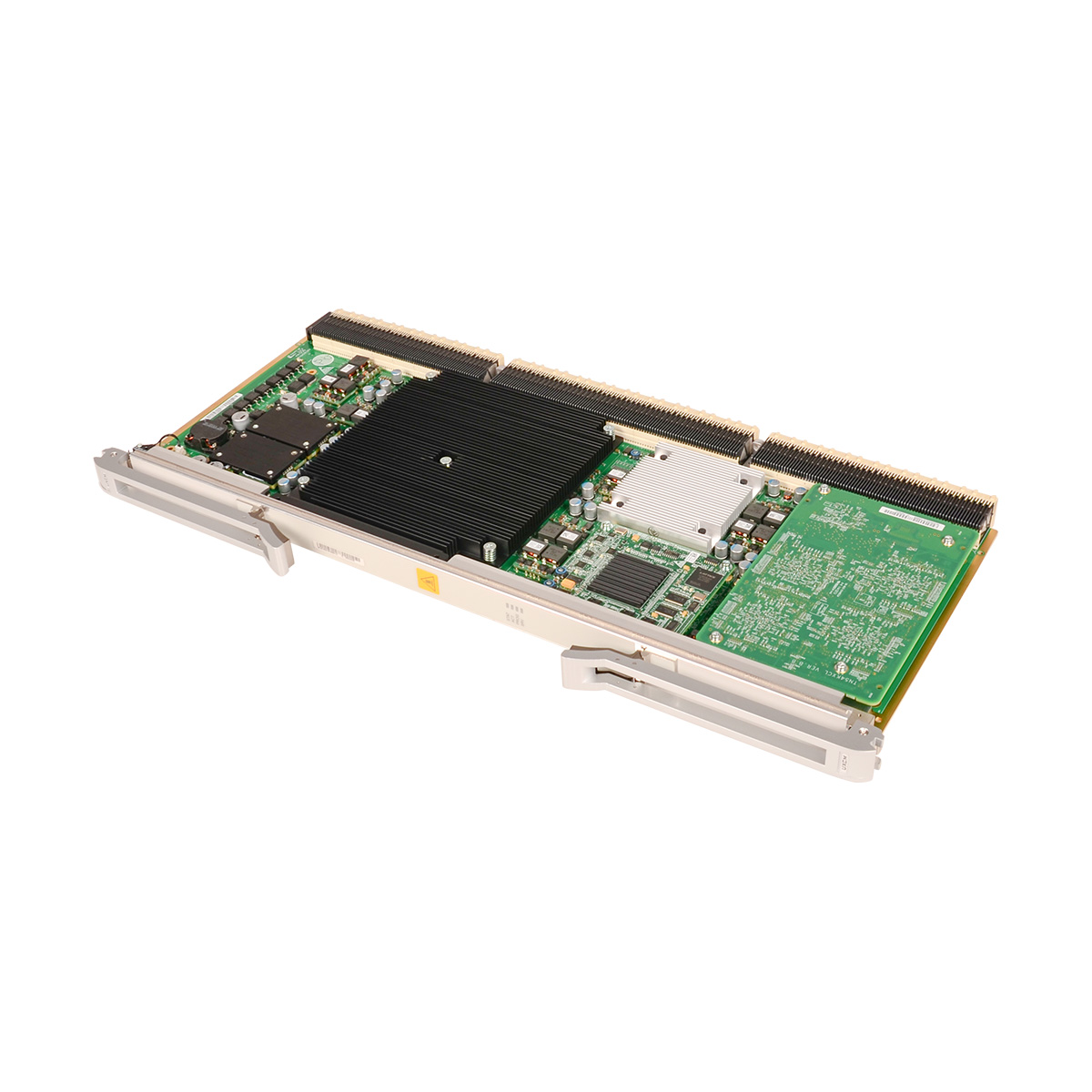

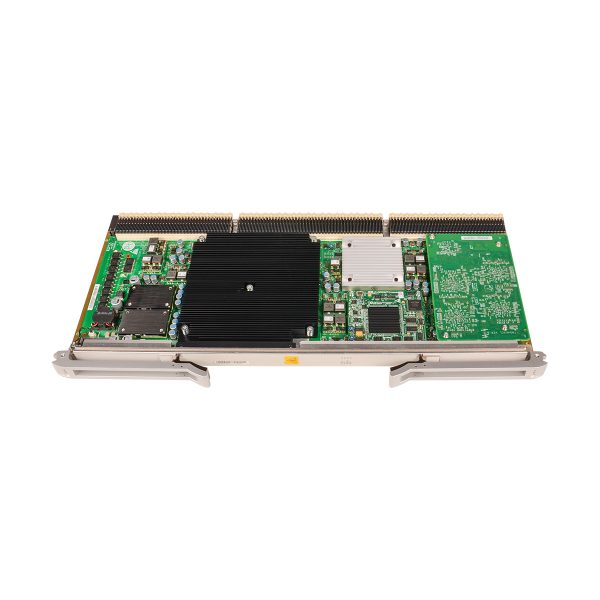

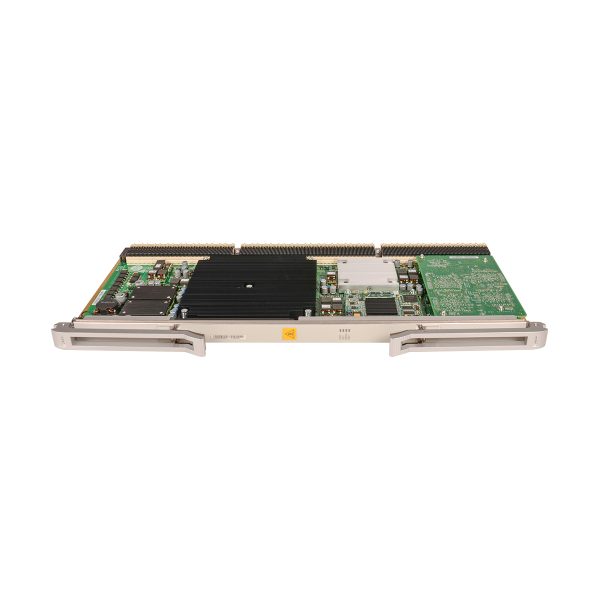

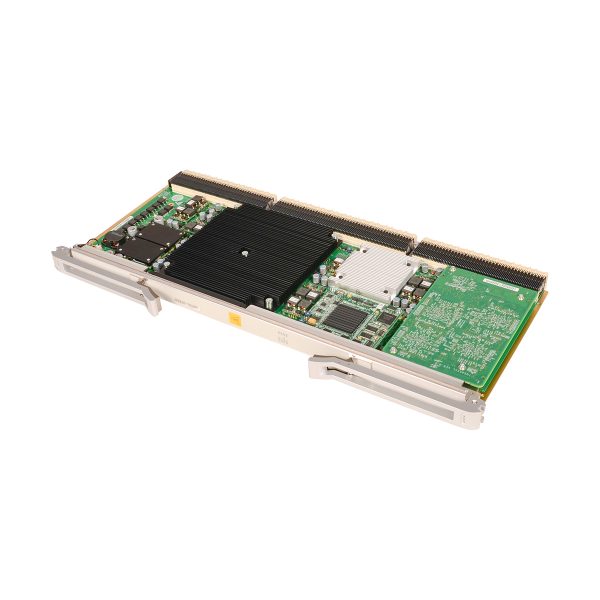

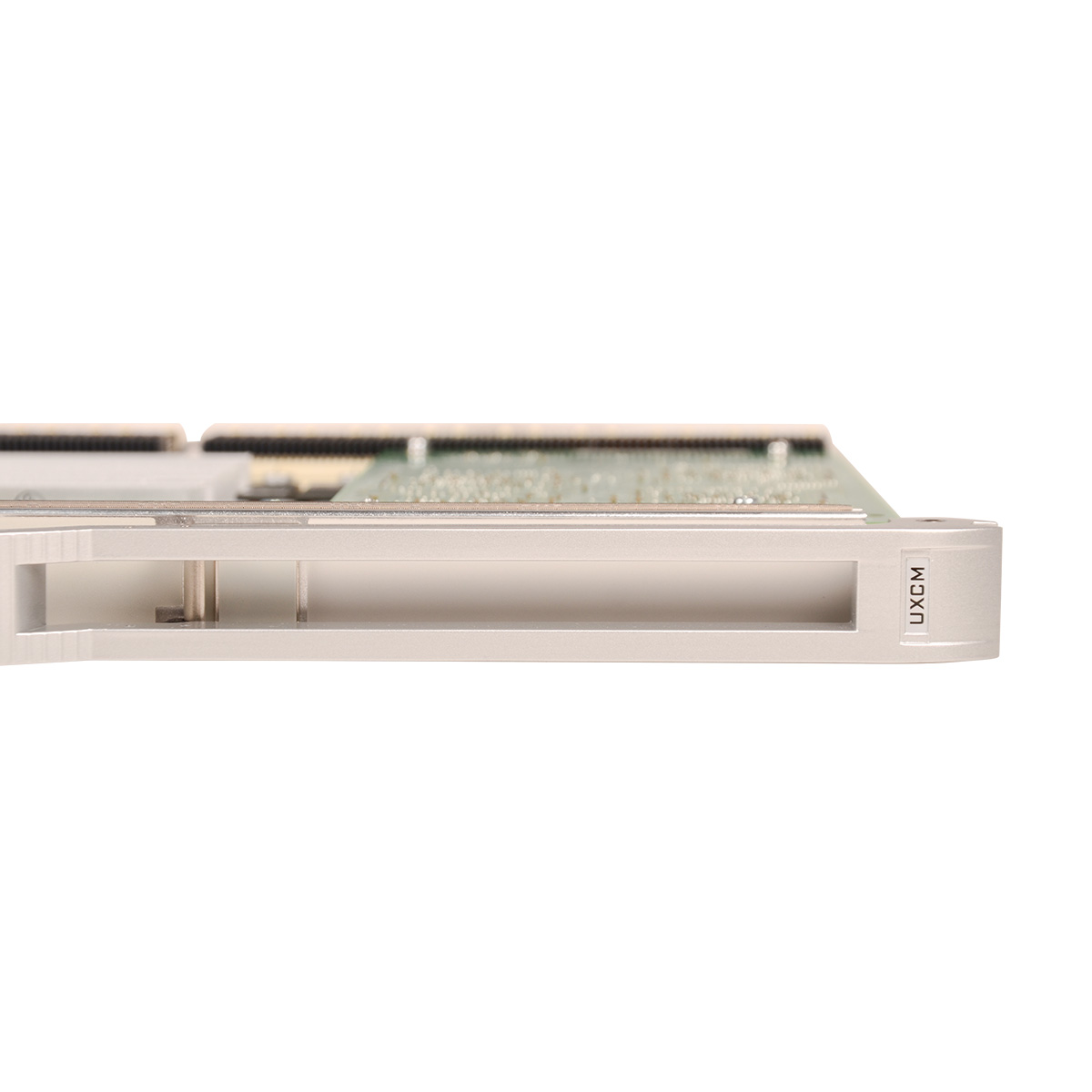

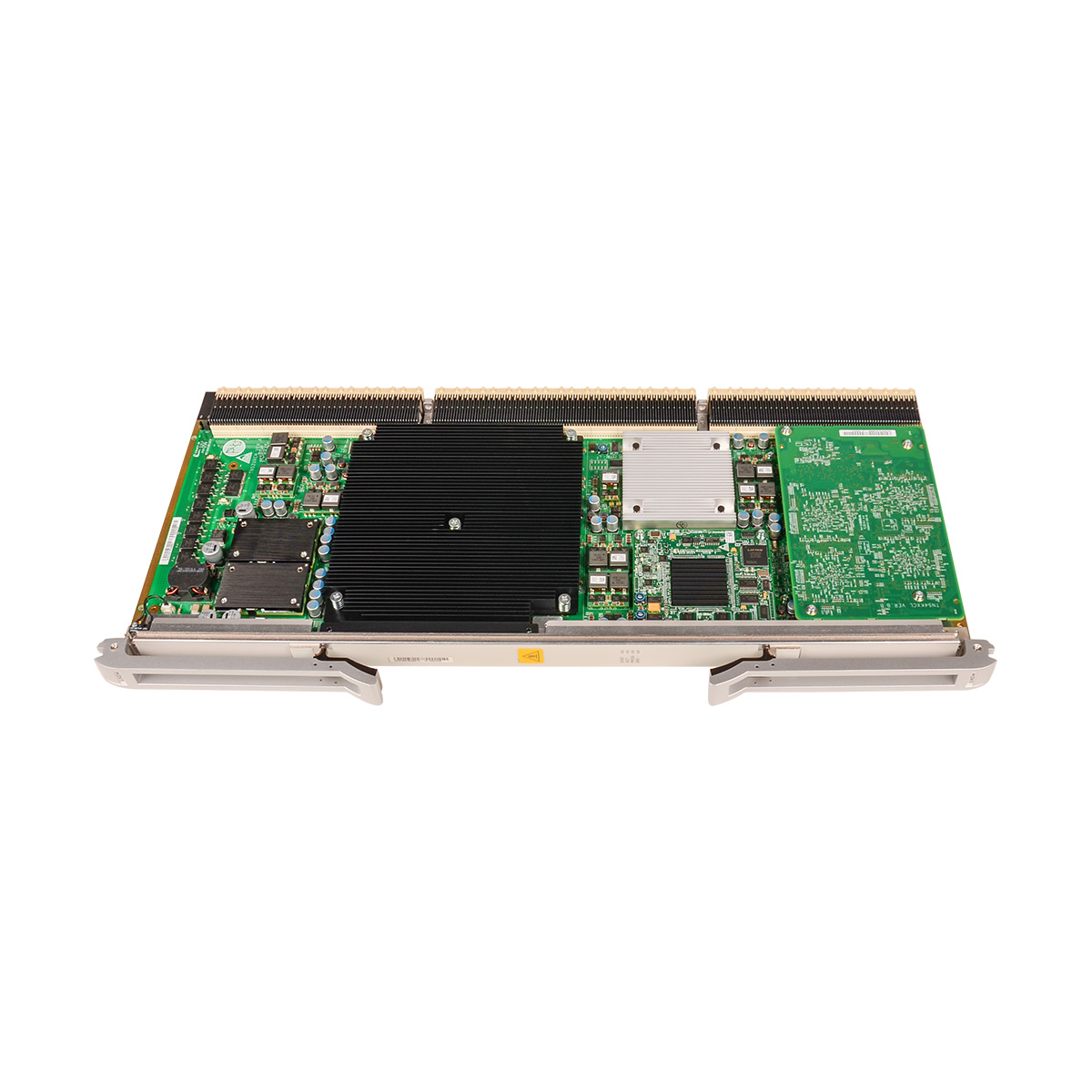

Huawei OSN8800 T32 3.2T Universal Cross Connect Board

Enhanced OptiX OSN 8800 T32 subrack:

Cross-connects a maximum of 3.2 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4or flex) signals.

Performs packet switching of a maximum of 1.6 Tbit/s Ethernet services.

Cross-connects a maximum of 1.28 Tbit/s VC-4 signals.

Cross-connects a maximum of 80 Gbit/s VC-3/VC-12 signals.

Supports hybrid transmission of the above-mentioned services with the maximum cross-connect capacity of 3.2 Tbit/s.

General OptiX OSN 8800 T32 subrack:

Cross-connects a maximum of 2.56 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals.

Performs packet switching of a maximum of 640 Gbit/s Ethernet services.

Cross-connects a maximum of 1.28 Tbit/s VC-4 signals.

Cross-connects a maximum of 80 Gbit/s VC-3/VC-12 signals.

Supports hybrid transmission of the above-mentioned services with the maximum cross-connect capacity of 2.56 Tbit/s.

Mechanical Specifications
Dimensions(mm) 581.5(H) x 27.2(W) x 220(D)
Weight(kg) 4.0
Power Consumption
Power Consumption at Warm Backup (Room Temperature)(W) 119
Power Consumption at Warm Backup (High Temperature)a(W) 131
