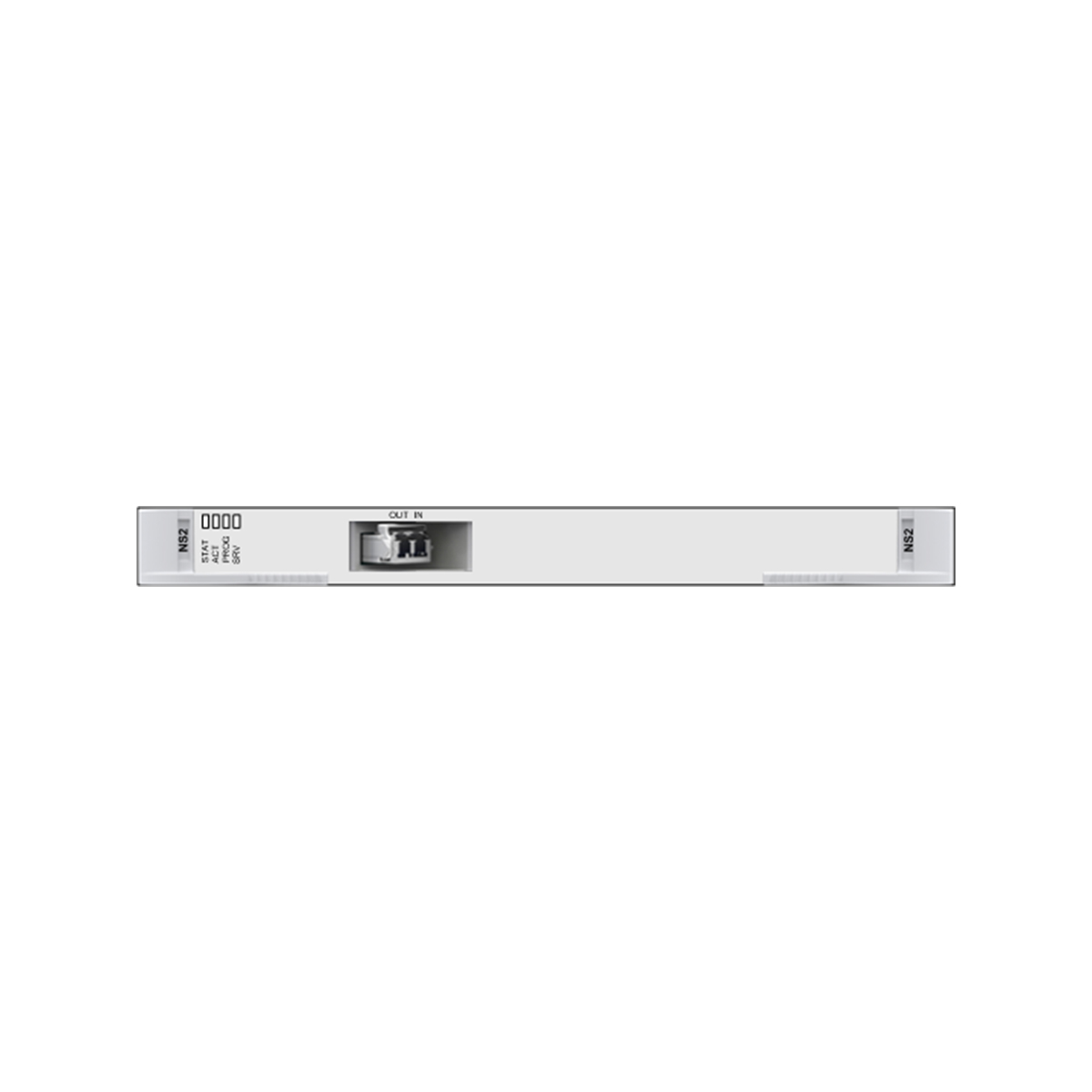

Huawei OptiX OSN 8800 TN53NS2 10G line service processing board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN53NS2 overview



TN11NS3 10G line service processing board applied to OptiX OSN 8800/6800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.



Valid slots for the TN53NS2 board in a OptiX OSN 6800/3800/8800 subrack

Product Valid Slots
OptiX OSN 8800 T64 subrack IU1-IU8, IU11-IU42, IU45-IU68
OptiX OSN 8800 T32 subrack IU1-IU8, IU12-IU27, IU29-IU36
OptiX OSN 8800 T16 subrack IU1-IU8, IU11-IU18
OptiX OSN 6800 subrack IU1-IU8, IU11-IU16
OptiX OSN 3800 chassis IU2-IU5
Item TN53NS2
Basic function NS2 converts signals as follows:
  • TN11NS2:
    • 4xODU1<->1xOTU2
  • TN12NS2:
    • 4xODU1/1xODU2<->1xOTU2
    • 1xODU2e<->1xOTU2e
  • TN52NS2T02/TN52NS2T03:
    • 8xODU0/4xODU1/1xODU2<->1xOTU2
    • 1xODU2e<->1xOTU2e
  • TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02:
    • 8xODU0/4xODU1/1xODU2/2xODUflex<->1xOTU2
    • 1xODU2e<->1xOTU2e
  • TN53NS2:
    • 8xODU0/4xODU1/1xODU2/2xODUflex<->1xOTU2
    • 1xODU2e<->1xOTU2e
Supports mixed transmission of ODU0, ODU1 and ODUflex signals.
Cross-connect capabilities
OptiX OSN 8800:
  • TN52NS2T02/TN52NS2T03: Supports the cross-connection of eight channels of ODU0 signals, four channels of ODU1 signals or one channel of ODU2/ODU2e signals between the NS2 board and the cross-connect board.
  • TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02/TN53NS2: Supports the cross-connection of eight channels of ODU0 signals, four channels of ODU1 signals or two channels of ODUflex signals or one channel of ODU2/ODU2e signals between the NS2 board and the cross-connect board.
OptiX OSN 6800:
  • TN11NS2: Supports the cross-connection of four channels of ODU1 signals between the NS2 board and the cross-connect board or the board in the paired slot.
  • TN12NS2/TN52NS2/TN53NS2: Supports the cross-connection of four channels of ODU1 signals or one channel of ODU2/ODU2e signals between the NS2 board and the cross-connect board.
OptiX OSN 3800:
  • TN11NS2: Supports the grooming of four channels of ODU1 signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
  • TN12NS2/TN52NS2/TN53NS2: Supports grooming of four channels of ODU1 signals to any two boards in the non-paired slots of the four-slot mesh group, that is, supports an ODU1 cross-connection between slots IU2 and IU4, slots IU2 and IU5, slots IU3 and IU4, and slots IU3 and IU5.
OTN function
  • Supports the OTU2/OTU2e interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU2 layer: supports the SM function.
  • ODUk (k=0, 1, 2) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
  • ODUflex layer: supports the PM and PM non-intrusive monitoring functions.
NOTE:
  • Only the TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02/TN53NS2 supports TCM and TCM non-intrusive monitoring for ODU0.
  • Only the TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02/TN53NS2 supports PM and PM non-intrusive monitoring for ODUflex.
WDM specification Supports DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function Supports the PRBS function on the WDM side.
NOTE:
If the TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02/TN53NS2 board interconnects with another line board, PRBS must be enabled for the board and the connected line board. In addition, the PRBS function can take effect on the boards only when the following condition is met: The TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02/TN53NS2 board works in standard mode and ODU0, ODU1, or ODUflex cross-connections are configured for the board, or the board works in compatible mode but no cross-connection is configured for it.
LPT function Not supported
FEC coding
TN11NS2/TN12NS201M02/TN12NS201M03/TN12NS2T02/TN12NS2T03/TN12NS2T04/TN12NS2T05:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC) on the WDM side.
TN12NS2A/TN12NS2B/TN52NS2/TN53NS2:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Regeneration board
  • The WDM-side signals from one TN11NS2/TN12NS201M02/TN12NS201M03/TN12NS2T02/TN12NS2T03/TN12NS2T04/TN12NS2T05 board can be regenerated by another TN11LSXR board.
  • The WDM-side signals from one TN12NS2A/TN12NS2B/TN52NS2/TN53NS2 board can be regenerated by another TN12ND2/TN52ND2/TN53ND2/TN55NO2/TN53NQ2/TN54NQ2 board.
ALS function Not supported
Test frame Not supported
IEEE 1588v2 The TN53NS2 board supports BC and OC mode, do not support TC and TC+OC mode.
Physical clock Supported only when the TN53NS2 board receives ODU0/ODU1/ODUflex signals cross-connected from the backplane
Optical-layer ASON Supported
Electrical-layer ASON Supported by the TN52NS2/TN53NS2.
Protection scheme
  • Supports ODUk SNCP.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
  • Supports ODUk SPRing protection.
  • Supports tributary SNCP protection.
NOTE:
When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection and ODUk SPRing protection.
Loopback Board WDM Side ODU0 Channel Loopback ODU1 Channel Loopback ODUflex Channel Loopback
TN11NS2 Supported Not supported Supported Not supported
TN12NS2 Supported Not supported Supported Not supported
TN52NS2T02 TN52NS2T03 Supported Supported Supported Not supported
TN52NS2T04 TN52NS2T05 TN52NS2T06 TN52NS201M01 TN52NS201M02 TN53NS2 Supported only when the signals is ODU2/ODU2e from the backplane. Supported Supported only when ODU1 signals are received from the backplane. Supported
