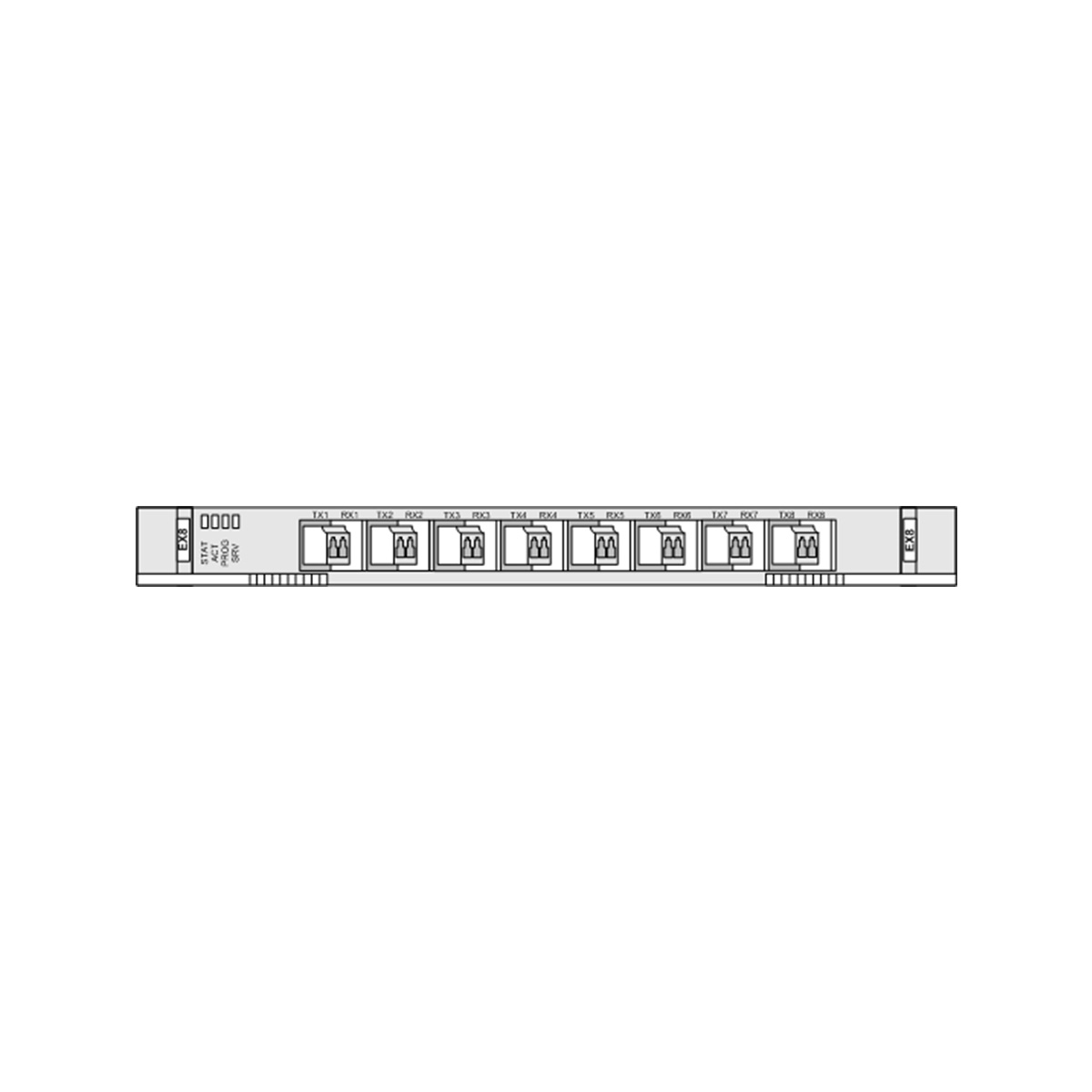

Huawei OptiX OSN 8800 TN54EX8  8 x 10GE ethernet packet switch board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN54EX8 overview

TN54EX8  8 x 10GE ethernet packet switch board applied to OptiX OSN 8800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.



Valid slots for the TN54EX8 board in a OptiX OSN 8800 subrack

Product Valid Slots
OptiX OSN 8800 T32 subrack IU1-IU8, IU12-IU27, IU29-IU36
OptiX OSN 8800 T16 subrack IU1-IU8, IU11-IU18
Item TN54EX8
Basic function Receives and transmits the following services and processes their packets:
  • 8 x 10GE LAN
  • 4 x 10GE WAN
  • 4 x optical or electrical GE/FE signals
Backplane bandwidth 40 Gbit/s
Supported service 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. FE: Ethernet service at a rate of 125 Mbit/s. Supports FE optical signals and FE electrical signals.
NOTE:
10GE WAN signals (only in SDH frame mode) can be only transmitted and received through ports RX1/TX1 to RX4/TX4 Optical or electrical GE/FE signals can be only transmitted and received through ports RX5/TX5 to RX8/TX8, which must be configured as GE ports or FE ports at the same time. Each board receives and transmits one or two channels of electrical signals.
LLDP Supported
Working mode
  • GE optical port: 1000M Full-Duplex, Auto-Negotiation
  • GE electrical port: 10M Full-Duplex, 100M Full-Duplex, 1000M Full-Duplex, Auto–Negotiation
  • FE optical port:100M Full-Duplex
  • 10GE WAN optical port:10G Full-Duplex WAN
  • 10GE LAN optical port:10G Full-Duplex LAN
Port flow control SupportedComply with IEEE802.3x (Only supports response request).
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
MFL The MFL value ranges from 1518 to 9600, in bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL.
Service type E-Line (VPWS), E-LAN (VPLS)
Service bearing medium Port, QinQ link, PW
E-Line PW-based service models Port<->PW
CVLAN<->PW
SVLAN<->PW
CVLAN + CVLAN Pri<->PW
SVLAN + SVLAN Pri<->PW
QinQ link-based service models Port<->QinQ
CVLAN<->QinQ
Port-based service models Port<->Port
CVLAN<->Port
SVLAN<->Port
UNI-UNI service models Port<->Port
CVLAN<->CVLAN, VLAN translation supported
SVLAN<->SVLAN, VLAN translation supported
E-LAN Bridge type IEEE 802.1d, IEEE 802.1q, IEEE 802.1ad
Bridge learning mode SVL, IVL
NOTE:
IVL is supported only when the bridge type is IEEE 802.1ad.
VSI tag type C-Aware, S-Aware, T-Aware

Feature TN54EX8
Protection scheme Tunnel APS Supports the 1+1 and 1:1 protection modes defined in ITU-T G.8131(draft), RFC 6372.
PW APS Supports the 1+1 and 1:1 protection modes defined in ITU-T G.8131(draft), RFC 6372.
LAG Supported. Comply with IEEE 802.1ax.
MC-LAG Supported. Comply with IEEE 802.1ax.
MSTP Supported. Comply with IEEE 802.1q.
LPT Supports point-to-point LPT or point-to-multipoint LPT compliant with Huawei proprietary protocols.
QoS Diffserv Supported, compliant with RFC 2474 and RFC 2475.
Traffic classification Complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing Committed access rate (CAR), two rate three color marker (trTCM) compliant with RFC 4115.
Congestion management Class of service (CoS), supporting SP/WRR scheduling algorithms.
Congestion avoidance WRED, tail dropping.
Traffic shaping Port-based traffic shaping, queue-based traffic shaping.
IGMP Snooping V2 Supported
Maintenance Ethernet service OAM (CFM) Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/G.8013 and ITU-T Y.1730
Ethernet port OAM (EFM) Supported, compliant with IEEE 802.3ah
MPLS-TP OAM Supported, compliant with ITU-T G.8113.1
RMON Supported
Port mirroring Supported
Loopback GE/FE/10GE optical ports GE electrical ports MAC Outloop
MAC Inloop
PHY Outloop
PHY Inloop
Synchronization Physical clock Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission.
NOTE:
FE/GE electrical ports of the board do not support the physical clock function.
IEEE 1588v2 Supports the TC, TC+OC, BC, and OC modes.
NOTE:
FE/GE electrical ports of the board do not support the IEEE 1588v2.
Inband DCN Supported
