TN54NS4
Categories:, , , ,

TN54NS4

0 Reviews Write a review
SKU2033554
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei OptiX OSN 8800 TN56NS3 support 100G line service processing board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN54NS4 overview

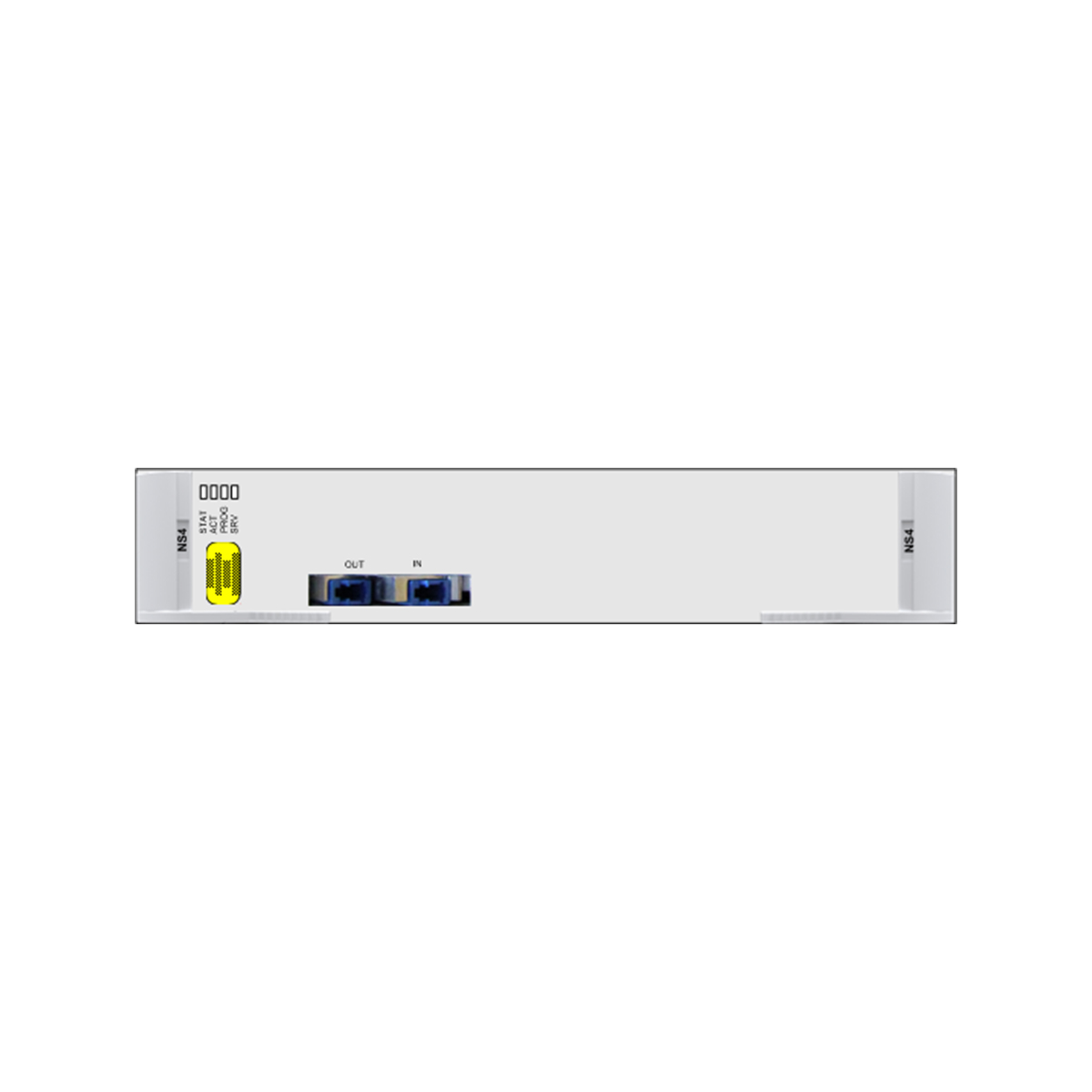

TN54NS4 100G line service processing board applied to OptiX OSN 8800/6800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.



Valid slots for the TN54NS4 board in a OptiX OSN 6800/8800 subrack

Product Valid Slots
OptiX OSN 8800 T64 subrack IU2-IU8, IU12-IU18, IU20-IU26, IU28-IU34, IU36-IU42, IU46-IU52, IU54-IU60, IU62-IU68
OptiX OSN 8800 T32 subrack IU2-IU8, IU13-IU19, IU21-IU27, IU30-IU36
OptiX OSN 8800 T16 subrack IU2-IU8, IU12-IU18
OptiX OSN 8800 universal platform subrack IU4-IU16
Item TN54NS4(Line Mode)
Basic function NS4 converts signals as follows: 80xODU0/80xODUflex/40xODU1/10xODU2/10xODU2e/2xODU3/1xODU4<->1xOTU4 Supports mixed transmission of ODU0, ODU1, ODUflex, ODU2, ODU2e, and ODU3 signals.
Cross-connect capabilities Supports the cross-connection of 80 channels of ODU0/ODUflex signals or 40 channels of ODU1 signals or ten channels of ODU2/ODU2e signals or two channels of ODU3 signals or one channel of ODU4 signals between the NS4 and the cross-connect board.
OTN function
  • Supports the OTU4 interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU4 layer: supports the SM function.
  • ODUk (k=0, 1, 2, 3, 4, flex) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
    NOTE:
    Only the TN56NS4/TN57NS4/TN58NS4/TN59NS4 board supports TCM and TCM non-intrusive monitoring of the ODUflex layer.
WDM specification Supports DWDM specifications.
Tunable wavelength function The TN59NS4 board can tune the optical signal output on the WDM side within the range of 96 wavelengths in extended C-band with the channel spacing of 50 GHz , and other boards can tune the optical signal output on the WDM side within the range of 80 wavelengths in the C-band with the channel spacing of 50 GHz.
ESC function Supported
PRBS function Supports the PRBS function on the WDM side.
LPT function Not supported
FEC coding TN54NS4: Supports HFEC and SDFEC on the WDM side. TN56NS4: Supports SDFEC on the WDM side. TN57NS4: Supports HFEC and SDFEC2 on the WDM side. TN58NS4: Supports SDFEC2 on the WDM side. TN59NS4: Supports SDFEC2 and FEC on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Regeneration board The WDM-side signals from an NS4 board can be regenerated by another NS4 board or an LTX board of the same type. For example,
  • The type of the TN54NS4T01 board is T01, and the TN54NS4T01 board can be regenerated by other NS4 and LTX boards of the T01 type, such as TN54NS4T01, TN57NS4T01, TN11LTXT01, and TN12LTXT01.
ALS function Not supported
Latency measurement
  • TN54NS4/TN56NS4/TN57NS4: not supported.
  • TN58NS4/TN59NS4: When a higher-order cross-connection is created, the board supports TCM latency measurement for upstream higher-order ODU channels. When a lower-order cross-connection is created, the board supports PM/TCM latency measurement for upstream higher-order ODU channels and TCM latency measurement for upstream lower-order ODU channels.
    NOTE:
    In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Supported
NOTE:
TN59NS4: In versions earlier than V100R013C10SPC500, ASON is not supported in high SOP mode. In V100R013C10SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
Electrical-layer ASON Supported
Protection scheme
  • Supports ODUk SNCP.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports tributary SNCP protection.
  • Supports ODUk SPRing protection.
NOTE:
When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection and ODUk SPRing protection.
NOTE:
The TN59NS4 does not support ODUk SPRing protection.
Loopback WDM side Loopback ODU0 Channel Loopback ODU1 Channel Loopback ODU2 Channel Loopback ODU3 Channel Loopback ODUflex Channel Loopback
Supported Supported Supported Supported Supported Supported

Item TN54NS4(Relay Mode)
Basic function The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals.
Regenerating rate OTU4: OTN service at a rate of 111.81 Gbit/s
OTN function
  • Provides the OTU4 interface on WDM-side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • ODU4 layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
  • OTU4 layer: supports the SM function.
WDM specification Supports DWDM specifications.
Tunable wavelength function The TN59NS4 board can tune the optical signal output on the WDM side within the range of 96 wavelengths in extended C-band with the channel spacing of 50 GHz , and other boards can tune the optical signal output on the WDM side within the range of 80 wavelengths in the C-band with the channel spacing of 50 GHz.
ESC function Supported
PRBS function Not supported
FEC coding TN54NS4: Supports HFEC and SDFEC on the WDM side. TN56NS4: Supports SDFEC on the WDM side. TN57NS4: Supports HFEC and SDFEC2 on the WDM side. TN58NS4: Supports SDFEC2 on the WDM side. TN59NS4: Supports SDFEC2 and FEC on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
ALS function Not supported
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme Not supported

Additional information

Item TN54NS4(Line Mode)
Basic function NS4 converts signals as follows: 80xODU0/80xODUflex/40xODU1/10xODU2/10xODU2e/2xODU3/1xODU4<->1xOTU4 Supports mixed transmission of ODU0, ODU1, ODUflex, ODU2, ODU2e, and ODU3 signals.
Cross-connect capabilities Supports the cross-connection of 80 channels of ODU0/ODUflex signals or 40 channels of ODU1 signals or ten channels of ODU2/ODU2e signals or two channels of ODU3 signals or one channel of ODU4 signals between the NS4 and the cross-connect board.
OTN function
  • Supports the OTU4 interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU4 layer: supports the SM function.
  • ODUk (k=0, 1, 2, 3, 4, flex) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
    NOTE:
    Only the TN56NS4/TN57NS4/TN58NS4/TN59NS4 board supports TCM and TCM non-intrusive monitoring of the ODUflex layer.
WDM specification Supports DWDM specifications.
Tunable wavelength function The TN59NS4 board can tune the optical signal output on the WDM side within the range of 96 wavelengths in extended C-band with the channel spacing of 50 GHz , and other boards can tune the optical signal output on the WDM side within the range of 80 wavelengths in the C-band with the channel spacing of 50 GHz.
ESC function Supported
PRBS function Supports the PRBS function on the WDM side.
LPT function Not supported
FEC coding TN54NS4: Supports HFEC and SDFEC on the WDM side. TN56NS4: Supports SDFEC on the WDM side. TN57NS4: Supports HFEC and SDFEC2 on the WDM side. TN58NS4: Supports SDFEC2 on the WDM side. TN59NS4: Supports SDFEC2 and FEC on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Regeneration board The WDM-side signals from an NS4 board can be regenerated by another NS4 board or an LTX board of the same type. For example,
  • The type of the TN54NS4T01 board is T01, and the TN54NS4T01 board can be regenerated by other NS4 and LTX boards of the T01 type, such as TN54NS4T01, TN57NS4T01, TN11LTXT01, and TN12LTXT01.
ALS function Not supported
Latency measurement
  • TN54NS4/TN56NS4/TN57NS4: not supported.
  • TN58NS4/TN59NS4: When a higher-order cross-connection is created, the board supports TCM latency measurement for upstream higher-order ODU channels. When a lower-order cross-connection is created, the board supports PM/TCM latency measurement for upstream higher-order ODU channels and TCM latency measurement for upstream lower-order ODU channels.
    NOTE:
    In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Supported
NOTE:
TN59NS4: In versions earlier than V100R013C10SPC500, ASON is not supported in high SOP mode. In V100R013C10SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
Electrical-layer ASON Supported
Protection scheme
  • Supports ODUk SNCP.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports tributary SNCP protection.
  • Supports ODUk SPRing protection.
NOTE:
When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection and ODUk SPRing protection.
NOTE:
The TN59NS4 does not support ODUk SPRing protection.
Loopback WDM side Loopback ODU0 Channel Loopback ODU1 Channel Loopback ODU2 Channel Loopback ODU3 Channel Loopback ODUflex Channel Loopback
Supported Supported Supported Supported Supported Supported

Item TN54NS4(Relay Mode)
Basic function The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals.
Regenerating rate OTU4: OTN service at a rate of 111.81 Gbit/s
OTN function
  • Provides the OTU4 interface on WDM-side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • ODU4 layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
  • OTU4 layer: supports the SM function.
WDM specification Supports DWDM specifications.
Tunable wavelength function The TN59NS4 board can tune the optical signal output on the WDM side within the range of 96 wavelengths in extended C-band with the channel spacing of 50 GHz , and other boards can tune the optical signal output on the WDM side within the range of 80 wavelengths in the C-band with the channel spacing of 50 GHz.
ESC function Supported
PRBS function Not supported
FEC coding TN54NS4: Supports HFEC and SDFEC on the WDM side. TN56NS4: Supports SDFEC on the WDM side. TN57NS4: Supports HFEC and SDFEC2 on the WDM side. TN58NS4: Supports SDFEC2 on the WDM side. TN59NS4: Supports SDFEC2 and FEC on the WDM side.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
ALS function Not supported
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme Not supported
