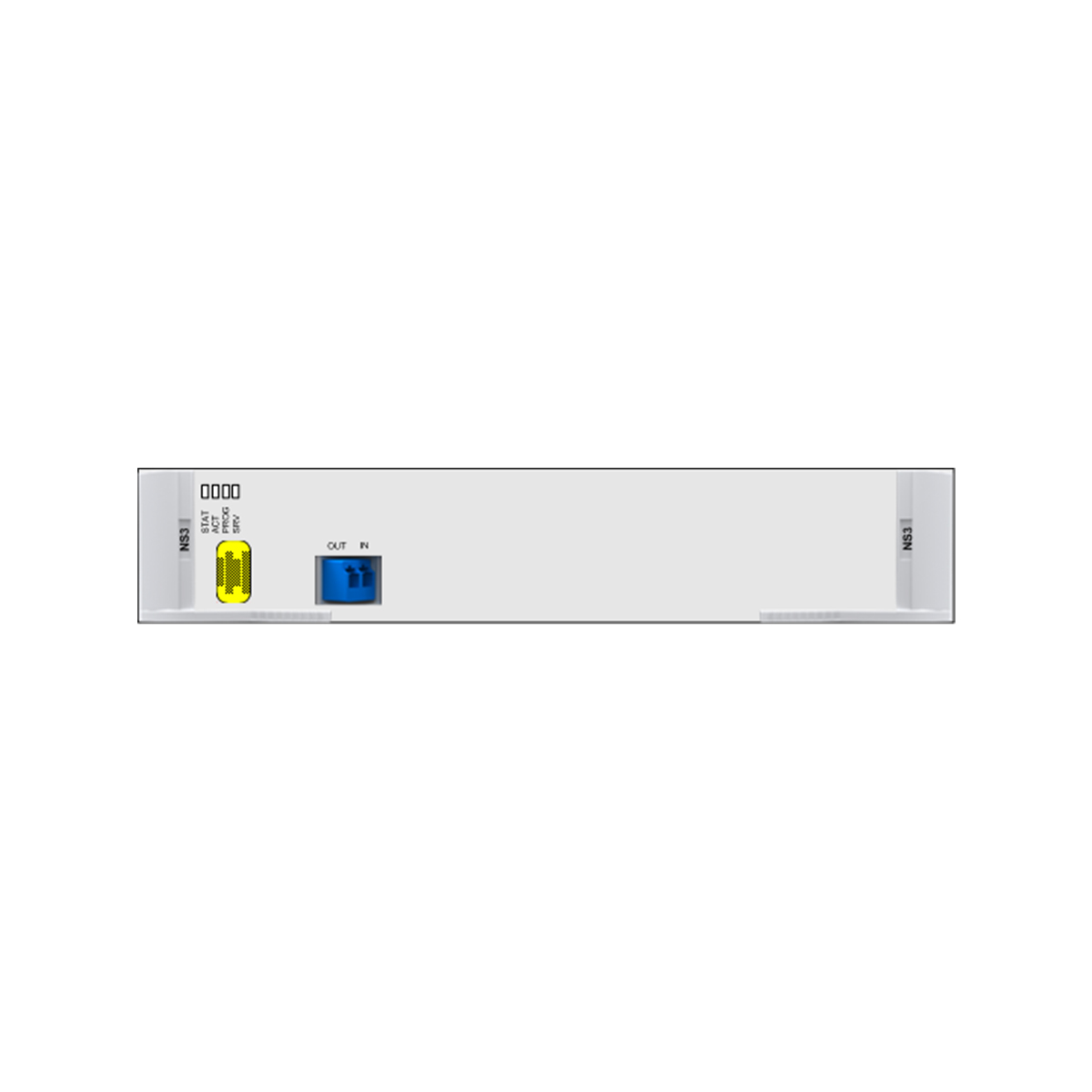

Huawei OptiX OSN 8800 TN55NS3 support 40G line service processing board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN55NS3 overview



TN55NS3 40G line service processing board applied to OptiX OSN 8800/6800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.



Valid slots for the TN55NS3 board in a OptiX OSN 6800/8800 subrack

Product Valid Slots
OptiX OSN 8800 T64 subrack IU2-IU8, IU12-IU18, IU20-IU26, IU28-IU34, IU36-IU42, IU46-IU52, IU54-IU60, IU62-IU68
OptiX OSN 8800 T32 subrack IU2-IU8, IU13-IU19, IU21-IU27, IU30-IU36
OptiX OSN 8800 T16 subrack IU2-IU8, IU12-IU18
OptiX OSN 8800 universal platform subrack IU4-IU16
OptiX OSN 6800 subrack IU2-IU8, IU12-IU16
Item TN55NS3(Line Mode)
Basic function
NS3 converts signals as follows:
  • TN11NS3:
    • 4xODU2<->1xOTU3/OTU3e
    • 4xODU2e<->1xOTU3e
  • TN52NS3:
    • 32xODU0/16xODU1/4xODU2<->1xOTU3/OTU3e
    • 4xODU2e<->1xOTU3e
  • TN54NS3/TN55NS3:
    • 32xODU0/16xODU1/4xODU2<->1xOTU3/OTU3e
    • 4xODU2e<->1xOTU3e
    • 1xODU3<->1xOTU3
  • TN56NS3:
    • 32xODU0/32xODUflex/16xODU1/4xODU2<->1xOTU3/OTU3e
    • 4xODU2e<->1xOTU3e
    • 1xODU3<->1xOTU3
    • 16xSTM-16/4xSTM-64<->1xOTU3/OTU3e
The TN52NS3/TN54NS3/TN55NS3 board supports hybrid transmission of ODU0/ODU1/ODU2/ODU2e signals. The TN56NS3 board supports hybrid transmission of ODU0/ODU1/ODU2/ODU2e/ODUflex/VC-4 signals. When the mixed signals contain an ODU2e signal, they must be mapped into an OTU3e signal. The TN11NS3/TN52NS3/TN54NS3 board supports dispersion compensation for signals received on the WDM side.
Cross-connect capabilities Supports cross-connections with cross-connect boards.
OptiX OSN 8800:
  • TN52NS3: 32xODU0/16xODU1/4xODU2/4xODU2e
  • TN54NS3/TN55NS3: 32xODU0/16xODU1/4xODU2/4xODU2e/1xODU3TN56NS3: 32xODU0/32xODUflex/16xODU1/4xODU2/4xODU2e/1xODU3/256xVC-4
    NOTE:
    When the TN56NS3 board is installed in an OptiX OSN 8800 T64 subrack, the board supports a maximum of 128 VC-4 services. This limit does not apply when the board is installed in an OptiX OSN 8800 T32/T16 subrack.
OptiX OSN 6800:
  • TN11NS3: 4xODU2/4xODU2e
  • TN52NS3: 16xODU1/4xODU2/4xODU2e
OTN function
  • Supports the OTU3/OTU3e interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU3 layer: supports the SM function.
  • ODUk (k=0, 1, 2, 3, flex) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
NOTE:
Only the TN56NS3 board supports TCM and TCM non-intrusive monitoring of the ODU0 and ODUflex layer.
SDH service processing Supports the VC-12 services, VC-3 services, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services.
SDH overhead processing Only the TN56NS3 board supports the following functions:
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
NOTE:
The TN56NS3 board supports D4–D12 overhead processing. It does not support D1–D3 overhead processing.
WDM specification Supports DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function TN52NS3/TN54NS3/TN55NS3/TN56NS3 supports the PRBS function on the WDM side.
LPT function Not supported
FEC coding
TN11NS3/TN52NS3:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC) on the WDM side.
TN54NS3:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
TN55NS3/TN56NS3:
  • Supports HFEC.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
  • Supports CD and PMD performance monitoring.
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.
NOTE:
Only the TN54NS3 supports Poisson mode. Only the TN55NS3/TN56NS3 board supports CD and PMD performance monitoring. Only the TN56NS3 board supports B1/B2 byte monitoring.
Regeneration board
  • The WDM-side signals of the TN11NS3/TN52NS3 board can be regenerated by a TN12LSXLR board.
  • The WDM-side signals of the TN54NS3 board can be regenerated using another TN54NS3 board.
  • The WDM-side signals of the TN55NS3/TN56NS3 board can be regenerated using another TN55NS3/TN56NS3 board.
ALS function Not supported
Latency measurement TN11NS3: Not supported TN52NS3/TN54NS3/TN55NS3: Supports the PM Latency measurement. TN56NS3: Supports the PM and TCM Latency measurement.
MSI configuration Only supported by the TN56NS3 board.
Test frame Not supported
IEEE 1588v2 The TN54NS3 board supports BC and OC mode, do not support TC and TC+OC mode.
Physical clock (OTN) The TN54NS3 board supports this feature only when ODU0, ODU1 or ODU2/ODU2e signals are cross-connected from the backplane.
Optical-layer ASON Supported
Electrical-layer ASON (OTN) Supported by the TN52NS3, TN54NS3, TN55NS3, and TN56NS3.
Electrical-layer ASON (SDH) Supported only by the TN56NS3 board.
NOTE:
When being installed in a T16 subrack, the board does not support SDH ASON.
Protection scheme OTN protection
  • Supports ODUk SNCP.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports ODUk SPRing protection.
  • Supports tributary SNCP protection.
  • Supports OWSP protection.
SDH protection
  • SNCP
  • SNCTP
  • LMSP
  • Two-fiber bidirectional ring MSP.
NOTE:
Only TN52NS3 supports OWSP protection. When the grooming granularity is ODUflex, ODUk SPRing and tributary SNCP protection types are not supported.
Loopback Board WDM side ODU0/ODU1/ODU2 Channel Loopback ODUflex Channel Loopback VC-4 Channel Loopback
TN11NS3 Supported ODU0/ODU1: NA ODU2: Supported N/A N/A
TN52NS3 Supported Supported N/A N/A
TN54NS3 Supported Supported N/A N/A
TN55NS3 Supported Supported N/A N/A
TN56NS3 Supported Supported Supported Supported

Item TN55NS3(Relay Mode)
Basic function The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals.
Regenerating rate OTU3: OTN service at a rate of 43.02 Gbit/s OTU3e: OTN service at a rate of 44.58 Gbit/s
OTN function
  • Supports the OTU3/OTU3e interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU3 layer: supports the SM function.
  • ODU3 layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
WDM specification Supports DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function Not supported
FEC coding
TN54NS3:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
TN55NS3/TN56NS3:
  • Supports HFEC.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
NOTE:
Only the TN54NS3 supports Poisson mode.
ALS function Not supported
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme Not supported
Loopback Not supported

Additional information

Item TN55NS3(Line Mode)
Basic function
NS3 converts signals as follows:
  • TN11NS3:
    • 4xODU2<->1xOTU3/OTU3e
    • 4xODU2e<->1xOTU3e
  • TN52NS3:
    • 32xODU0/16xODU1/4xODU2<->1xOTU3/OTU3e
    • 4xODU2e<->1xOTU3e
  • TN54NS3/TN55NS3:
    • 32xODU0/16xODU1/4xODU2<->1xOTU3/OTU3e
    • 4xODU2e<->1xOTU3e
    • 1xODU3<->1xOTU3
  • TN56NS3:
    • 32xODU0/32xODUflex/16xODU1/4xODU2<->1xOTU3/OTU3e
    • 4xODU2e<->1xOTU3e
    • 1xODU3<->1xOTU3
    • 16xSTM-16/4xSTM-64<->1xOTU3/OTU3e
The TN52NS3/TN54NS3/TN55NS3 board supports hybrid transmission of ODU0/ODU1/ODU2/ODU2e signals. The TN56NS3 board supports hybrid transmission of ODU0/ODU1/ODU2/ODU2e/ODUflex/VC-4 signals. When the mixed signals contain an ODU2e signal, they must be mapped into an OTU3e signal. The TN11NS3/TN52NS3/TN54NS3 board supports dispersion compensation for signals received on the WDM side.
Cross-connect capabilities Supports cross-connections with cross-connect boards.
OptiX OSN 8800:
  • TN52NS3: 32xODU0/16xODU1/4xODU2/4xODU2e
  • TN54NS3/TN55NS3: 32xODU0/16xODU1/4xODU2/4xODU2e/1xODU3TN56NS3: 32xODU0/32xODUflex/16xODU1/4xODU2/4xODU2e/1xODU3/256xVC-4
    NOTE:
    When the TN56NS3 board is installed in an OptiX OSN 8800 T64 subrack, the board supports a maximum of 128 VC-4 services. This limit does not apply when the board is installed in an OptiX OSN 8800 T32/T16 subrack.
OptiX OSN 6800:
  • TN11NS3: 4xODU2/4xODU2e
  • TN52NS3: 16xODU1/4xODU2/4xODU2e
OTN function
  • Supports the OTU3/OTU3e interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU3 layer: supports the SM function.
  • ODUk (k=0, 1, 2, 3, flex) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
NOTE:
Only the TN56NS3 board supports TCM and TCM non-intrusive monitoring of the ODU0 and ODUflex layer.
SDH service processing Supports the VC-12 services, VC-3 services, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services.
SDH overhead processing Only the TN56NS3 board supports the following functions:
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
NOTE:
The TN56NS3 board supports D4–D12 overhead processing. It does not support D1–D3 overhead processing.
WDM specification Supports DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function TN52NS3/TN54NS3/TN55NS3/TN56NS3 supports the PRBS function on the WDM side.
LPT function Not supported
FEC coding
TN11NS3/TN52NS3:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC) on the WDM side.
TN54NS3:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
TN55NS3/TN56NS3:
  • Supports HFEC.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
  • Supports CD and PMD performance monitoring.
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.
NOTE:
Only the TN54NS3 supports Poisson mode. Only the TN55NS3/TN56NS3 board supports CD and PMD performance monitoring. Only the TN56NS3 board supports B1/B2 byte monitoring.
Regeneration board
  • The WDM-side signals of the TN11NS3/TN52NS3 board can be regenerated by a TN12LSXLR board.
  • The WDM-side signals of the TN54NS3 board can be regenerated using another TN54NS3 board.
  • The WDM-side signals of the TN55NS3/TN56NS3 board can be regenerated using another TN55NS3/TN56NS3 board.
ALS function Not supported
Latency measurement TN11NS3: Not supported TN52NS3/TN54NS3/TN55NS3: Supports the PM Latency measurement. TN56NS3: Supports the PM and TCM Latency measurement.
MSI configuration Only supported by the TN56NS3 board.
Test frame Not supported
IEEE 1588v2 The TN54NS3 board supports BC and OC mode, do not support TC and TC+OC mode.
Physical clock (OTN) The TN54NS3 board supports this feature only when ODU0, ODU1 or ODU2/ODU2e signals are cross-connected from the backplane.
Optical-layer ASON Supported
Electrical-layer ASON (OTN) Supported by the TN52NS3, TN54NS3, TN55NS3, and TN56NS3.
Electrical-layer ASON (SDH) Supported only by the TN56NS3 board.
NOTE:
When being installed in a T16 subrack, the board does not support SDH ASON.
Protection scheme OTN protection
  • Supports ODUk SNCP.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports ODUk SPRing protection.
  • Supports tributary SNCP protection.
  • Supports OWSP protection.
SDH protection
  • SNCP
  • SNCTP
  • LMSP
  • Two-fiber bidirectional ring MSP.
NOTE:
Only TN52NS3 supports OWSP protection. When the grooming granularity is ODUflex, ODUk SPRing and tributary SNCP protection types are not supported.
Loopback Board WDM side ODU0/ODU1/ODU2 Channel Loopback ODUflex Channel Loopback VC-4 Channel Loopback
TN11NS3 Supported ODU0/ODU1: NA ODU2: Supported N/A N/A
TN52NS3 Supported Supported N/A N/A
TN54NS3 Supported Supported N/A N/A
TN55NS3 Supported Supported N/A N/A
TN56NS3 Supported Supported Supported Supported

Item TN55NS3(Relay Mode)
Basic function The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals.
Regenerating rate OTU3: OTN service at a rate of 43.02 Gbit/s OTU3e: OTN service at a rate of 44.58 Gbit/s
OTN function
  • Supports the OTU3/OTU3e interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU3 layer: supports the SM function.
  • ODU3 layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
WDM specification Supports DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function Not supported
FEC coding
TN54NS3:
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.
  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.
TN55NS3/TN56NS3:
  • Supports HFEC.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Poisson mode or Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
NOTE:
Only the TN54NS3 supports Poisson mode.
ALS function Not supported
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme Not supported
Loopback Not supported
